| Quantity: | |
|---|---|
950-1150mm
YUMI
Product Properties:
☆Low-cost：Light-self-weight-installation save the cost of the lifting devices.
☆Strong load-bearing capacity：High strength and rigidness feature can bear heavy-weight construction and protect building.
☆Heat-insulation: Average thermal conductivity is 0.021w/m.k.
☆Waterproof:Hidden screw joint types make it play much better in waterproof performance.
☆Various color:Many colors for your reference.
Product Details:
| Panel effective width | Roof:950/960mm Wall:950/1150mm |
| Steel sheet thickness | 0.40~0.70mm |
| Panel thickness | 50/75/100/150/200mm |
| EPS density | 8~20kg/m³ |
| Color | As per RAL or customized |
| Coating | PE,SMP,HDP,PVDF |
| Steel type | PPGL,PPGI steel/Aluminum sheet/Stainless steel sheet |
| Length limitaion | Max 5.9m for 20FT Max 11.9m for 40FT |
| Installation accessories | Aluminum U channels,self screws,flashings,etc |
| Joint way | Hidden screws type |
Application:

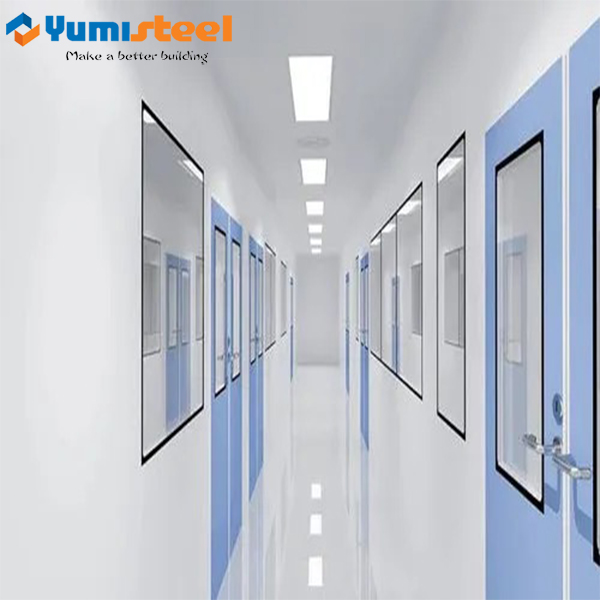

EPS sandwich panels are suitable for cleanrooms, warehouses, cold storage, shops, etc.
Packing&Delivery:
☆Packing:
Seaworthy packing standards;
PVC on both sides to protect the roof panel surfaces;
Packed with kraft paper to protect the panel ends;
Put EPS foam on the each space to keep the panels from squeezing each other;
If you have special requirement ,please feel free to discuss with us .This is to make us improved,and to protect your goods well.
☆Delivery:
Delivery time for regular colors,coating types and thickness:7-10 days;
Delivery time for special colors,coating types and thickness:15-25 days.
Delivery term:FOB/CIF/CFR/DDP is available.
We can find good forwarder for customer or accept appointed forwarder from customer.
Product Properties:
☆Low-cost：Light-self-weight-installation save the cost of the lifting devices.
☆Strong load-bearing capacity：High strength and rigidness feature can bear heavy-weight construction and protect building.
☆Heat-insulation: Average thermal conductivity is 0.021w/m.k.
☆Waterproof:Hidden screw joint types make it play much better in waterproof performance.
☆Various color:Many colors for your reference.
Product Details:
| Panel effective width | Roof:950/960mm Wall:950/1150mm |
| Steel sheet thickness | 0.40~0.70mm |
| Panel thickness | 50/75/100/150/200mm |
| EPS density | 8~20kg/m³ |
| Color | As per RAL or customized |
| Coating | PE,SMP,HDP,PVDF |
| Steel type | PPGL,PPGI steel/Aluminum sheet/Stainless steel sheet |
| Length limitaion | Max 5.9m for 20FT Max 11.9m for 40FT |
| Installation accessories | Aluminum U channels,self screws,flashings,etc |
| Joint way | Hidden screws type |
Application:
EPS sandwich panels are suitable for cleanrooms, warehouses, cold storage, shops, etc.
Packing&Delivery:
☆Packing:
Seaworthy packing standards;
PVC on both sides to protect the roof panel surfaces;
Packed with kraft paper to protect the panel ends;
Put EPS foam on the each space to keep the panels from squeezing each other;
If you have special requirement ,please feel free to discuss with us .This is to make us improved,and to protect your goods well.
☆Delivery:
Delivery time for regular colors,coating types and thickness:7-10 days;
Delivery time for special colors,coating types and thickness:15-25 days.
Delivery term:FOB/CIF/CFR/DDP is available.
We can find good forwarder for customer or accept appointed forwarder from customer.
