Product introduction
Engineered for extreme weather resilience, Hongxinyuan's 360° standing seam photovoltaic panels prevent leakage from heavy precipitation and wind uplift. Integrating thermal insulation, solar panel compatibility, and superior airtightness.
Optional Core Materials:
Polyurethane-edged rock wool sandwich core
Polyurethane-edged fiberglass sandwich core
Polyurethane core
Product specification
Panel type : | Roof sandwich panels for solar photovoltaic system | ||
Effective width | 950/1000mm | ||
Panel thickness | 50/ 75/ 100/ 150mm | ||
Coating type | PE, SMP, HDP, PVDF | ||
Steel sheet (GI/PPGI/PPGL) | 0.40-0.75 mm | ||
Aluminum metal sheets | 0.60-1.20 mm | ||
Surface sheets | Steel sheet (GI/PPGI/PPGL): 0.40-0.75 mm | ||
Aluminum metal sheets:0.60-1.20 mm | |||
Aluminum foils:0.065 mm | |||
PVC sheets | |||
Core material | PIR/PUR | Rockwool with PU edges | Glass wool with PU edges |
Core density | 35-45 kg/m3 | 110-150 kg/m3 | 48-64 kg/m3 |
Thermal conductivity | ≤0.023 w/m· k | 0.035-0.041 w/m·k | 0.035-0.041 w/m·k |
Product advantages
☆Wind Uplift Resistance
Interlocking seams and roof-wide sliding mechanism eliminate stress from thermal expansion/contraction.
☆Airtight Acoustic Insulation
Significantly dampens impact noise (rain/hail) with enhanced sound absorption.
☆Eco-Friendly
Formaldehyde-free, microbial-resistant, and 100% recyclable.
☆Rapid Installation
Factory-produced under controlled conditions ensures consistent quality and accelerated construction.
Product application
These insulated metal panels provide a seamless, weatherproof roofing system with integrated solar PV mounting. Ideal for commercial and industrial buildings, they enhance energy efficiency while supporting clean power generation. Durable, lightweight, and easy to install, they optimize roof space for maximum solar output.
Installation of roof panels for solar panels

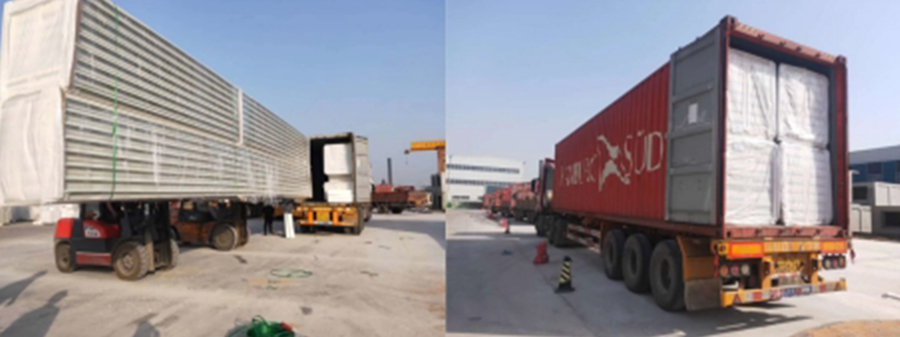

Packing & Delivery
☆ Packing
Seaworthy packing standards
If there is other package requested,please feel free to discuss with Yumisteel sales team.
☆Delivery
Delivery time for regular colors,coating types and thickness: 10-15 days ;
Delivery time for special colors,coating types and thickness: 15-25 days ;
Delivery term: FOB/CIF/CFR/DDP is available;
We can find good forwarder for customer or accept appointed forwarder from customers。
Service&Support
☆Service
Xiamen Yumin Xincailiaokeji Co., Ltd. is one combination of industry and trade company, and very professional with steel structure products in China. We are proud of our product quality and customer service and competitive price.And our products are sold worldwide, such as America, South America, Europe, Southeast Asia, Africa etc.
1)Professional sales team,One-to-one service;
2)Combination of industry and trade company,to ensure the service and price;
3)Experienced engineer team to offer professional technology service;
4)Intimate after-sales service.
☆Support
Experienced technology suport, competitive price, professional service, we are here to help you go on with your project smoothly.
