Product Introduction

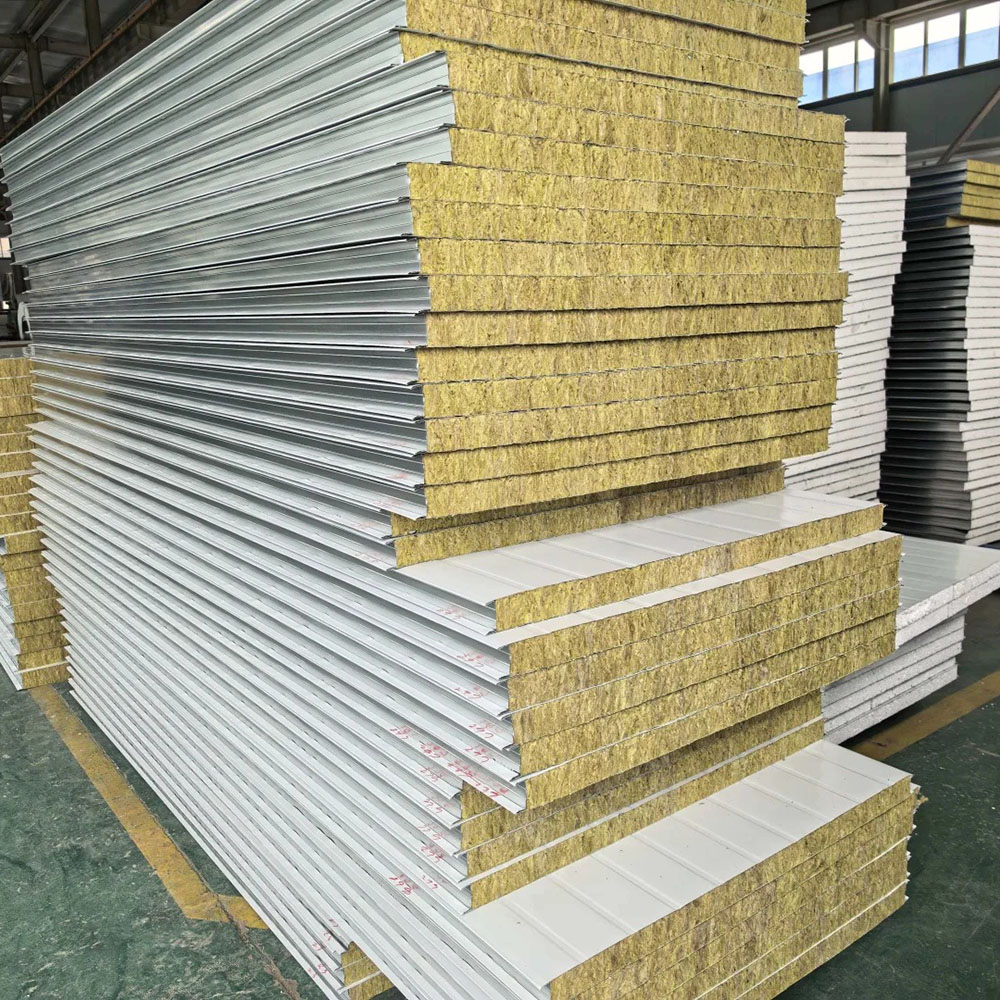

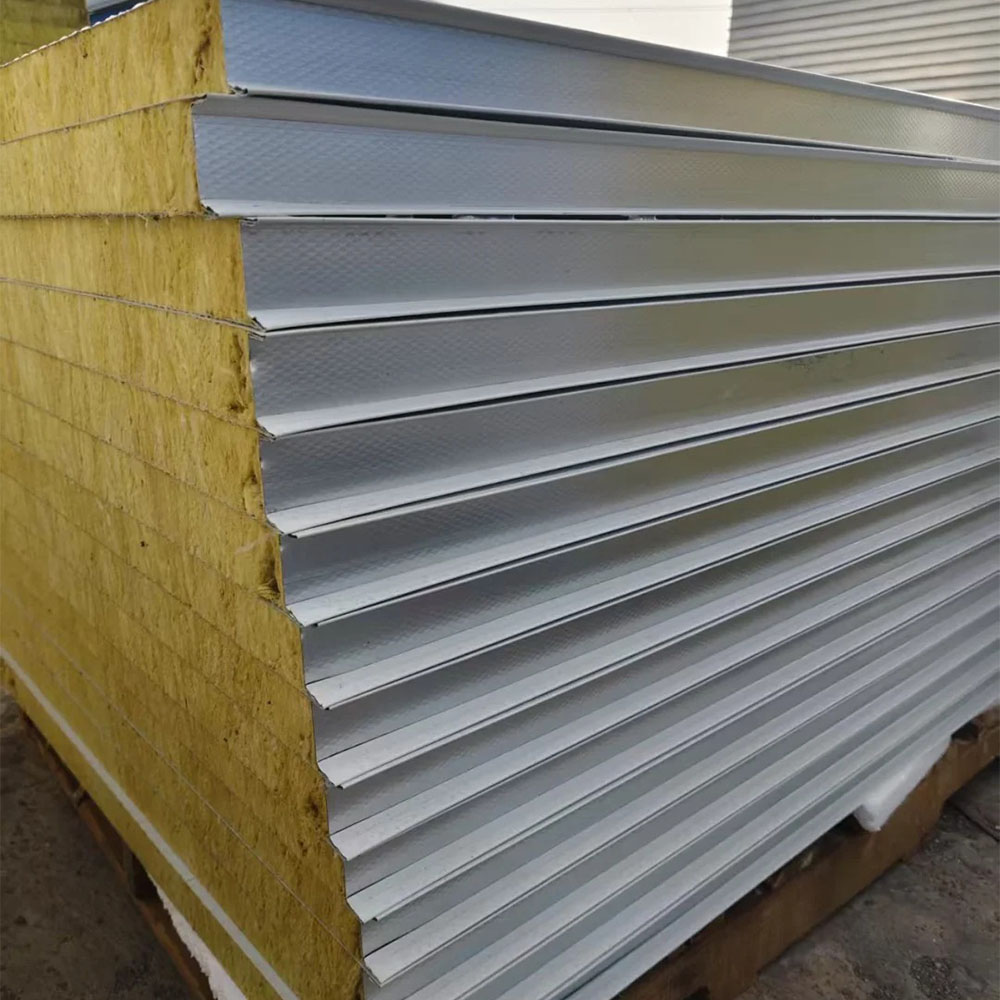

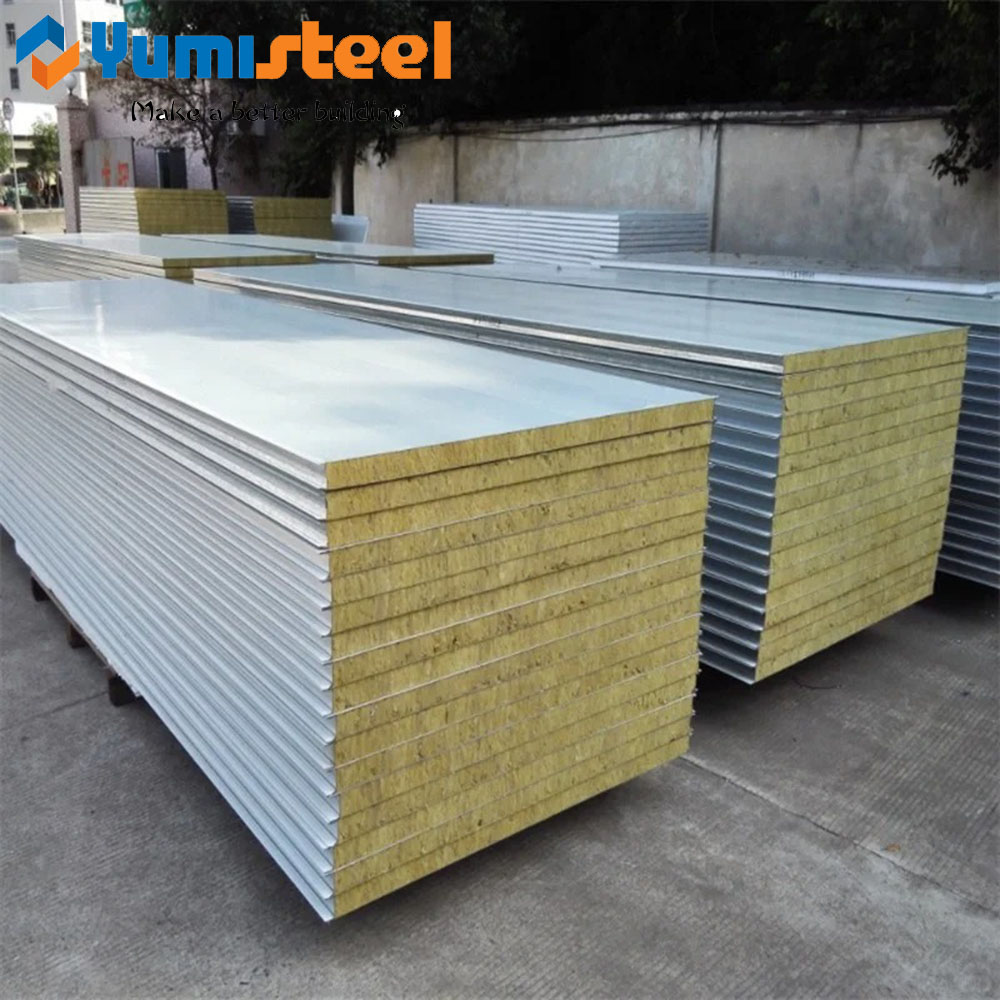

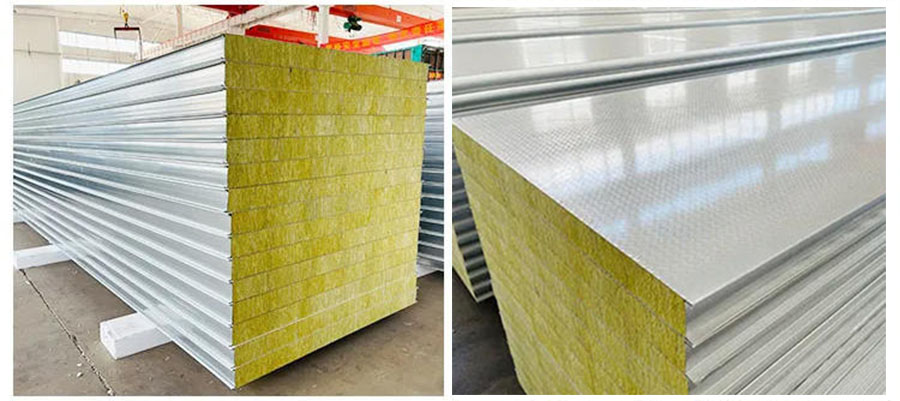

Rock Wool Sandwich Panel
This panel has two corrosion resistant steel sheets on the outside. The core is high density rock wool. This structure gives you A2 fireproof protection, great thermal insulation, and strong sound absorption. The steel faces add mechanical strength and impact resistance. You can use it for walls, roofs, and partitions in warehouses, factories, and prefab buildings.
Product Specification
Specification | Details |
Panel Thickness | 50mm, 75mm, 100mm, 120mm, 150mm, 200mm |
Panel Width | 1000mm (standard), 950mm, 600mm (optional) |
Panel Length | 2000mm–12000mm (custom) |

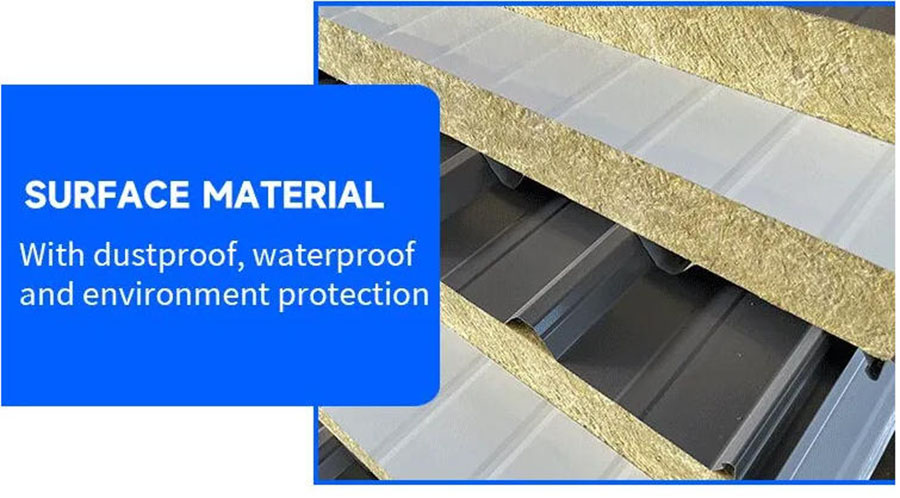

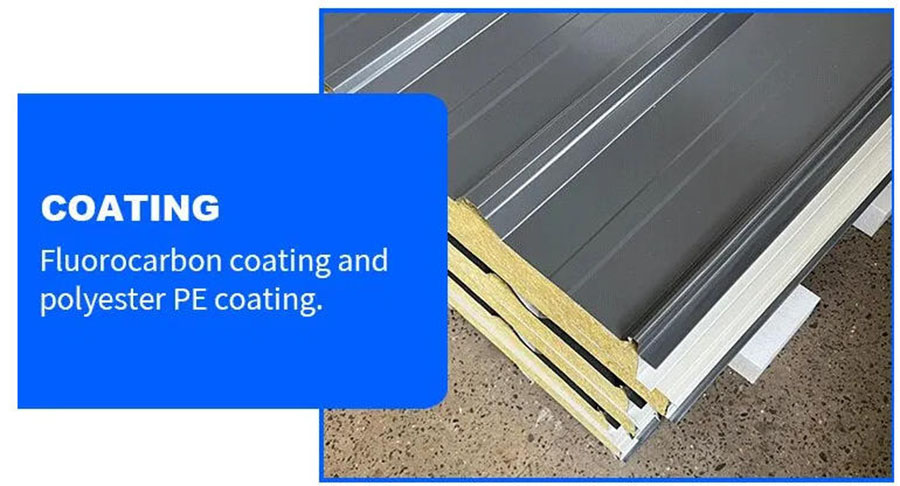

Steel Facings | Pre painted galvanized steel / color coated steel |
Steel Thickness | 0.4mm–0.8mm (both sides) |

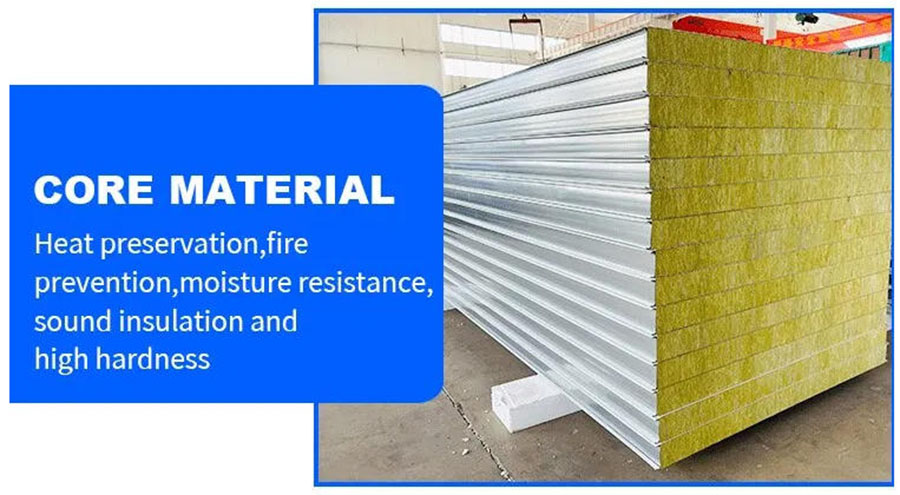

Core Material | Rock wool (stone wool) |
Density | 80–160kg/m³ |
Thermal Conductivity (λ) | ≤ 0.040 W/(m·K) |
Fire Rating | A1 – A2 (non-combustible) |
Sound Absorption Coefficient (NRC) | 0.85 – 0.95 |
Sound Reduction Index (Rw) | 30 – 45 dB (depending on thickness) |
Melting Point | > 1000°C |
Water Vapor Permeability (μ) | 1 (no capillary effect) |
Joint System | Steel tongue-and-groove / concealed fastener |
Compressive Strength | (10% deformation) ≥ 40 kPa |
Application Temperature | -40°C to +200°C |
Applications | Warehouses, workshops, industrial plants, logistics centers, commercial roofs, partition walls, fire-rated enclosures |
