Product Details
PIR Sandwich panel instruction:
Wall sandwich panel with visible joint PIR is used to construct external walls and internal partitions in the single- or multiple-span shell structure. The panel can be installed both vertically and horizontally. PIR sandwich panel is characterized by very good thermal insulation properties and strength, as well as very high fire resistance properties. The core of the panel comprises polyisocyanurate foam (PIR) of 40 kg/m3 in total density.
Tongue and groove joint:
Panel Specification：
Panel effective width: | 920~1120 mm |
Surface sheets: | Steel sheets(0.40 ~ 0.70 mm); 304 Stainless stee(0.40~0.50mm); Al-Mg-Mn alloy metal sheets(0.60~0.90mm). |
Panel thickness: | 30/35/40/50/75/100/150/200/250 mm |
Core material density: | 38 ~ 42 KG/M³ |
Regular color: | White grey, Sea blue, White sliver grey |
Special color: | As per RAL or customized |
Coating advice: | PE, SMP, HDP,PVDF, etc. |
Length limitation: | Max 5.9m for 20FT; |
Max 11.95m for 40FT. | |
Main application: | Cold room,food factory,cool room,freezer room,etc. |

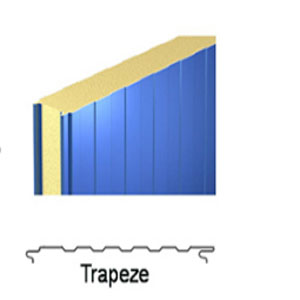

Available sandwich panel ribs type for choices:
|
|
|
Panel features:
☆ Profiled lining with a unique surface design;
☆ Large lining bend radius guarantees durability of the protective coating;
☆ Seamless polyurethane seal, applied in manufacture, guarantees joint tightness;
☆ Capillary action preventing chamber;
☆ Core made of stiff, freon-free, self-extinguishing PIR/PIR+ foam with very good thermal insulation properties;
☆ Profiled edges guarantee tightness of joint;
Application:
PIR sandwich wall panel or Polyisocyanurate sandwich wall panel are applied as external walls and internal division walls, installed vertically or horizontally on single or multi-span structure.
Such as Industrial buildings, Steel frame structure buildings, Storehouses, and logistic centers, Commercial buildings and offices, Fire Rated Buildings, Agricultural objects, Sports halls, Logistics centers.

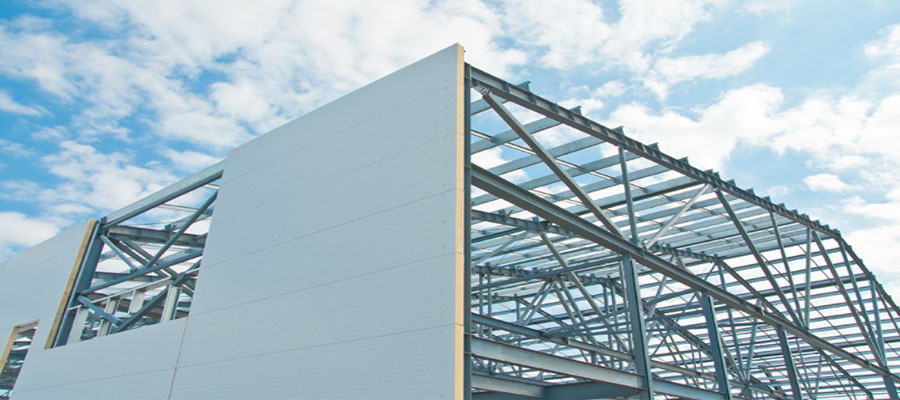

As wall insulated panels of factory building:

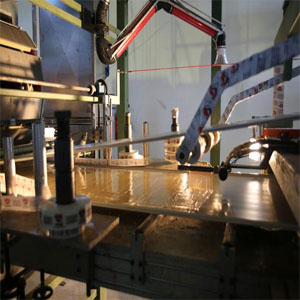

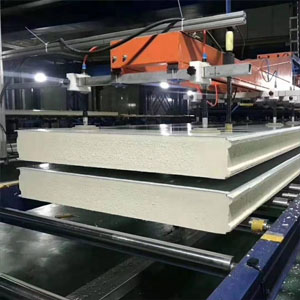

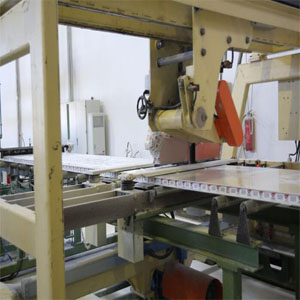

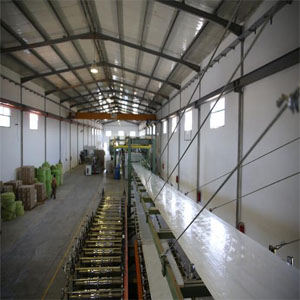

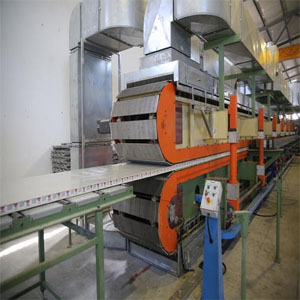

Producing process:
 |  |  |
 |  |  |

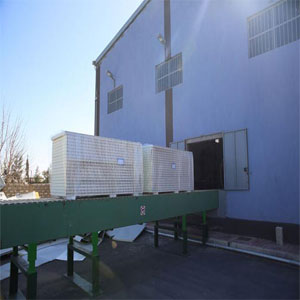

Panel Packing & Storage:
☆Packing:
Seaworthy packing standards.
Put EPS foam on the each space to keep the panels from squeezing each other.
If you have specail requirement,please fee free to discuss with us.This is to make us improved and pretect the goods well.
