Product introduction

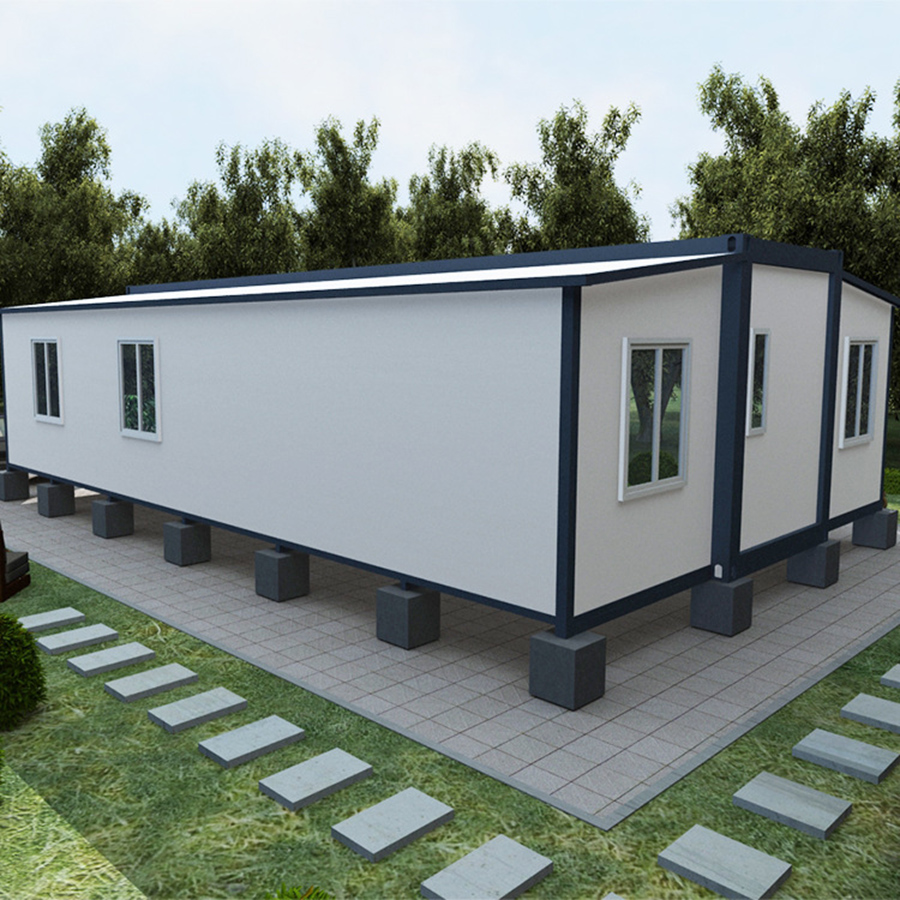

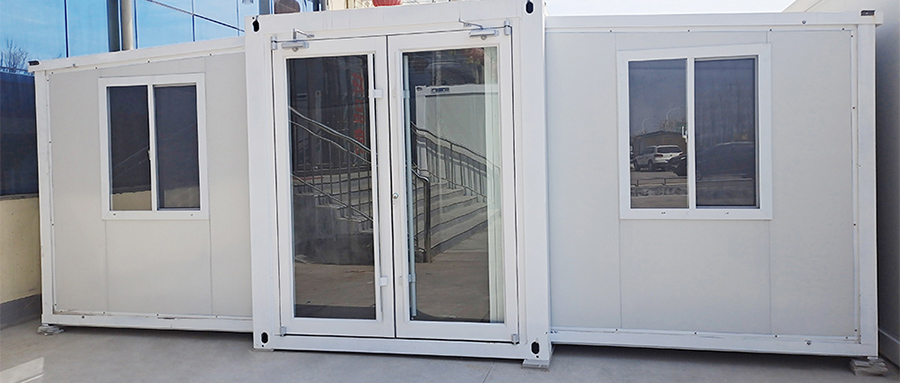

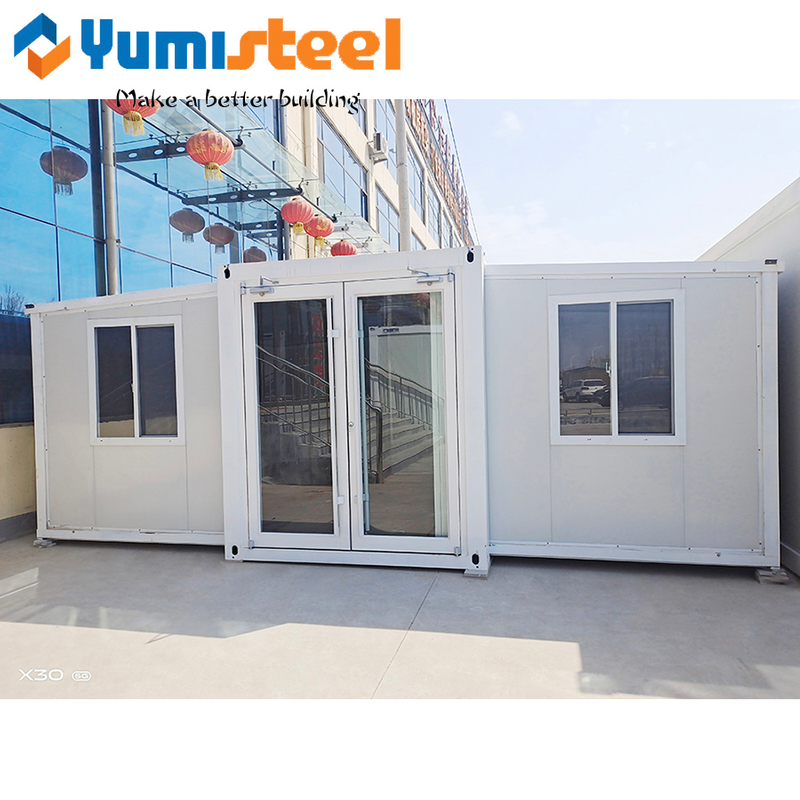

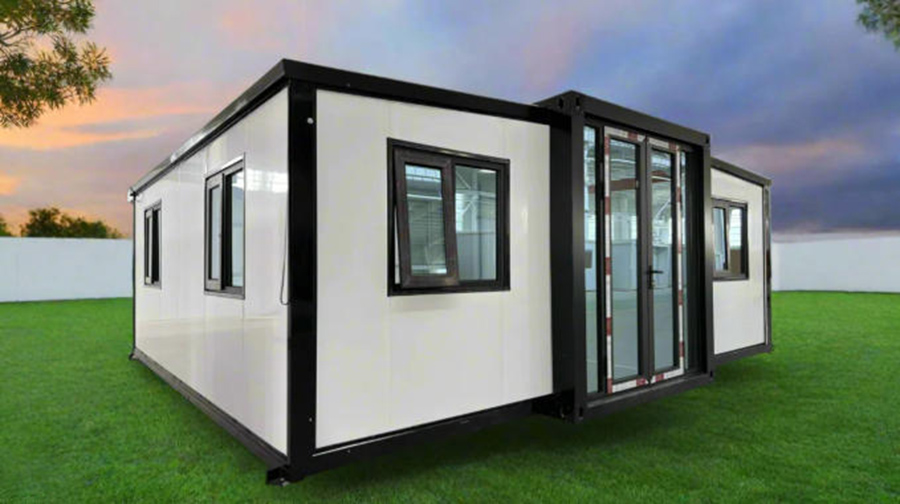

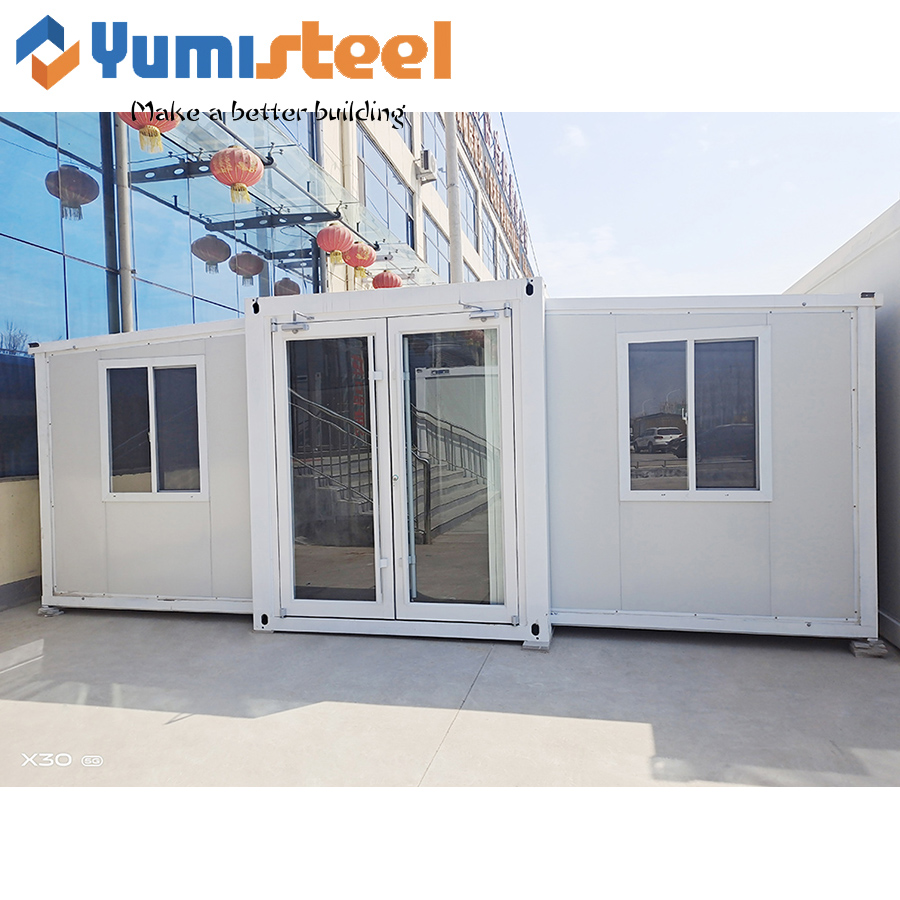

Expandable container house is a type of modular home ingeniously created from repurposed shipping containers. These homes are designed with special mechanisms that allow them to expand outwards from their compact, transportable state, significantly increasing the usable living or working space upon setup.
Product specification
Material list | ||||
Item | Details | Material | Type | Thickness |
Base data | External size(mm) | 6400*5800*2480(2270 for sides) | ||
Internal size (mm) | 6280*5560*2280(2150 for sides) | |||
Folding size(mm) | 2160*5800*2480 | |||
Weight(kg) | 1100 | |||
Design Parameters | Structural design service life | 20-25 years | ||
Floor live load | 200kg/㎡ | |||
Roof live load | 100kg/㎡ | |||
Wind load | 8 level | |||
Earthquake resistance level | 10 level | |||
Heat-resistant temperature | - 40 ℃ ~40 ℃ | |||
Quantities that 1*40HC container can load | 2 sets | |||
Framework | Roof side member | Q235B steel | 1.50 | |
Floor side member | Q235B steel | 1.50 | ||
End side beam | Q235B steel | 1.50 | ||
Side wall frame | Q235B steel | 1.50 | ||
Subframe | Q235B steel | 1.50 | ||
Corner pieces | Q235B steel | 4.00 | ||
Folding hinges | Q235B steel | 13.00 | ||
Integral frame protective coating | Electrostatic spray/straight white plastic powder | |||
Middle container top and bottom | 80*100 | |||
Side container top and bottom | 40*60 square tubes | 1.50 | ||
Roof | External roof | Galvanized & coated steel | 0.50 | |
Internal ceiling | Galvanized & coated steel | 0.25 | ||
Wall | Middle roof insulation | Glass wool insulation | 75.00 | |
Side walls, front and rear wall panels | Glass wool insulated panels | 50.00 | ||
Partition wall | 50.00 | |||
Internal bathroom | 1900*1000 | |||
Floor | Middle floor | Fireproof glass magnesium floor | 15.00 | |
Floor of 2 sides | Bamboo Flooring | |||
Electrical System | Electrical wiring, installed in strict accordance with moisture-proof specifications, all electrical products must comply with CE certified. Connect the circuit according to the circuit engineering specification, indoor: 3 LED lights, five-hole single-opening 3 sockets, 3 ten-hole sockets, 3 air-conditioning sockets, 1 20A leakage protector. | |||
Voltage 220V, 50HZ | ||||
Ordinary security door | 1 set of aluminum alloy glass door | |||
Windows | 4 aluminum casement windows | |||

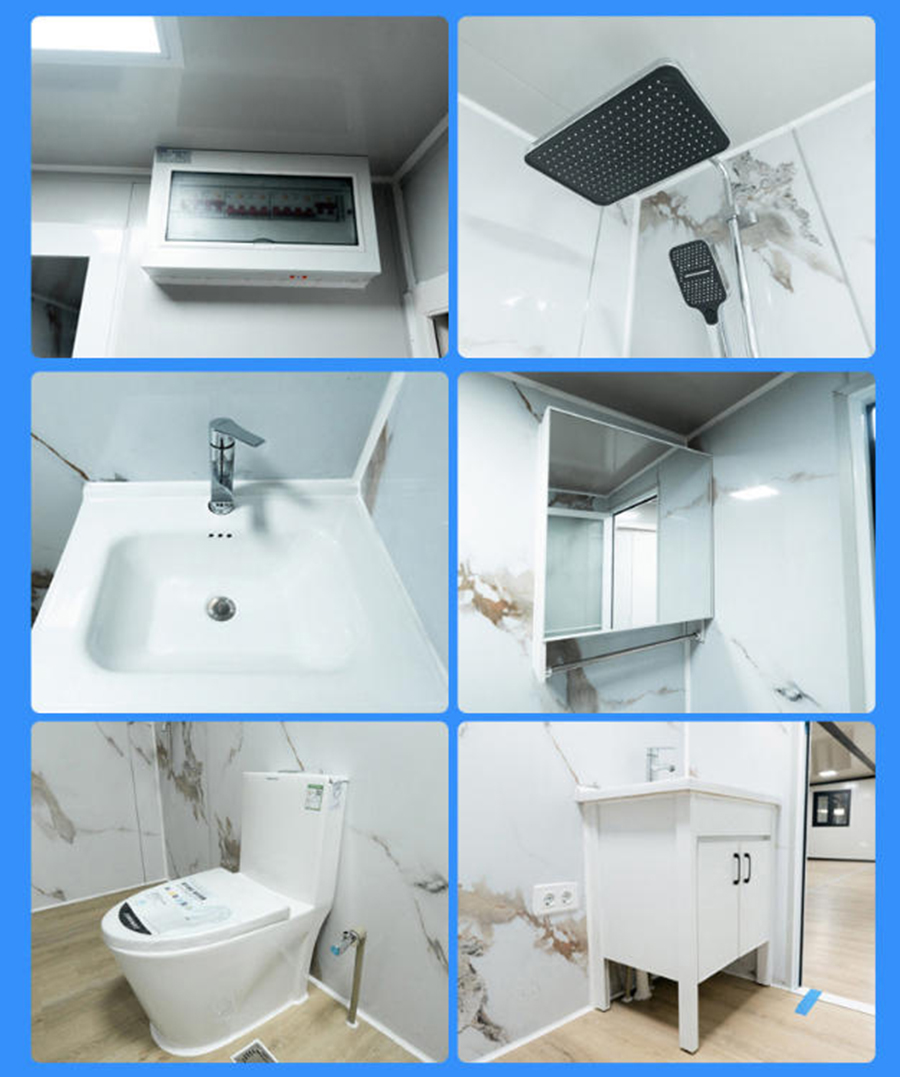

Others | Bathroom prefabricated drainage, toilet, sink, shower equipment. | |||

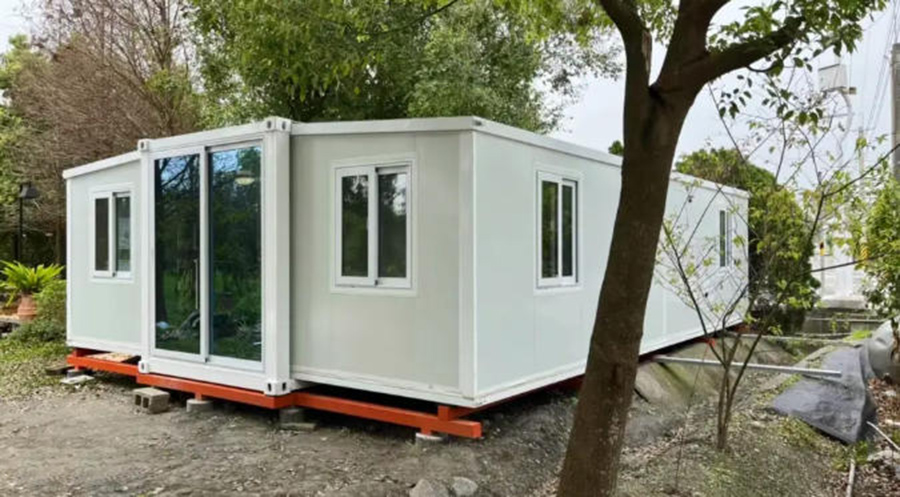

Product installation

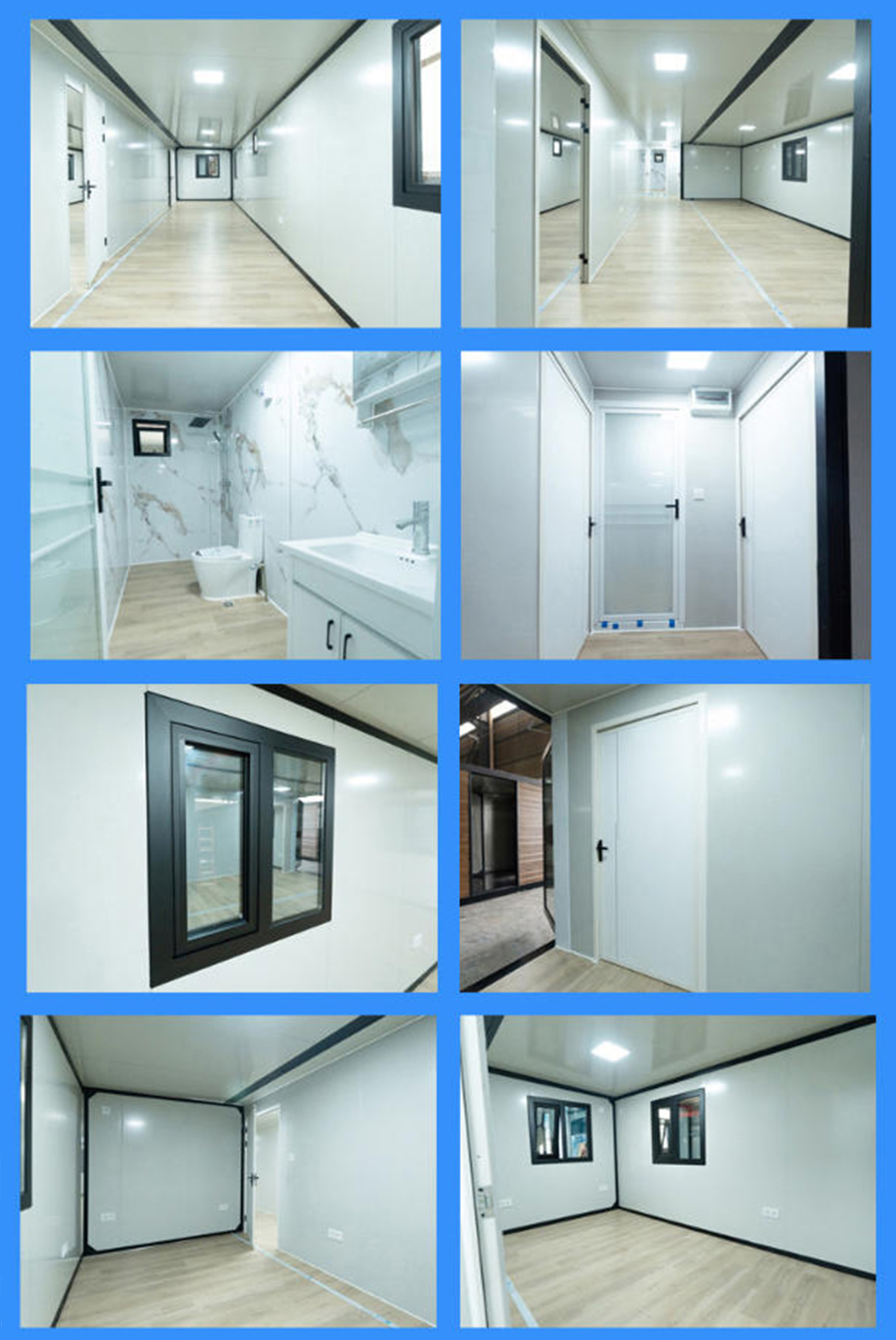

Interior decoration
Product advantages
☆Design Flexibility
These luxury prefab modular homes offer exceptional design flexibility. As expandable container houses, they allow for customizable layouts and future additions, perfectly adapting to your evolving lifestyle and aesthetic vision.
☆Speed and Efficiency
Experience significantly faster construction compared to traditional building. Our prefab modular homes are manufactured off-site in controlled conditions, leading to rapid on-site assembly, reduced labor costs, and minimal weather-related delays for your luxury house.
☆Durability and Strength
The robust container-based framework ensures outstanding structural integrity. This luxury expandable container house is designed to withstand harsh elements, providing a secure, long-lasting, and resilient living environment that stands the test of time.
☆Eco-friendly and Sustainable Living
Opt for an environmentally responsible choice. The prefab modular construction process generates less waste, and the expandable design of this container house promotes energy efficiency, helping you reduce your overall carbon footprint.
Product application
These innovative luxury prefab modular homes are ideal for creating a stunning primary residence, a spacious vacation retreat, or a unique rental property. Their expandable container house design is perfect for scenic or remote locations, offering a rapid, flexible, and durable housing solution. They also serve excellently as modern home offices, studios, or guest suites, providing a sophisticated and self-contained space.
Product Certificate
Yumisteel container houses are certified with ISO and CE standards, ensuring high-quality prefabricated structures that meet international safety and performance requirements for reliable, compliant modular buildings.
Packing & Delivery
☆ Packing
Seaworthy packing standards:
Start with the large and heavy items and load them on the floor against the front wall of the container. Continue loading heavier items on the floor and towards the front of the container, placing lighter items on top. Pack the items tightly so nothing moves.
If there is other package requested,please feel free to discuss with Yumisteel sales team.
☆ Delivery
Delivery time for regular colors,coating types and thickness: 7-10 days ;
Delivery time for special colors,coating types and thickness: 15-25 days ;
Delivery term: FOB/CIF/CFR/DDP is available;
We can find good forwarder for customer or accept appointed forwarder from customers.
