30mm Eco-friendly Insulated Metal PU Foam Wall Sandwich Panels

Polyurethane sandwich panels are currently the most insured materials in the world.30mm thick wall panels is the thinnest PU panels that we can make so far.The thin wall panels can be one cost-effective choice,if you have limited budget.Our MOQ is 500M²,color can be customized.

Quantity:
  • 1000
  • Yumi steel
  • 72104900

30mm eco-friendly insulated metal PU foam wall sandwich panels


1.Wall panels type instruction:



01-PUR-PIR-insulated-panels-type



Name :

30mm PU wall sanwich panels

Surface sheets material :

PPGL, PPGI steel / Aluminum sheet / Stainless steel sheets

Steel thickness :

0.40 ~ 0.75 mm

Core material thickness:

30 mm

Core material density:

40 KG/M³ (± 2 KG/M³)

Effective width :

920mm ~ 1120mm

Regular color :

White grey, Sea blue, Sliver grey, Dk grey, Iron grey

Special color :

Could be customized

Length :

Max 5.9 meters for 20FT container;

Max 11.9 meters for 40FT container.

Fire resistant level :

PIR : B1 level      PUR : B2 level

Joint type :

Seamless,but non-hidden screws



2.Wall sandwich panels rib type:



02-steel-PIR-sandwich-panel-surface-profile



Regarding PU wall panels’ thickness lower than 50mm,we advise to use trapeze profile (wide ribs) on panel surface.Since its thickness is thin,and in this way,it can make panels with more better strength.







3.Wall sandwich panels usages:


03-30mm-Polyurethane-wall-sandwich-panels-application

 External wall panels for container houses, storage rooms, steel sheds,etc;

 Partition wall panels for large steel warehouses, steel factories, residential houses,etc;

 Ceiling panels for office buildings, residential houses, steel warehouses, etc.



4.Insulated wall panels features:



 Excellent waterproof performance;

 Affordable price;

 Good thermal and acoustic insulation performance;

 Class 1 fire retardant performance;

 Anti-corrosion and earthquake resistance;

 Eco-friendly material;

 Long life time.



5.Panel packages :

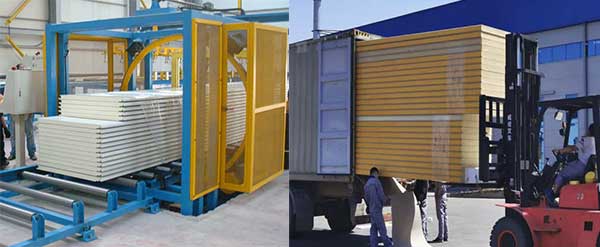

04-PU-sandwich-panels-for-sales

All our sandwich panels are packed in bundles,according to container height,so it’s around 1 - 1.2 meters height for each bundles.And each bundles have sealing end to protect the panels end.If customers have container unloading questions,please feel free to discuss with us,we will do our best to put forward one container unloading solution for you.



6.Our service & support :


Installation instructions:

We can have installation instructions to be offered for each different projects,as per customers’ requirement.


Technical support:

If customers have special requirement for on-site guide,we can also have our people to go to customers’ project site to support your installation.Please contact our salesman to discuss with this support.


Unloading instructions:

If you have container unloading questions,please feel free to discuss with our team,we will do our best to put forward one container unloading solution for you.


Full set of technical information:

When you have technical information need to be offered for related projects,please contact our salesman,and clarify what you need,and we will have our engineers to offer related information to you.



Yumi steel will do our best to support your projects with professional attitudes and excellent service spirit.
