Yumi steel
Product introduction

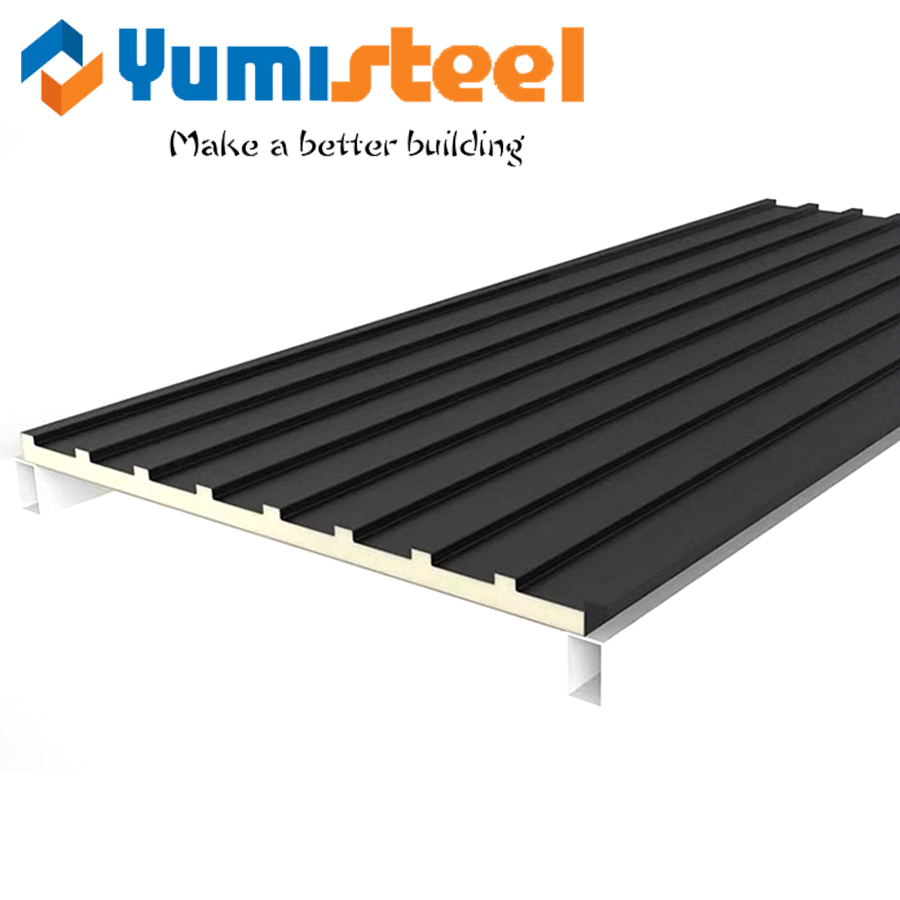

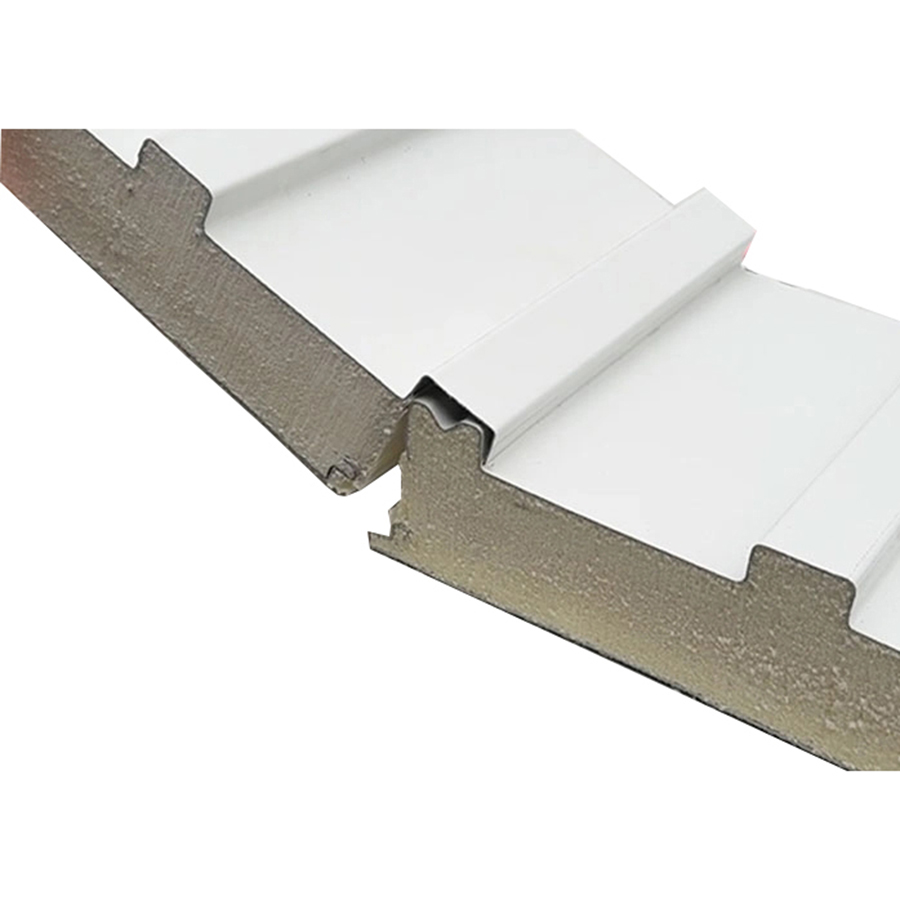

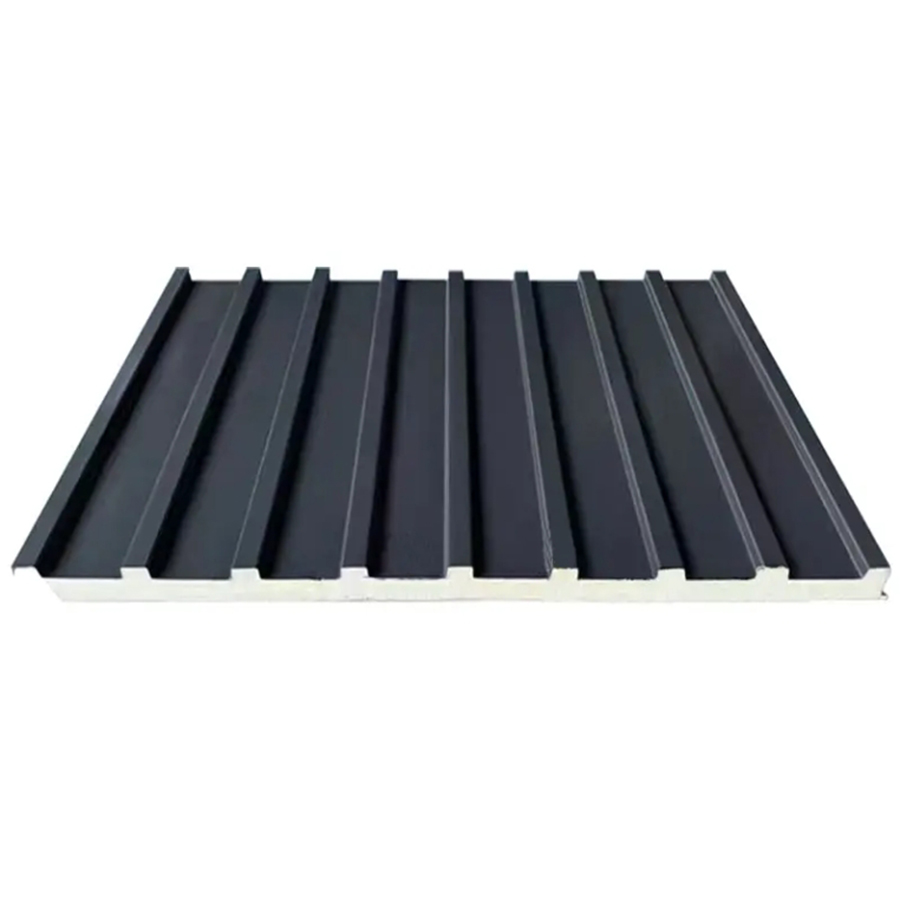

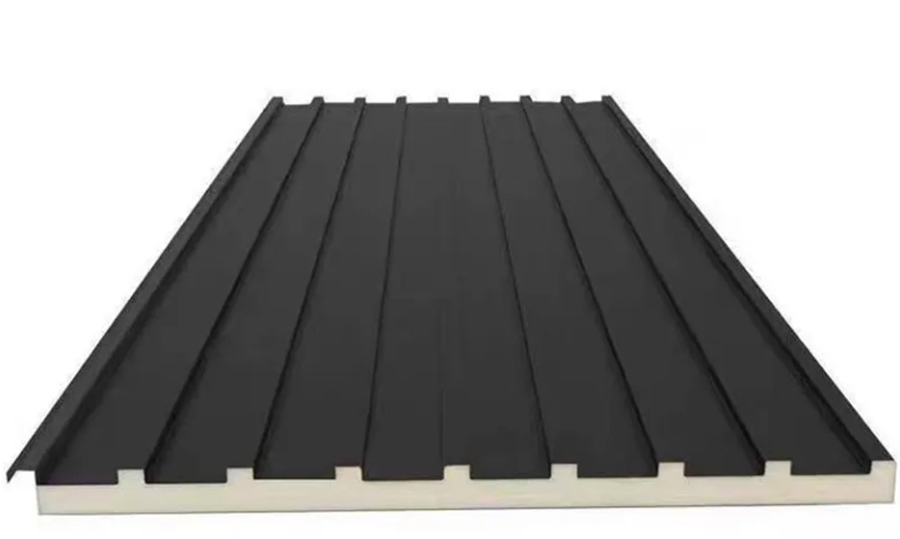

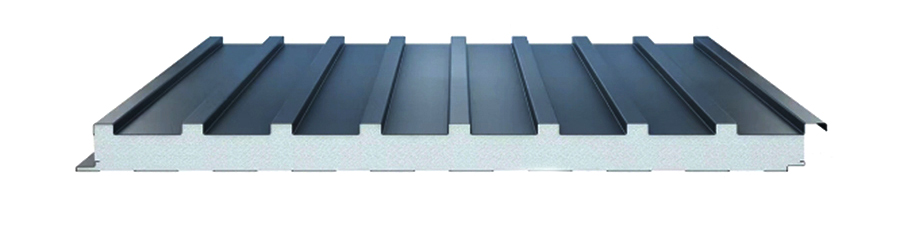

These structural panels feature a three-layer composite design:
External facings: High-tensile steel/aluminum sheets (0.4-1.0mm) with box rib trapezoidal profiling for enhanced load-bearing capacity (up to 200kg/m²).
Core material: Rigid polyurethane foam (PU) insulation (40-150mm thick) with closed-cell structure, delivering thermal conductivity of 0.022-0.025W/mK.
Bonding system: Continuous hot-press lamination ensures full adhesion between layers, achieving peel strength >150kPa (EN 14509).
Product specifications
Product name | Box Rib sandwich panel |
Effective coverage | 1000mm |
Steel thickness | 0.4-0.7 |
Surface sheets | PPGI/ PPGL/ Aluminum sheets/Al-Mg-Mn alloy metal sheets/ Stainless steel/ PVC sheet |
Aluminum sheets/Al-Mg-Mn alloy metal sheets | 0.70-1.20mm |
Stainless steel | 0.40-0.60mm |
Core material density | 40-42 KG/M3 |
Coating type | Fluorocarbon coating PVDF, SMP coating, HDP coating, polyester PE coating, etc. |
Core thickness | 30mm,50mm,80mm |
Core material | Polyurethane |
Thermal Conductivity | 0.019-0.024w/m ·k |
Available length | 20FT container:≤5.95m 40FT container: ≤11.95m |
Product advantages

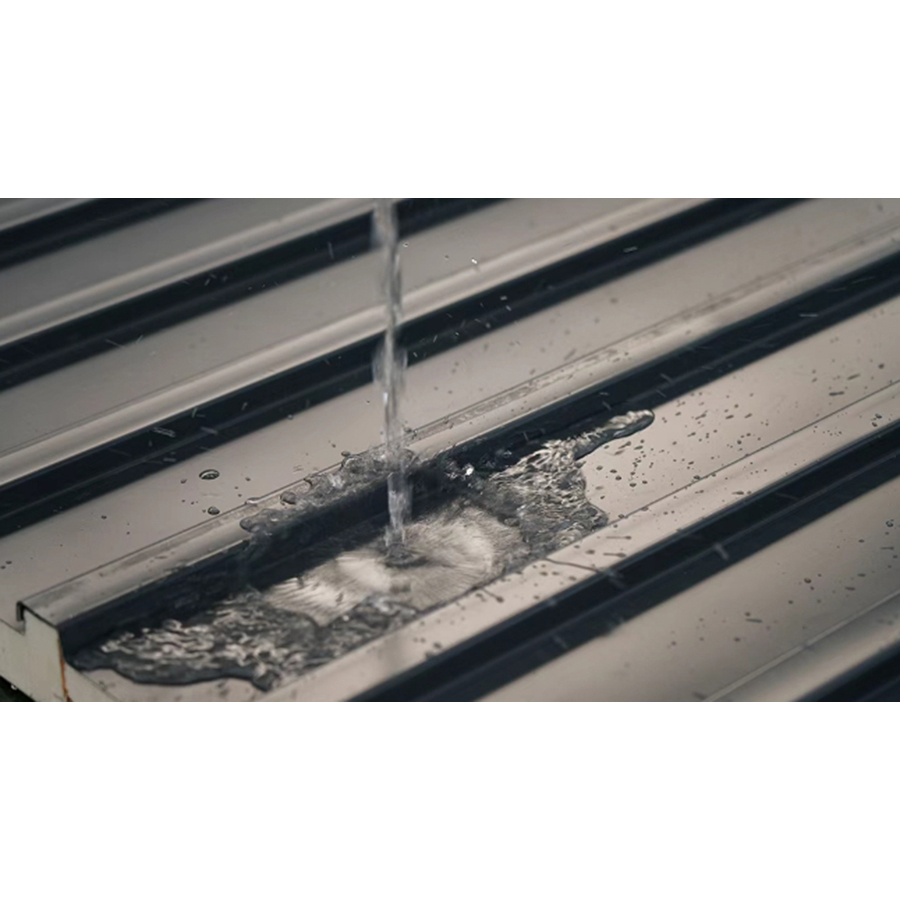

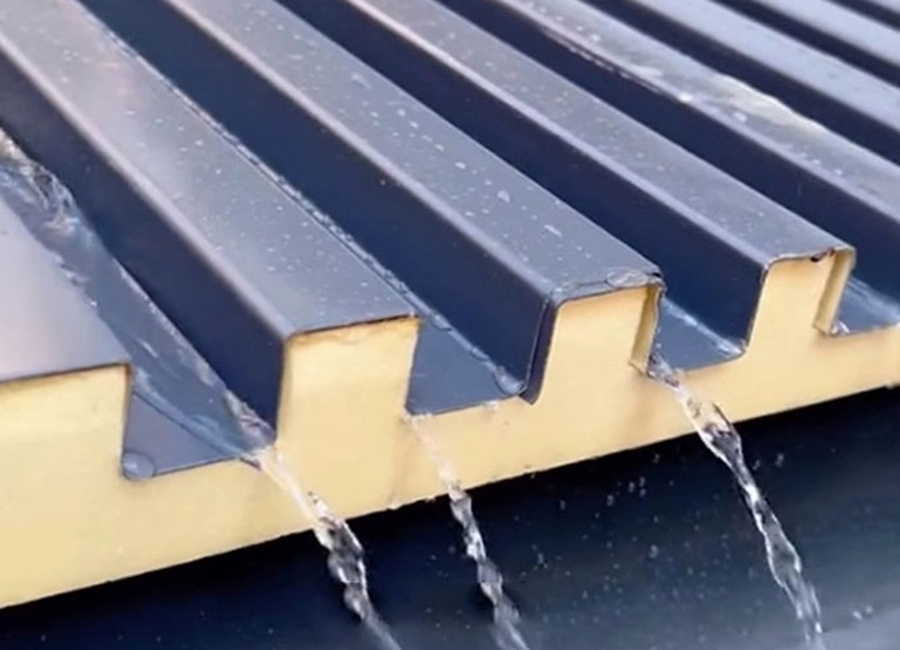

☆Superior Waterproof Performance
PU sandwich panels feature a closed-cell structure that effectively blocks moisture absorption, preventing water leakage and corrosion for long-term durability in humid environments.

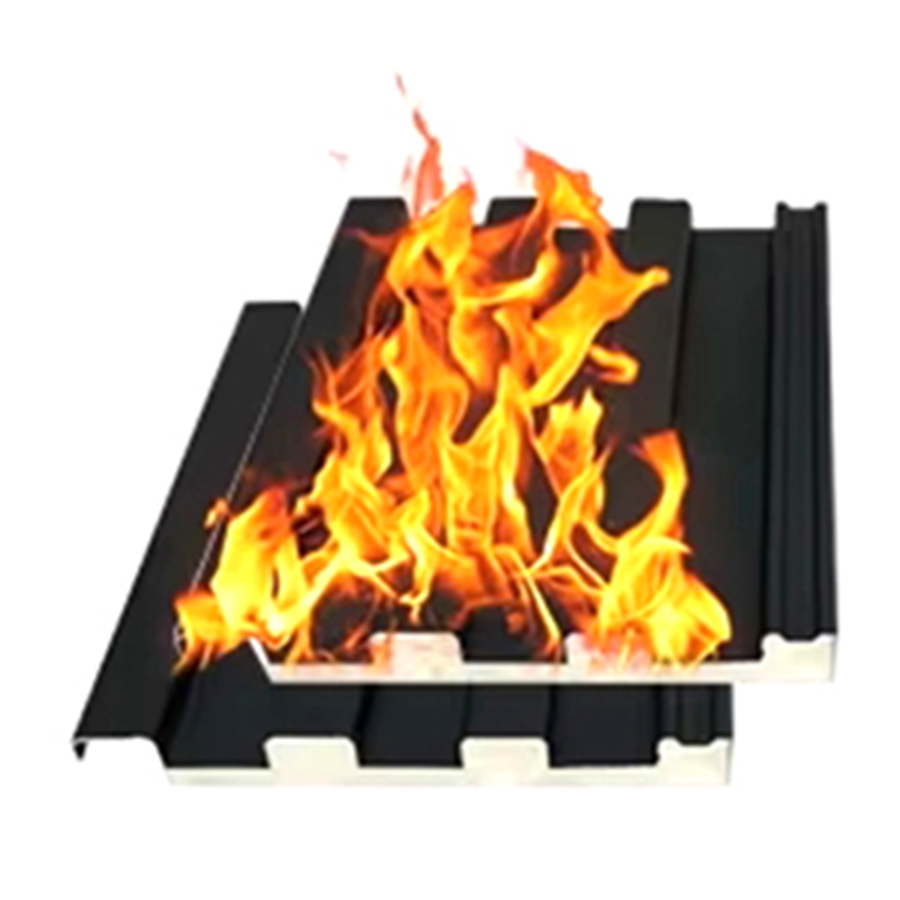

☆Excellent Fire Resistance
With B1-grade fire rating (EN 13501), these panels slow flame spread and resist high temperatures, enhancing building safety in industrial and commercial applications.
☆Premium Insulation Quality
The high-density polyurethane core delivers exceptional thermal insulation (R-value up to 3.5/inch), significantly reducing energy costs for temperature-controlled facilities.
Product application

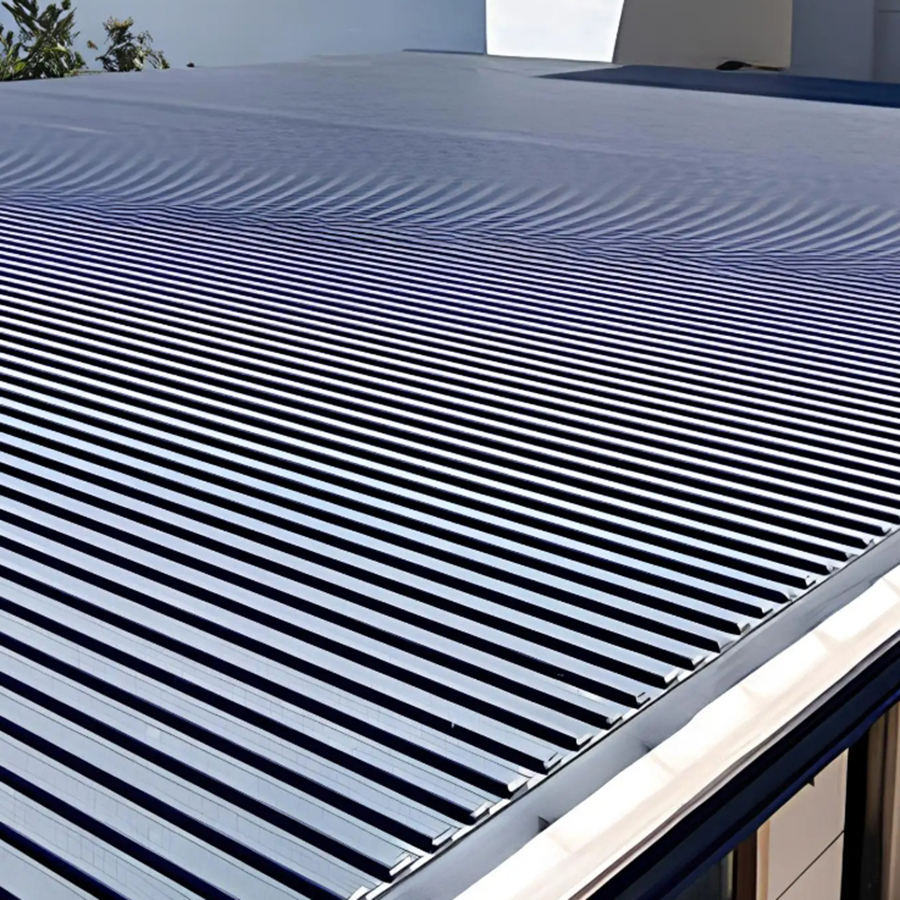

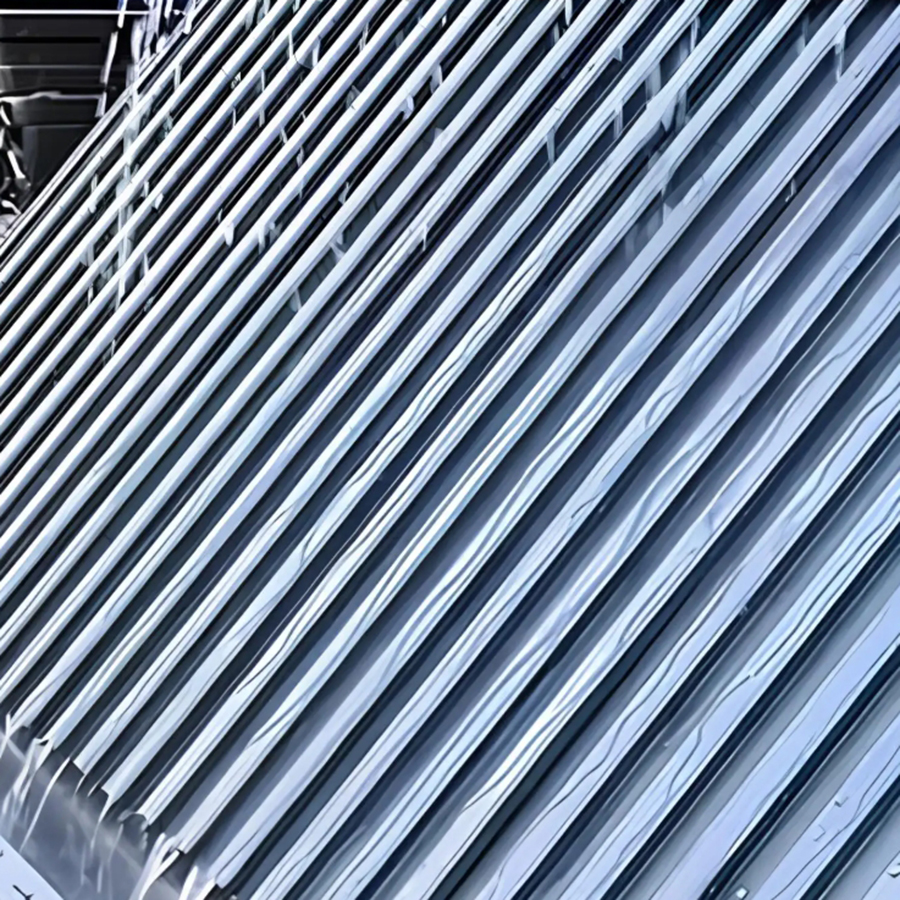

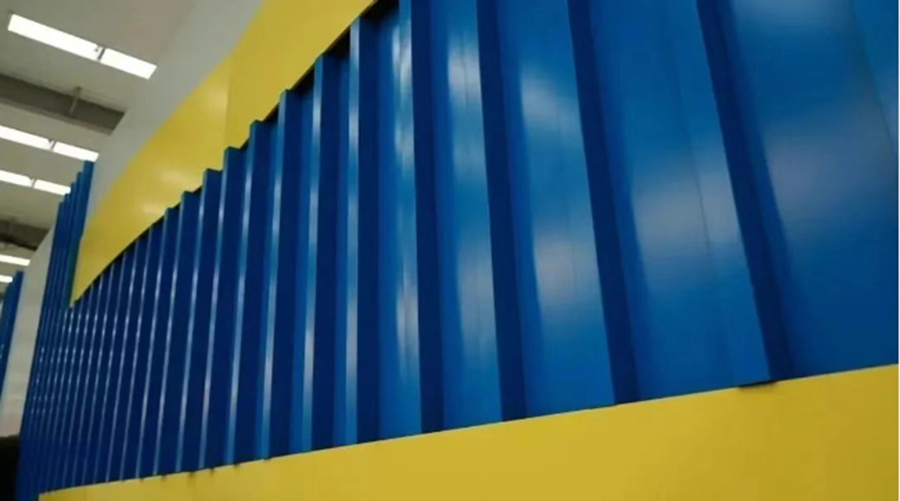

These PU sandwich panels are ideal for industrial roofing, cold storage walls, warehouse partitions, and aircraft hangars, these structural panels provide load-bearing insulation, weather resistance, and fast installation for temperature-controlled environments.
Product Inquiry
Please forward us your requirements of the items in order to check the price for you, because these products are customized per customer's requirements.
Panel type(Roof/Wall) | |
Surface sheet thickness(Color coated steel:0.35-0.75mm,Color coated aluminum:0.70-1.20mm) | |
Colour | |
Core material(PIR/Rock Wool/EPS/Others) | |
Thickness of the core material | |
Panel width | |
Quantity |
Regular colour
Packing & Delivery
☆ Packing
Seaworthy packing standards
If there is other package requested,please feel free to discuss with Yumisteel sales team.
☆Delivery
Delivery time for regular colors,coating types and thickness: 10-15 days ;
Delivery time for special colors,coating types and thickness: 15-25 days ;
Delivery term: FOB/CIF/CFR/DDP is available;
We can find good forwarder for customer or accept appointed forwarder from customers.
Service&Support
Xiamen Yumin Xincailiaokeji Co., Ltd. - Your Trusted Steel Structure Partner.
As a leading integrated manufacturer and exporter of premium steel structures in China, we deliver exceptional quality products at competitive prices to global markets including the Americas, Europe, Africa, and Southeast Asia.
Why Partner With Us?
• Dedicated Account Managers providing personalized solutions
• Factory-direct pricing with rigorous quality control
• Technical engineering support from design to installation
• Comprehensive after-sales for long-term performance assurance
Global Solutions | Engineering Excellence | Reliable Supply
