Yumisteel
Product introduction

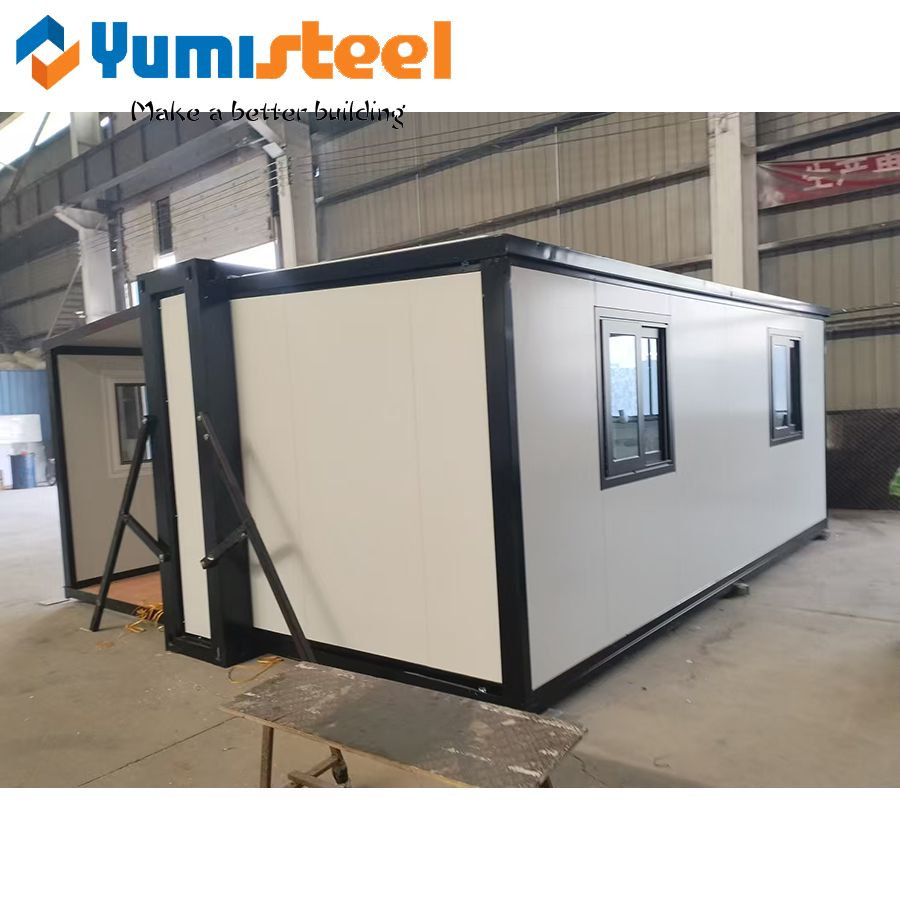

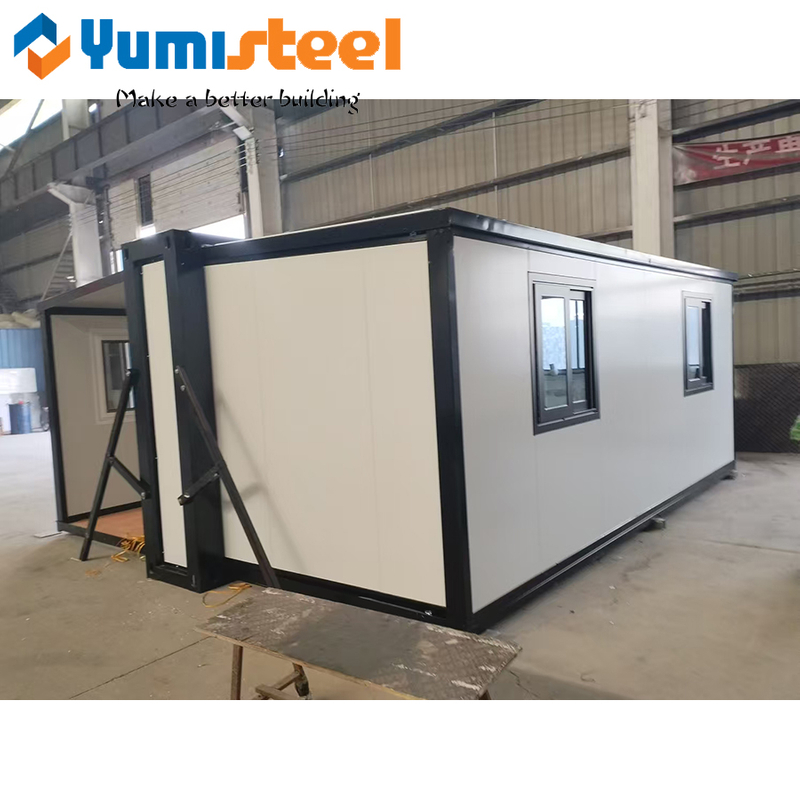

Expandable folding container house is a space-saving, modular living unit made from steel containers that can fold and expand for easy transport or instant deployment. When collapsed, it's compact for shipping (often as narrow as 700mm); when expanded, it offers full-height living/working space.
Product specification
20 Feet Expandable Container House Datas | ||
Size | External Dimensions | 5850*4800*2480 |
Internal Dimensions | 5510*4640*2240 | |
Folding Size | 5850*700*2480 | |
Frame Structure | Middle Roof Beam | 5850*700*2480 |
Mid Bottom beam | 80*120*T2.5mm | |
Hanging Head * 8 | 160 width profile * T2.2mm | |
Main Roof Purlin | 160*210*160*T3mm | |
Main Bottom Purlin | 30*30*T1.0mm | |
Side Top Frame | 50*50*t1.5mm Channel iron | |
Side Bottom Purlin | 40*60*t1.5mm | |
Side Waterproof Protective Panel Folding Parts | T1.5mm | |
Folding Hinge | ING | |
Overall Framework Anti-corrosion Coating | Electrostatic spray molding/straight white plastic powder | |
Roof | External Top Plate | 50eps board |
Internal Ceiling | Color steel 831 ceiling tiles | |
Wallboard | Main Body | 50eps board |
Side Top Plate | 50eps board | |
Internal Partition | 50eps board | |
Floor | Middle Floor | Cement fiber board 18mm+1.6mm wood grain plastic |
Floor on both Sides | 18mm bamboo plywood+1.6mm wood grain | |
Gap Junction | Aluminum Plate | 220mm aluminum plate |
Toilet | Include: toilet * 1, cabinet washbasin * 1, shower * 1 | |
Electrical System | LED ceiling light * 6, five hole socket * 5, single opening * 3, three hole socket * 3, air conditioning socket * 3 | |
Entrance Door | 1780 * 2160 KFC Gate * 1 | |
Window | 930 * 930 aluminum alloy sliding window * 8 500 * 925 aluminum alloy sliding window * 1 | |
Product advantages
☆Portable: Folds flat for low-cost transport (ideal for remote sites).
☆Quick Setup: Expands in hours without heavy machinery.
☆Durable: Weather-resistant steel structure.
☆Customizable: Used as homes, offices, pop-up shops, or emergency shelters.
Product application
Our folding container house delivers a space-saving yet spacious prefab solution. Its ultra-slim foldable design enables effortless transport and quick setup, ideal for temporary or permanent tiny homes.
|

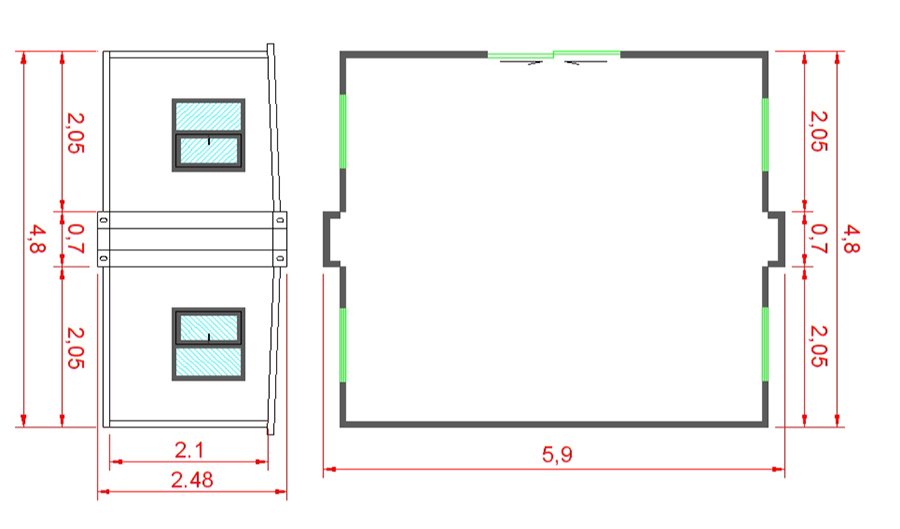

| 20Feet(L5900mm*W4800mm*H2480mm) |
|

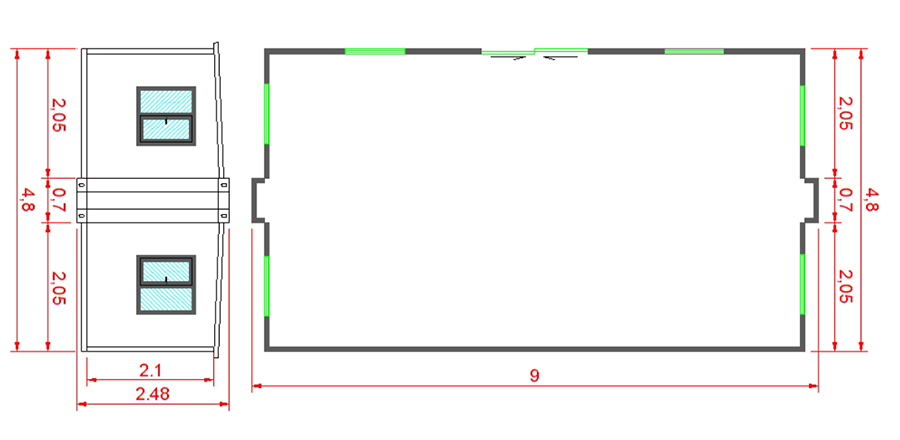

| 30Feet(L9000mm*W4800mm*H2480mm) |
|

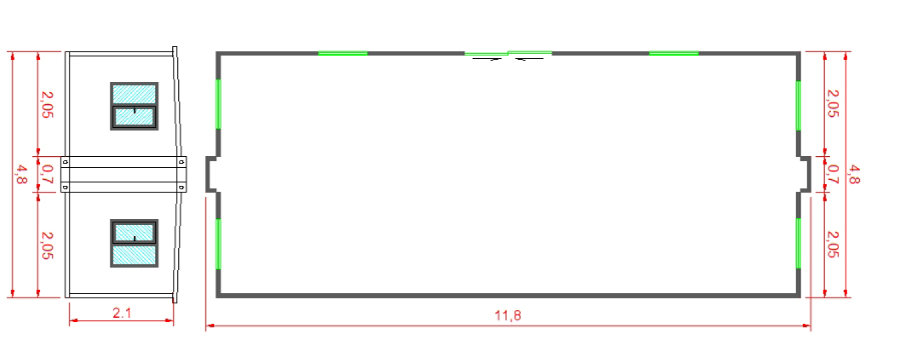

| 40Feet(L11800mm*W4800mm*H2480mm) |
Packing & Delivery
☆ Packing
Seaworthy packing standards:
Start with the large and heavy items and load them on the floor against the front wall of the container. Continue loading heavier items on the floor and towards the front of the container, placing lighter items on top. Pack the items tightly so nothing moves.
If there is other package requested,please feel free to discuss with Yumisteel sales team.
☆ Delivery
Delivery time for regular colors,coating types and thickness: 7-10 days ;
Delivery time for special colors,coating types and thickness: 15-25 days ;
Delivery term: FOB/CIF/CFR/DDP is available;
We can find good forwarder for customer or accept appointed forwarder from customers.
Service & Support
☆Service
Xiamen Yumi New Material Tech. Co., Ltd. is one combination of industry and trade company, and very professional with steel structure products in China. We are proud of our product quality and customer service and competitive price.And our products are sold worldwide, such as America, South America, Europe, Southeast Asia, Africa etc.
1)Professional sales team,One-to-one service;
2)Combination of industry and trade company,to ensure the service and price;
3)Experienced engineer team to offer professional technology service;
4)Intimate after-sales service.
☆Support
Experienced technology suport, competitive price, professional service, we are here to help you go on with your project smoothly.
