75mm Australian Standards Fireproof Rockwool Wall Panels for Steel Buildings

Fireproof rockwool wall panels is also known as rockwool sandwich panels,rockwool insulated panels,,etc.The rockwool sandwich panels we wanted to introduce here,it’s Z lock type joint,which is widely used and accepted in many courtries.
Panel color can be as per RAL color swatches.Min order quantities is 500 M².
Availability:
Quantity:
  • 950/1150

  • Yumi steel

  • 72104900

75mm Australian standards fireproof rockwool wall panels for steel buildings



1.Have you ever had problem on rockwool sandwich panels container unloading?

There is one rockwool sandwich panels unloading problem that is mentioned by our Bangladesh customer.They used to buy rockwool wall panels from other supplier.But because the supplier couldn’t put forward for one unloading solution,and finally it caused a lot of rockwool panels were broken and can’t be used in the buildings.

When customer came to us,Yumi steel packing and loading department solved unloading problem perfectly.

Here is our unloading instruction for your reference.

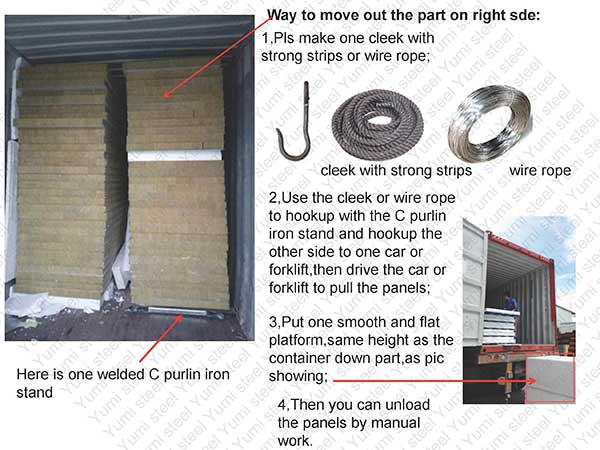

01-How-to-unload-rockwool-sandwich-panels

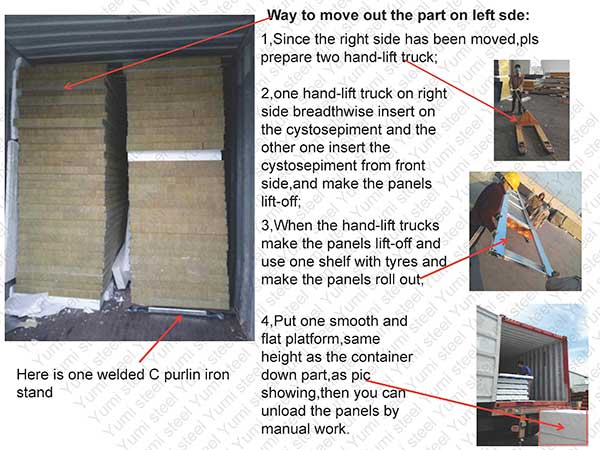

02-How-to-unload-the-rockwool-sandwich-panels

Except the unloading way we mentioned above,we also suggest to use open top 40FT container to load the sandwich panels.We can pack rockwool insulated panels in bundle,and put shelf under the rockwool panel and sling to be around the bundle.When goods arrived in your project site,then you only need to open the top of container.And use crane to hook the sling.It’s easily to get sandwich panels out,without any damage to the steel sandwich panels.


2.Panel model type instruction:


Panel specification:

03-insulation-wall-panels-specs-details

Name:

75mm rockwool wall sanwich wall panels

Steel sheet thickness:

0.30-0.70mm

Steel type:

PPGL, PPGI steel / Aluminum sheet / Stainless steel sheets

Core material thickness:

75 mm

Core material density:

80 ~ 150 KG/M³

Effective width:

950mm or 1150mm

Regular color:

White grey, Sea blue, Sliver grey, Dk grey, Iron grey

Special color:

Could be customized, but better to offer RAL color swatches

Length

Max 5.9 meters for 20FT container;

Max 11.9 meters for 40FT container.

Fire resistant level:

A1

Jonit type:

Z lock



Panel joint way:

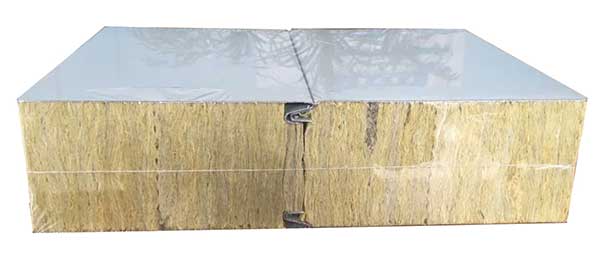

04-Australia-type-insert-for-wall

There is not joint space,which make the sound insulation and insulation performance much more better than common rockwool sandwich panels.



Panel surface profile:

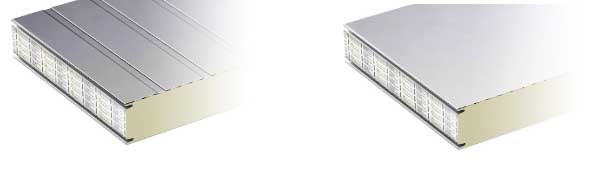

04-mineral-wool-insulation-board

 There are 2 types of panel profile we can make,one is called grooved,and the other one is no profiled.Customers can follow their need to choose which one will be better for them.Normally metal sandwich panels with grooved ribs,it will make sandwich panels with high strength.



3.Product applications & projects case:


The rockwool wall metal sandwich panels are mainly used for the following building types:


☆ Commercial buildings:

Office buildings,hotels,restaurants,Cultural and recreational facilities,gyms,etc.

☆ Agricultural buildings:

Poultry houses,Warehouses,etc.

☆ Industrial buildings:

Factory buildings,power plant,Hydropower plant,industrial warehouse,etc.

☆ Residential buildings:

Living house,clean room,etc.


05-metal-sandwich-panels-application

We have a big project from Bangladesh,it’s a power plant.The name is Ashuganj North Power station,which used our rockwool Australian sandwich panels.It’s including roof panels and wall panels.Roof panels quantities is around 6000 square meters and wall panels quantities is around 5000 square meters.


4.Panel features:


☆ High fire safety:

Rockwool,we can also called it mineral wool,it has been classified as a non-flammable products.It has been tested as A1,according to GB/T 23932-2009.Yumi steel can offer the related certificate for your reference.

☆ Acoustic comfort:

Rock wool panel is with sound proof properties,when it’s with perforated holes.

☆ Easy installation:

All rock wool sandwich panels from Yumi steel company,is a complete prefabricated element,and can be installed quickly.Because of speed installation,this can reduce the labor cost.

☆ Various color choices:

We have wide range of colors for your choices,to meet up your building requirement.


5.How to cut insulated panels and flashings?


☆ Suitable tool:

Use a clean tooth blade saw to cut the metal sandwich panels;

Use angle grinders to avoid panel guarantee;

Use hand snips to cut steel flashings.

☆ Keep clean:

Please remove all metal scrap,after cutting,to avoid metal panel getting rusty.

Please prevent sparks and filings from falling onto other panels.


6.Panel inquiry:


Please indicate the following details,when you want to make inquiry.Thank you.

Panel name:
(EPS/Polyurethane/Rockwool/Grasswool)


Panel type:
(Wall or Roof)


Steel sheet thickness:
(0.30-0.70mm)


Panel thickness:
(50/75/100/150/200mm)


 Density:
(KG/M³)


Effective panel width:


Regular color:
(White grey/Sea blue/DK grey)


Special color:
(As per RAL swatches or customized)


Order quantity(M/M²):
