Product introduction

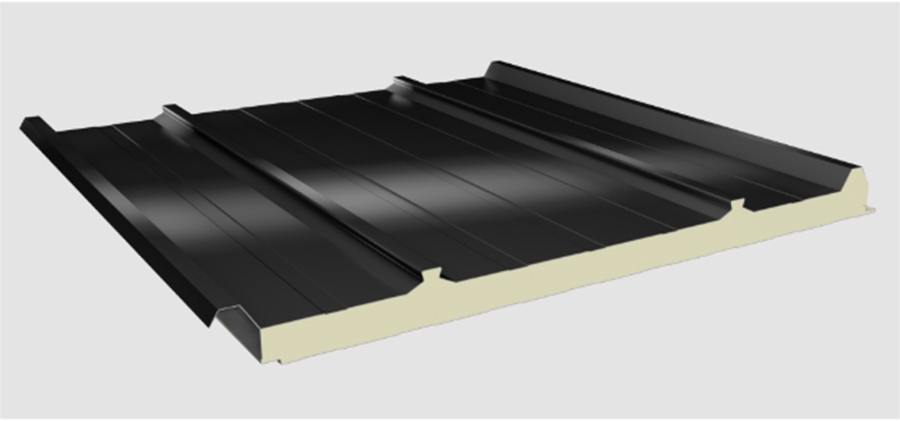

Developed to address solar panel integration in energy-efficient buildings, this multifunctional roofing system combines thermal insulation with solar energy utilization. It utilizes specially designed metal polyurethane energy-saving panels as the load-bearing roof structure.
Optional Core Materials:

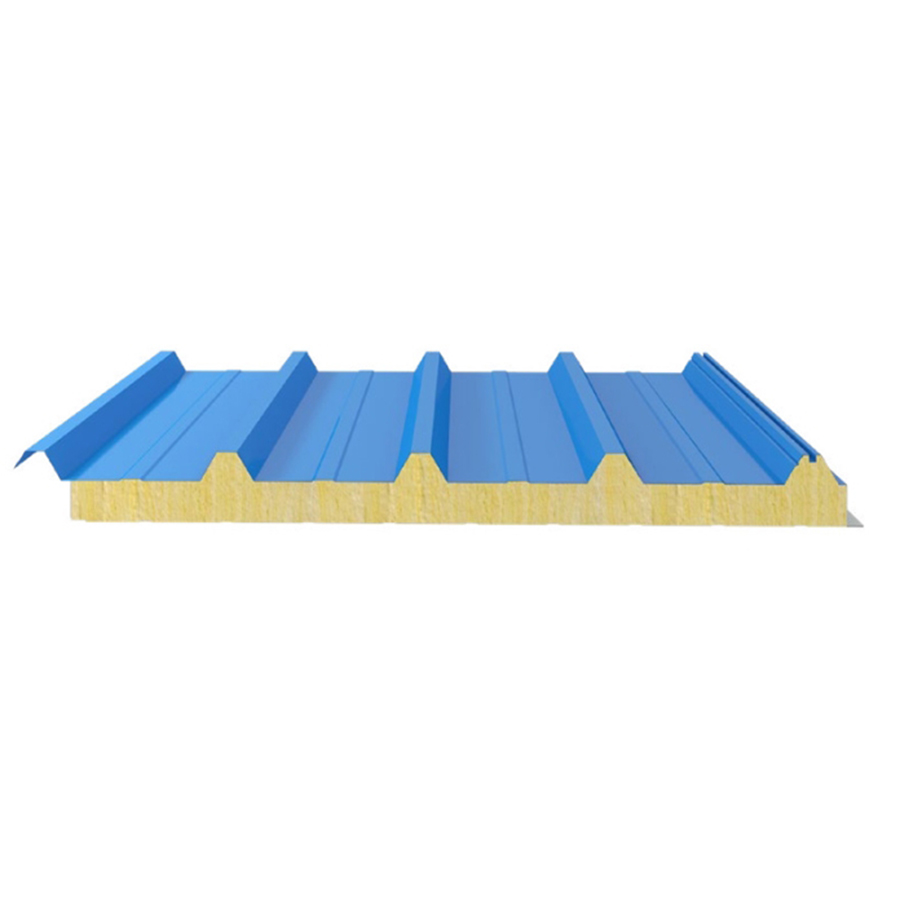

Polyurethane-edged rock wool sandwich core
Polyurethane-edged fiberglass sandwich core

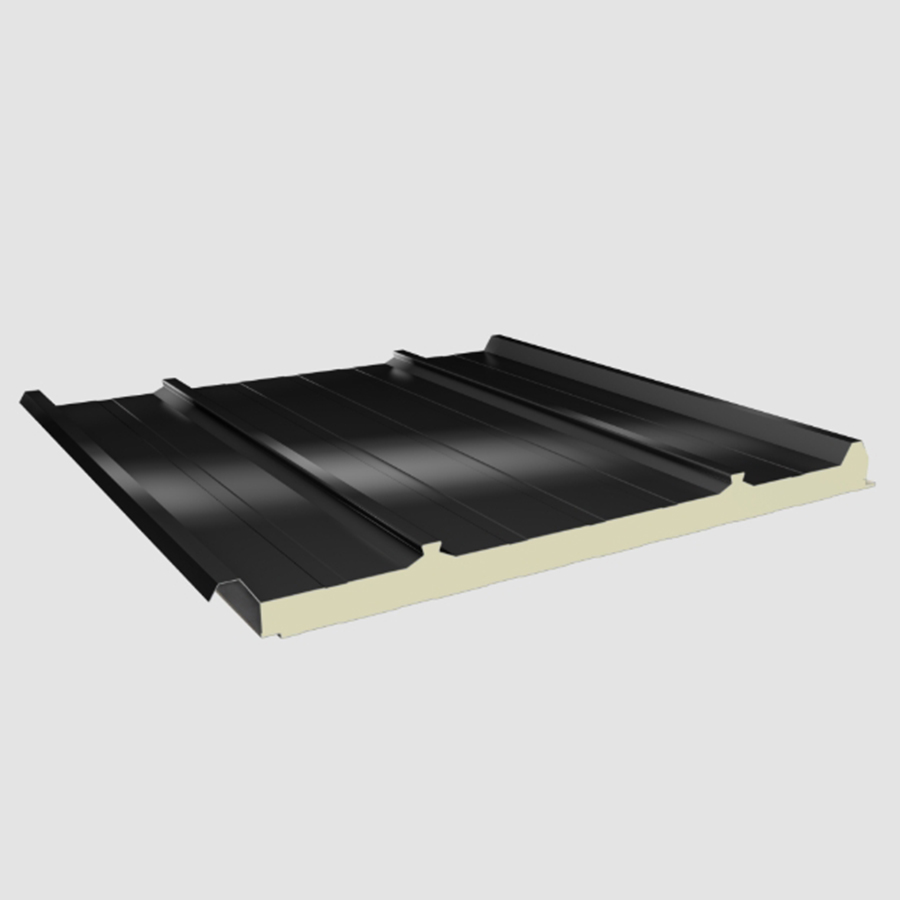

Polyurethane core
Product specification
Panel type : | Roof sandwich panels for solar photovoltaic system | ||

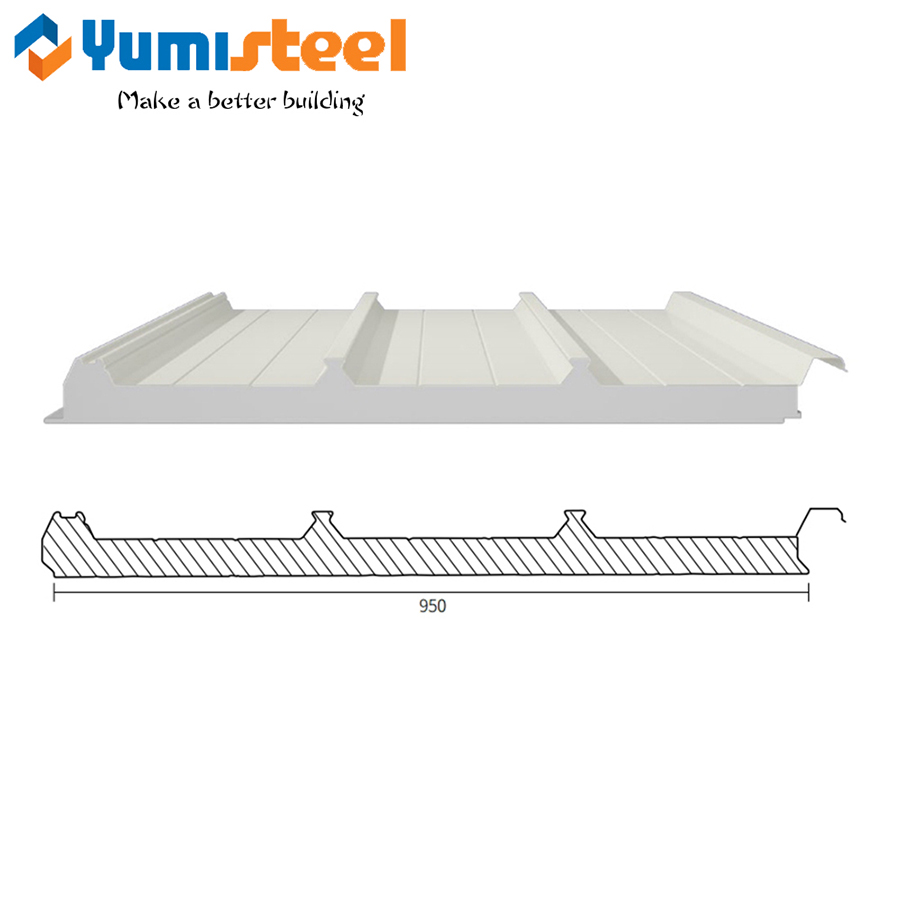

Effective width | 950/1000mm | ||
Panel thickness | 50/ 75/ 100/ 150mm | ||
Coating type | PE, SMP, HDP, PVDF | ||
Steel sheet (GI/PPGI/PPGL) | 0.40-0.75 mm | ||
Aluminum metal sheets | 0.60-1.20 mm | ||
Surface sheets | Steel sheet (GI/PPGI/PPGL): 0.40-0.75 mm | ||
Aluminum metal sheets:0.60-1.20 mm | |||
Aluminum foils:0.065 mm | |||
PVC sheets | |||
Core material | PIR/PUR | Rockwool with PU edges | Glass wool with PU edges |
Core density | 35-45 kg/m3 | 110-150 kg/m3 | 48-64 kg/m3 |
Thermal conductivity | ≤0.023 w/m· k | 0.035-0.041 w/m·k | 0.035-0.041 w/m·k |
Product advantages
|
|
|
Photovoltaic Integration | High Load-Bearing Capacity | Concealed Fastener Seam |

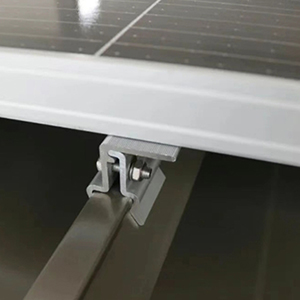

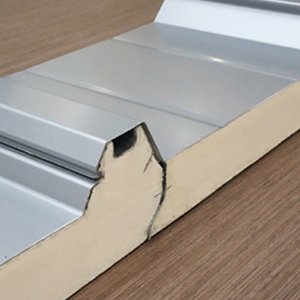

Specially designed corrugation profiles enable direct clip-fastened mounting to PV brackets, eliminating roof penetrations and waterproofing risks from traditional bolt-through installations. | Reinforced rib structures combined with rigid polyurethane foam cores significantly enhance load distribution (≥1.5kN/m²), improving system stability and lifespan. | Hidden fastener joints with interlocking seams and integrated rain gutters ensure weathertight performance (tested to EN 13859), preventing water ingress through advanced drainage channels. |
Product application

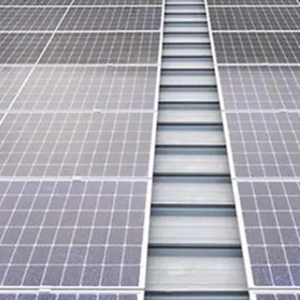

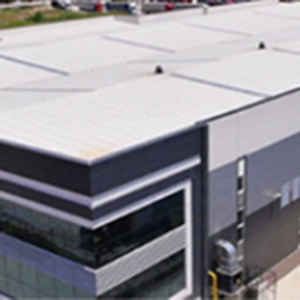

Ribs roof sandwich panels are ideal for solar PV integration, providing sturdy mounting surfaces and weatherproof protection for commercial/industrial rooftops. Their lightweight yet durable construction simplifies installation while ensuring long-term performance for solar energy systems.
|
|
|

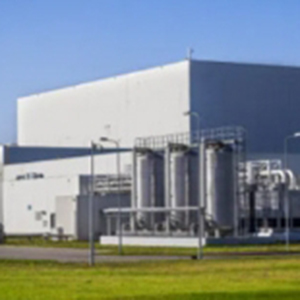

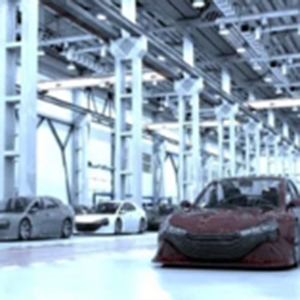

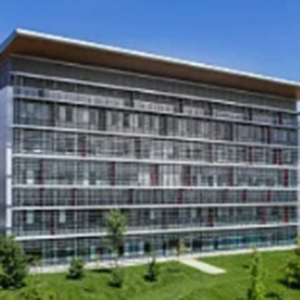

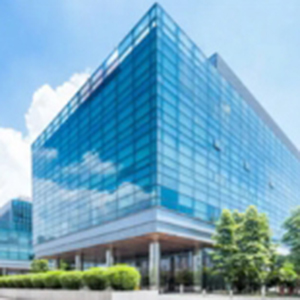

Energy Sector | Automotive Industry | Chemical Industry |
|
|
|
Healthcare Industry | Food Industry | Public Construction Sector |
Packing & Delivery
☆ Packing
Seaworthy packing standards
If there is other package requested,please feel free to discuss with Yumisteel sales team.
☆Delivery
Delivery time for regular colors,coating types and thickness: 10-15 days ;
Delivery time for special colors,coating types and thickness: 15-25 days ;
Delivery term: FOB/CIF/CFR/DDP is available;
We can find good forwarder for customer or accept appointed forwarder from customers。
Service&Support
☆Service
Xiamen Yumin Xincailiaokeji Co., Ltd. is one combination of industry and trade company, and very professional with steel structure products in China. We are proud of our product quality and customer service and competitive price.And our products are sold worldwide, such as America, South America, Europe, Southeast Asia, Africa etc.
1)Professional sales team,One-to-one service;
2)Combination of industry and trade company,to ensure the service and price;
3)Experienced engineer team to offer professional technology service;
4)Intimate after-sales service.
☆Support
Experienced technology suport, competitive price, professional service, we are here to help you go on with your project smoothly.
