Product introduction

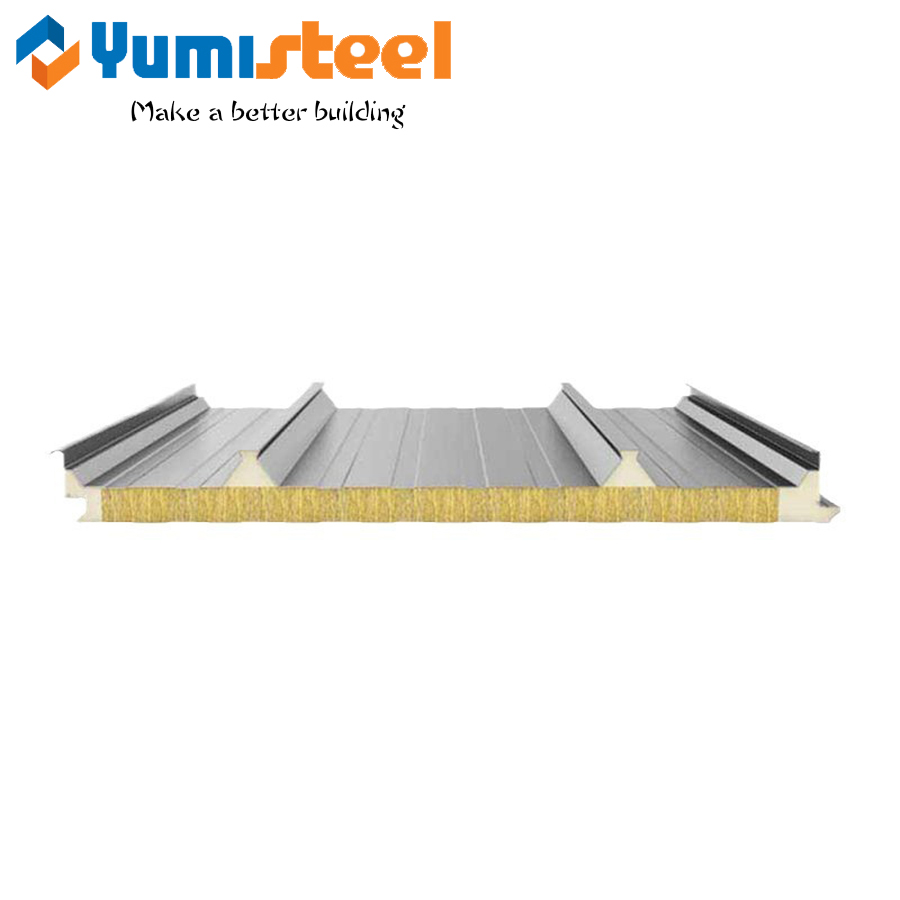

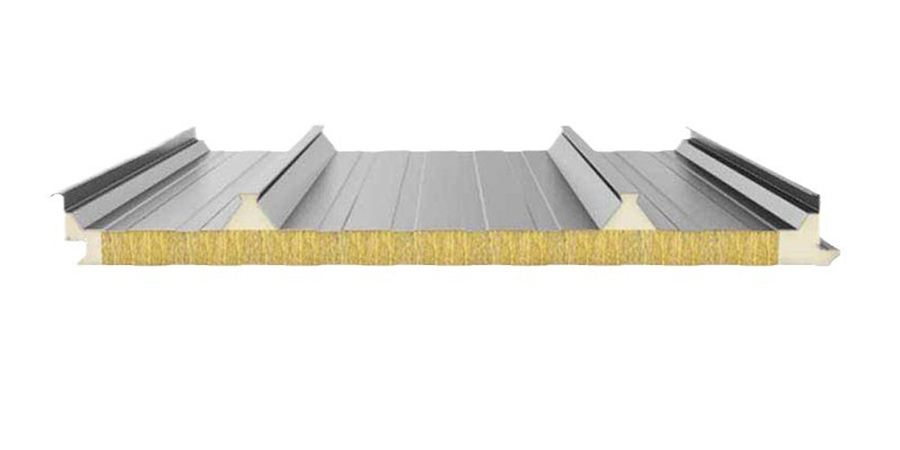

Developed to address solar panel integration in energy-efficient buildings, this multifunctional roofing system combines thermal insulation with solar energy utilization. It utilizes specially designed metal polyurethane energy-saving panels as the load-bearing roof structure.
Optional Core Materials:
Polyurethane-edged rock wool sandwich core
Polyurethane-edged fiberglass sandwich core
Polyurethane core
Product specification
Panel type | Roof sandwich panels for solar photovoltaic system | ||
Effective width | 950/1000mm | ||
Panel thickness | 50/ 75/ 100/ 150mm | ||
Coating type | PE, SMP, HDP, PVDF | ||
Steel sheet (GI/PPGI/PPGL) | 0.40-0.75 mm | ||
Aluminum metal sheets | 0.60-1.20 mm | ||
Surface sheets | Steel sheet (GI/PPGI/PPGL): 0.40-0.75 mm | ||
Aluminum metal sheets:0.60-1.20 mm | |||
Aluminum foils:0.065 mm | |||
PVC sheets | |||
Core material | PIR/PUR | Rockwool with PU edges | Glass wool with PU edges |
Core density | 35-45 kg/m3 | 110-150 kg/m3 | 48-64 kg/m3 |
Thermal conductivity | ≤0.023 w/m· k | 0.035-0.041 w/m·k | 0.035-0.041 w/m·k |
Product advantages
☆Fire Resistance
Certified by the National Center for Quality Supervision and Inspection of Fire-fighting Systems and Fire Resistant Components with Class B1 flame-retardant rating.
☆Air Tightness & Acoustic Insulation
Superior sound absorption effectively dampens impact noise from rain or hail.
☆Eco-Friendly
Formaldehyde-free, resistant to microbial growth, and fully recyclable.
☆Rapid Installation
Factory-produced under controlled conditions ensuring consistent quality. Features a 35-year proven track record in construction.
Product application

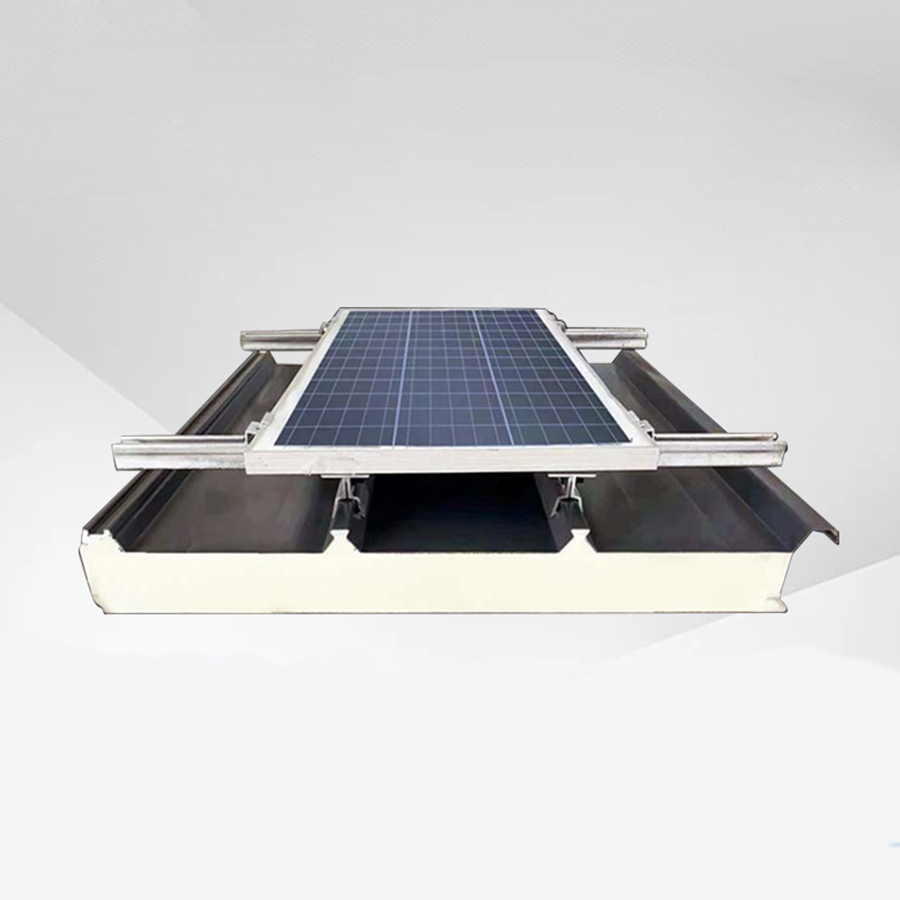

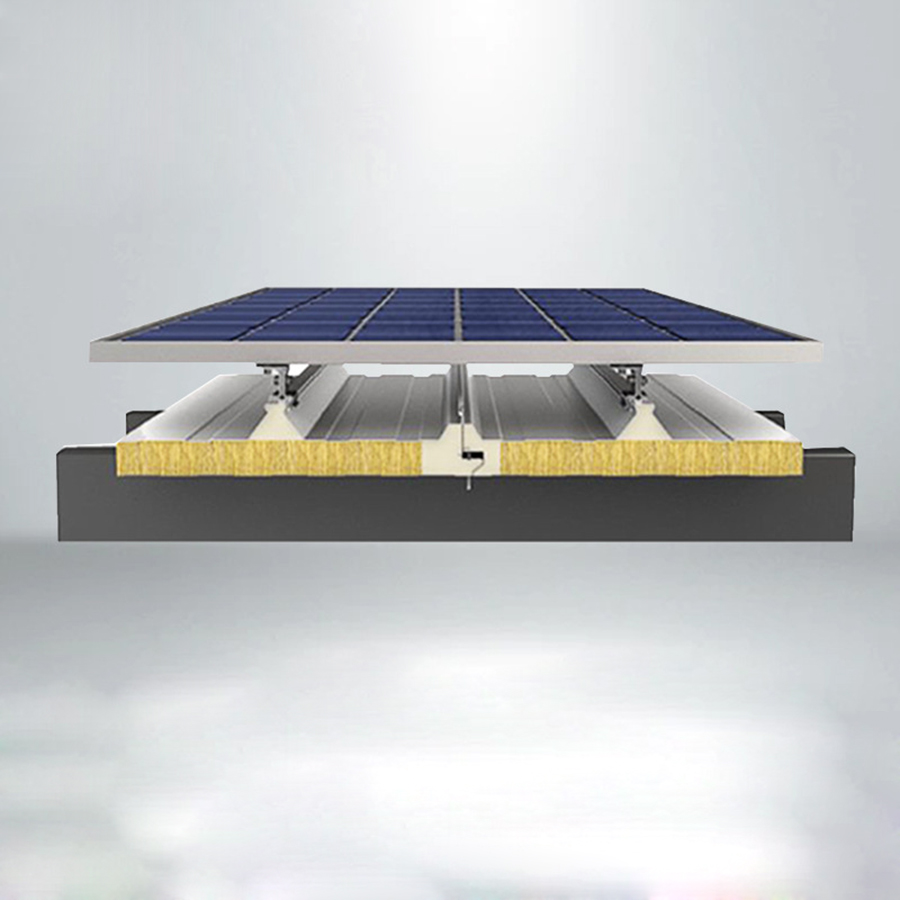

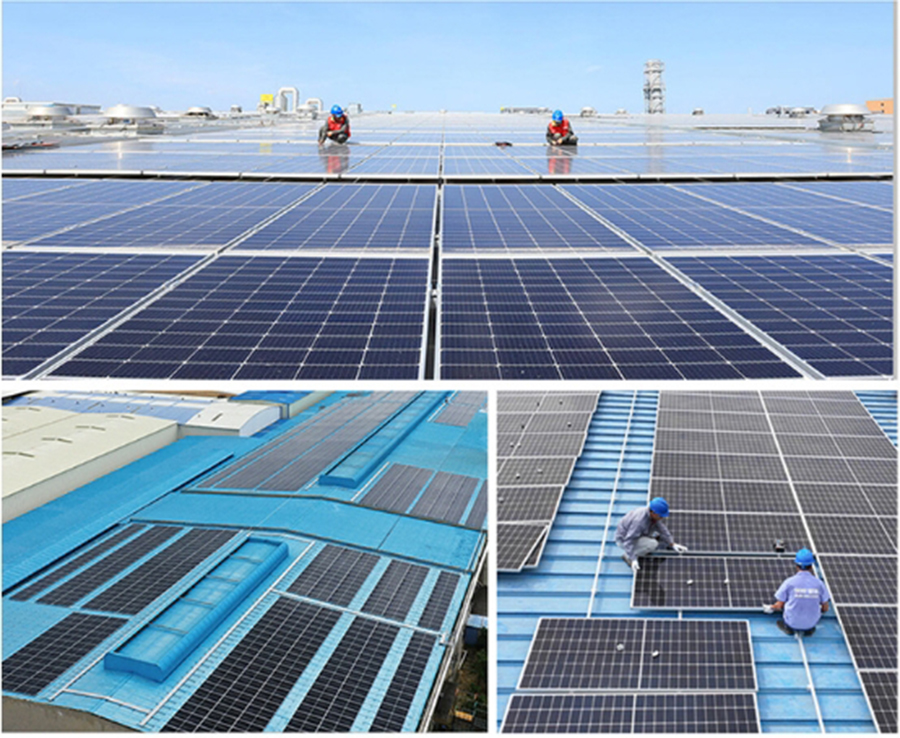

Engineered for superior solar performance, ribs standing seam roof sandwich panels provide the perfect integrated solution for commercial PV systems. Their interlocking design ensures weatherproof durability while offering direct solar mounting without roof penetrations - ideal for warehouses, factories and large-scale solar installations.
Packing & Delivery
☆ Packing
Seaworthy packing standards
If there is other package requested,please feel free to discuss with Yumisteel sales team.
☆Delivery
Delivery time for regular colors,coating types and thickness: 10-15 days ;
Delivery time for special colors,coating types and thickness: 15-25 days ;
Delivery term: FOB/CIF/CFR/DDP is available;
We can find good forwarder for customer or accept appointed forwarder from customers。
Service&Support
☆Service
Xiamen Yumin Xincailiaokeji Co., Ltd. is one combination of industry and trade company, and very professional with steel structure products in China. We are proud of our product quality and customer service and competitive price.And our products are sold worldwide, such as America, South America, Europe, Southeast Asia, Africa etc.
1)Professional sales team,One-to-one service;
2)Combination of industry and trade company,to ensure the service and price;
3)Experienced engineer team to offer professional technology service;
4)Intimate after-sales service.
☆Support
Experienced technology suport, competitive price, professional service, we are here to help you go on with your project smoothly.
