Features
- A1 Level Fire resistance up to 240 mins
- Sound insulation and absorption
- Rockwool: Environment protection material
- Stable performance for long lasting
- Install vertically
- Available length from 2m to 11.95m
Specification

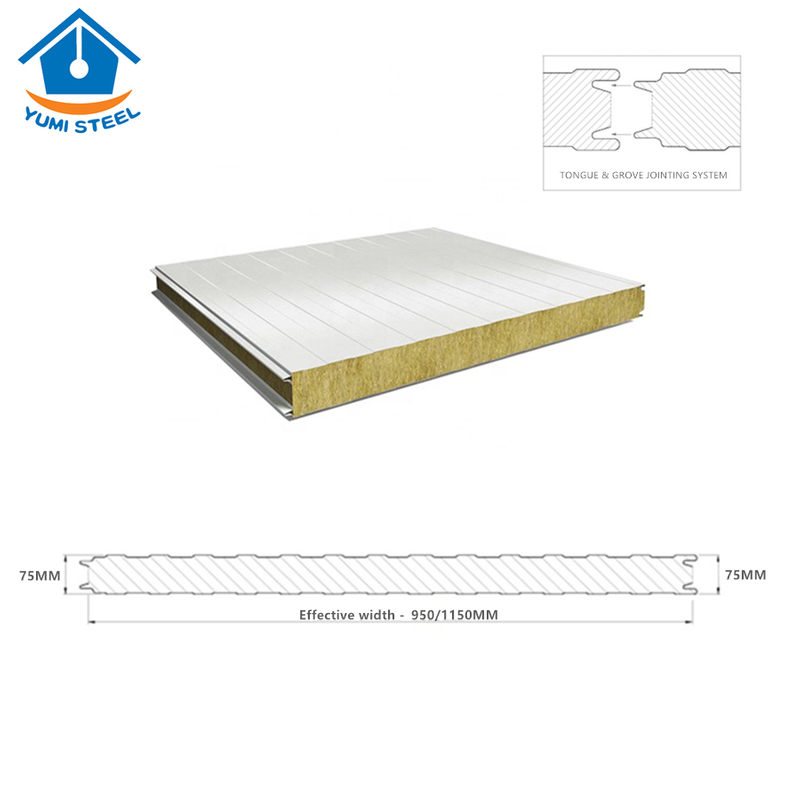

Product component | 75mm rockwool wall panel |
Effective width | 950/1150mm |
Core thickness | 50mm |
Surface sheets | PPGI/ PPGL/ Aluminum sheets/ |
Steel thickness | 0.4-0.7mm |
Aluminum sheets/ | 0.7-1.2mm |
Stainless steel | 0.4-0.6mm |
Core density | 80-150KG/M3 |
Regular color | white grey, sea bule,sliver grey, |
Coating type choice | PE/PVDF/HDP/SMP, etc. |
Available length | 20FT container: ≤ 5.95m |
Technique data
Sound damping value: | |||
Core material thickness(mm) | Sound reduction index(dB) | Spectrum adaption factors | |
C(dB) | Ctr(dB) | ||
50 | 30 | -1 | -4 |
75 | 31.5 | -2 | -4 |
100 | 34 | -2 | -4 |
150 | 35 | -3 | -5 |
Note: These data based on steel thickness 0.40-0.50mm and rockwool density 100KG/M3 | |||
Thermal transmittance coefficient(U value): | ||||
Panel thickness(mm) | 50 | 75 | 100 | 150 |
U(W/M2·K） | 0.78 | 0.58 | 0.41 | 0.28 |
Thermal transmittance coefficient(U value): | ||||
Panel thickness(mm) | 50 | 75 | 100 | 150 |
R(M2·K/W) | 1.28 | 1.76 | 2.44 | 3.57 |
Application
Rockwool sandwich panel is widely applied to most steel structural building: warehouse, workshop, gymnasium, exhibition halls,movable dwellings, etc.

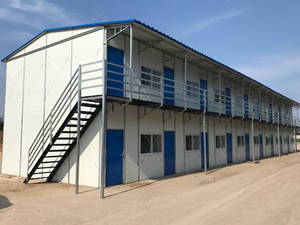

Prefab house |

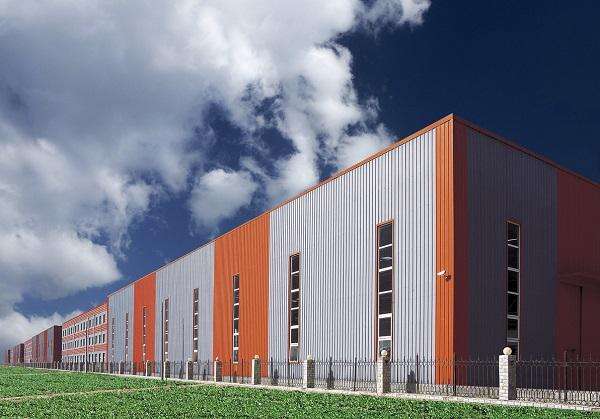

Warehouse |
Our service & support
☆ Installation instructions:
We can have installation instructions to be offered for each different projects,as per customers' requirement.
☆ Technical support:
If customers have special requirement for on-site guide,we can also have our people to go to customers' project site to support your installation.Please contact our salesman to discuss with this support.
☆ Unloading instructions:
If you have container unloading questions,please feel free to discuss with our team,we will do our best to put forward one container unloading solution for you.
☆ Full set of technical information:
When you have technical information need to be offered for related projects,please contact our salesman,and clarify what you need,and we will have our engineers to offer related information to you.
Yumi steel will do our best to support your projects with professional attitudes and excellent service spirit.
Features
- A1 Level Fire resistance up to 240 mins
- Sound insulation and absorption
- Rockwool: Environment protection material
- Stable performance for long lasting
- Install vertically
- Available length from 2m to 11.95m
Specification
Product component | 75mm rockwool wall panel |
Effective width | 950/1150mm |
Core thickness | 50mm |
Surface sheets | PPGI/ PPGL/ Aluminum sheets/ |
Steel thickness | 0.4-0.7mm |
Aluminum sheets/ | 0.7-1.2mm |
Stainless steel | 0.4-0.6mm |
Core density | 80-150KG/M3 |
Regular color | white grey, sea bule,sliver grey, |
Coating type choice | PE/PVDF/HDP/SMP, etc. |
Available length | 20FT container: ≤ 5.95m |
Technique data
Sound damping value: | |||
Core material thickness(mm) | Sound reduction index(dB) | Spectrum adaption factors | |
C(dB) | Ctr(dB) | ||
50 | 30 | -1 | -4 |
75 | 31.5 | -2 | -4 |
100 | 34 | -2 | -4 |
150 | 35 | -3 | -5 |
Note: These data based on steel thickness 0.40-0.50mm and rockwool density 100KG/M3 | |||
Thermal transmittance coefficient(U value): | ||||
Panel thickness(mm) | 50 | 75 | 100 | 150 |
U(W/M2·K） | 0.78 | 0.58 | 0.41 | 0.28 |
Thermal transmittance coefficient(U value): | ||||
Panel thickness(mm) | 50 | 75 | 100 | 150 |
R(M2·K/W) | 1.28 | 1.76 | 2.44 | 3.57 |
Application
Rockwool sandwich panel is widely applied to most steel structural building: warehouse, workshop, gymnasium, exhibition halls,movable dwellings, etc.
Prefab house |
Warehouse |
Our service & support
☆ Installation instructions:
We can have installation instructions to be offered for each different projects,as per customers' requirement.
☆ Technical support:
If customers have special requirement for on-site guide,we can also have our people to go to customers' project site to support your installation.Please contact our salesman to discuss with this support.
☆ Unloading instructions:
If you have container unloading questions,please feel free to discuss with our team,we will do our best to put forward one container unloading solution for you.
☆ Full set of technical information:
When you have technical information need to be offered for related projects,please contact our salesman,and clarify what you need,and we will have our engineers to offer related information to you.
Yumi steel will do our best to support your projects with professional attitudes and excellent service spirit.
