Features
- Outstanding fire resistance from rockwool sandwich and water resistance from PU edges.
- Suitable apply to the building near by other building which produces heavy noise as its good sound absorption performance.
- 100mm thickness offers greater extent of insulation effect but have light weight.
- Color coating steel sheet offers better anti-corrosion to support whole performance.
Specification

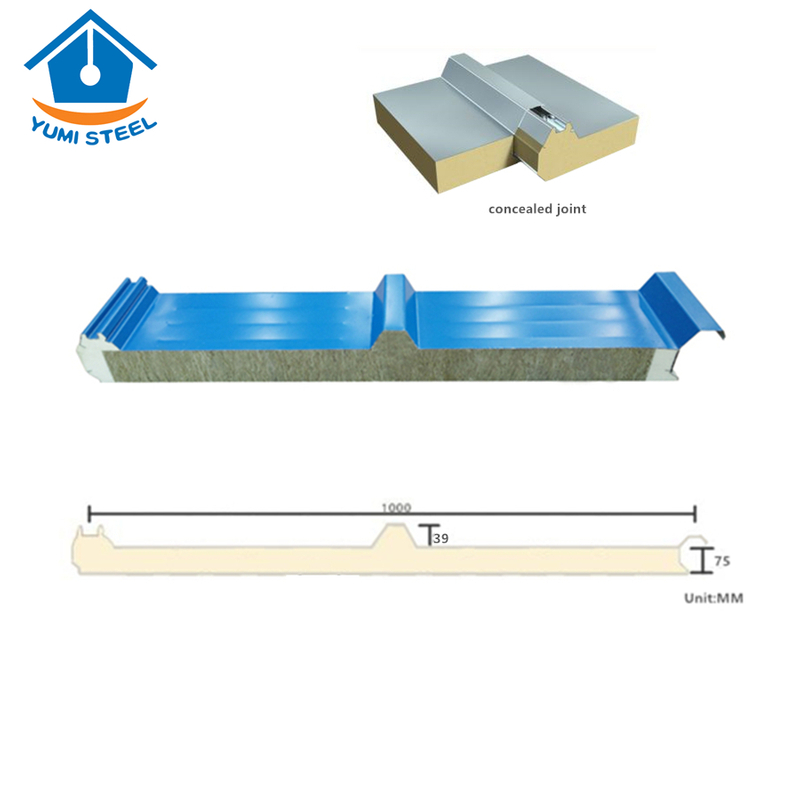

Product component | PU sealing rockwool sandwich panel for roof |
Effective width | 1000mm |
Available length | 20FT container: ≤5.95m 40FT container: ≤11.95m |
Rib height | 39mm |
Rib distance | 500mm |
Rib quantities | 3 ribs |
Core thickness available | 50/60/75/100/150/200mm |
Core material density | 80-150KG/M3 for rockwool |
Steel sheet thickness | 0.40-0.75mm |
Stainless steel sheet thickness | 0.40-0.70mm |
Al-Mg-Mn alloy metal sheet /Aluminum sheet thickness | 0.70-1.20mm |
Surface sheets | PPGI/ PPGL/ Aluminum sheets/ Al-Mg-Mn alloy metal sheets |
Coating choice | PE/PVDF/HDP/SMP,ect. |
Panel color | As RAL |
Application

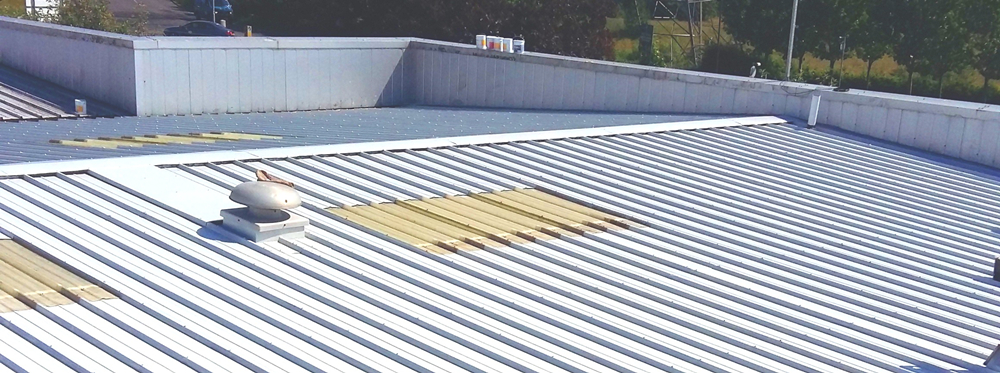

Widely applied to steel structure buildings for example:
- Industrial buildings: power plants, power equipment companies, etc;
- Commercial areas:automobile exhibition halls, warehouses, large supermarkets, etc;
- Public areas: steel structure offices, airport terminals, railway stations, stadiums, logistics centers, etc.
Our service & support
☆ Installation instructions:
We can have installation instructions to be offered for each different projects,as per customers' requirement.
☆ Technical support:
If customers have special requirement for on-site guide,we can also have our people to go to customers' project site to support your installation.Please contact our salesman to discuss with this support.
☆ Unloading instructions:
If you have container unloading questions,please feel free to discuss with our team,we will do our best to put forward one container unloading solution for you.
☆ Full set of technical information:
When you have technical information need to be offered for related projects,please contact our salesman,and clarify what you need,and we will have our engineers to offer related information to you.
Yumi steel will do our best to support your projects with professional attitudes and excellent service spirit.
