A Guide to YX56-420-820 Metal Sheet

Definition

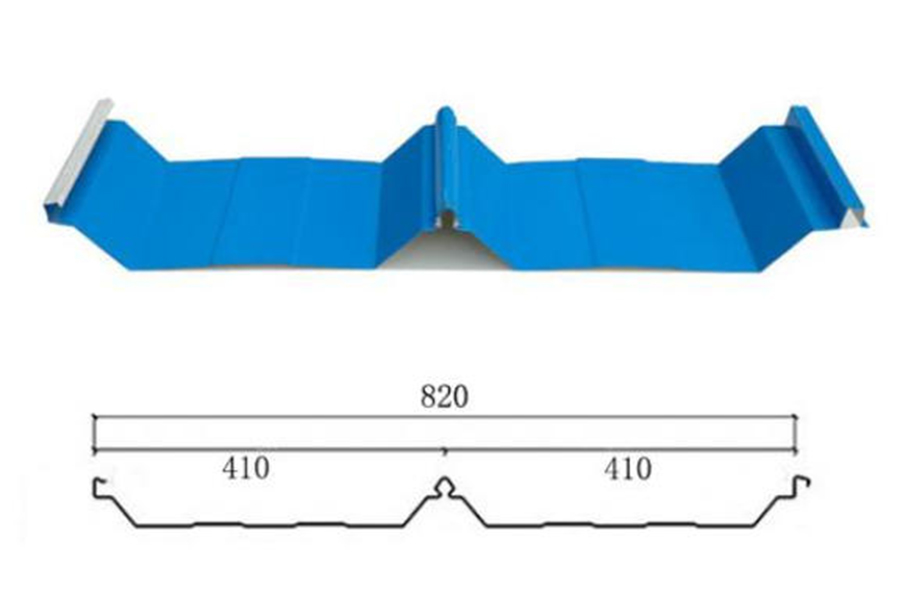

YX56-420-820 is a high-efficiency, energy-saving profiled steel sheet for construction, whose model name clearly reflects its key dimensions. "YX" represents profiled steel, "56" indicates a wave height of 56 millimeters, "420" refers to an effective coverage width of 420 millimeters, and "820" is the unrolled width of the raw material coil. This sheet is formed through precision roll forming and cold bending, presenting a classic and robust trapezoidal corrugated structure. It is one of the core materials for the building envelope systems of large buildings such as industrial plants and logistics warehouses.

Product Advantages

The core advantages of this sheet lie in its excellent structural performance and economic benefits.

Firstly, the 56 mm wave height gives the sheet extremely high bending stiffness and load-bearing capacity, allowing it to remain stable under larger purlin spacing, effectively saving on the cost of the underlying support structure.

Secondly, the 420 mm effective coverage width design balances material utilization and installation efficiency, reducing overlap losses while ensuring strength.

In addition, its excellent drainage performance and clean lines enhance the overall functionality and modern appearance of the building. When used in combination with insulation core materials, it can create a high-strength, high-insulation PU sandwich panel system.

Product Applications

YX56-420-820 sheets have a wide range of applications, mainly as roofing and exterior wall systems. In the industrial sector, it is widely used for the roofs and walls of various factories and warehouses, effectively resisting wind and rain and bearing a certain snow load. In commercial buildings, it is also commonly found on the roofs of large supermarkets and exhibition centers. Its robust characteristics also make it very suitable for applications requiring cleanliness, such as the external envelope structures of food processing workshops or biopharmaceutical plants. Whether used as a single sheet or as a panel in a sandwich panel system, it provides reliable protection.

Product Installation

Correct installation is crucial to ensuring the performance of the sheet. Before installation, ensure that the purlins are level and the spacing meets the design requirements. When laying, start from one side, and the first sheet must be carefully aligned to ensure the straightness of subsequent sheets. The longitudinal overlap length of the metal sheets should be no less than 200 millimeters, and a special sealant should be used at the overlap. For transverse overlaps, the sheets should be aligned at the crests and secured to the purlins with self-tapping screws. Screwing must be perpendicular to the sheet surface, ensuring that the sealing washers are tightened securely but not so tightly as to damage the sheet. During construction, care must be taken to protect the sheets and avoid scratching the coating.

In summary, the YX56-420-820 profiled metal sheet, with its excellent structural strength, cost-effective coverage width, and wide range of applications, is a preferred choice for modern industrial building envelope systems. Understanding its characteristics and following the correct installation procedures will not only maximize its performance advantages but also ensure the long-term safety, reliability, and aesthetics of the building envelope system, providing a solid guarantee for various construction projects.
