A Summary of Key Knowledge Points on Profiled Steel Sheeting

This summary outlines core knowledge on profiled steel sheeting, covering nomenclature systems that define section types and dimensions, key performance merits including high strength to weight ratio and durability, and the critical role of rib/crown geometry. The wave peaks directly influence load capacity, stacking efficiency, and composite action with concrete in floor deck construction.

I. Naming Rules

First, let's look at what profiled steel sheets are and how they are named:

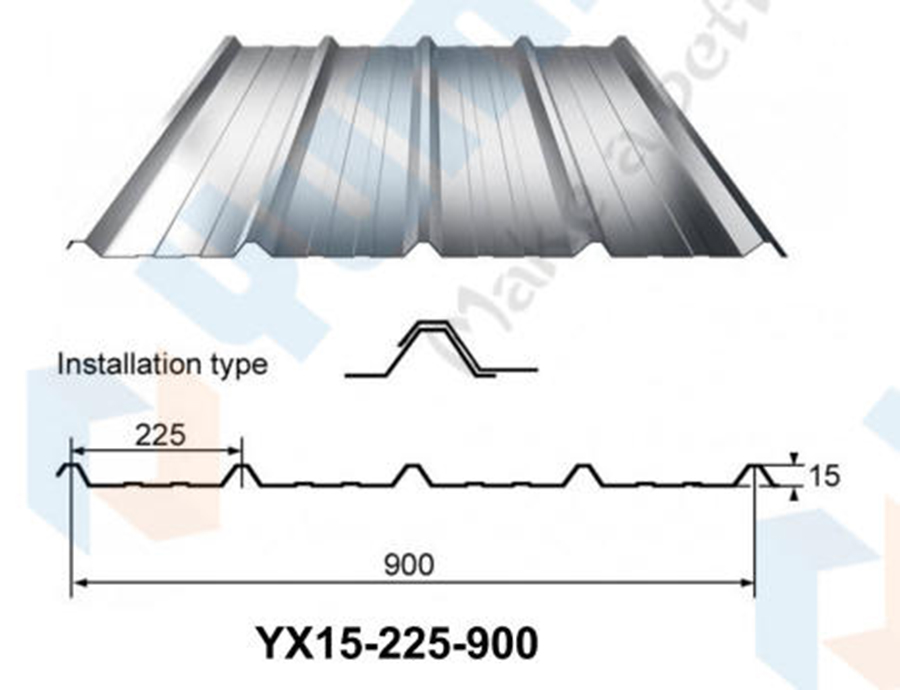

For example: YX15-225-900 is a profiled steel sheet.

YX: Indicates profiled steel sheet (YaoXing, a common industry abbreviation);

15: Wave height is 15mm (determines the moment of inertia of the section, affecting load-bearing capacity);

225: Wave pitch is 225mm (the distance between adjacent wave crests, affecting the flatness of the sheet surface);

900: Effective coverage width is 900mm (the actual lateral distance covered during installation).

II. Core Parameters

Material Thickness: 0.75mm~1.5mm; commonly used thicknesses are 0.8mm/1.0mm. Increasing thickness can significantly improve load-bearing capacity, but costs increase.

Unfolded Width: Approximately 1000mm; the original width of the steel sheet before profiled forming, shrinking to an effective width of 900mm after roll forming.

Utilization Rate: 75%; effective width/unfolded width. High utilization rate reduces material waste.

Galvanizing weight: 60g/m²~275g/m²; Double-sided galvanized layer weight, high galvanizing weight improves corrosion resistance, suitable for humid environments.

Yield strength: 235MPa~345MPa; Commonly used Q235 or Q345 steel, higher strength means stronger resistance to deformation.

III. Performance Advantages

1. Balance between high load-bearing capacity and lightweight

The 15mm wave height design provides a larger moment of inertia, meeting the load requirements of lightweight roofs/walls with a thickness of only 0.8mm, reducing weight by 60%~70% compared to traditional concrete slabs.

2. Quick installation, saving construction time

The effective width of 750mm reduces the number of overlaps, and with self-tapping screws or welding fixation, construction efficiency is more than 3 times higher than flat steel plates.

3. High durability

The galvanized layer effectively isolates the steel from air contact, and the service life in indoor environments can reach more than 20 years; if aluminum zinc plating (AZ150) or epoxy coating is used, the service life can be extended to 50 years.

4. Multifunctional Adaptability

It can be used directly as a permanent formwork (no demolding required), or layered with insulation cotton and waterproof membrane to form a composite roofing system.

Corrugated Steel Sheet Corrugations

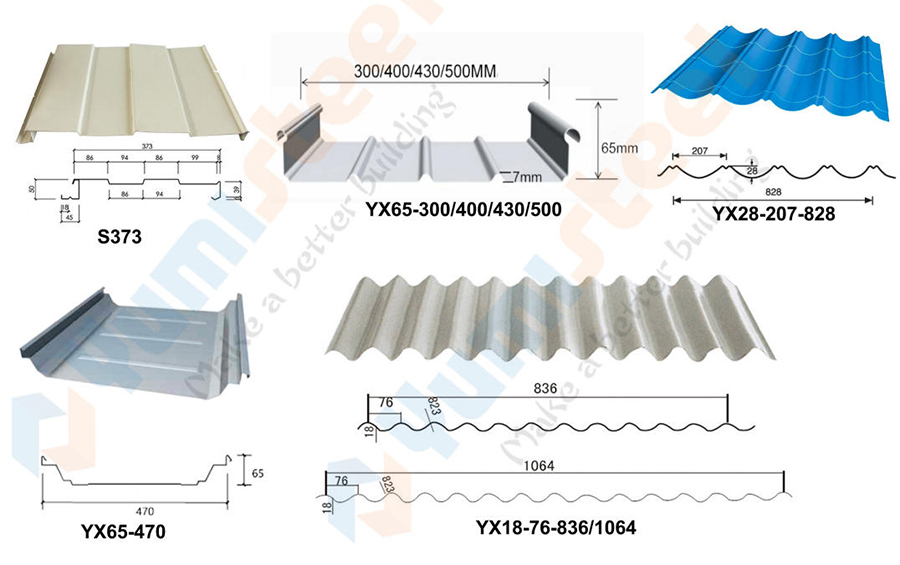

The corrugations of a corrugated steel sheet refer to the highest point of its cross-section. The corresponding key dimensional parameter is the wave height, typically between 10mm and 200mm. The wave height is the core indicator determining the mechanical properties and applicable scenarios of the corrugated steel sheet. Based on the wave height, corrugated steel sheets can be divided into the following three categories:

* Low-wave sheet: 12mm - 35mm; Primarily used for wall panels, roof linings, or the lower layer of on-site composite insulated roofs;

* Medium-wave sheet: 35mm - 50mm; Primarily used as roof panels, suitable for general span and large-area roofing projects;

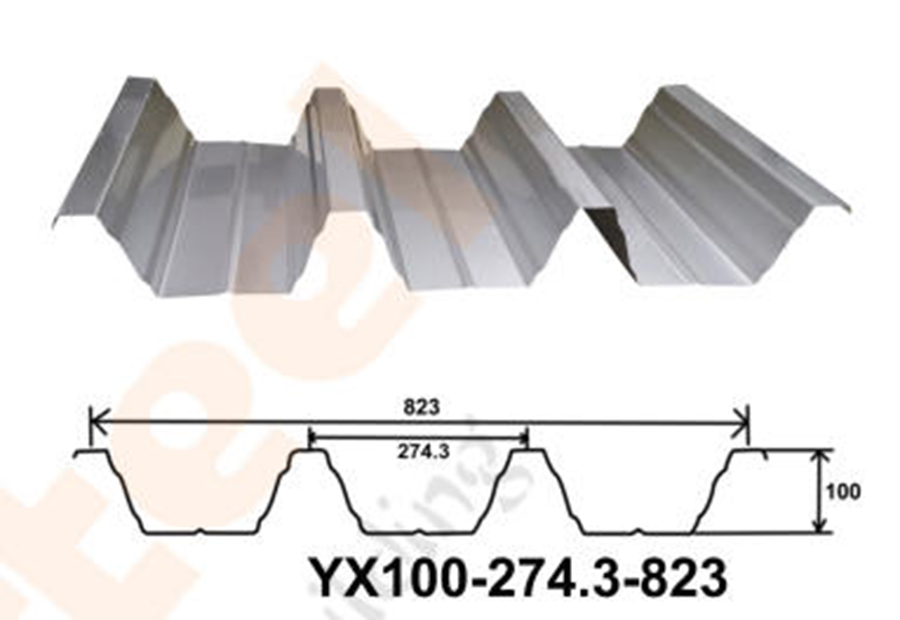

* High-wave sheet: > 50mm; Mainly used for large-span roofs or floor decking with long single-slope lengths and high load-bearing requirements.

In closing, this summary highlights three foundational knowledge areas: nomenclature systems that enable precise product identification, structural and durability advantages that justify material selection, and wave peak geometry that governs load transfer and composite behavior. Mastering these aspects ensures optimal specification, efficient design, and reliable performance in steel deck applications.
