Yumisteel
Product introduction

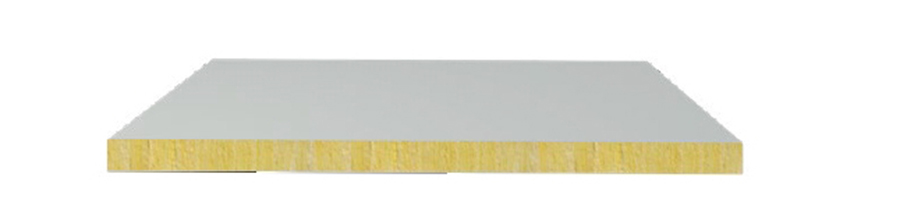

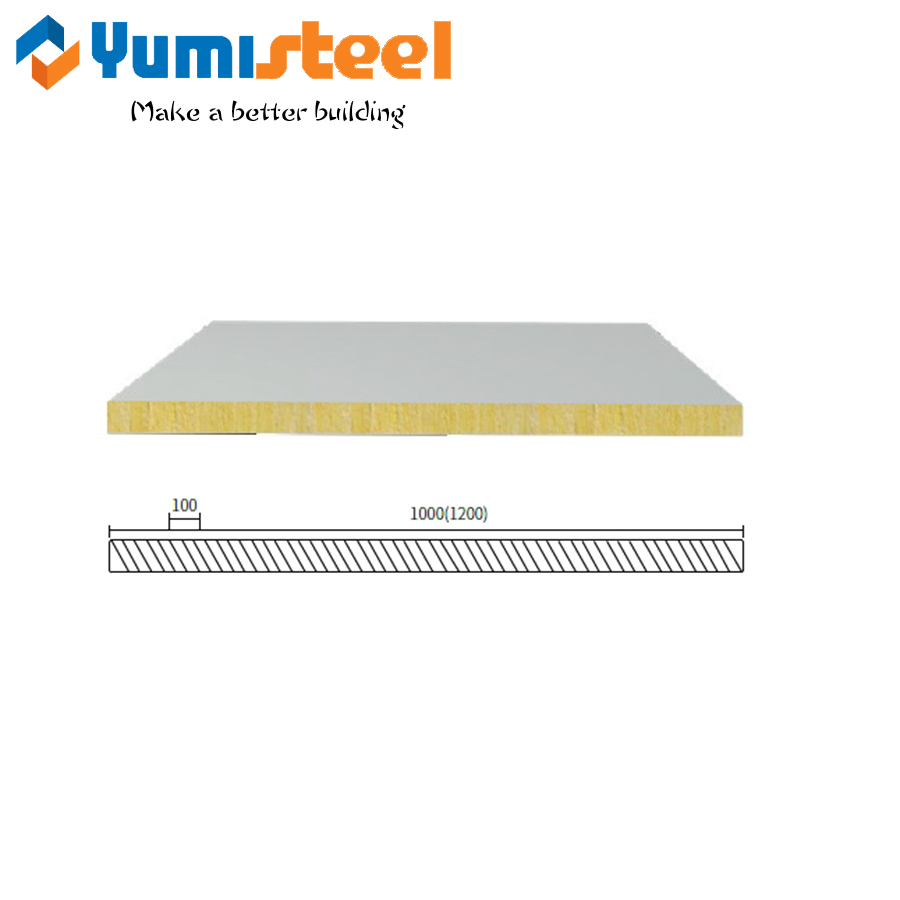

Wall rockwool sandwich panel is a prefabricated composite building material designed for wall applications, consisting of two outer metal sheets (typically steel) and an insulating core made of rockwool. This construction provides a combination of structural integrity, thermal insulation, fire resistance, and acoustic comfort for buildings.
Product specification
Specification | Details | |
Core Thickness | 50/75/100/150/200 mm | |
Panel Width | Standard 1000mm,1200mm | |
Panel Length | 20FT container: ≤ 5.95m | |
Density of Core | 80 kg/m³ | |
Thermal Conductivity | 50mm | 0.749 W/(m·K) |
75mm | 0.530 W/(m·K) | |
100mm | 0.411 W/(m·K) | |
150mm | 0.268 W/(m·K) | |
200mm | 0.210 W/(m·K) | |
Fire Rating | Class A1 (excellent fire resistance) | |
Surface sheets | PPGI/ PPGL/ Aluminum sheets/ Al-Mg-Mn alloy metal sheets/ Stainless steel | |
Aluminumsheets/Al-Mg-Mnalloymetal sheet | 0.70 - 1.20 mm | |
Steel thickness | 0.40 - 0.70 mm | |
Stainless steel | 0.40 - 0.60 mm | |
Regular colour
Product advantages
☆Superior Fire Resistance
Rockwool sandwich panels achieve A1-grade fireproof certification with non-combustible mineral wool core (1000°C+ resistance), making them ideal for industrial safety compliance.
☆Excellent Thermal & Sound Insulation
The rockwool core provides outstanding thermal insulation (λ=0.038W/m·K) and 30dB+ soundproofing, reducing energy costs and noise pollution.
☆Durable & Customizable
Pre-painted steel surfaces (0.3-0.8mm thickness) offer corrosion resistance, while customizable dimensions/colors suit diverse architectural needs.

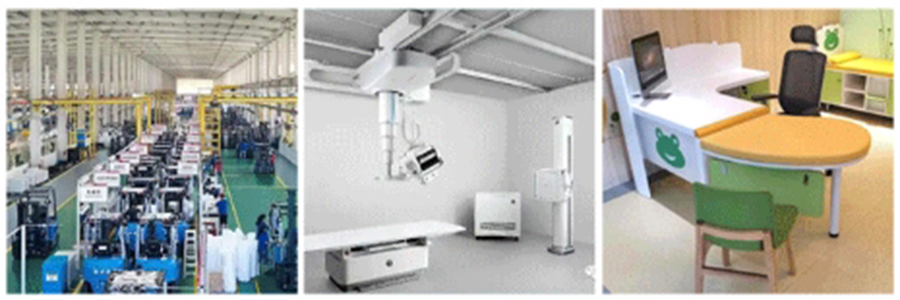

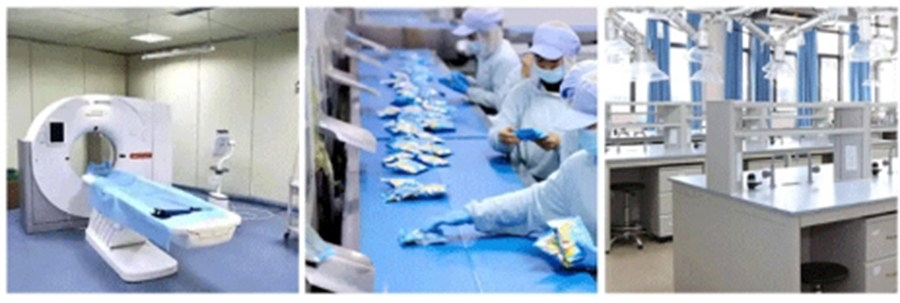

Product application
These fireproof rockwool sandwich panels provide sterile, soundproof environments with superior thermal insulation. Their non-combustible properties and airtight construction meet strict hygiene and safety standards for critical facilities.They are ideal for hospitals, operating rooms, food processing plants, laboratories, and industrial workshops.

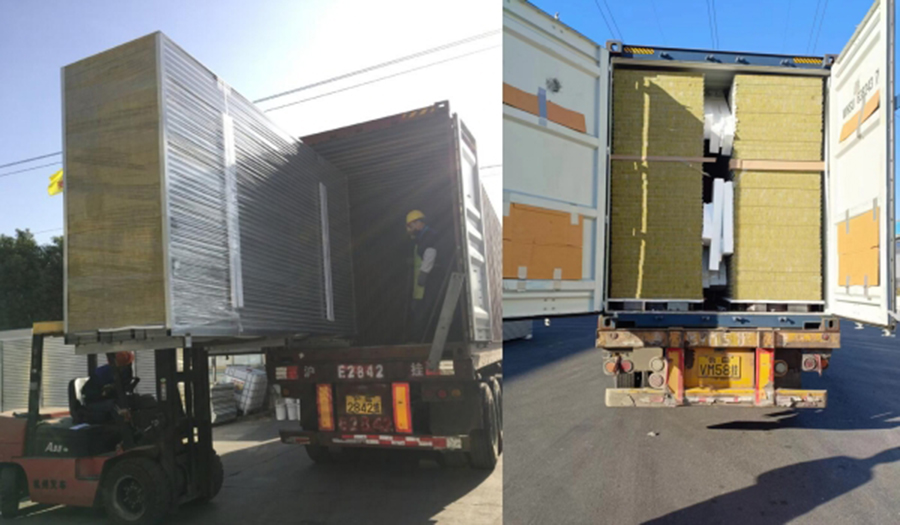

Packing & Delivery
☆ Packing
Seaworthy packing standards
If there is other package requested,please feel free to discuss with Yumisteel sales team.
☆Delivery
Delivery time for regular colors,coating types and thickness: 10-15 days ;
Delivery time for special colors,coating types and thickness: 15-25 days ;
Delivery term: FOB/CIF/CFR/DDP is available;
We can find good forwarder for customer or accept appointed forwarder from customers。
Service&Support
☆Service
Xiamen Yumi New Material Tech. Co., Ltd. is one combination of industry and trade company, and very professional with steel structure products in China. We are proud of our product quality and customer service and competitive price.And our products are sold worldwide, such as America, South America, Europe, Southeast Asia, Africa etc.
1)Professional sales team,One-to-one service;
2)Combination of industry and trade company,to ensure the service and price;
3)Experienced engineer team to offer professional technology service;
4)Intimate after-sales service.
☆Support
Experienced technology suport, competitive price, professional service, we are here to help you go on with your project smoothly.
