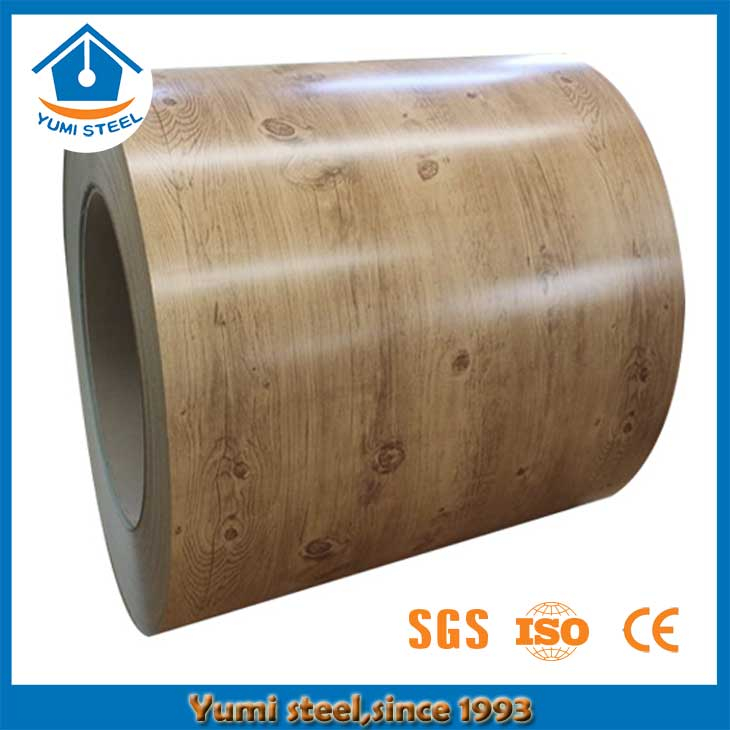

China Galvalume Pre-painted Aluminum Steel Coil with Wood Grain

PPGL steel coils is short for pre-painted galvalume steel,which have more better performance in anti corrosion.Our MOQ is 20 tons per color and size,and various color in wood grains for your choices to fit your products or project.
Availability:
Quantity:
  • 600-1250mm

  • Yumi steel

  • 72104900

China galvalume pre-painted aluminum steel coil with wood grain




1.Wood grain steel coil application:

01-steel-for-sale

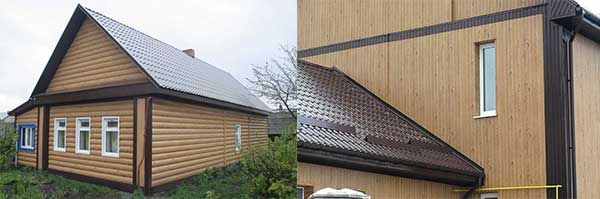

PPGL steel coils with wood grain can be used in different kinds of products,such as sandwich panel,wood grain steel doors,corrugated steel roofing sheets and wall claddings,structural balcony,etc.

01-steel-coils-application

Since it’s with elegant wood grain,its application is more wide,and improve its aesthetic level.It can also used in buildings directly,for example,resorts,container houses,gazebos,etc.



2.Wood grain steel coil color swatches:

02-wood-grain-steel-coil-color-swatches

03-wood-grain-steel-coil-color-swatches

We have various color swatches for you to choose.Please check as photos,and if you have other colors special needed,we can follow your requirement and make for you.



3.Other color swatches:

We can also make PPGL or PPGI with other new grains,please refer to the follow video:


4.PPGL coils specs:



Material:

CGCC, DX51D, Q235, Q345, ASTM 792/792M

Alu-zinc coating:

30 ~ 180 g/m²

Thickness range:

0.20 ~ 1.20 mm

Coil width range:

600 ~ 1250 mm

Coil ID:

508 / 610 mm

Coil weight:

3 ~ 8 tons

Surface treatment:

Anti-finger printing, Chromated, oiled/non-oiled

Hardness:

Normal, hard, full hard

Color:

As RAL color swatches or as per requirement

Top coating:

20 ~ 25 μm

Bottom coating:

10 ~ 15 μm

Coating types:

PE, SMP, HDP, PVDF

Packing:

Seaworthy packing standards



5.Product features:



☆ It can be customized grains,colors and can be with logos;

☆ We can also cut into sheets,as per your length requirement;

☆ Various color swatches for your choices.



6.Steel coils packing & Loading standards:

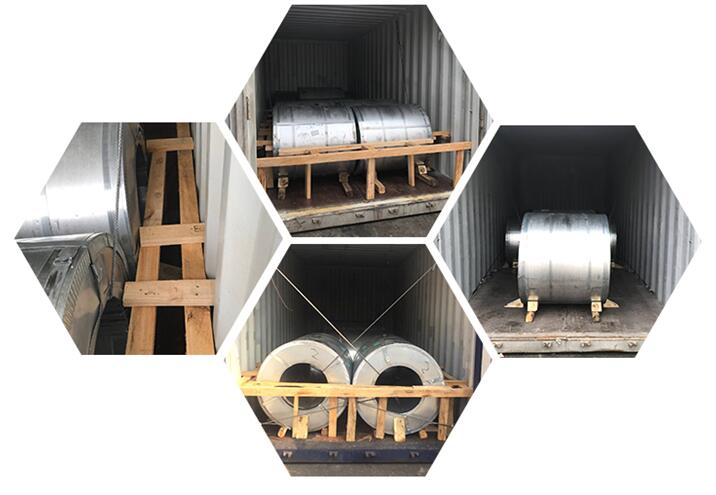

03 Packing & Loading for steel coilsAll our products will be well packed with waterproof paper,galvanized steel layer,edge protection layer,straps,then tags or mark on coil surface.Our loading will be protected by wooden pallet or iron,and steel ropes to fixed,make sure the steel coils could be protected very well,until goods arrived in customers’ place.

If you have other packing requirement,please feel free to discuss with us,and we will follow your requirement and advise.
