Clean room panels introduction

Views:15     Author:Site Editor     Publish Time: 2018-08-14      Origin:Site

Clean room panels introduction

Clean room panel is also called purification plates,clean room plates,etc.,which is including handmade clean room panels and machine made clean room panels.Our company has the following types of clean room plates,which is widely used in electronics, pharmaceuticals, food, biology, aerospace, precision instrument manufacturing and scientific research and other demanding decontamination fields in the indoor environment.

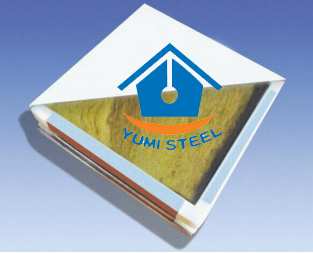

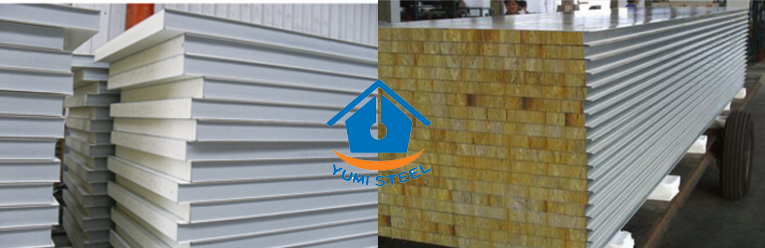

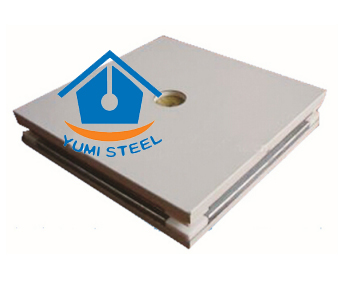

1) Rockwool(grass wool)fire protection panels:

Product specs:

Panel thickness

50/75/100/150mm

Available width

950/980/1150/1180mm

Max length for wall

≤6000mm/Customized

Max length for suspended ceiling

≤3000mm/Customized

Rockwol density

80/100/120KG/M³


Product technical data:

Weight reference

15KG/M²

Thermal insulation properties

0.54kcal/m²/h/

Sound insulation performance

30db

Built-in function

Embedded pipe

Fire resistance(H)

0.5h

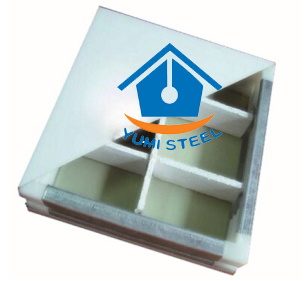

2) Glass magnesium grid purification plate:

Product specs:

Panel thickness

50/75/100/150mm

Available width

600-1200mm

Max length for wall

≤6000mm/Customized

Max length for suspended ceiling

≤3000mm/Customized

Product technical data:


Weight reference

18KG/M²

Thermal insulation properties

1.8kcal/m²/h/

Sound insulation performance

20db

Built-in function

Embedded pipe

Fire resistance(H)

1.0h


3) Aluminum honeycomb cleaning panel:



Product specs&technical data:

Wall panel thickness

50mm 75mm100mm

Recommended maximum length

4000mm

Ceiling board ceiling length

3000mm

Wall panel width

100mm-1180mm

Core material

Aluminum honeycomb Aluminum honeycomb + glass magnesium plate

Sound insulation performance

18dB

Built-in function

Embedded pipe

Fireproof level

A level

Available width

980mm 1180mm950mm1150mm

Panel type

Cam lock,Middle-mounted


4) Middle-mounted purification panels:

Wide range of applications: Products used in electronics (industrial plants), pharmaceuticals (cleaning rooms), chemical (fireproof workshops)


Product diversification: Products have steel rock wool core board, steel surface aluminum (paper) honeycomb board, steel surface glass magnesium core board, steel surface rock wool core board, steel gypsum layer extrusion reinforced core material can also be based on customers Requires the production of special core materials, special specifications of the plate.


Good physical and chemical properties: The steel surface of the product is advanced poly baked coating or plated coating, stainless steel plate, so it has good corrosion resistance; the core material of the product is A-grade combustion-supporting material (excluding paper honeycomb), it will not be melted when burning, no high temperature Decomposition is a high-grade fire-resistant building decorative composite plate in China, which has high strength and shock resistance.


Easy installation and installation: The products are all hand-manufactured, and can be produced according to the requirements of the demanding project. The combined installation can not only greatly reduce the cost of the foundation engineering and structural engineering of the building, but also can be disassembled and assembled several times, and the construction and installation are convenient and comprehensive. Very significant.

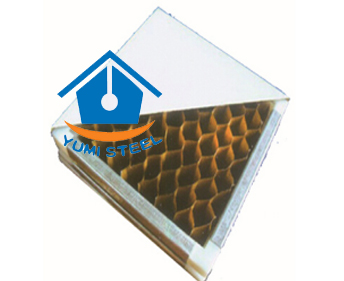

5) Paper honeycomb purification panels:

Wall panel thickness

50mm 75mm 100mm

Recommended maximum length

6000mm

Ceiling board ceiling length

3000mm

Wall panel Available width

950/980/1150/1180mm

Weight reference

10KG/M²

Core material

Non-combustible paper honeycomb

Thermal insulation properties

1.9kcal/m²/h/℃

Sound insulation performance

20dB

Built-in function

Embedded pipe

Fireproof level

B level

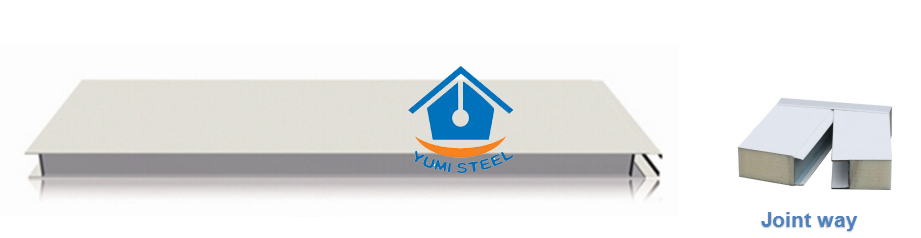

6) Bayonet joint fireproof purification panels:

Product specs:

Product name

Model

YMQK950/YMQK1150

Bayonet joint purification panels





Effective width

950/1150MM

Feeding width

1000/1200MM

Steel sheet thickness

0.40-0.80MM

Core material thickness

507580100150200MM

Keel thickness

0.60-1.20MM

Remarks:

Various width non-standard plates can be produced according to user requirements.

Recommended plate manufacturers: Baosteel, Yu Hui, etc.

Core material name: Polyurethane, rock wool, paper honeycomb, aluminum honeycomb, various core materials above glassy magnesium grid.

Performance description:

1. Use the plug and socket connection to effectively reduce installation costs.

2. Each enterprise can be used as a threading pipeline to facilitate construction.

3, seven lines 90 ° outside the suppression, more beautiful seam.

4,Both belong to the ideal plate type of wall plate and roof plate.

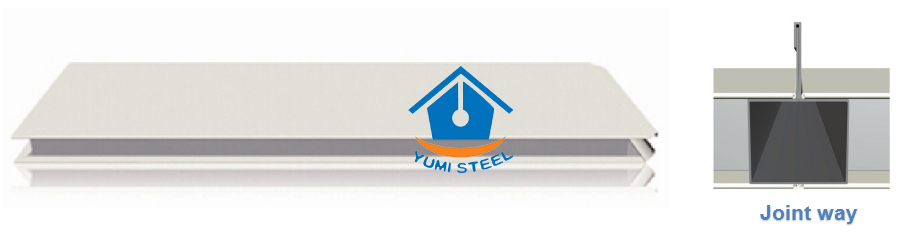

7) Joist hidden ceiling purification panels:

Product specs:

Product name

Model

YMSM950/YMSM1150

Joist hidden ceiling purification panels





Effective width

950/1150MM

Feeding width

1000/1200MM

Steel sheet thickness

0.40-0.80MM

Core material thickness

507580100150200MM

Keel thickness

0.60-1.20MM

Remarks:


Core material available: Polyurethane, rock wool, paper honeycomb, aluminum honeycomb, various core materials above glassy magnesium grid.

Performance description:

1. Professional ceiling materials;

2, dark beam ceiling, the overall more beautiful;

3, square crane beam, greater strength.

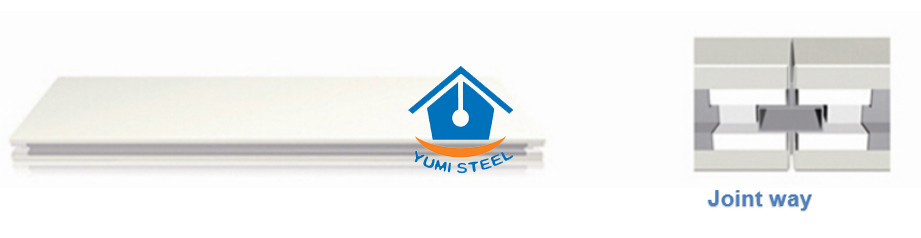

8) Handmade tongue and groove clean room panel:

Product specs:

Product name

Model

YMZZ980/YMZZ1180

Joist hidden ceiling purification panels





Effective width

980/1180MM

Feeding width

1000/1200MM

Steel sheet thickness

0.40-0.80MM

Core material thickness

507580100150200MM

Keel thickness

0.60-1.20MM

Remarks:


Core material available: Polyurethane, rock wool, paper honeycomb, aluminum honeycomb, various core materials above glassy magnesium grid.

Performance description:

1, using the word aluminum connection, easy installation, convenient;

2, using a bow-shaped galvanized keel around, the whole board is stronger;

3, the ceiling board adopts the heavy-duty heavy-duty crane beam with stronger strength;

4, modular assembly, construction faster.

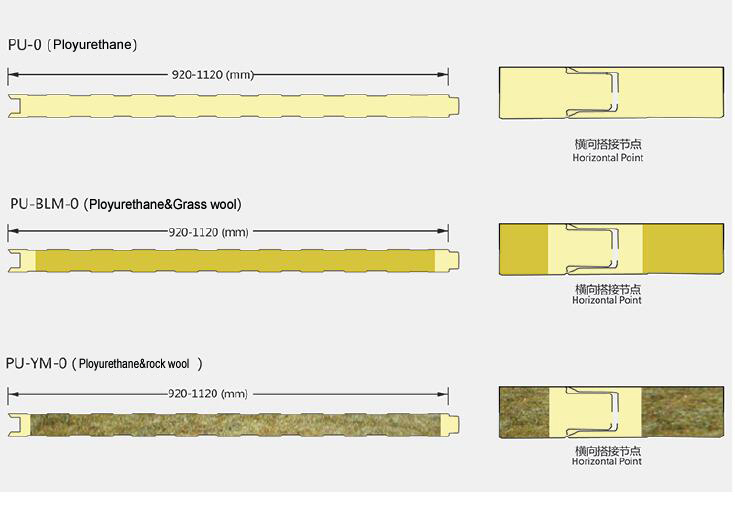

9) PU clean room panels:

The purifier plate has good mechanical properties, simple structure, quick installation, high usage rate and economical application. The thickness is 50mm, 75mm, 100mm.























Product instruction:


1. The purifier plate is used for the internal partitions and suspended ceilings of buildings and also for the walls of mobile container houses;

2. The bayonet plate has good self-supporting performance;

3, This purification board has a good air tightness;

4, This purification board has good insulation and anti-cold bridge function;

5, The surface layer can be color coated steel plate, galvanized steel and stainless steel, etc.;

6, The thickness of the purification plate is 50,75,100mm;

7, The purification plate width 920-1120mm.

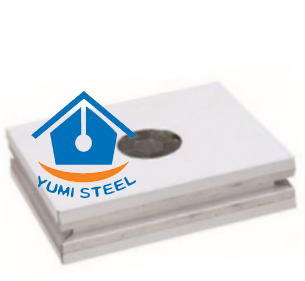

10) Machine made purification panels:

Product specs:

Density

≥120Kg/m³

Thermal Conductivity

0.046w/m·k

Combustion performance

A level(Not flammable)

Remarks:


Core material available: EPS, XPS. Rock wool, glass wool, paper honeycomb, aluminum honeycomb, glass magnesium grid and other core materials.


It can be sealed on the four sides according to the customer's requirement, and the reinforcing ribs are used in the middle of the plate. The plate surface has good flatness and high strength and belongs to the clean board with excellent fireproof effect.


For more details,please download our catalog of clean room panels in PDF version or contact us by mail admin@yumisteel.com .Thank you.
