Choosing between closed, open, and re-entrant steel deck profiles directly impacts fire resistance, structural strength, and construction speed. Closed decks offer smooth ceilings and better fire ratings. Open decks install fast but need fireproofing. Re-entrant decks sit in the middle. Nail the selection with a clear side‑by‑side comparison.
How to tell the three deck types apart at a glance?
Type | Section Feature | Typical Model | Composite Deck Rebar Requirement |

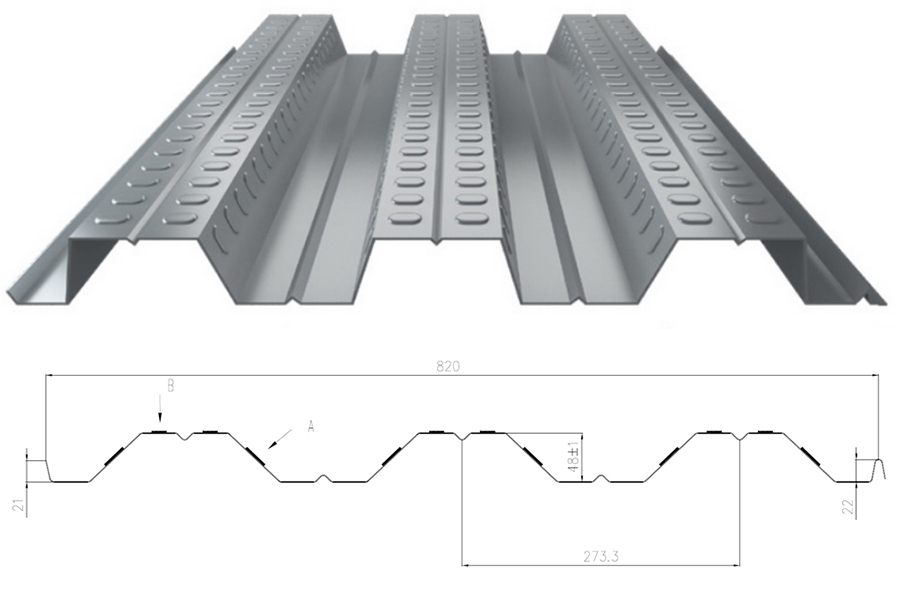

Open (Deck) | Open rib facing up | YXB75-200-600 YXB51-250-750 | Requires bottom transverse shear reinforcement + load-bearing rebar |

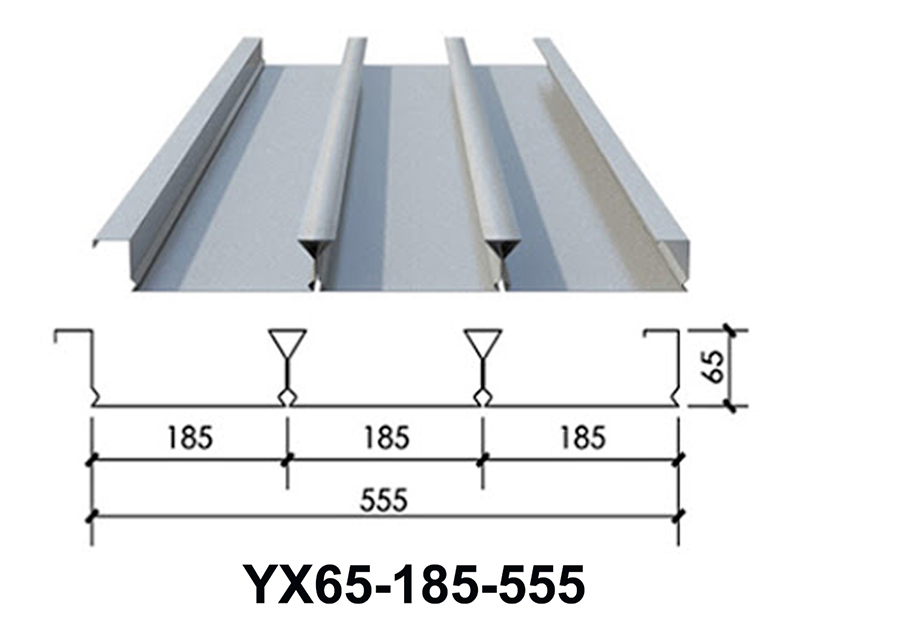

Closed (Deck) | Closed rib, wave peak closed | YXB65-170-510 YXB65-185-555 | Closed rib shape provides shear connection; bottom transverse shear reinforcement may be omitted (subject to design verification) |
Re-entrant (Deck) | Dovetail interlock design | YX53-200-600 | Requires bottom transverse shear reinforcement + load-bearing rebar |
Comparison of Core Parameters
Parameter | Open Deck (YXB75-200-600) | Closed Deck (YXB65-185-555) | Re-entrant Deck (YX53-200-600) |
Rib height (mm) | 75 | 65 | 53 |
Effective coverage width (mm) | 600 | 555 | 600 |
Gross width (mm) | 1000 | 1045 | 1000 |
Common thickness (mm) | 0.8~1.2 | 0.8~1.2 | 0.75~1.2 |
Material utilization rate | 60% | approx. 53% | 60% |
Deck Selection Decision Matrix
Comparison Item | Open Deck | Closed Deck | Re-entrant Deck |
Unit price | Low | Medium to high | Medium |
Bottom shear reinforcement required | Yes | No (subject to design verification) | Yes |
Construction speed | Slow (rebar placement + sealing) | Fast | Medium |
Concrete leakage risk | High | Low | Medium to low |
Deck bottom flatness | Poor | Good | Medium |
Accessory compatibility | High | Medium | Low |
Selection Recommendations
Application Scenario | Recommended Deck Type | Key Considerations |
Residential / Apartment | Closed deck (first choice) | Flat soffit looks fine even without a suspended ceiling. Pay attention to fire design. |
Industrial Plant | Open deck or re-entrant deck | Cost priority; concrete leakage risk is acceptable in this setting. |
Office / Commercial | Closed deck (first choice) | Easy MEP installation; cost advantage from eliminating shear rebar. |
Span ≤ 2.5m | Any of the three | Choose the cheapest option — usually open deck. |
Span ≥ 4m | Closed deck preferred, or open deck with temporary support | Closed deck offers better strength; open deck needs shoring. |
A warehouse once swapped closed deck for open to save cost. Concrete leaked, the job stopped, and rework topped $30,000. Bottom line: unit price misleads. Closed deck costs more per sheet but cuts shear rebar, patching, and delays. Choose by total installed cost, not material price alone.
