Composite Steel Deck vs Conventional Concrete Slab

The choice of flooring system significantly impacts a building's cost, speed of construction, and long-term performance. For decades, traditional cast-in-place reinforced concrete slabs have been the industry standard. However, the composite steel deck—also known as profiled steel sheeting,is rapidly becoming the preferred alternative for modern construction, offering compelling advantages in efficiency, structural behavior, and sustainability.

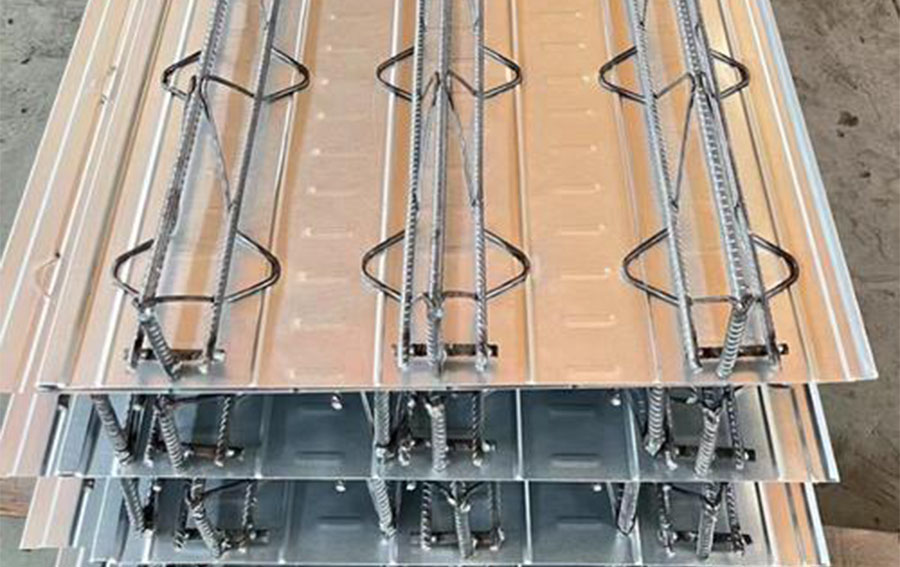

A composite steel deck system uses cold-formed galvanized steel sheets with a corrugated profile. It acts as permanent formwork, eliminating the need for temporary timber or steel molds. Once the concrete is poured and cured, the steel and concrete work together synergistically: the concrete resists compression while the steel deck handles tensile forces. In contrast, a conventional concrete slab relies solely on its own mass and embedded rebar, requiring extensive formwork, on-site rebar placement, pouring, curing, and stripping—a slow, labor-intensive, and weather-dependent process.

The benefits of the steel deck system are most evident in construction efficiency. With factory-prefabricated components and rapid on-site assembly, the single-floor cycle time can be reduced by over 50%. Multiple floors can be worked on simultaneously, shortening the overall project timeline by 30-50%. This speed translates directly into lower management fees, reduced equipment rental costs, and earlier building commissioning.

Structurally, composite decks are lighter and stronger. By reducing concrete usage by 20-30%, the slab's self-weight drops by up to 40%. This lowers the demand on foundations and allows for smaller beams and columns. The ductility of steel also enhances seismic performance, improving a building's resistance rating by one to two levels compared to the relatively brittle behavior of pure concrete.

From a financial perspective, the steel deck system is highly competitive. It eliminates formwork costs entirely (saving 30-40 CNY/m²) and reduces scaffolding, rebar, and labor costs by 60-80%. Overall, composite decking costs approximately 105-120 CNY/m², compared to 130-150 CNY/m² for a traditional slab—a saving of 20-30 CNY per square meter. On a 10,000 m² project, this amounts to 200,000-300,000 CNY in direct savings.

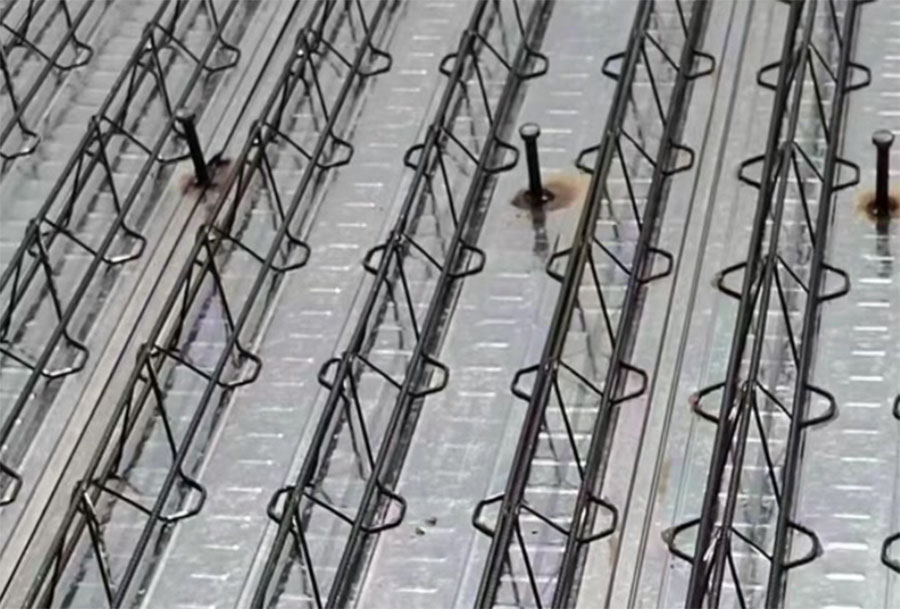

While proper installation—such as welding shear studs and preventing edge curling—is essential, the composite steel deck represents a clear evolution. By combining factory quality, on-site speed, structural efficiency, and lower lifecycle costs, it is becoming the go-to flooring solution for high-rise buildings, industrial plants, and long-span structures.
