Product introduction

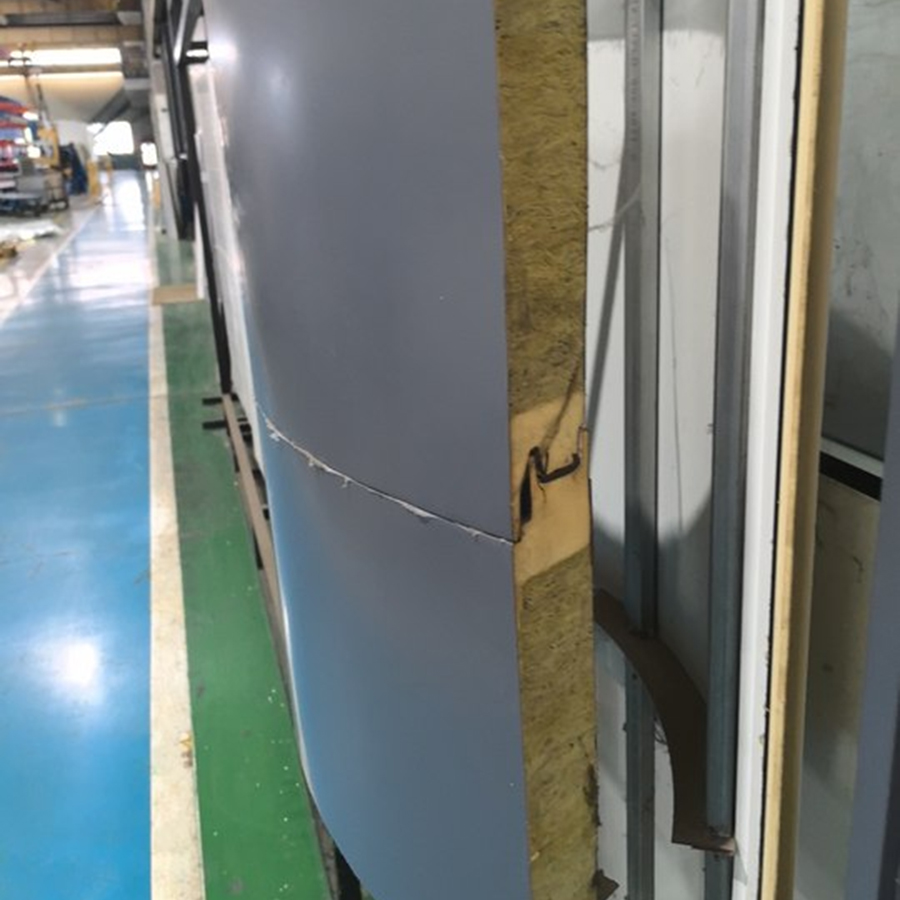

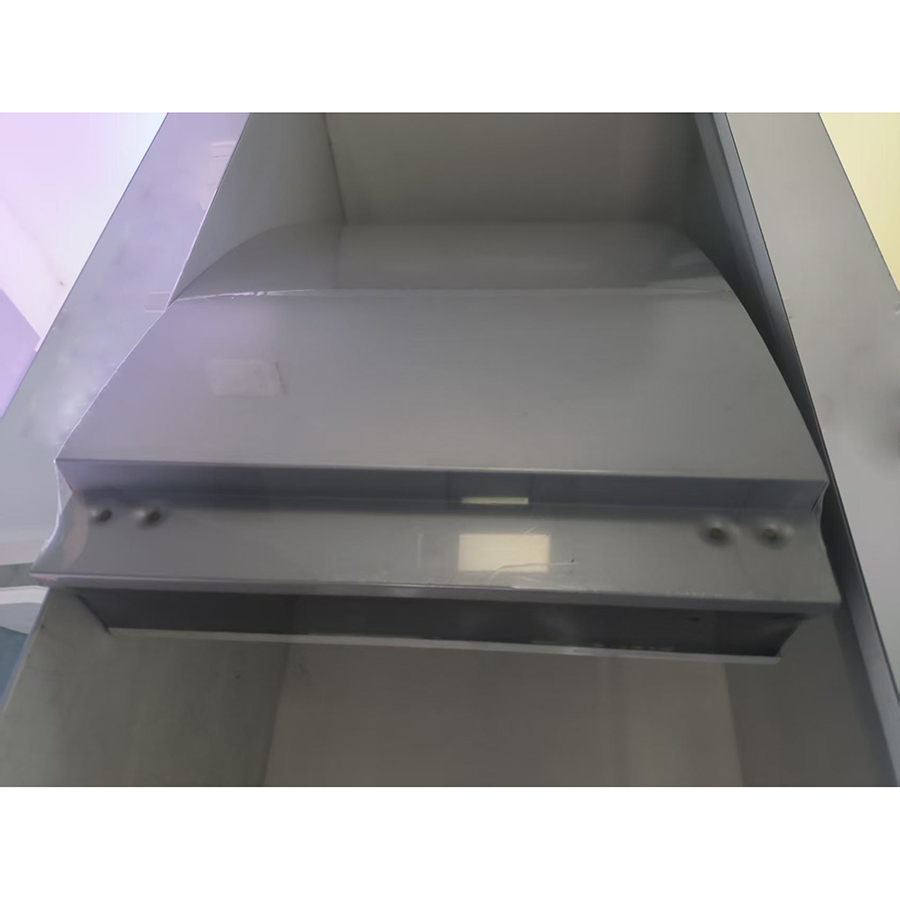

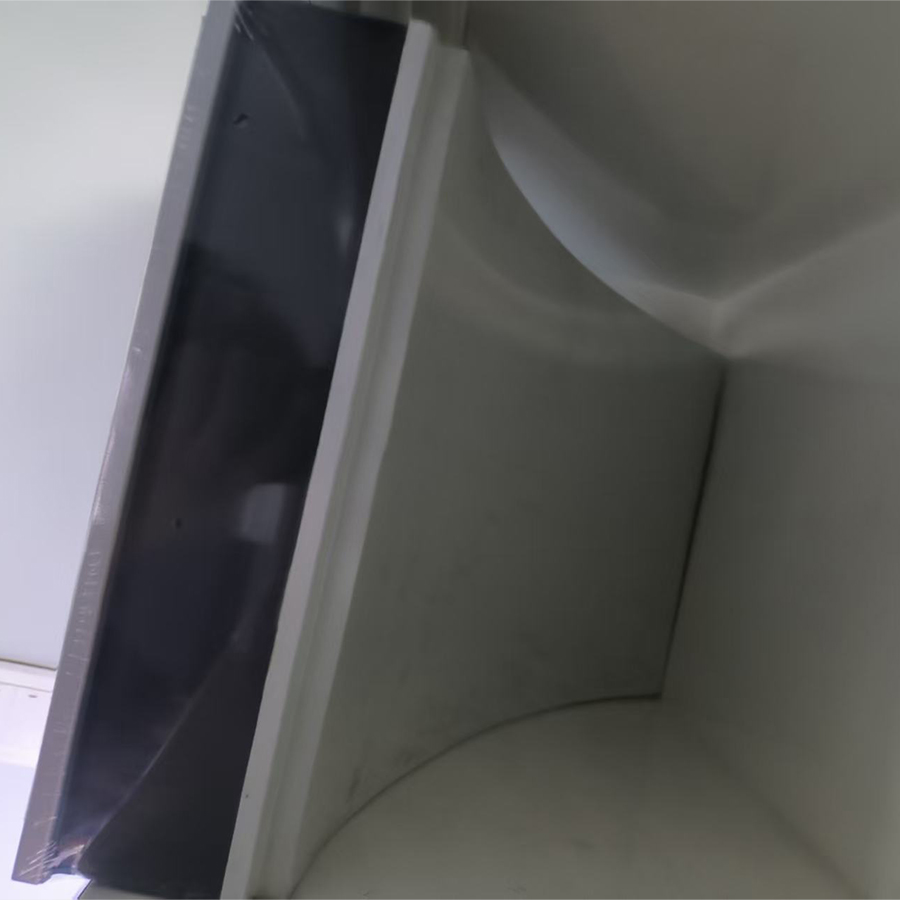

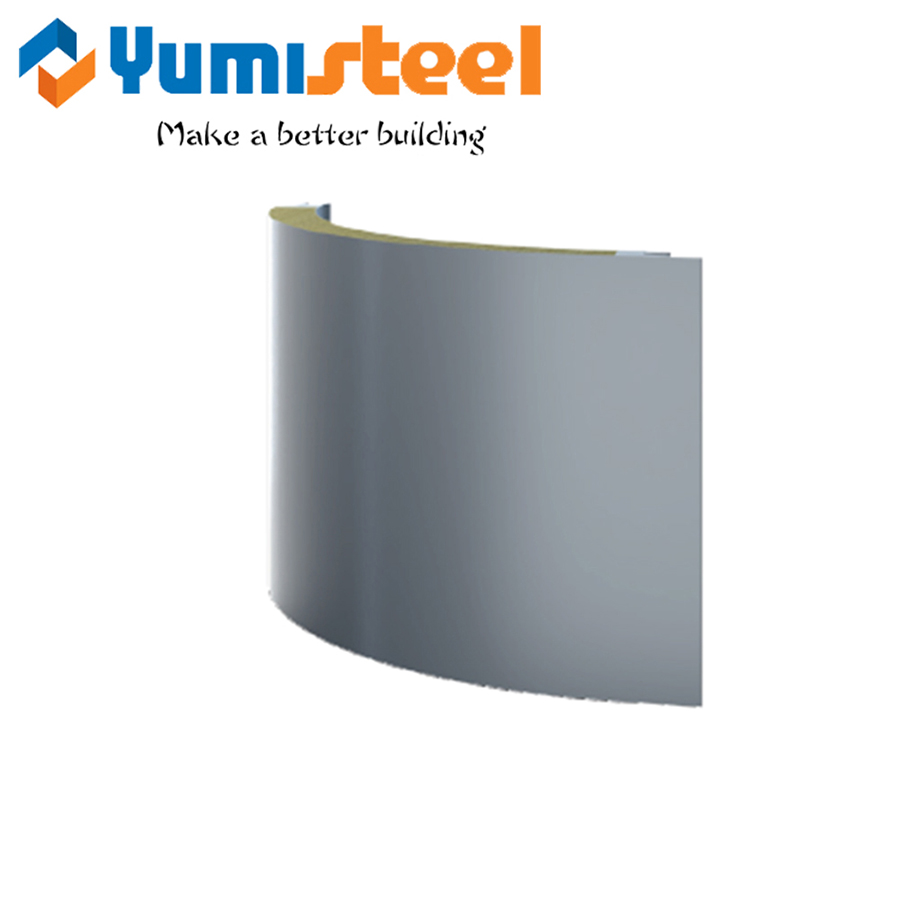

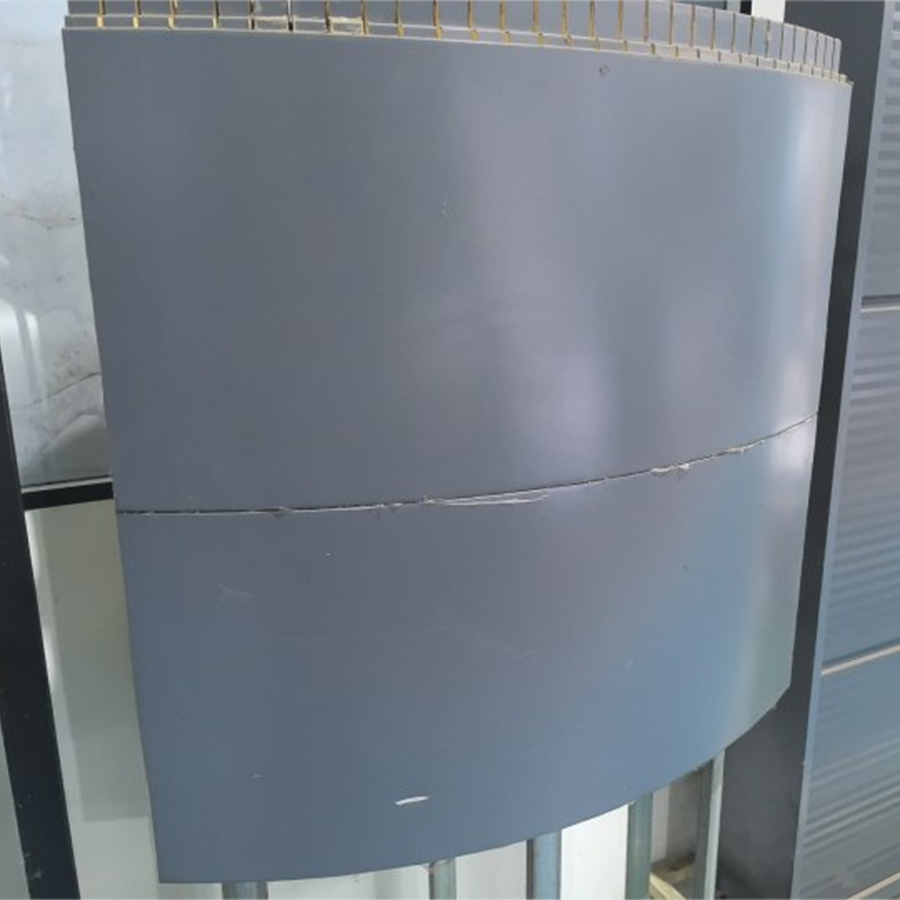

Curved sandwich panels are building components consisting of three layers—two rigid outer skins and a lighter core material—that are shaped to form a curve, combining structural integrity, insulation, and aesthetic versatility for features like curved facades, roofs, and walls. They are used in architecture to create visually interesting, energy-efficient designs by combining space-enclosing, supporting, and insulating functions.
Optional core materials:
PU(PIR)+Rock Wool; PU(PIR)+Glass Wool; PU(PIR)
Product specification
Panel type | Curved sandwich panels | ||

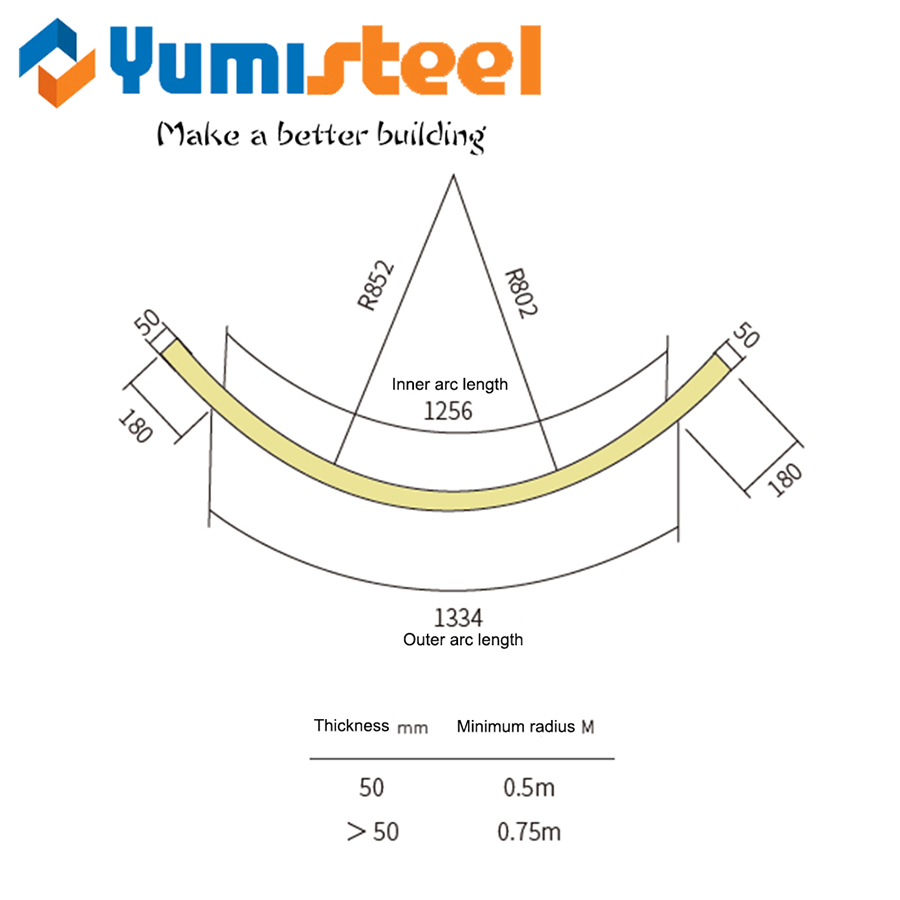

Minmum radius | ≥500mm | ||
Panel thickness | ≥50mm | ||
Coating type | PE, SMP, HDP, PVDF | ||
Steel sheet (GI/PPGI/PPGL) | 0.40-0.75 mm | ||
Aluminum metal sheets | 0.60-1.20 mm | ||
Surface sheets | Steel sheet (GI/PPGI/PPGL): 0.40-0.75 mm | ||
Aluminum metal sheets:0.60-1.20 mm | |||
Aluminum foils:0.065 mm | |||
PVC sheets | |||
Core material | PIR/PU | Rockwool with PU edges | Glass wool with PU edges |
Core density | 35-45 kg/m3 | 110-150 kg/m3 | 48-64 kg/m3 |
Thermal conductivity | ≤0.023 w/m· k | 0.035-0.041 w/m·k | 0.037-0.043 w/m·k |
Regular colour
Product feature

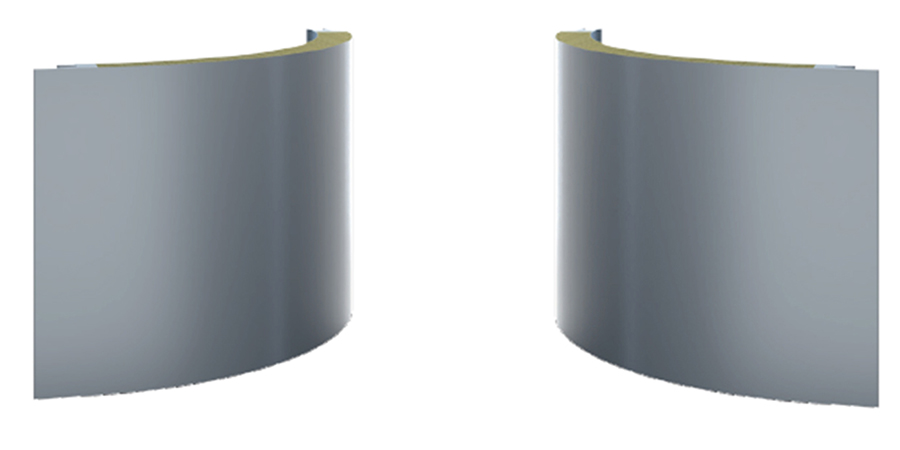

☆Curved Geometry
Unlike standard flat panels, these are manufactured or formed into a specific curve, allowing for more dynamic and unique architectural shapes.
☆Structural
The rigid skins and the core work together to provide excellent load-bearing capacity and stiffness.
☆Thermal Insulation
The core material, often a foam, provides significant thermal insulation, enhancing energy efficiency.
☆Aesthetic
The ability to create curves allows for distinctive and visually striking designs that are difficult to achieve with flat panels.
☆Lightweight
Despite their strength, the core material significantly reduces the overall weight, making them efficient and easier to handle.
Product application

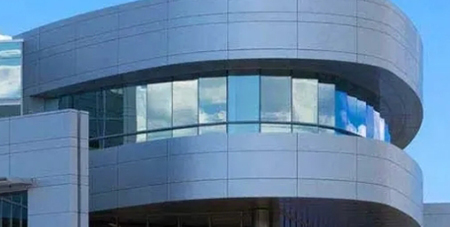

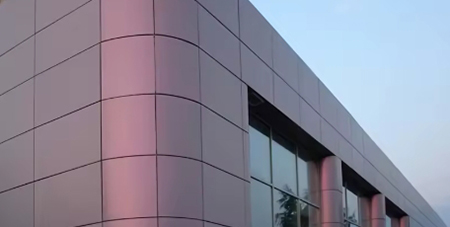

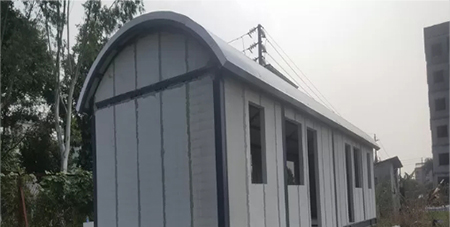

☆Architectural Facades
They are ideal for creating curved facades on buildings, giving them a modern and energetic look.

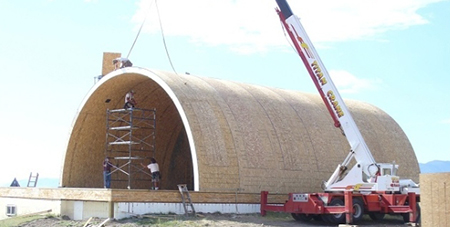

☆Roofs and Walls
They can be used in both roof and wall structures, including specialized corner panels, to diversify building architecture.
☆Specialized Structures
Their unique properties make them suitable for applications requiring high performance, low weight, and resistance to impact loads.
|
|
|
|
Packing & Delivery
☆ Packing
Seaworthy packing standards
If there is other package requested,please feel free to discuss with Yumisteel sales team.
☆Delivery
Delivery time for regular colors,coating types and thickness: 10-15 days ;
Delivery time for special colors,coating types and thickness: 15-25 days ;
Delivery term: FOB/CIF/CFR/DDP is available;
We can find good forwarder for customer or accept appointed forwarder from customers。
Service&Support
☆Service
Xiamen Yumi New Material Tech. Co., Ltd. is one combination of industry and trade company, and very professional with steel structure products in China. We are proud of our product quality and customer service and competitive price.And our products are sold worldwide, such as America, South America, Europe, Southeast Asia, Africa etc.
1)Professional sales team,One-to-one service;
2)Combination of industry and trade company,to ensure the service and price;
3)Experienced engineer team to offer professional technology service;
4)Intimate after-sales service.
☆Support
Experienced technology suport, competitive price, professional service, we are here to help you go on with your project smoothly.
