Yumisteel
Product introduction

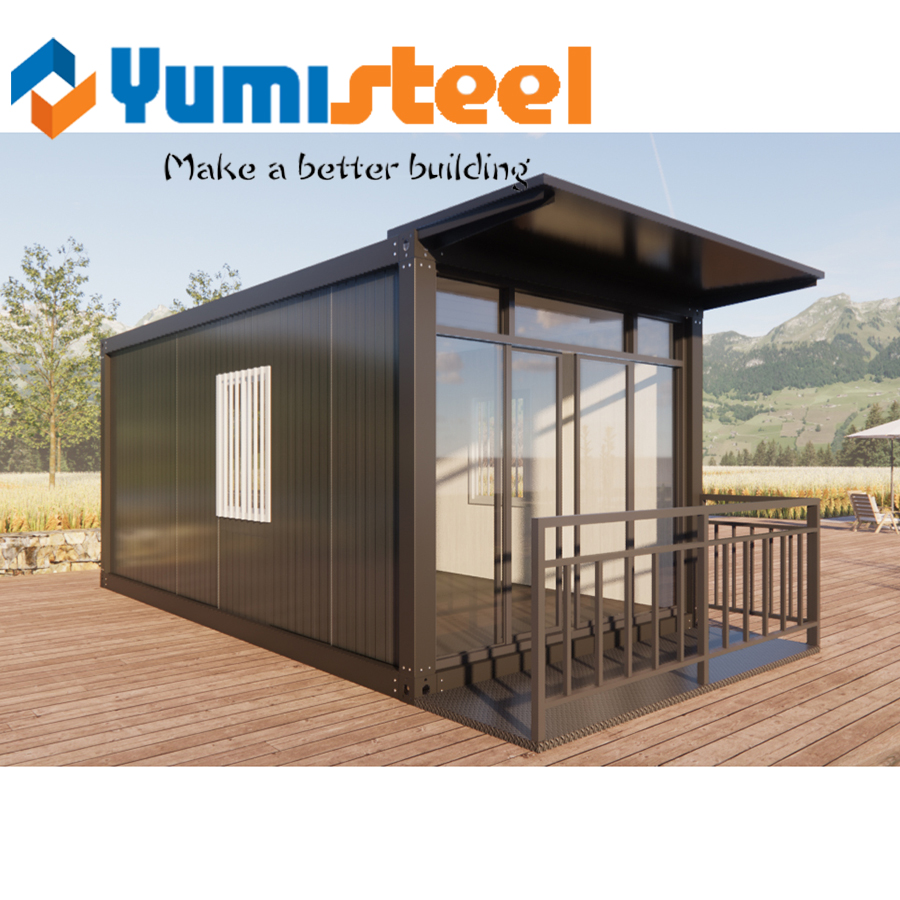

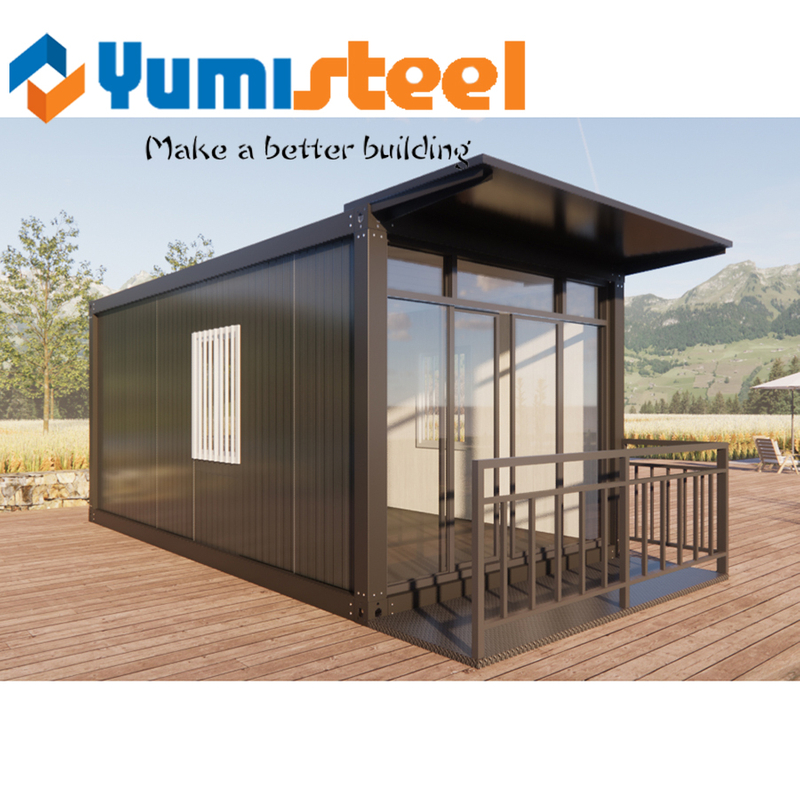

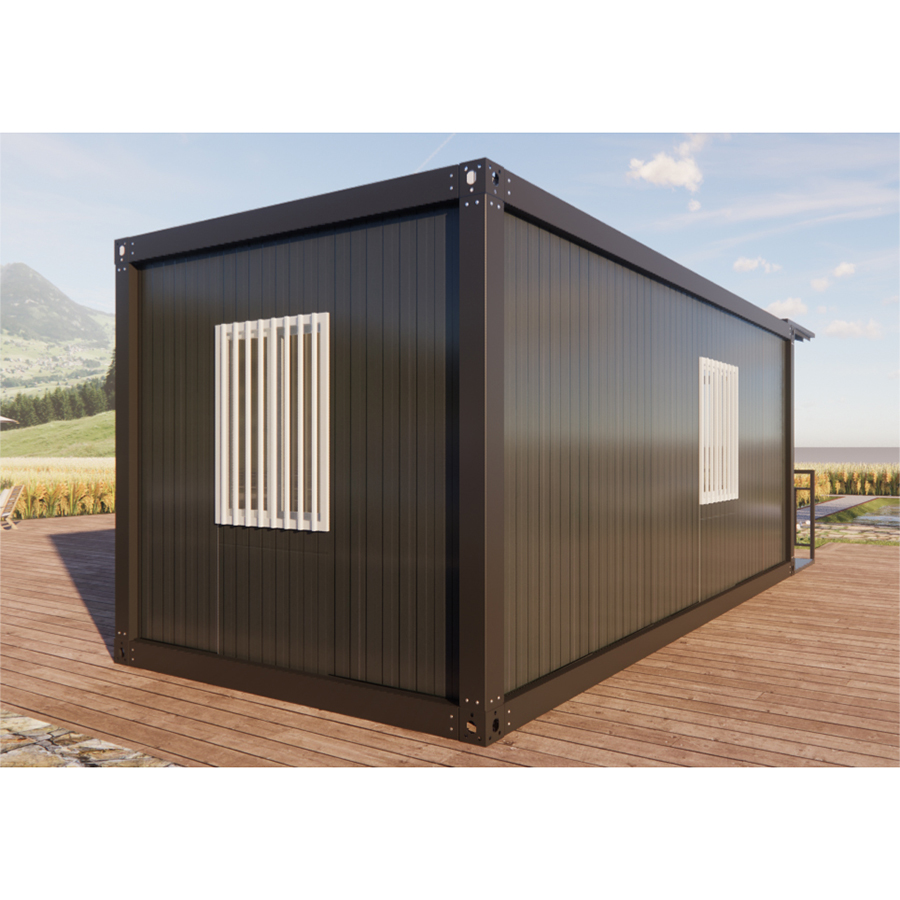

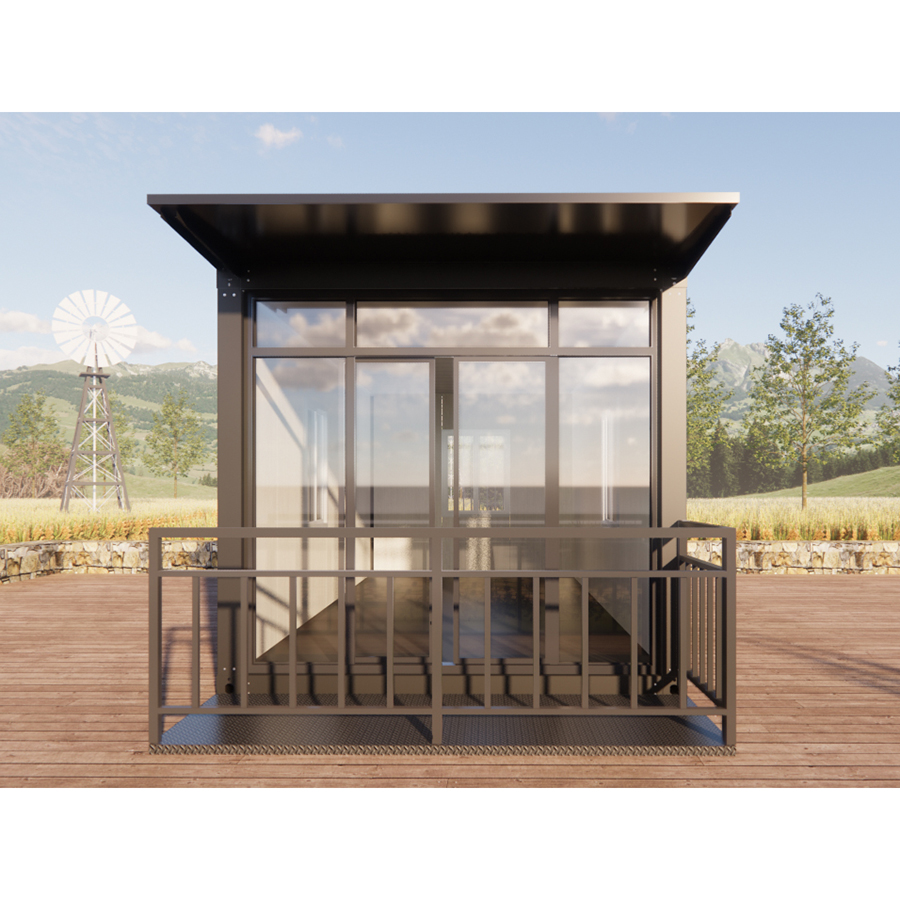

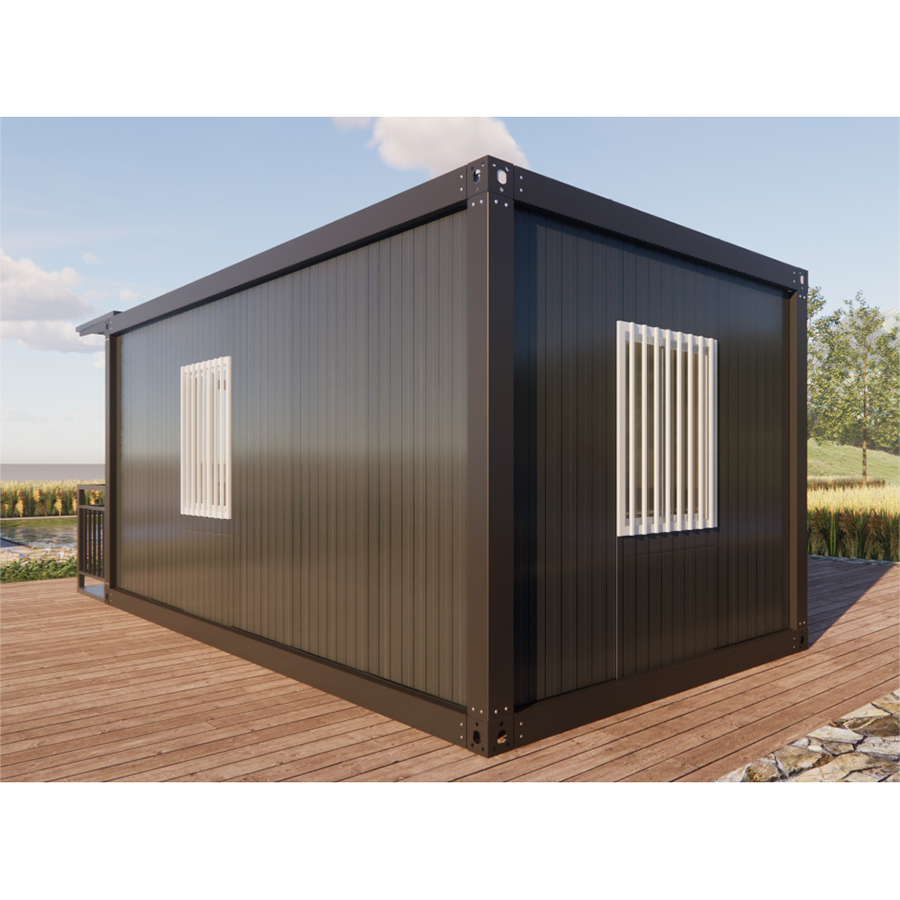

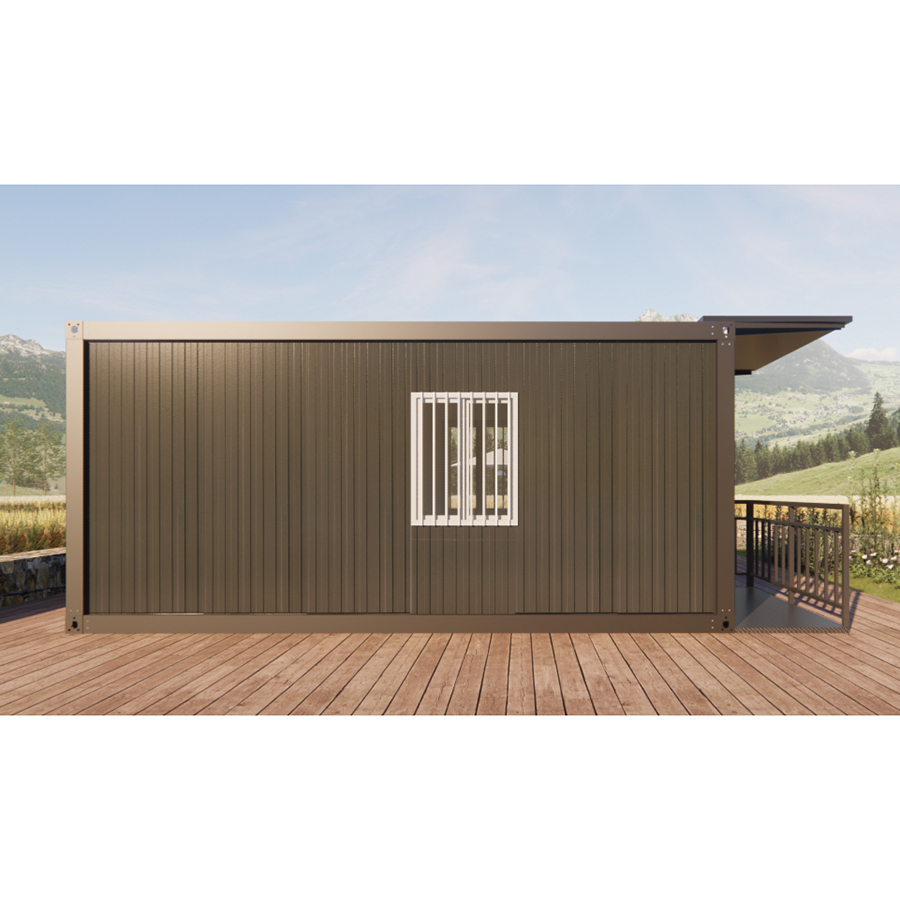

Flat packed container

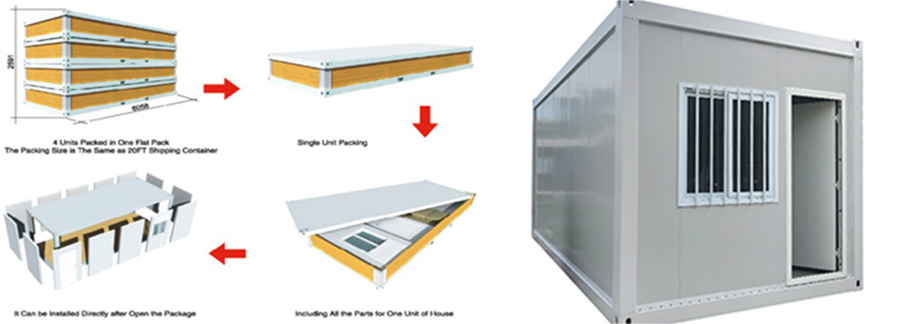

The roof and floor part,we have already prefabricated in our workshop,so you don't need to assemble again.Also the prefabricated roof and floor can make sure excellent waterproof performance and loading capacity.Standard size：6055*2438*2896mm(L*W*H).1*40HC can load 6 sets.
Product specification
Material list | ||||||
S/N | Items | Material | Description | Unit | QTY | Remark |
1 | Floor beams | Main Frame | Composed of 2.50mm thick galvanized steel sections with 7mm thick corner lifting blocks | PC | 4.00 | |
2 | Floor Joist | Cold-formed galvanized steel profile,1.20mm galvanized steel tubes | PC | 10.00 | ||
3 | Floor Substrate | Fiber Cement Board 18mm,1177X2820mm X 5 PCs | ㎡ | 14.40 | ||
4 | Floor Finish | 1.60mm Full PVC Roll | ㎡ | 14.40 | ||
5 | Roof | Main Frame | Composed of 2.50mm thick galvanized steel sections with 7mm thick corner lifting blocks | PC | 4.00 | |
6 | Roof Joist | Cold-formed galvanized steel profile,1.20mm galvanized steel tubes | PC | 9.00 | ||
7 | Roof panels | 0.60mm thick roof steel panels,360° biting waterproof treatment | ㎡ | 14.40 | ||
8 | Roof insulation | 75mm thick glass wool insulation with PE waterproof film, 14 kg/m³ density | ㎡ | 14.40 | ||
9 | Ceiling panels | 0.30mm thick roof steel panels | ㎡ | 12.60 | ||
10 | Steel post | Main Frame | Composed of 2.50mm thick galvanized steel sections | PC | 4.00 | |
11 | Connectors | 2.0mm galvanized steel | PC | 8.00 | ||
12 | L shaped steel beam Stiffener | PC | 8.00 | |||
13 | Wall(External+Partition) | Wall panels | 50mm thick wall rockwool insulated panels,Color:Off white,RAL9002 | ㎡ | 50.54 | |
14 | Corner trims | 0.50mm steel flashing | PC | 4.00 | ||
15 | Door(External) | Single door | Door frame:1.0mm thick galvanized steel profile, Door leaf: Aluzinc surface steel; Accessories:3 hinges,handle with standard lock,rubber gasket & door stoppers;Color:Off white,RAL9002,Door size:925x2035mm | Set | 1.00 | |
16 | Window | Glass type:single glazed glass,6 mm thickness; | Set | 2.00 | ||
17 | Downspout | Size:∮50mm, to be installed in the steel posts | PC | 4.00 | ||
18 | Other accessories | Screws | Self drilled screws | Set | 1.00 | |
19 | Sealant | Tube | 2.00 | |||
20 | Electricity | 3 sets of Five-hole sockets; | Set | 1.00 | ||
Product advantages
☆Customizable Designs

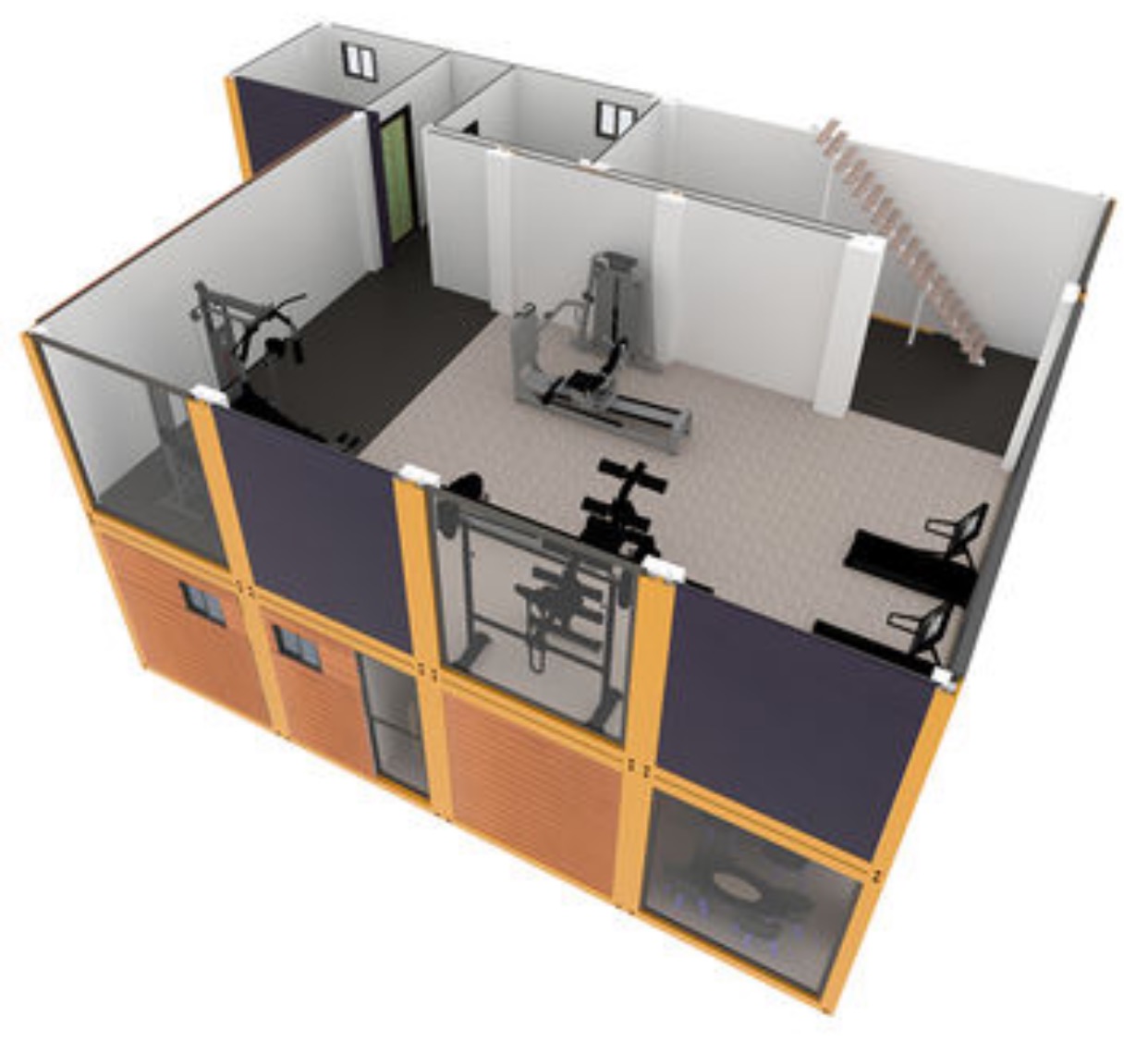

These container houses offer flexible customization for layout,size and finishes,allowing clients to create personalized living spaces or functional dormitories that meet specific requirements and preferences.
☆Easy Relocation
Designed with portability in mind,these prefabricated structures can be conveniently transported and reinstalled at different locations,providing adaptable housing solutions for temporary or changing needs.
☆Quick Dismantling
The flat-packed container system enables efficient disassembly and space-saving storage,making it ideal for temporary installations or projects requiring reusable and redeployable building components.
☆Eco-Friendly Materials
Manufactured using recyclable steel containers and sustainable materials,these houses support green construction practices while maintaining durability and longevity in various environments.
Product application

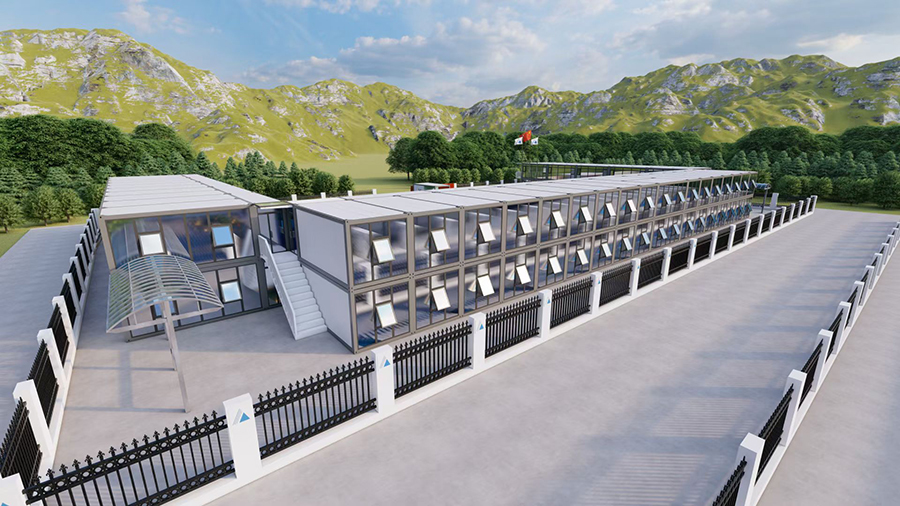

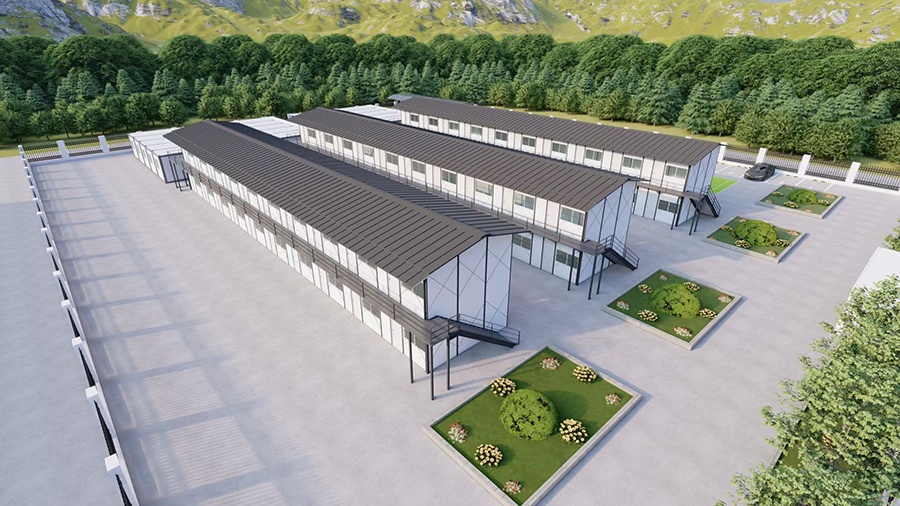

This versatile container housing solution is ideal for student dormitories,construction camp residences,temporary living quarters,and emergency shelter projects.The customizable flat-pack design also serves well as workforce accommodations,remote site housing,and modular residential units requiring rapid deployment.
Packing & Delivery

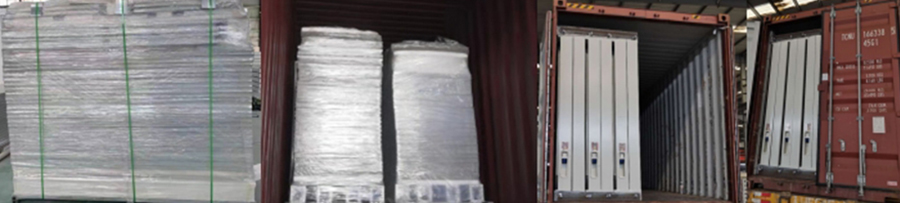

☆ Packing
Seaworthy packing standards:
Start with the large and heavy items and load them on the floor against the front wall of the container. Continue loading heavier items on the floor and towards the front of the container, placing lighter items on top. Pack the items tightly so nothing moves.
If there is other package requested,please feel free to discuss with Yumisteel sales team.
☆ Delivery
Delivery time for regular colors,coating types and thickness: 7-10 days ;
Delivery time for special colors,coating types and thickness: 15-25 days ;
Delivery term: FOB/CIF/CFR/DDP is available;
We can find good forwarder for customer or accept appointed forwarder from customers.
Service & Support
☆Service
Xiamen Yumi New Material Tech. Co., Ltd. is one combination of industry and trade company, and very professional with steel structure products in China. We are proud of our product quality and customer service and competitive price.And our products are sold worldwide, such as America, South America, Europe, Southeast Asia, Africa etc.
1)Professional sales team,One-to-one service;
2)Combination of industry and trade company,to ensure the service and price;
3)Experienced engineer team to offer professional technology service;
4)Intimate after-sales service.
☆Support
Experienced technology suport, competitive price, professional service, we are here to help you go on with your project smoothly.
