Yumisteel
Product introduction

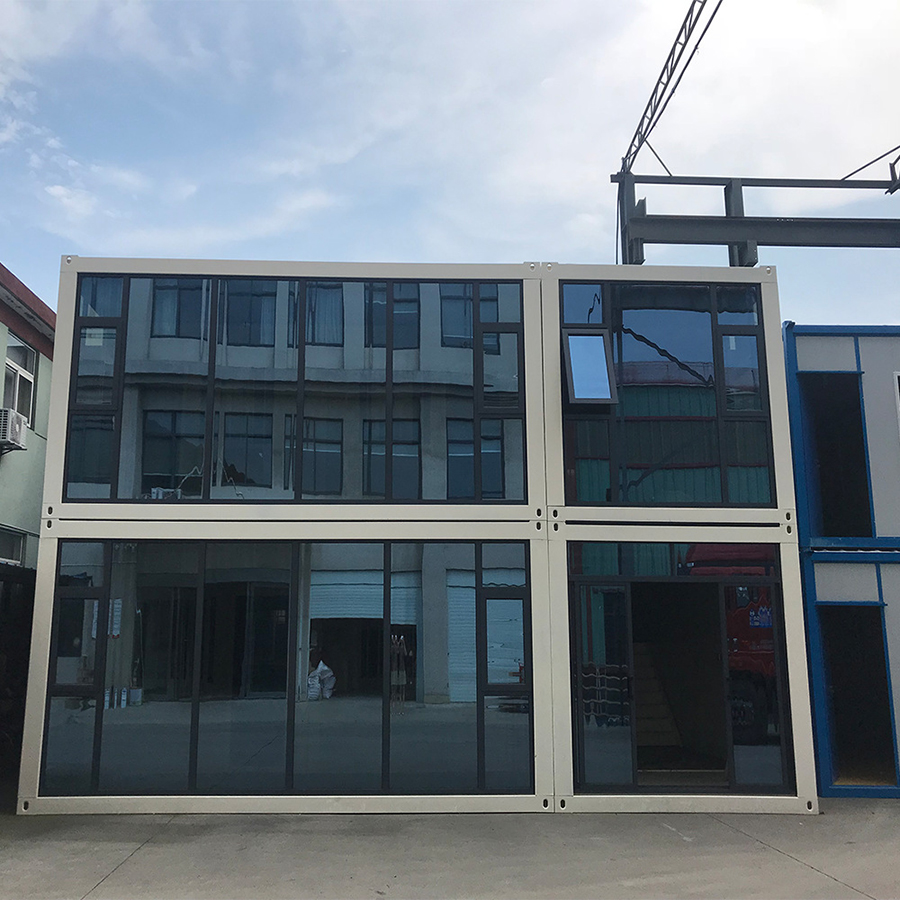

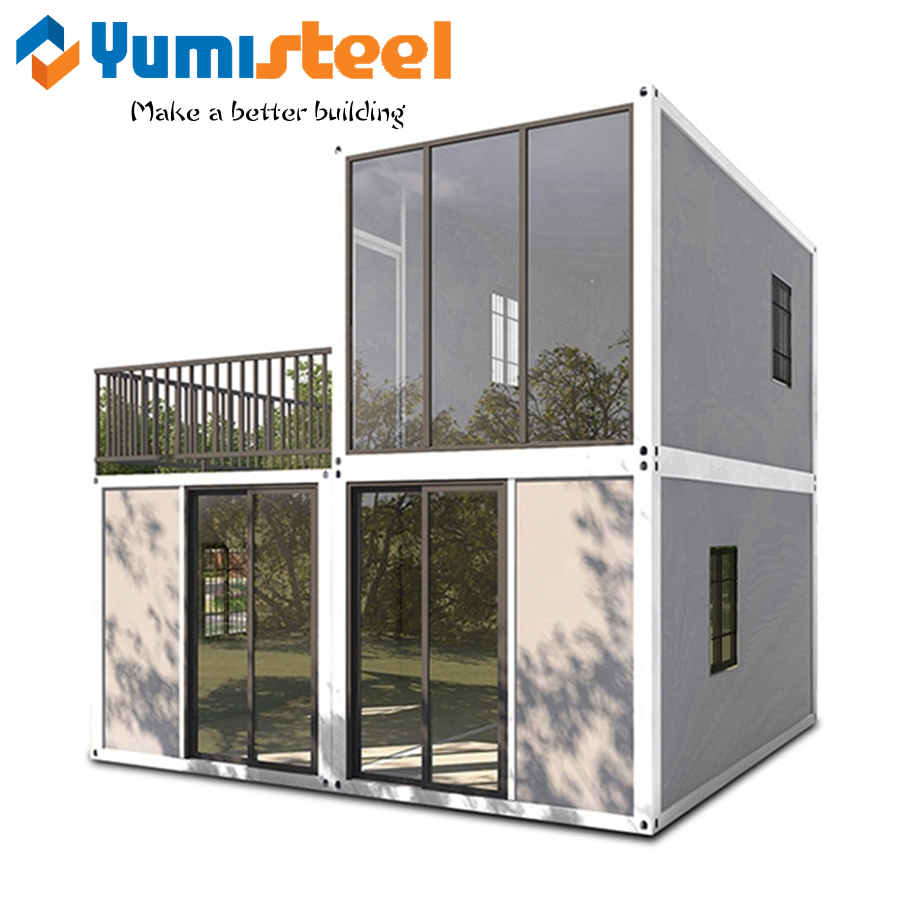

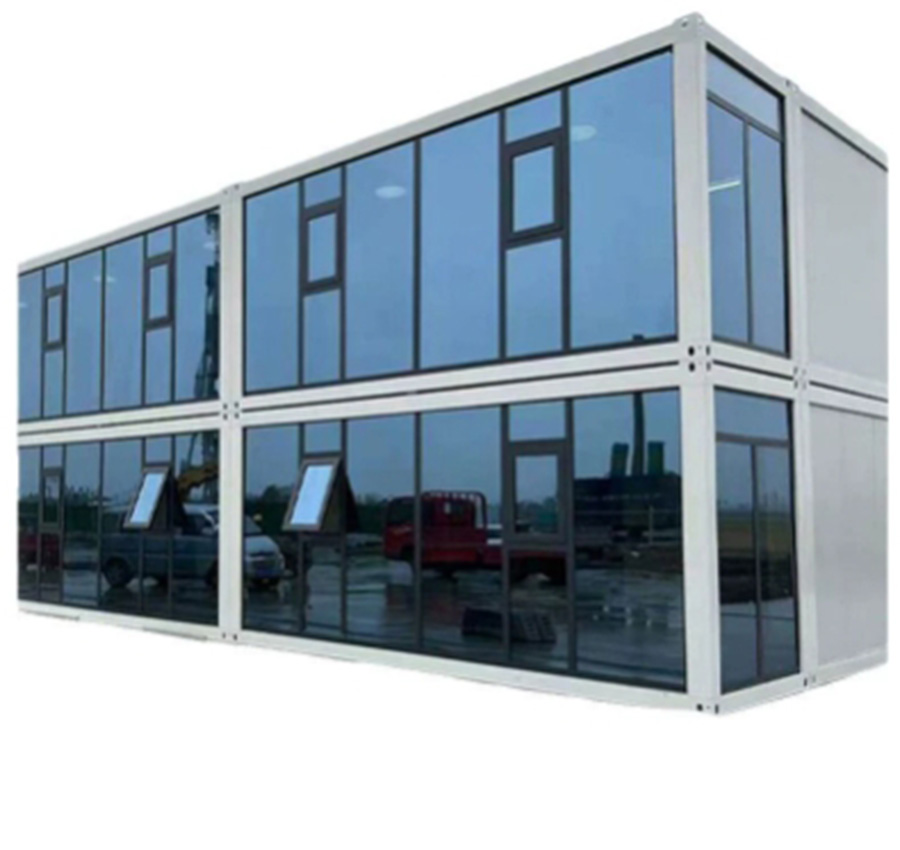

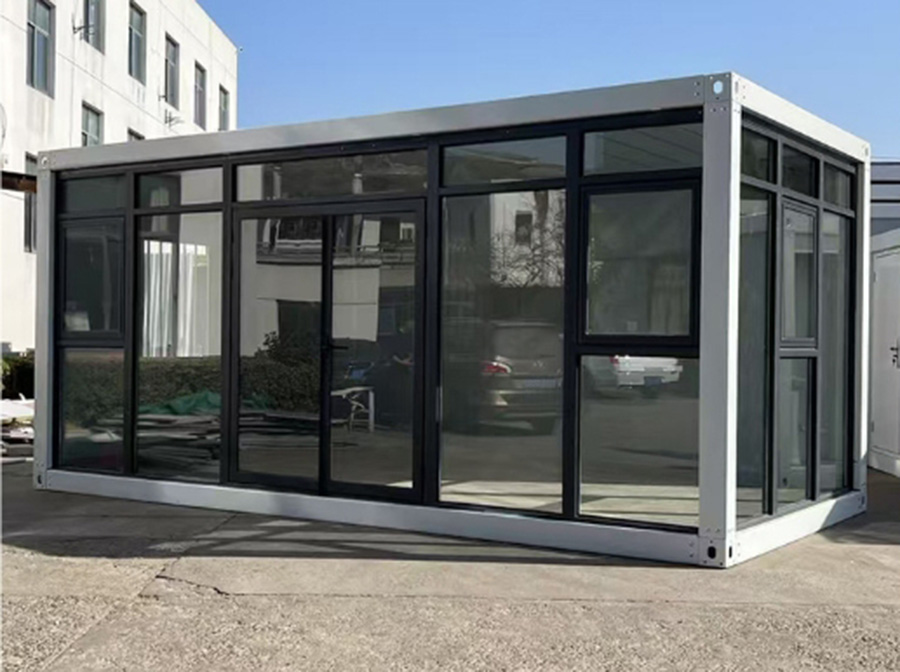

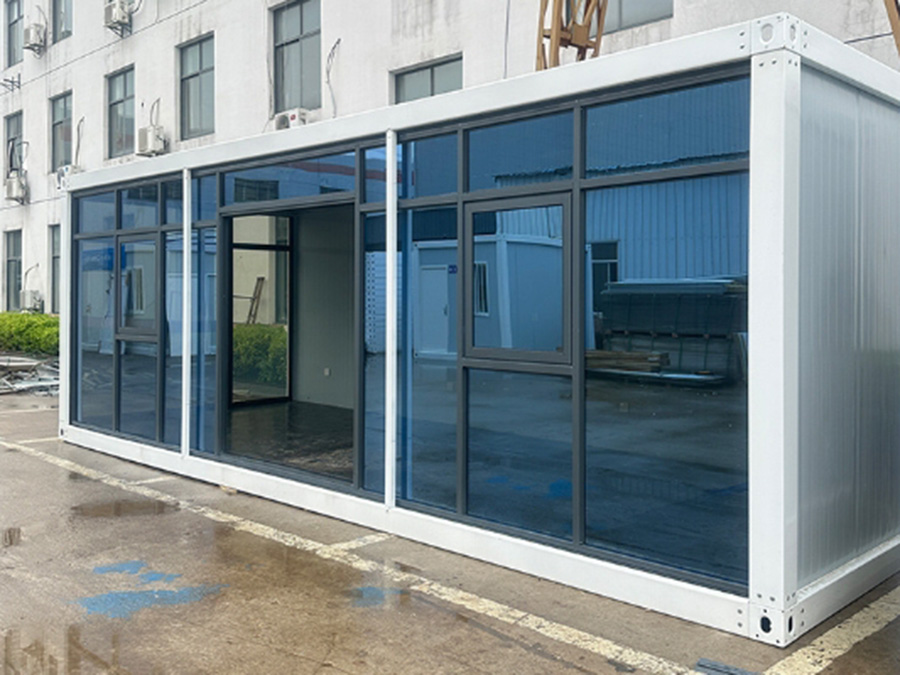

Container house with a glass curtain wall is a modern dwelling constructed from repurposed shipping containers that features large expanses of glass on one or more facades, providing a contemporary aesthetic, abundant natural light, and unobstructed views. This type of housing is gaining popularity for its sustainability, customizability, and unique architectural appeal, suitable for various applications beyond traditional residences, such as offices, retail spaces, and temporary shelters.
Product specification
Material list | ||||||
S/N | Items | Material | Description | Unit | QTY | Remark |
1 | Floor beams | Main Frame | Composed of 2.50mm thick galvanized steel sections with 7mm thick corner lifting blocks | PC | 4.00 | |
2 | Floor Joist | Cold-formed galvanized steel profile,1.20mm galvanized steel tubes | PC | 10.00 | ||
3 | Floor Substrate | Fiber Cement Board 18mm,1177X2820mm X 5 PCs | ㎡ | 14.40 | ||
4 | Floor Finish | 1.60mm Full PVC Roll | ㎡ | 14.40 | ||
5 | Roof | Main Frame | Composed of 2.50mm thick galvanized steel sections with 7mm thick corner lifting blocks | PC | 4.00 | |
6 | Roof Joist | Cold-formed galvanized steel profile,1.20mm galvanized steel tubes | PC | 9.00 | ||
7 | Roof panels | 0.60mm thick roof steel panels,360° biting waterproof treatment | ㎡ | 14.40 | ||
8 | Roof insulation | 75mm thick glass wool insulation with PE waterproof film, 14 kg/m³ density | ㎡ | 14.40 | ||
9 | Ceiling panels | 0.30mm thick roof steel panels | ㎡ | 12.60 | ||
10 | Steel post | Main Frame | Composed of 2.50mm thick galvanized steel sections | PC | 4.00 | |
11 | Connectors | 2.0mm galvanized steel | PC | 8.00 | ||
12 | L shaped steel beam Stiffener | PC | 8.00 | |||
13 | Wall(External+Partition) | Wall panels | 50mm thick wall rockwool insulated panels,Color:Off white,RAL9002 | ㎡ | 50.54 | |
14 | Corner trims | 0.50mm steel flashing | PC | 4.00 | ||
15 | Door(External) | Single door | Door frame:1.0mm thick galvanized steel profile, Door leaf: Aluzinc surface steel; Accessories:3 hinges,handle with standard lock,rubber gasket & door stoppers;Color:Off white,RAL9002,Door size:925x2035mm | Set | 1.00 | |
16 | Window | Glass type:single glazed glass,6 mm thickness; | Set | 2.00 | ||
17 | Downspout | Size:∮50mm, to be installed in the steel posts | PC | 4.00 | ||
18 | Other accessories | Screws | Self drilled screws | Set | 1.00 | |
19 | Sealant | Tube | 2.00 | |||
20 | Electricity | 3 sets of Five-hole sockets; | Set | 1.00 | ||
Product advantages
☆Material
Built from standard shipping containers, offering a durable and robust structure.
☆Glass Curtain Wall
Incorporates large glass panels, often made with aluminum framing, to enclose the building's exterior, allowing natural light and scenic views.
☆Sustainability and Affordability
Utilizes recycled materials and can be more cost-effective than traditional construction.
☆Flexibility and Modularity
Container homes can be combined horizontally and vertically to create various layouts and expand space.
☆Durability and Safety
Designed with steel structures that offer good resistance to wind and earthquakes.
☆Versatility
Can be adapted for a wide range of uses, including homes, offices, shops, and even temporary emergency housing.
☆Ease of Installation
Prefabricated components can be quickly assembled on-site.
Product application
Container houses with glass curtain walls are modern, versatile, and sustainable structures increasingly used for a range of applications beyond traditional housing, including luxury residences, boutique hotels, executive offices, commercial spaces, and unique accommodation experiences in resorts or campgrounds. They offer a contemporary aesthetic, enhanced natural light and views, and can be quickly installed, making them ideal for various settings where a distinctive architectural presence is desired.
Packing & Delivery

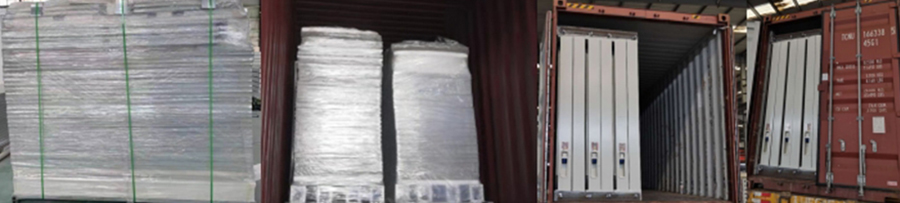

☆ Packing
Seaworthy packing standards:
Start with the large and heavy items and load them on the floor against the front wall of the container. Continue loading heavier items on the floor and towards the front of the container, placing lighter items on top. Pack the items tightly so nothing moves.
If there is other package requested,please feel free to discuss with Yumisteel sales team.
☆ Delivery
Delivery time for regular colors,coating types and thickness: 7-10 days ;
Delivery time for special colors,coating types and thickness: 15-25 days ;
Delivery term: FOB/CIF/CFR/DDP is available;
We can find good forwarder for customer or accept appointed forwarder from customers.
Service & Support
☆Service
Xiamen Yumi New Material Tech. Co., Ltd. is one combination of industry and trade company, and very professional with steel structure products in China. We are proud of our product quality and customer service and competitive price.And our products are sold worldwide, such as America, South America, Europe, Southeast Asia, Africa etc.
1)Professional sales team,One-to-one service;
2)Combination of industry and trade company,to ensure the service and price;
3)Experienced engineer team to offer professional technology service;
4)Intimate after-sales service.
☆Support
Experienced technology suport, competitive price, professional service, we are here to help you go on with your project smoothly.
Product introduction
Container house with a glass curtain wall is a modern dwelling constructed from repurposed shipping containers that features large expanses of glass on one or more facades, providing a contemporary aesthetic, abundant natural light, and unobstructed views. This type of housing is gaining popularity for its sustainability, customizability, and unique architectural appeal, suitable for various applications beyond traditional residences, such as offices, retail spaces, and temporary shelters.
Product specification
Material list | ||||||
S/N | Items | Material | Description | Unit | QTY | Remark |
1 | Floor beams | Main Frame | Composed of 2.50mm thick galvanized steel sections with 7mm thick corner lifting blocks | PC | 4.00 | |
2 | Floor Joist | Cold-formed galvanized steel profile,1.20mm galvanized steel tubes | PC | 10.00 | ||
3 | Floor Substrate | Fiber Cement Board 18mm,1177X2820mm X 5 PCs | ㎡ | 14.40 | ||
4 | Floor Finish | 1.60mm Full PVC Roll | ㎡ | 14.40 | ||
5 | Roof | Main Frame | Composed of 2.50mm thick galvanized steel sections with 7mm thick corner lifting blocks | PC | 4.00 | |
6 | Roof Joist | Cold-formed galvanized steel profile,1.20mm galvanized steel tubes | PC | 9.00 | ||
7 | Roof panels | 0.60mm thick roof steel panels,360° biting waterproof treatment | ㎡ | 14.40 | ||
8 | Roof insulation | 75mm thick glass wool insulation with PE waterproof film, 14 kg/m³ density | ㎡ | 14.40 | ||
9 | Ceiling panels | 0.30mm thick roof steel panels | ㎡ | 12.60 | ||
10 | Steel post | Main Frame | Composed of 2.50mm thick galvanized steel sections | PC | 4.00 | |
11 | Connectors | 2.0mm galvanized steel | PC | 8.00 | ||
12 | L shaped steel beam Stiffener | PC | 8.00 | |||
13 | Wall(External+Partition) | Wall panels | 50mm thick wall rockwool insulated panels,Color:Off white,RAL9002 | ㎡ | 50.54 | |
14 | Corner trims | 0.50mm steel flashing | PC | 4.00 | ||
15 | Door(External) | Single door | Door frame:1.0mm thick galvanized steel profile, Door leaf: Aluzinc surface steel; Accessories:3 hinges,handle with standard lock,rubber gasket & door stoppers;Color:Off white,RAL9002,Door size:925x2035mm | Set | 1.00 | |
16 | Window | Glass type:single glazed glass,6 mm thickness; | Set | 2.00 | ||
17 | Downspout | Size:∮50mm, to be installed in the steel posts | PC | 4.00 | ||
18 | Other accessories | Screws | Self drilled screws | Set | 1.00 | |
19 | Sealant | Tube | 2.00 | |||
20 | Electricity | 3 sets of Five-hole sockets; | Set | 1.00 | ||
Product advantages
☆Material
Built from standard shipping containers, offering a durable and robust structure.
☆Glass Curtain Wall
Incorporates large glass panels, often made with aluminum framing, to enclose the building's exterior, allowing natural light and scenic views.
☆Sustainability and Affordability
Utilizes recycled materials and can be more cost-effective than traditional construction.
☆Flexibility and Modularity
Container homes can be combined horizontally and vertically to create various layouts and expand space.
☆Durability and Safety
Designed with steel structures that offer good resistance to wind and earthquakes.
☆Versatility
Can be adapted for a wide range of uses, including homes, offices, shops, and even temporary emergency housing.
☆Ease of Installation
Prefabricated components can be quickly assembled on-site.
Product application
Container houses with glass curtain walls are modern, versatile, and sustainable structures increasingly used for a range of applications beyond traditional housing, including luxury residences, boutique hotels, executive offices, commercial spaces, and unique accommodation experiences in resorts or campgrounds. They offer a contemporary aesthetic, enhanced natural light and views, and can be quickly installed, making them ideal for various settings where a distinctive architectural presence is desired.
Packing & Delivery
☆ Packing
Seaworthy packing standards:
Start with the large and heavy items and load them on the floor against the front wall of the container. Continue loading heavier items on the floor and towards the front of the container, placing lighter items on top. Pack the items tightly so nothing moves.
If there is other package requested,please feel free to discuss with Yumisteel sales team.
☆ Delivery
Delivery time for regular colors,coating types and thickness: 7-10 days ;
Delivery time for special colors,coating types and thickness: 15-25 days ;
Delivery term: FOB/CIF/CFR/DDP is available;
We can find good forwarder for customer or accept appointed forwarder from customers.
Service & Support
☆Service
Xiamen Yumi New Material Tech. Co., Ltd. is one combination of industry and trade company, and very professional with steel structure products in China. We are proud of our product quality and customer service and competitive price.And our products are sold worldwide, such as America, South America, Europe, Southeast Asia, Africa etc.
1)Professional sales team,One-to-one service;
2)Combination of industry and trade company,to ensure the service and price;
3)Experienced engineer team to offer professional technology service;
4)Intimate after-sales service.
☆Support
Experienced technology suport, competitive price, professional service, we are here to help you go on with your project smoothly.
