Product introduction

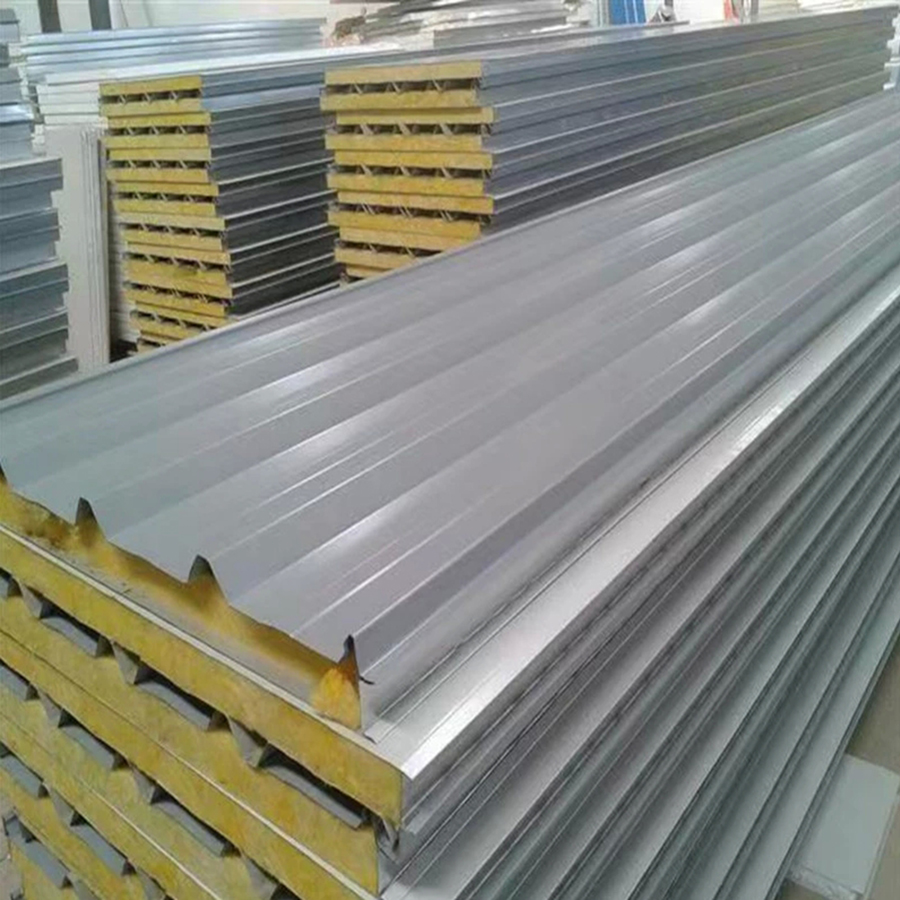

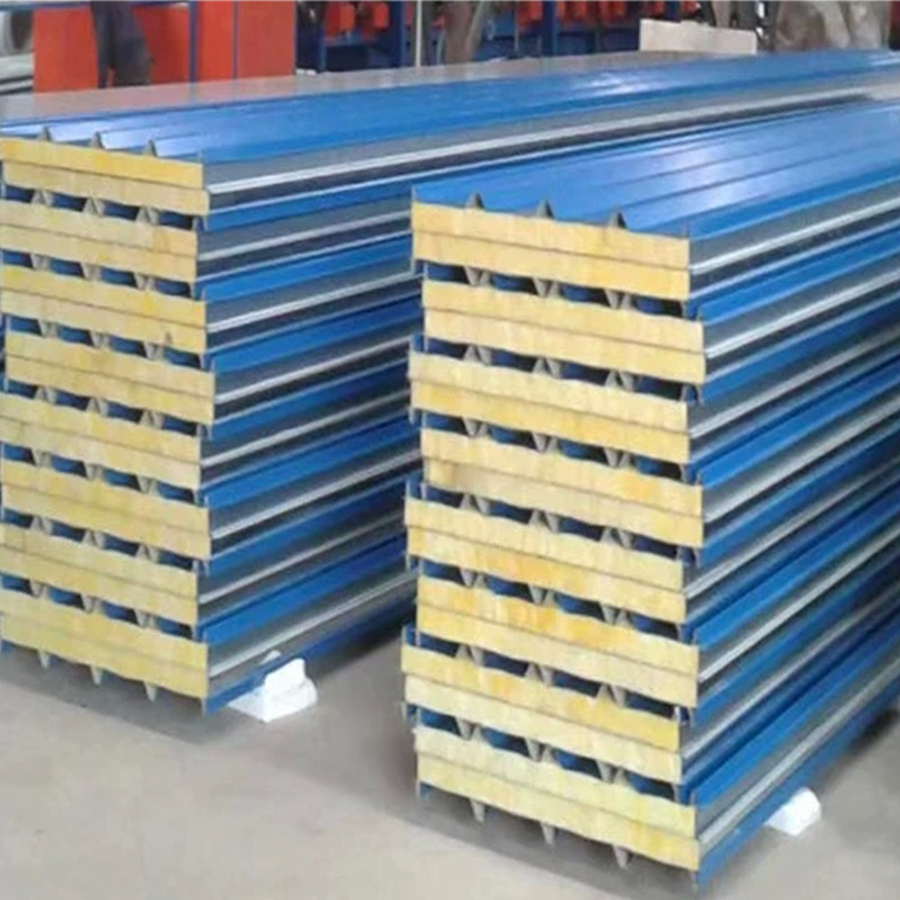

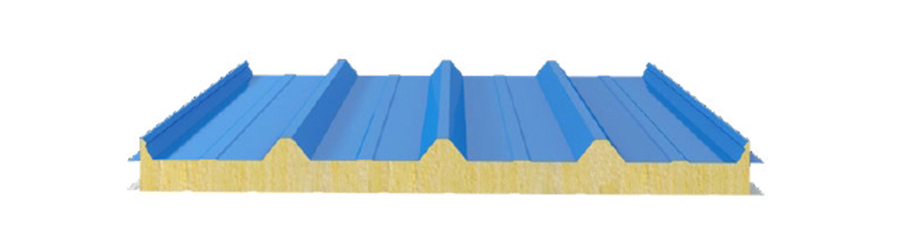

Roof rockwool sandwich panel is a prefabricated composite building material designed for roofing applications, consisting of two outer metal sheets (typically steel) and an insulating core made of rockwool. This construction provides a combination of structural integrity, thermal insulation, fire resistance, and acoustic comfort for buildings.
Product specification

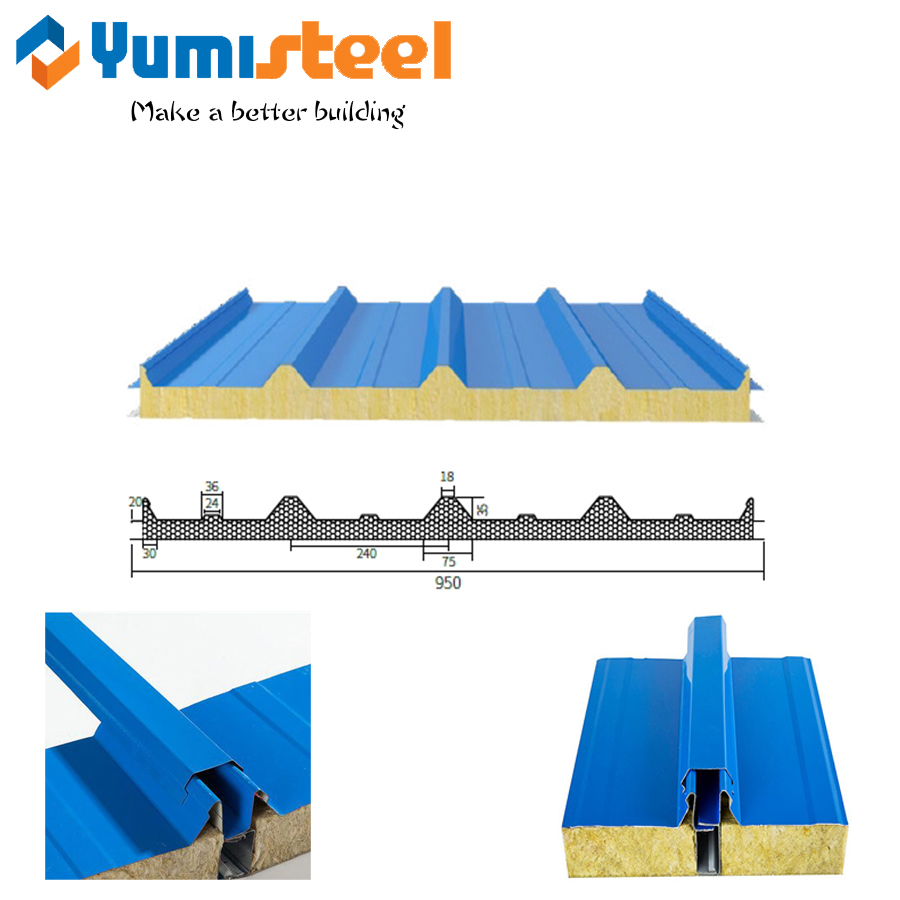

Specification | Details | |
Core Thickness | 50/75/100/150/200 mm | |
Panel Width | Standard 950mm,980mm | |
Panel Length | 20FT container: ≤ 5.95m | |
Density of Core | 80 kg/m³ | |
Thermal Conductivity | 50mm | 0.749 W/(m·K) |
75mm | 0.530 W/(m·K) | |
100mm | 0.411 W/(m·K) | |
150mm | 0.268 W/(m·K) | |
200mm | 0.210 W/(m·K) | |
Fire Rating | Class A1 (excellent fire resistance) | |
Surface sheets | PPGI/ PPGL/ Aluminum sheets/ Al-Mg-Mn alloy metal sheets/ Stainless steel | |
Aluminumsheets/Al-Mg-Mnalloymetal sheet | 0.70 - 1.20 mm | |
Steel thickness | 0.40 - 0.70 mm | |
Stainless steel | 0.40 - 0.60 mm | |
Regular colour
Product advantages
☆Excellent Thermal Insulation
Rockwool core minimizes heat transfer, reducing energy costs and maintaining indoor comfort.
☆Durable & Weather-Resistant
Color-coated steel protects against corrosion, UV rays, and extreme weather for long-lasting performance.
☆Fireproof & Safe
Non-combustible rockwool enhances fire resistance, meeting strict safety standards.
☆Customizable
Choose from various colors and finishes to match your building’s design seamlessly.

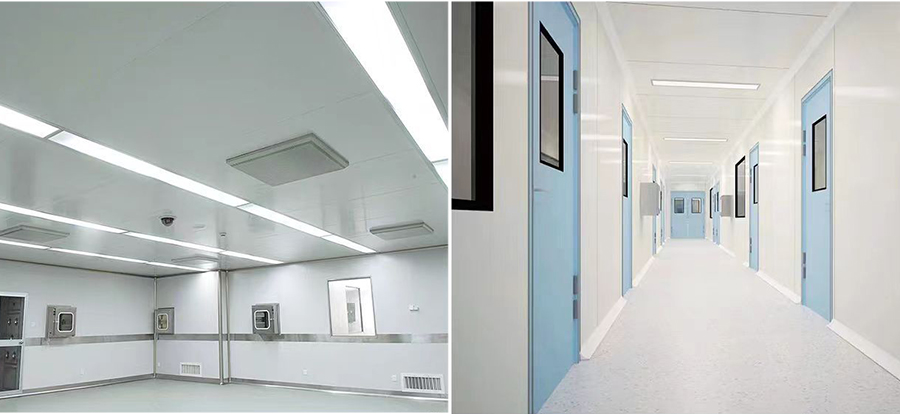

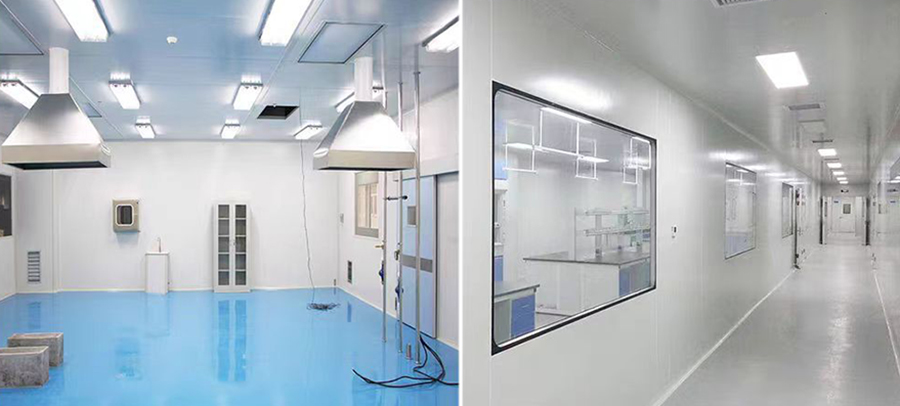

Product application
These rockwool sandwich panels provide fireproof, thermal, and acoustic insulation. Perfect for warehouses, factories, cold storage, and sound-sensitive buildings, their color-coated steel ensures durability, weather resistance, and aesthetic appeal while meeting strict safety and energy efficiency standards.
Packing & Delivery

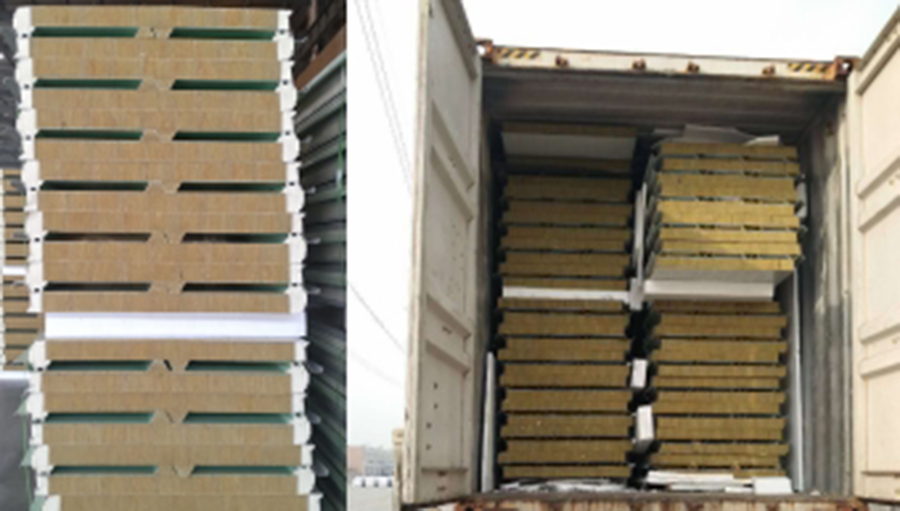

☆ Packing
Seaworthy packing standards
If there is other package requested,please feel free to discuss with Yumisteel sales team.
☆Delivery
Delivery time for regular colors,coating types and thickness: 10-15 days ;
Delivery time for special colors,coating types and thickness: 15-25 days ;
Delivery term: FOB/CIF/CFR/DDP is available;
We can find good forwarder for customer or accept appointed forwarder from customers。
Service&Support
☆Service
Xiamen Yumi New Material Tech. Co., Ltd. is one combination of industry and trade company, and very professional with steel structure products in China. We are proud of our product quality and customer service and competitive price.And our products are sold worldwide, such as America, South America, Europe, Southeast Asia, Africa etc.
1)Professional sales team,One-to-one service;
2)Combination of industry and trade company,to ensure the service and price;
3)Experienced engineer team to offer professional technology service;
4)Intimate after-sales service.
☆Support
Experienced technology suport, competitive price, professional service, we are here to help you go on with your project smoothly.
