Yumisteel
Product introduction
YX25-248-992 Corrugated Sheet
Featuring a unique 25mm wave height with 248mm pitch and 992mm effective coverage, these structural-grade corrugated sheets offer superior load-bearing capacity (up to 1.5kN/m²). Made from galvanized/G550 steel (0.4-1.2mm thickness), they provide exceptional weather resistance, thermal efficiency, and 30-year durability for industrial and commercial roofing applications.
Product advantages
☆Architectural Flexibility
Precisely formed to match unique roof contours and complex building designs.
☆Optimized Drainage
Engineered corrugation patterns (25-50mm depth) enhance water runoff by 40% versus flat panels.
☆Material Efficiency
Custom sizing reduces steel waste by up to 15% during fabrication.
☆Structural Integrity
Maintains 600MPa yield strength even after specialized shaping processes.
☆Quick Installation
Pre-cut customized panels save 30% installation time with perfect on-site fit.
Regular colour

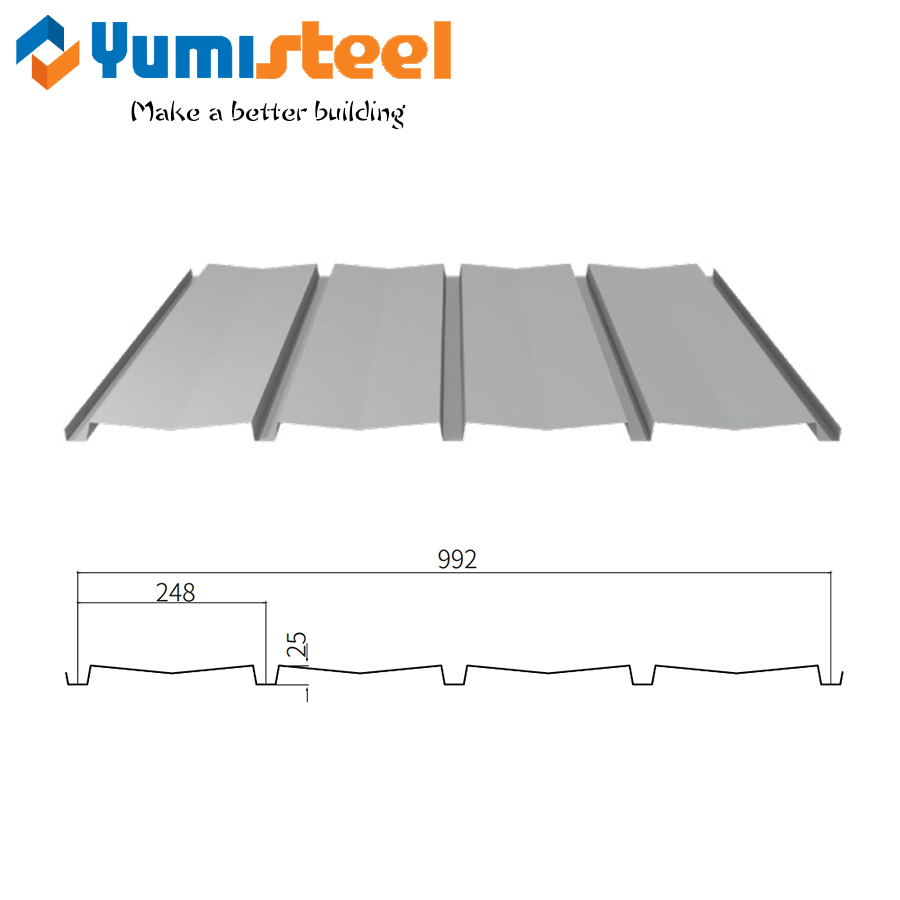

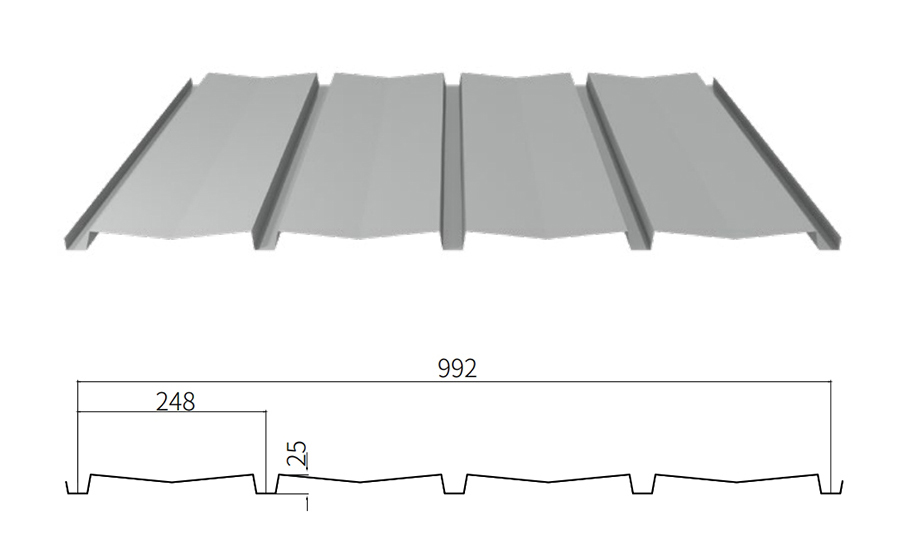

Product specifications
Model NO: | YX25-248-992 |
Rib height : | 25mm |
Rib distance : | 248mm |
Modular width : | 992mm |
Feeding width : | 1200mm |
Available thickness : | 0.4-0.8 mm |
Available length : | 20FT container:≤5.95m 40FT container: ≤ 11.95m |
Available material : | PPGI/ PPGL/ Aluminum sheets/AI-Mg-Mn alloy metal sheets |
Surface treatment : | Original pre-painted color or stone glazed looking |
Coating type: | PE, PVDF, HDP, SMP,etc. |

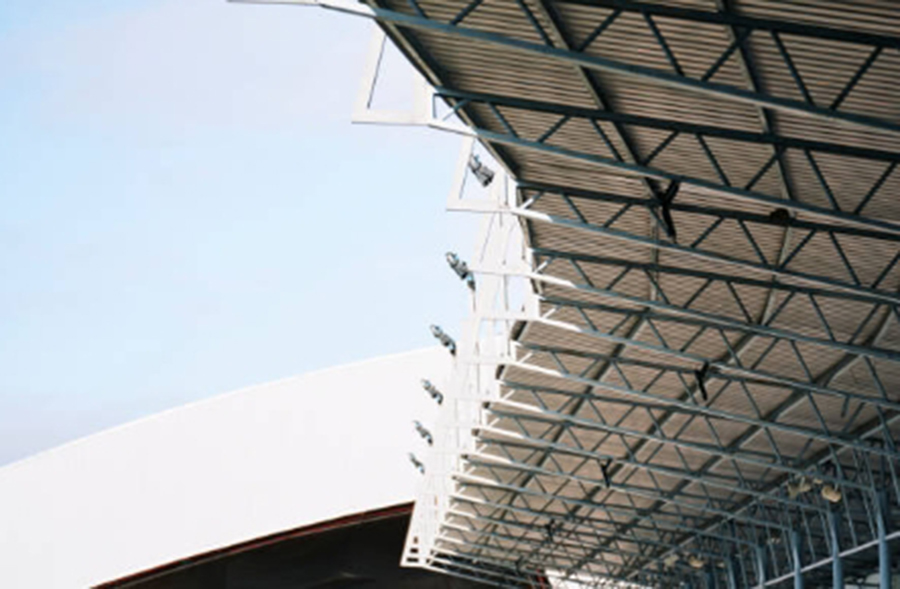

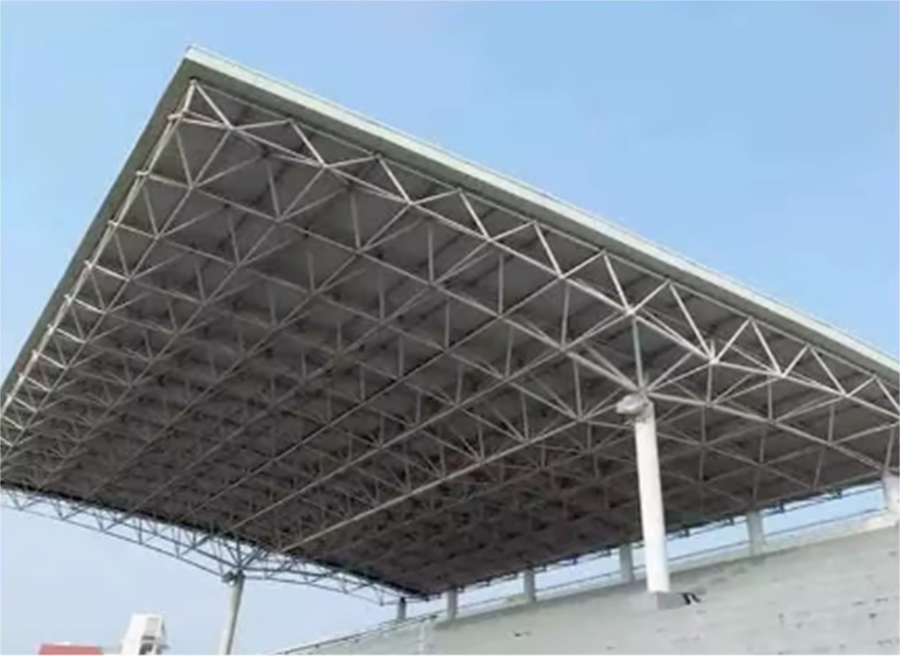

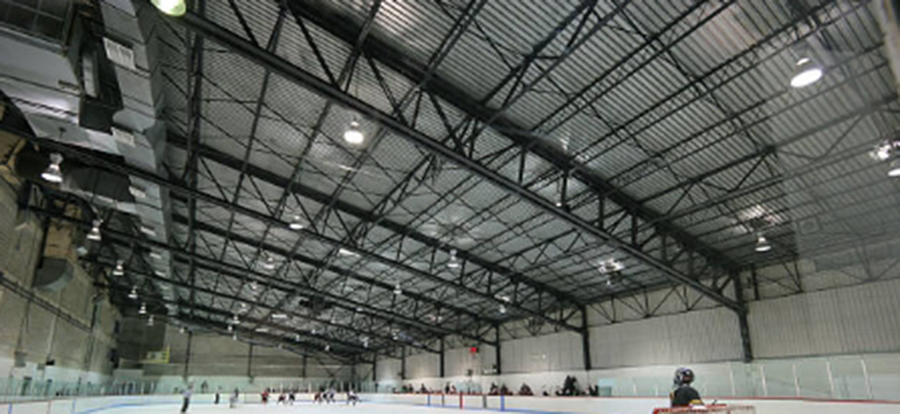

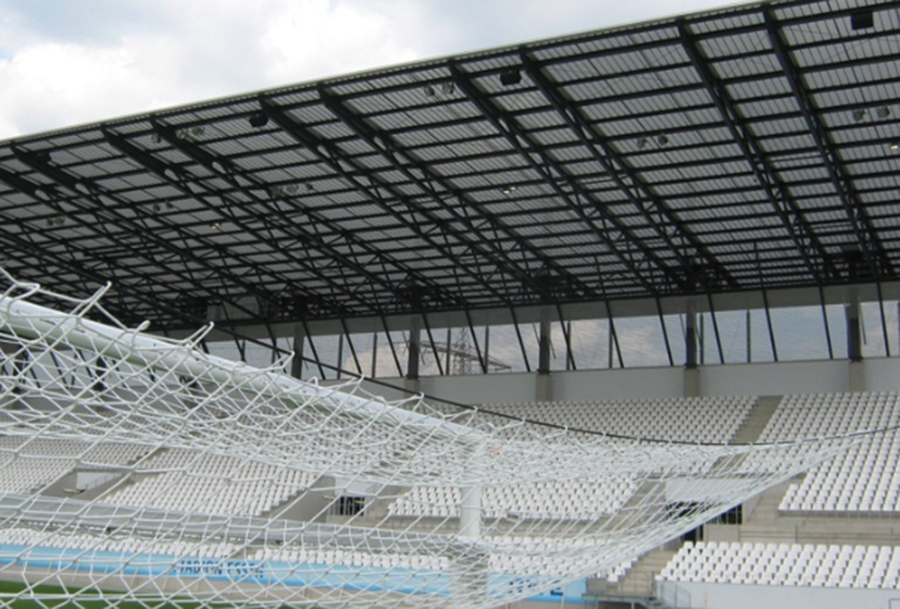

Product applications
This corrugated sheet is ideal for curved architectural roofs, industrial warehouses, and heritage restorations, these custom-formed panels adapt to complex geometries while maintaining structural performance. These steel sheets are perfect for stadiums, airports, and specialty buildings requiring both aesthetic appeal and weatherproof durability.
Packing & Delivery
☆ Packing
Seaworthy packing standards
If there is other package requested,please feel free to discuss with Yumisteel sales team.
☆Delivery
Delivery time for regular colors,coating types and thickness: 10-15 days ;
Delivery time for special colors,coating types and thickness: 15-25 days ;
Delivery term: FOB/CIF/CFR/DDP is available;
We can find good forwarder for customer or accept appointed forwarder from customers。
Service&Support
☆Service
Xiamen Yumi New Material Tech. Co., Ltd. is one combination of industry and trade company, and very professional with steel structure products in China. We are proud of our product quality and customer service and competitive price.And our products are sold worldwide, such as America, South America, Europe, Southeast Asia, Africa etc.
1)Professional sales team,One-to-one service;
2)Combination of industry and trade company,to ensure the service and price;
3)Experienced engineer team to offer professional technology service;
4)Intimate after-sales service.
☆Support
Experienced technology suport, competitive price, professional service, we are here to help you go on with your project smoothly.
