Product introduction

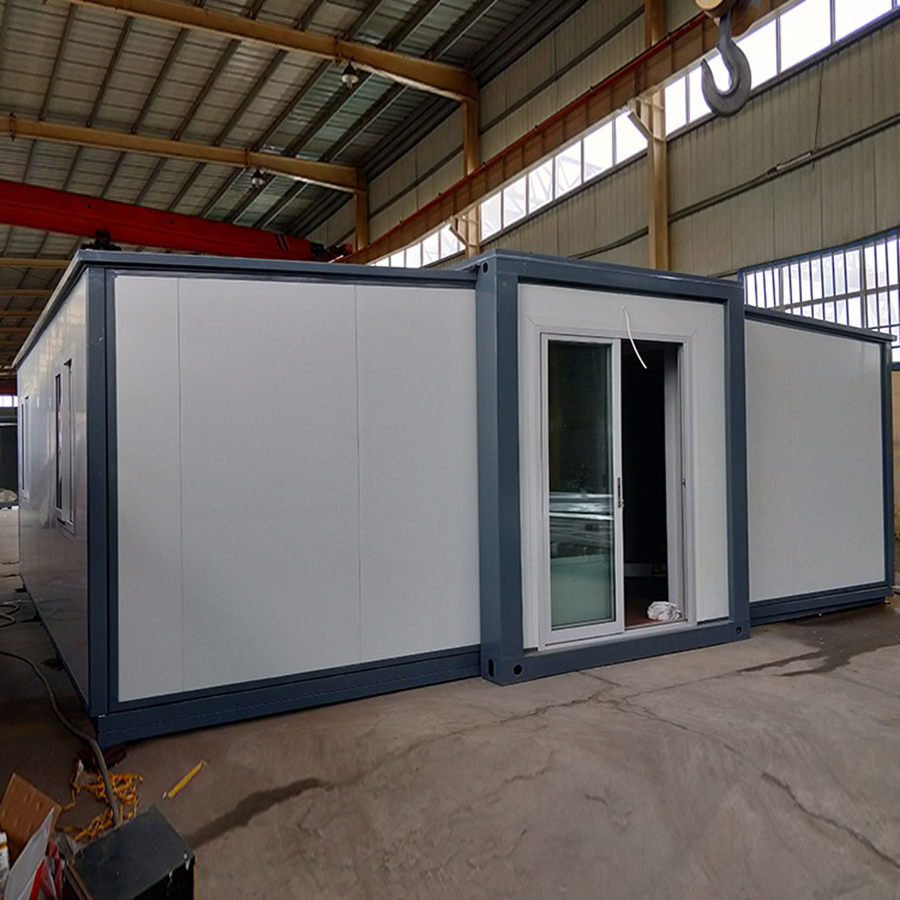

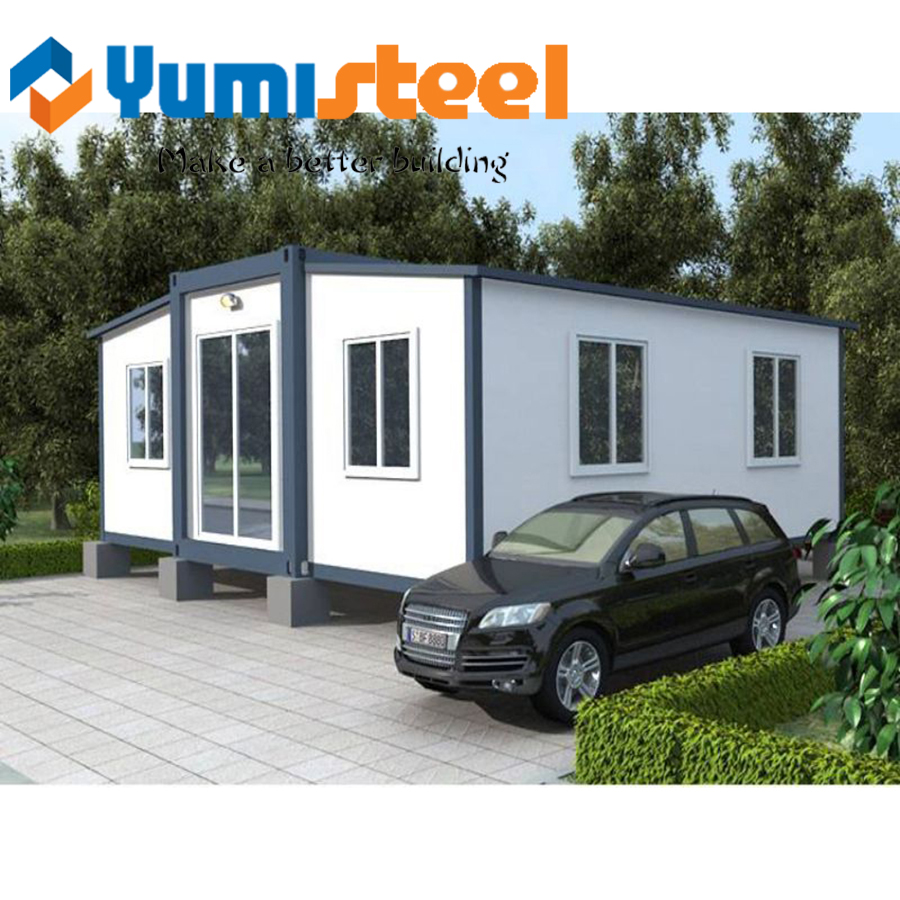

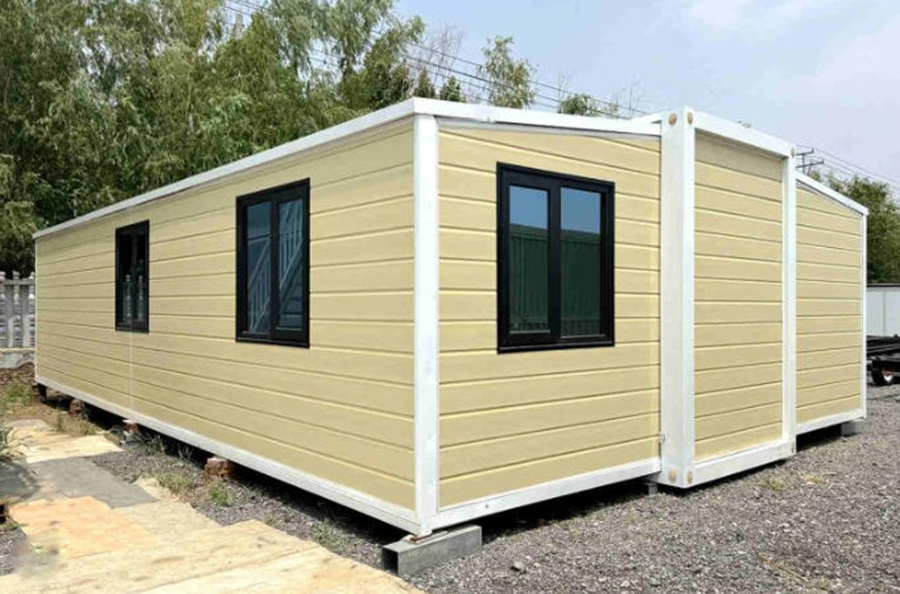

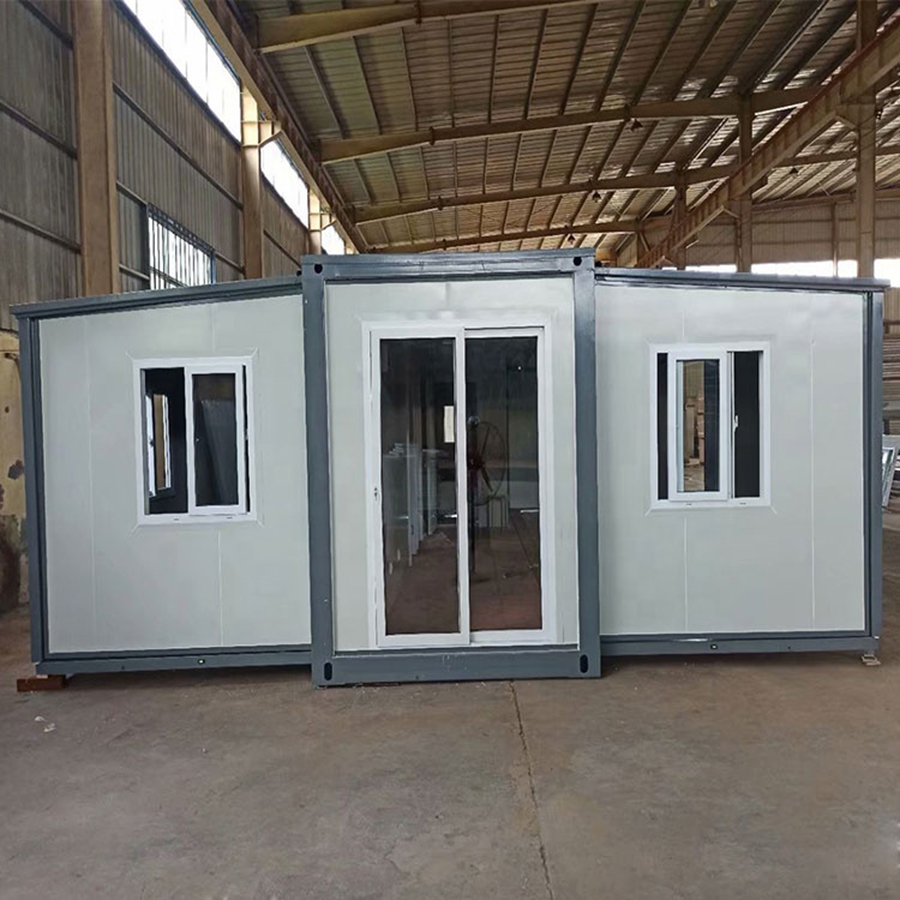

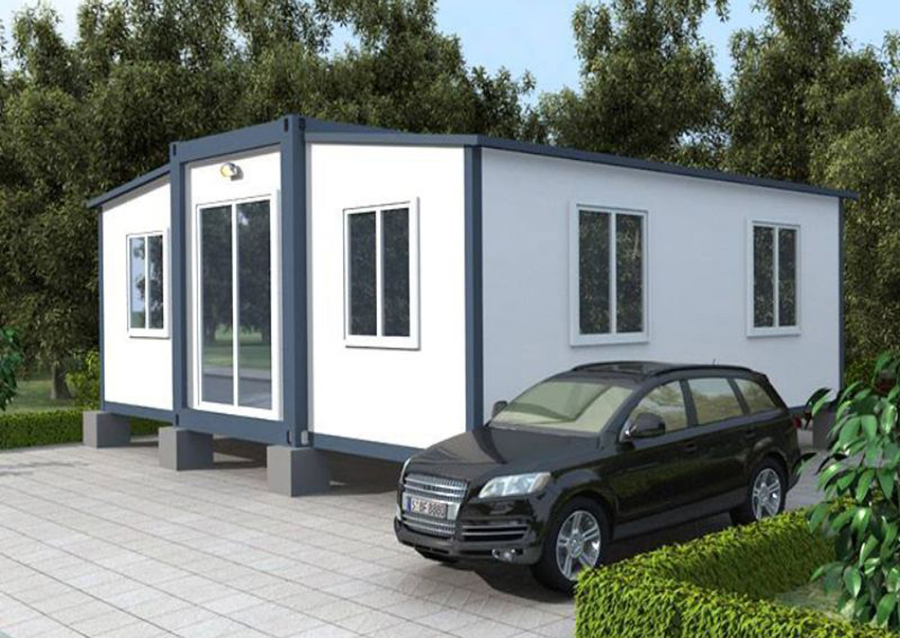

Expandable container house is a type of modular home ingeniously created from repurposed shipping containers. These homes are designed with special mechanisms that allow them to expand outwards from their compact, transportable state, significantly increasing the usable living or working space upon setup.
Product specification
Material list | ||||
Item | Details | Material | Type | Thickness |
Base data | External size(mm) | 6400*5800*2480(2270 for sides) | ||
Internal size (mm) | 6280*5560*2280(2150 for sides) | |||
Folding size(mm) | 2160*5800*2480 | |||
Weight(kg) | 1100 | |||
Design Parameters | Structural design service life | 20-25 years | ||
Floor live load | 200kg/㎡ | |||
Roof live load | 100kg/㎡ | |||
Wind load | 8 level | |||
Earthquake resistance level | 10 level | |||
Heat-resistant temperature | - 40 ℃ ~40 ℃ | |||
Quantities that 1*40HC container can load | 2 sets | |||
Framework | Roof side member | Q235B steel | 1.50 | |
Floor side member | Q235B steel | 1.50 | ||
End side beam | Q235B steel | 1.50 | ||
Side wall frame | Q235B steel | 1.50 | ||
Subframe | Q235B steel | 1.50 | ||
Corner pieces | Q235B steel | 4.00 | ||
Folding hinges | Q235B steel | 13.00 | ||
Integral frame protective coating | Electrostatic spray/straight white plastic powder | |||
Middle container top and bottom | 80*100 | |||
Side container top and bottom | 40*60 square tubes | 1.50 | ||
Roof | External roof | Galvanized & coated steel | 0.50 | |
Internal ceiling | Galvanized & coated steel | 0.25 | ||
Wall | Middle roof insulation | Glass wool insulation | 75.00 | |
Side walls, front and rear wall panels | Glass wool insulated panels | 50.00 | ||
Partition wall | 50.00 | |||
Internal bathroom | 1900*1000 | |||
Floor | Middle floor | Fireproof glass magnesium floor | 15.00 | |
Floor of 2 sides | Bamboo Flooring | |||
Electrical System | Electrical wiring, installed in strict accordance with moisture-proof specifications, all electrical products must comply with CE certified. Connect the circuit according to the circuit engineering specification, indoor: 3 LED lights, five-hole single-opening 3 sockets, 3 ten-hole sockets, 3 air-conditioning sockets, 1 20A leakage protector. | |||
Voltage 220V, 50HZ | ||||
Ordinary security door | 1 set of aluminum alloy glass door | |||
Windows | 4 aluminum casement windows | |||
Others | Bathroom prefabricated drainage, toilet, sink, shower equipment. | |||

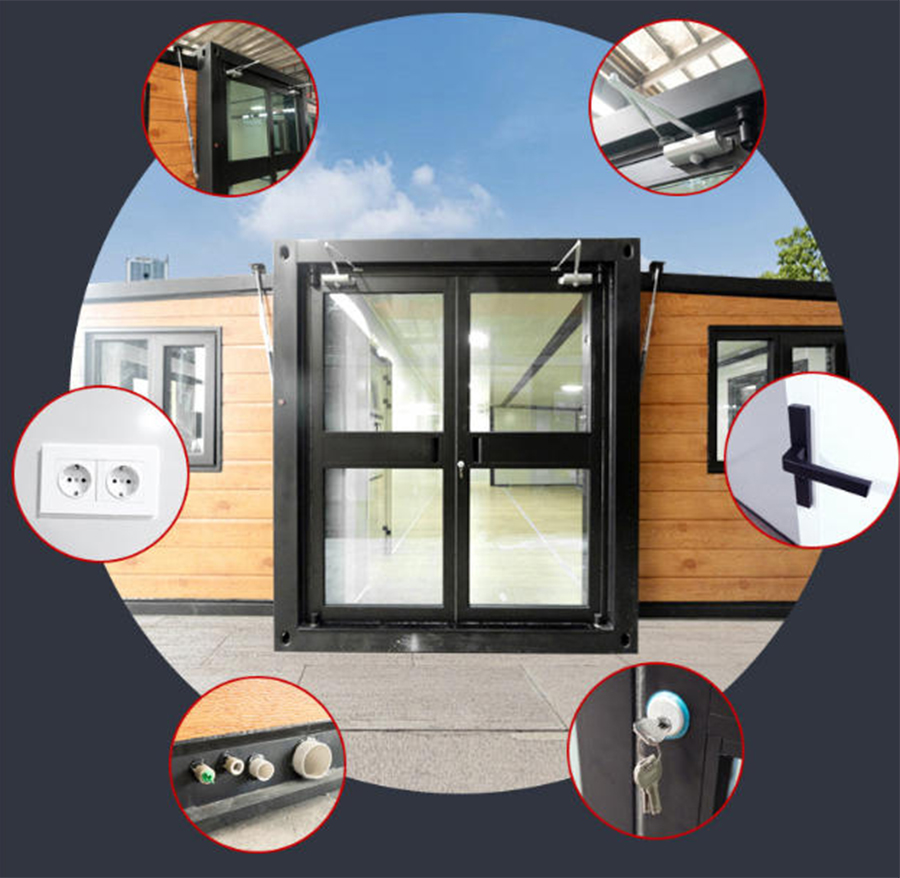

Product structure

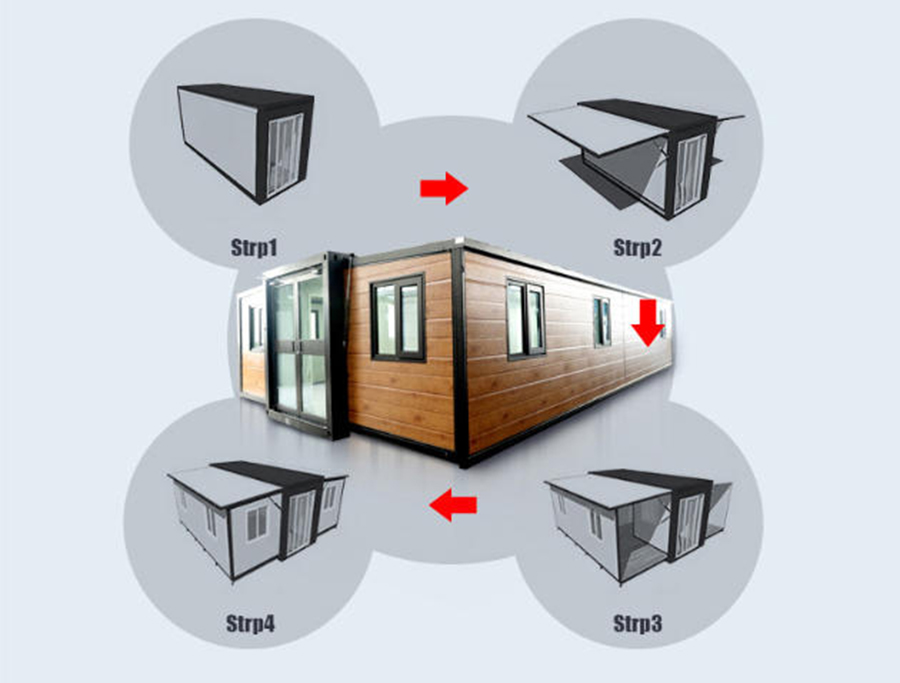

Product installation

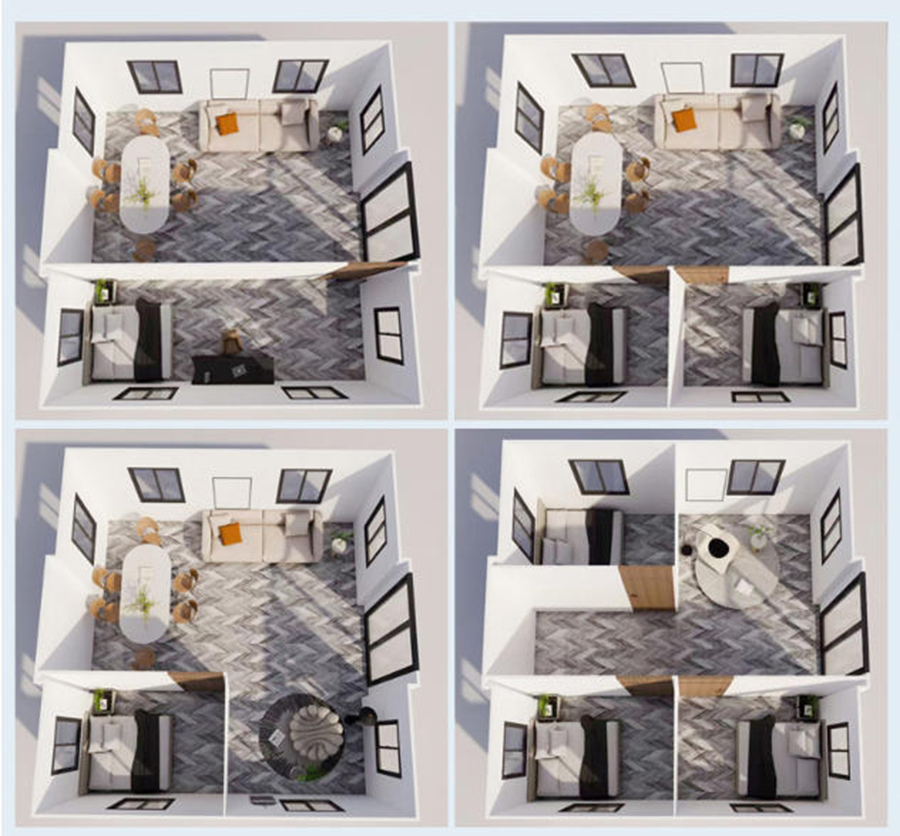

Product layout
Product advantages
☆Rapid Deployment
The prefabricated design enables swift on-site assembly. Folding mechanisms allow the expandable container house to be quickly set up, drastically reducing construction time.
☆Space Efficiency
This portable building folds compactly for transport, then expands to double or triple its size. It maximizes usable space while minimizing logistical footprint.
☆Cost-Effective
Factory production ensures controlled quality and reduces material waste. Lower labor and shorter build times make this a highly economical construction solution.
☆Durable & Versatile
Built from robust steel, it withstands harsh conditions. Its modular nature suits diverse uses from temporary housing to permanent commercial spaces.
Product application
This expandable folding container house is ideal for construction site camps, emergency shelters, mobile offices, portable classrooms, and tourist resorts. Its quick-installation, portable prefabricated design provides immediate, flexible space solutions for commercial and residential needs.
Product Certificate
Yumisteel container houses are certified with ISO and CE standards, ensuring high-quality prefabricated structures that meet international safety and performance requirements for reliable, compliant modular buildings.
Packing & Delivery
☆ Packing
Seaworthy packing standards:
Start with the large and heavy items and load them on the floor against the front wall of the container. Continue loading heavier items on the floor and towards the front of the container, placing lighter items on top. Pack the items tightly so nothing moves.
If there is other package requested,please feel free to discuss with Yumisteel sales team.
☆ Delivery
Delivery time for regular colors,coating types and thickness: 7-10 days ;
Delivery time for special colors,coating types and thickness: 15-25 days ;
Delivery term: FOB/CIF/CFR/DDP is available;
We can find good forwarder for customer or accept appointed forwarder from customers.
Service&Support
☆Service
Xiamen Yumi New Material Tech. Co., Ltd. is one combination of industry and trade company, and very professional with steel structure products in China. We are proud of our product quality and customer service and competitive price.And our products are sold worldwide, such as America, South America, Europe, Southeast Asia, Africa etc.
1)Professional sales team,One-to-one service;
2)Combination of industry and trade company,to ensure the service and price;
3)Experienced engineer team to offer professional technology service;
4)Intimate after-sales service.
☆Support
Experienced technology suport, competitive price, professional service, we are here to help you go on with your project smoothly.
