Product Introduction

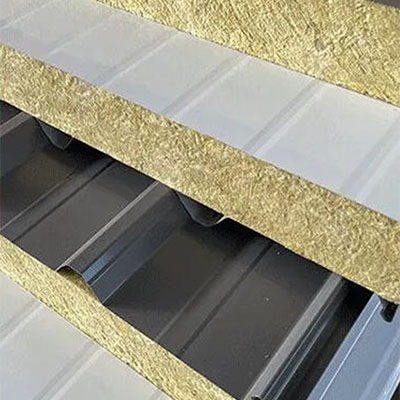

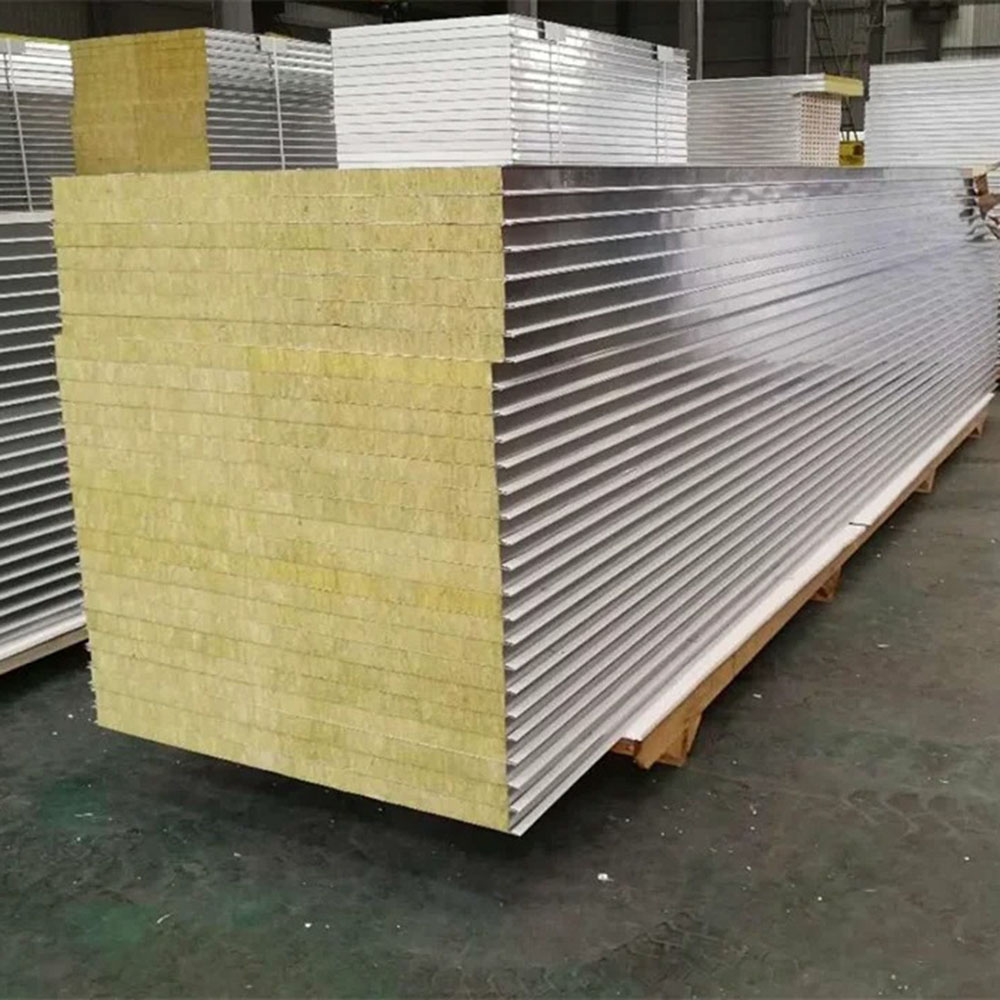

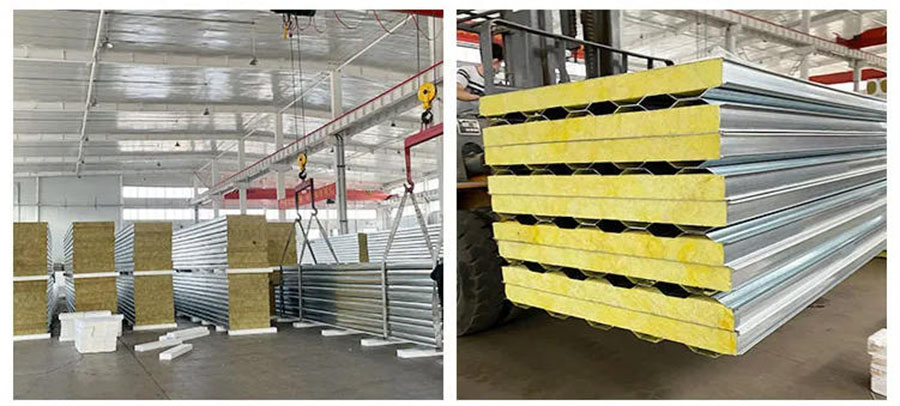

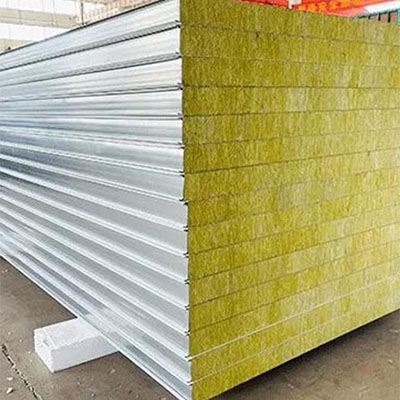

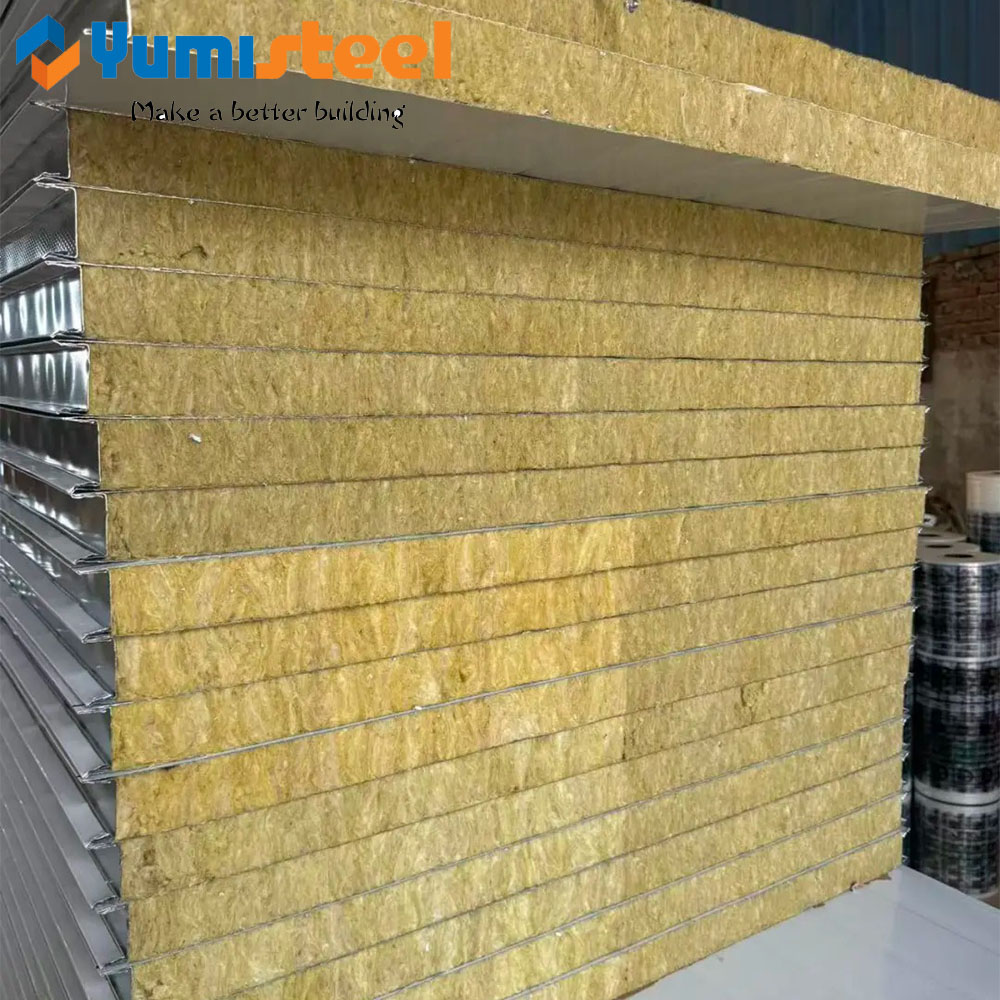

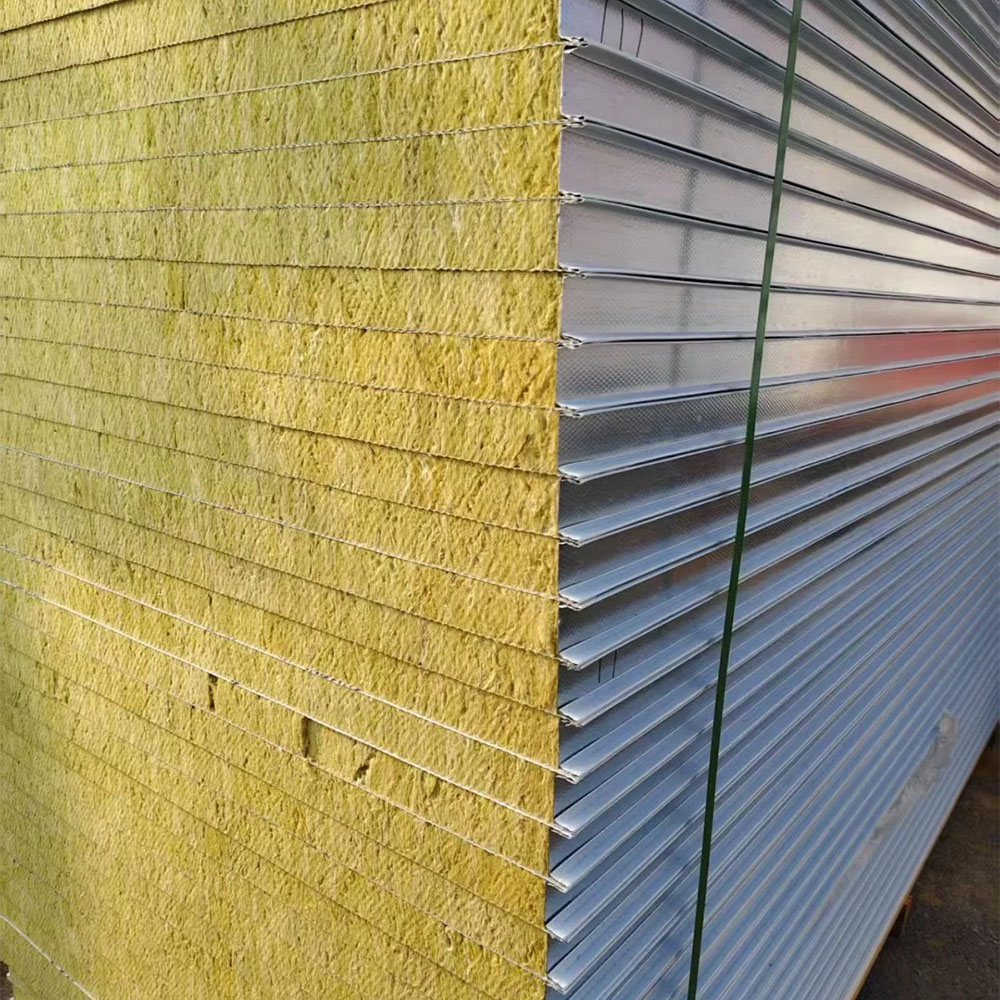

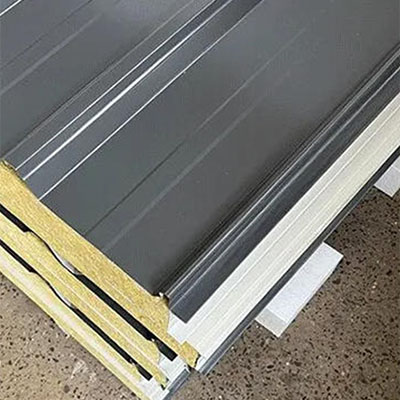

Rock Wool Sandwich Panel
This panel has two corrosion resistant steel sheets on the outside. The core is high density rock wool. This structure gives you A2 fireproof protection, great thermal insulation, and strong sound absorption. The steel faces add mechanical strength and impact resistance. You can use it for walls, roofs, and partitions in warehouses, factories, and prefab buildings.
Product Specification
Specification | Details |
Panel Thickness | 50mm, 75mm, 100mm, 120mm, 150mm, 200mm |
Panel Width | 1000mm (standard), 950mm, 600mm (optional) |
Panel Length | 2000mm–12000mm (custom) |
Steel Facings | Pre painted galvanized steel / color coated steel |
Steel Thickness | 0.4mm–0.8mm (both sides) |
Core Material | Rock wool (stone wool) |
Density | 80–160kg/m³ |
Thermal Conductivity (λ) | ≤ 0.040 W/(m·K) |
Fire Rating | A1 – A2 (non-combustible) |
Sound Absorption Coefficient (NRC) | 0.85 – 0.95 |
Sound Reduction Index (Rw) | 30 – 45 dB (depending on thickness) |
Melting Point | > 1000°C |
Water Vapor Permeability (μ) | 1 (no capillary effect) |
Joint System | Steel tongue-and-groove / concealed fastener |
Compressive Strength | (10% deformation) ≥ 40 kPa |
Application Temperature | -40°C to +200°C |
Applications | Warehouses, workshops, industrial plants, logistics centers, commercial roofs, partition walls, fire-rated enclosures |
Product Advantages
 |  |  |
Surface Material | Coating | Core Material |
Dustproof, waterproof, and eco friendly surface keeps the panel clean and protected. | Fluorocarbon and polyester PE coating deliver excellent weatherability and color retention. | Heat preservation, fire sound insulation, high hardness, and moisture resistance for reliable performance. |
Service
Comprehensive Construction Solutions for Modern Infrastructure
 |  |  |  |
Precision Material Fabrication | Custom Structural Design | Project Management & Installation | Technical Consultation & Support |
Yumisteel is a comprehensive construction solution provider dedicated to driving innovation in the construction industry. We offer clients intelligent, durable, and cost-effective solutions, covering every stage from initial design to final installation.
We are not just construction material suppliers; we are your strategic engineering partners who solve complex structural challenges. We integrate advanced manufacturing technology, rigorous quality control, and expert project coordination to deliver robust, reliable, and sustainable steel structures.
