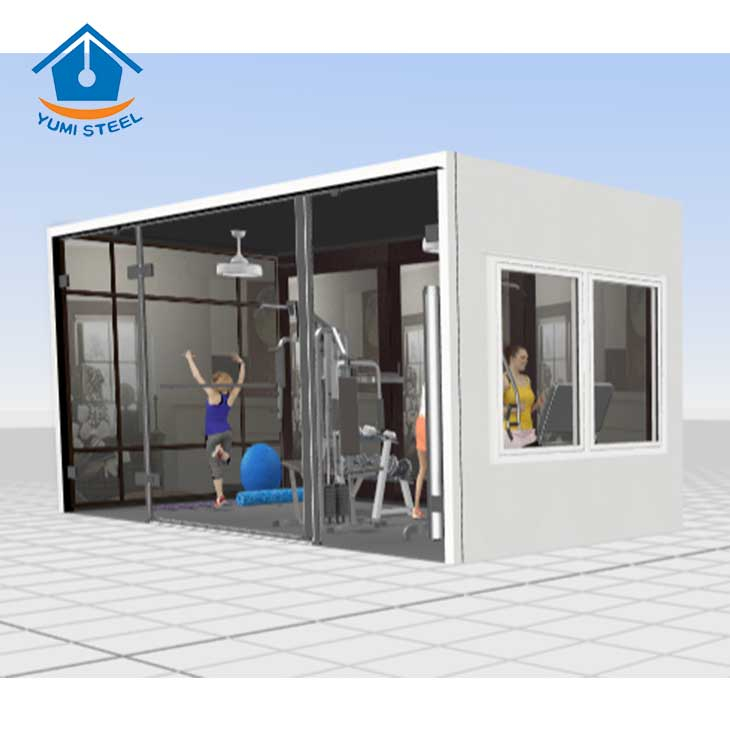

Flat Packed Container House for Gym/Gymnasium/Fitness Center

The container is designed as home gym, divide a space for a fitness area for the family, let's do exercises together!
Availability:
Quantity:
  • YM-CTN

Prefabricated flat packed container size

Standard size is 20ft lenth:

External size: L6055mm*W2438mm*H2896mm

Internal size: L5845mm*W2228mm*H2520mm

QQ截图20190606150337


Assemble container materials

Here are materials for your reference.
QQ截图20190606150724

Details:

No. Item Material description Quantity
1 Frame

Top frame:

Frame:2.5mm thick galvanized beams(5630*170*2.5mm*2PCs,2685*170*2.5mm*2PCs) and 4 top corner pieces,

Top secondary galvanized beam:80 * 40 * 1.3mm
Top cover plate: 0.45mm thick color steel plate;
831mm*0.35mm ceiling panels;
Thermal insulation material:50mm glass wool with aluminum foil film,
Frame color: optional.
Z shaped flashing on ceiling
1 set
2

Base frame:

Frame: 2.5mm thick galvanized beams(5630*160*2.5mm*2PCs,2685*160*2.5mm*2PCs)  4 base corner pieces, completed welding,
Base secondary galvanized beam:FG50*100*1.5mm
frame color:optional.
1 set
3

Corner Column:

Galvanized and painted columns, color: optional.
2526*210*150*2.5mm
4 pcs
4 Floor 18mm thick fiber cement board with 1.6mm PVC flooring, color optional
1 set
5 Wall panel
75mm thick Rockwool sandwich(with A1 fireproof performance) panel(Density:80KG/M³) +0.40mm Alu-zinc color steel sheet
Panel width:950/1150mm
Length:2.89m
8 pcs
6 Door
Steel door with lock and keys, W845*2030mm
Steel thickness:0.50mm
1 set
7 Window
Plastic steel sliding window, size: 1130 * 1130mm, double glass hollow, screen window, anti-theft window.
1 set
8 Accessories
Diameter 50mm PVC downpipe 4 pcs;
831*0.5mm color steel integrated ceiling; 0.4mm color steel column decoration 4 pcs, self tapping, rivets, hexagon socket bolts, glues, etc
7 set
9 Electric system
Complete set: distrubute box 1 set, switch 1 pc, ordinary socket 3 pcs, A/C socket 1 pc, external connectiong industry socket 1 set, LED ceiling light and external lamp over the door, wires,
 accessories, etc.   (According to local voltage)
1 set
10 Waterproof glue & non-silicone resin
This is to avoid water leakage,and  condensation
1 set
11 For container combined accessories
For waterproof plastic tape
per demand

Remark:The material list is for one standard container, the paint color optional.Total budget,please refer to the list above.


Container building application

1. The residential home, shops, home gym;

2. The high-end demand for temporary construction buildings at construction sites, such as the office of the project manager, accommodation, meeting rooms, etc;

3. Due to site restrictions, the construction site can only install modular container housing products;

4. Housing for field operations; such as mobile office and dormitory for field exploration and construction;

5. Emergency rooms, such as: military mobile command center, rescue mobile command center, disaster relief mobile command center, etc.

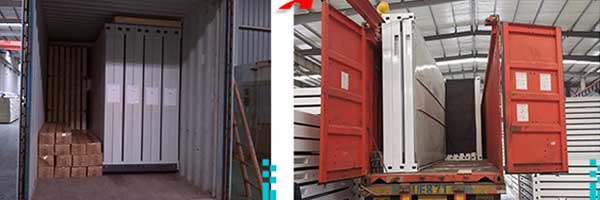

Packing & Loading & installing

Removable-Buildings-2-2

container-package


Service & Support

Xiamen Yumi Imp. &Exp. Co., Ltd. Is one combination of industry and trade company, and very professional with steel structure products in China. Because of good quality and service, competitive price, our products are sold worldwide, such as America, South America, Europe, Southeast Asia, Africa etc.

Experienced technology suport, competitive price, professional service, we are here to help you go on with your project smoothly.
