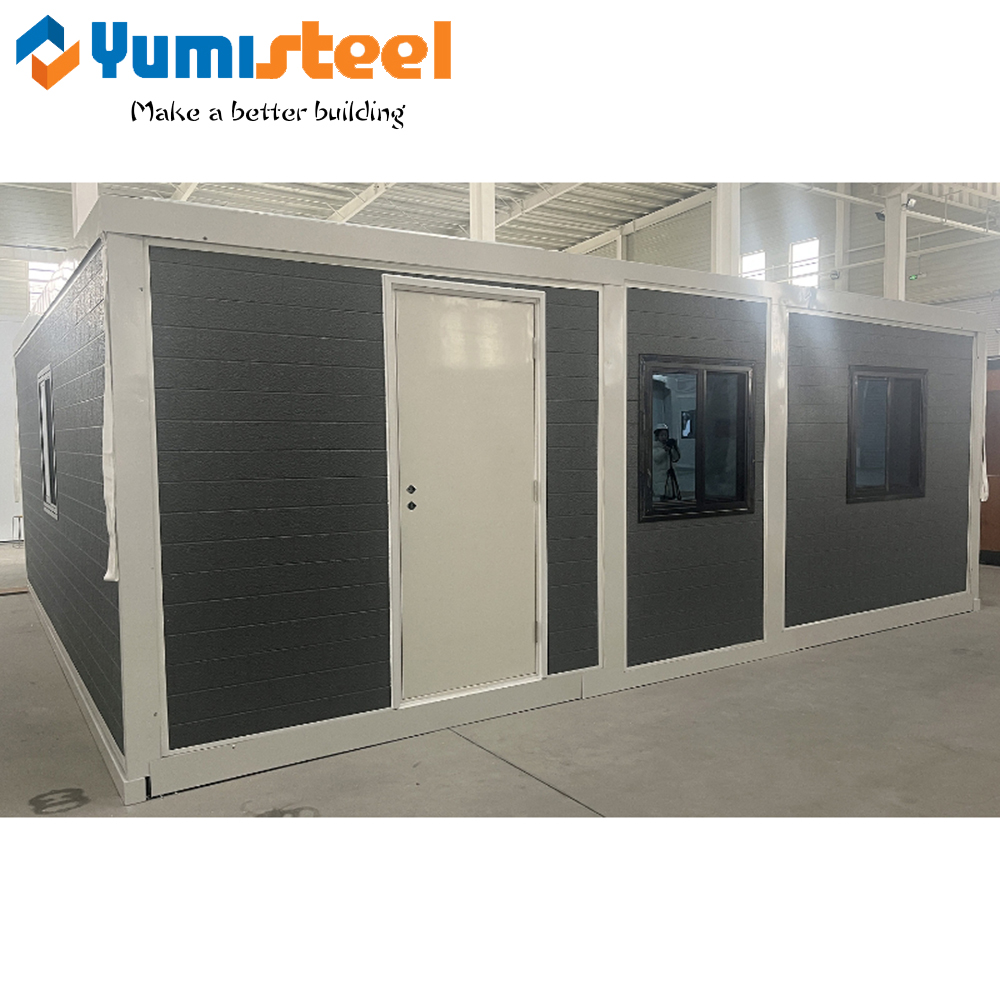

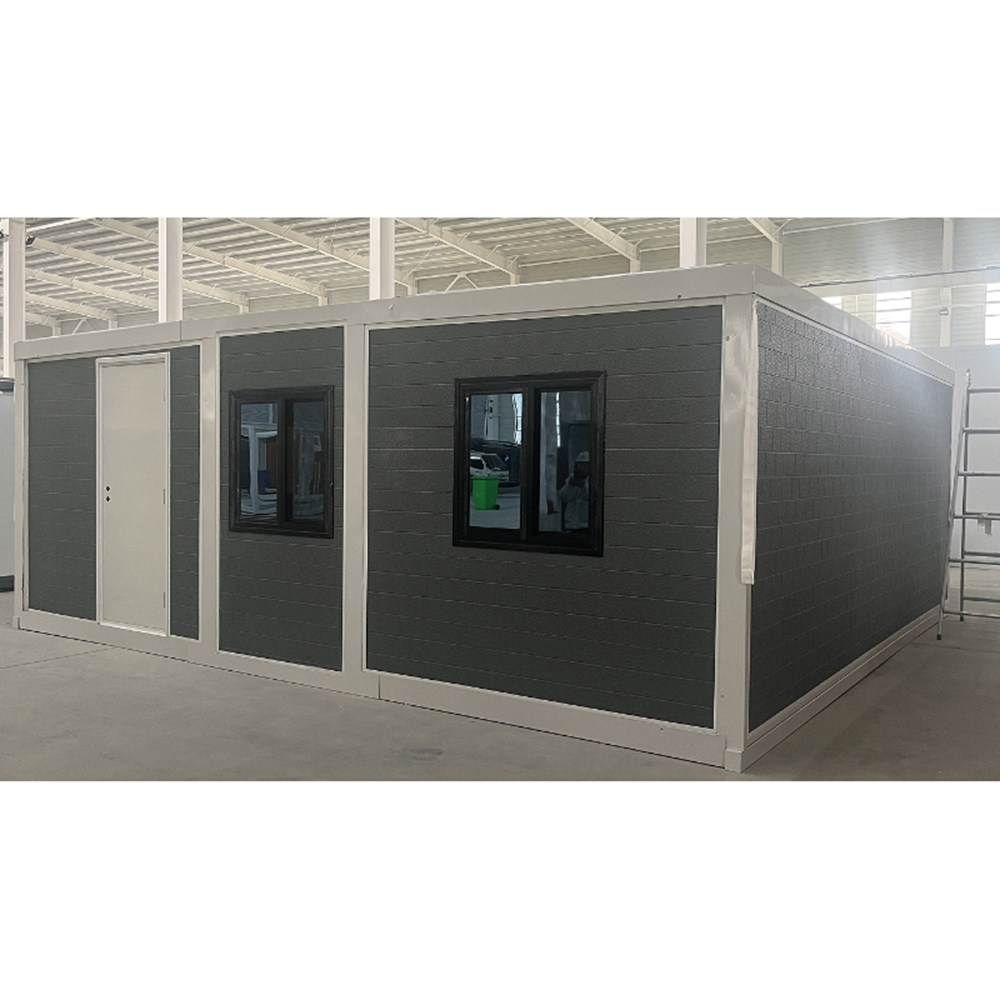

Product introduction
The Flat Top Expandable Container House features a collapsible steel frame and a flat roof for easy stacking and transport. It unfolds from compact shipping size to a full living space within hours. Made from galvanized steel and insulated panels, this flat top expandable container house is ideal for housing, offices, or site dorms.
Product specification
20 feet flat top expandable folding container house configuration parameters | |||
Product | 20 feet | House type | One Hall |
Expanded size | L5900*W6420*H2450 | Number of people accommodated | 2-4 people |
Intermal | L5740*W6260*H2250 | Power consumpton | 12KW |
Folded Size | L5900*W2200"H2450 | Total net welght | 3.1 tons |
Floor area | 38m² | ||
Frame tnucture | |||
No. | Name | Conten | Specifcatons |
1 | Main frame | Top side beam | 80*100*3.0mm square tube outsourcing 2.0 bending parts |
2 | Top beam | 80*100*3.0mm square tube wrapped with 2.0 bending parts | |
3 | Bottom side beam | 80*100*3.0mm square tube wrapped with 2.0 bending parts | |
4 | Bottom beam | 80*100*3.0mm square tubewrapped with 2.0 bending parts | |
5 | Hanging head | 12.8 Portable Steel Anti detachment Hook | |
6 | Steel column | 80*100*3.0mm square tube outsourcing 2.0 bending parts | |
7 | Side frame | Top frame | 50*100*2.5mm square tube outsourcing 2.0 bending par |
8 | 40*80mm*1.8mm P-shaped pipe | ||
9 | Bottom frame | 80*100*3.0mm square tube outsourcing 2.0 bending parts | |
10 | Folding hinge | 130mm galvanized hinge | |
11 | Overall framework protective coating | Spray | Electrostatic spray molding/straight white plastic powder |
12 | Roof | Main external top plate | T50mm EPS color steel plate+corrugated veneer t0.4mm |
13 | Outer top plate of the side wing | T100mm EPS color steel plate+corrugated veneer t0.4mm | |
14 | Internalceiling panels | 200 type ceiling panel | |
15 | Wallboard | Side walls,front and rear | T65mm EPS color steel plate |
16 | Inner partition board | T50mm EPS color steel plate | |
17 | Ground | Center floor | 18mm thick fireproof cement fiber floor |
18 | Floor on both sides | Bamboo plywood 18mm thick | |
19 | Doors and windows | Plastic steel sliding window | 920*920mm |
20 | Steel single door | 840*2030mm | |
21 | Electrical system | Circuit breaker system | One 32A leakage protector.Voltage 220V,50HZ |
22 | Light | Bull 30*30 flat lamp,large ceiling lamp | |
23 | Socket | Standard internationalthree hole and five hole sockets | |
24 | Light Switch | Double open,single key switch | |
25 | Wiring | Incoming Line 6⊃2;,Air conditioning socket 4⊃2;,Ordinary socket 2.5⊃2;,Lighting 1.5⊃2; | |
26 | Accessory | Including top corner line skirting line corner wrapping waterproof tape sling structural adhesive and glue gun | |

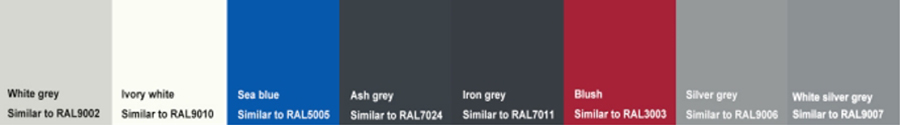

Regular colour

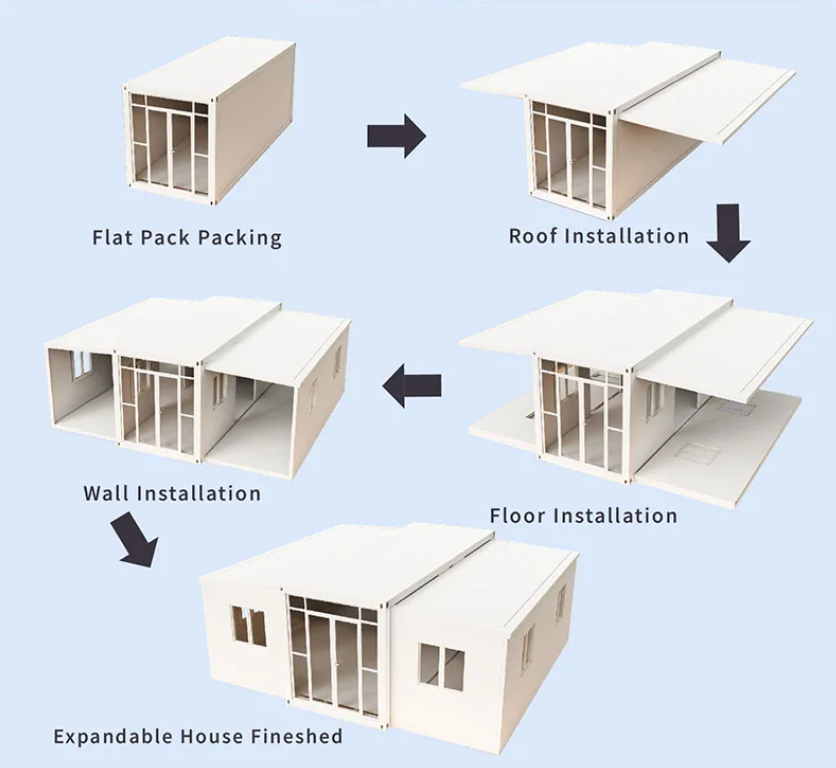

Product Installation
Product Certificate
Yumisteel container houses are certified with ISO and CE standards, ensuring high-quality prefabricated structures that meet international safety and performance requirements for reliable, compliant modular buildings.

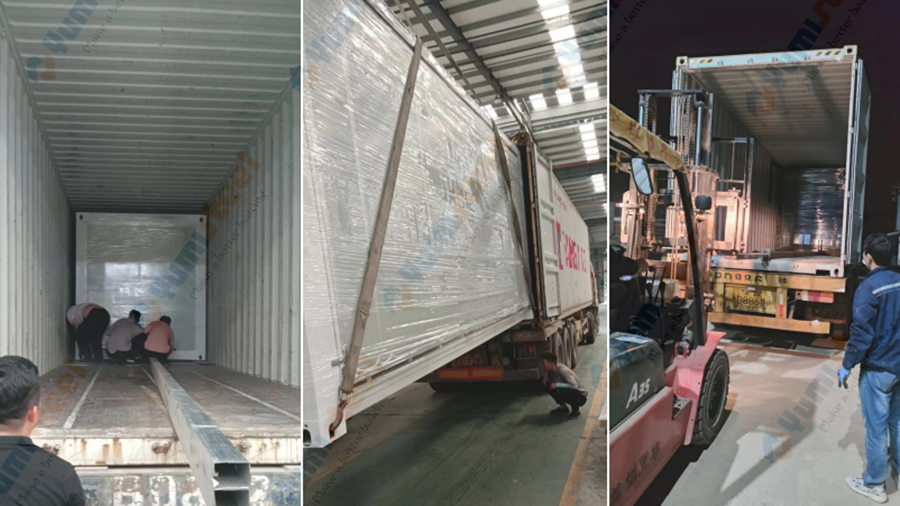

Packing & Delivery
☆ Packing
Seaworthy packing standards:
Start with the large and heavy items and load them on the floor against the front wall of the container. Continue loading heavier items on the floor and towards the front of the container, placing lighter items on top. Pack the items tightly so nothing moves.
If there is other package requested,please feel free to discuss with Yumisteel sales team.
☆ Delivery
Delivery time for regular colors,coating types and thickness: 7-10 days ;
Delivery time for special colors,coating types and thickness: 15-25 days ;
Delivery term: FOB/CIF/CFR/DDP is available;
We can find good forwarder for customer or accept appointed forwarder from customers.
