Galvanized Corrugated Roof Tile Steel Cladding

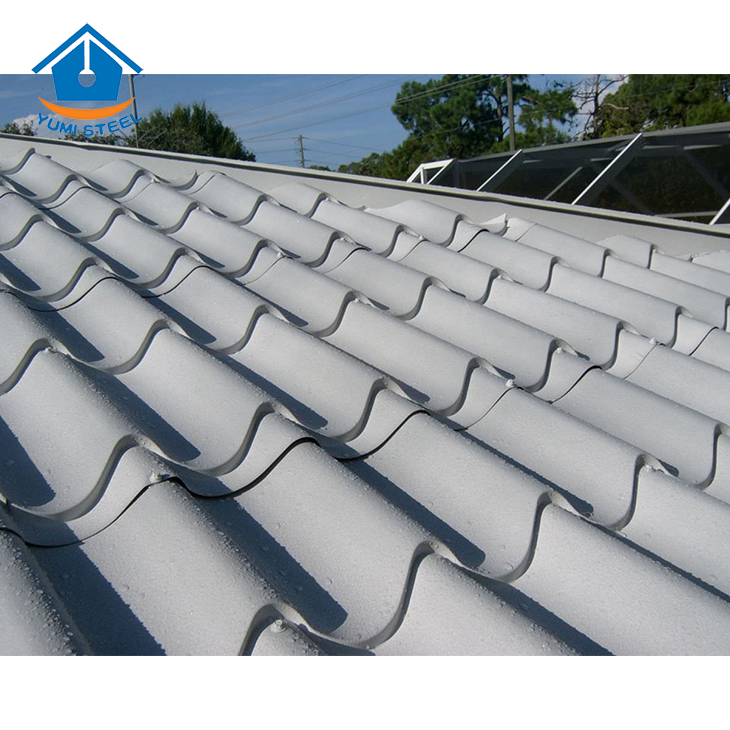

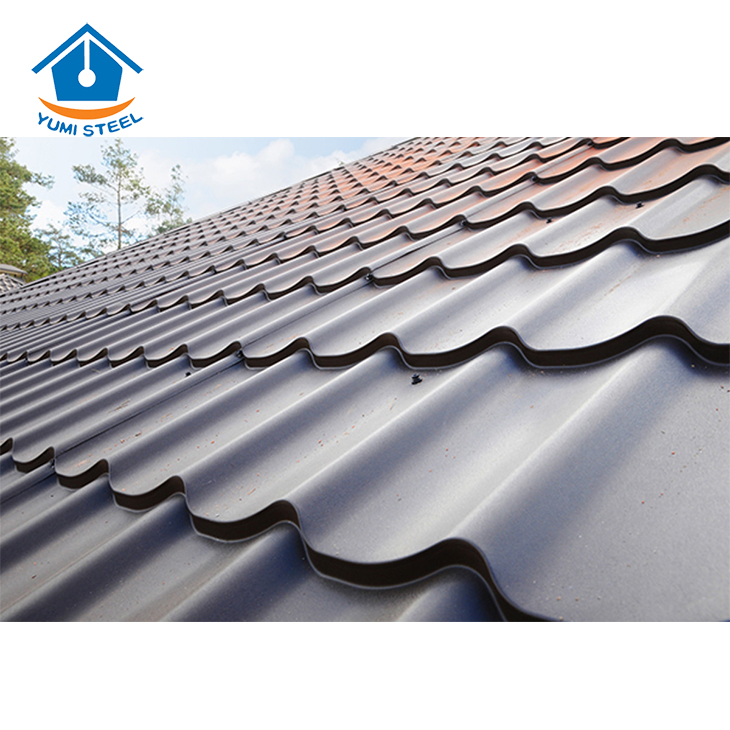

YX28-207-828 roofing color steel sheet, it is similar to the traditional roof tile, but better in anti-corrosion and waterproof.

Quantity:
  • N/A
  • YUMI
  • 92104900

Color coated steel sheet:

Corrugated plate is also called pressure plate, the use of color coated steel plate, galvanized plate and other metal plates through the roller cold bending into a variety of wave pressure plate, it is suitable for industrial and civil buildings, warehouses, special buildings, large span steel structure house roof, wall and internal and external decoration.It has the characteristics of light weight, high strength, rich color, convenient and fast construction, anti-seismic, fireproof, rainproof, long life and maintenance free


Metal prepaint sheet specifications:

metal roof steel sheet model type

Model NO.: YX28-207-828
Rib height: 28mm
Rib distance: 207mm
Modular width: 828mm
Feeding width: 1000mm
Available thickness: 0.42-0.75mm
Available length: 20FT container:  ≤ 5.95m
40FT container: ≤ 11.95m
Available material:

PPGI/ PPGL/ Aluminum sheets

/ Al-Mg-Mn alloy metal sheets

Surface treatment:

Original pre-painted color

 or stone glazed looking

Coating type:
PE, PVDF, HDP, SMP, etc.



















Some color steel sheets of roof/wall model types :

微信截图_20190820143158

微信截图_20190820143315

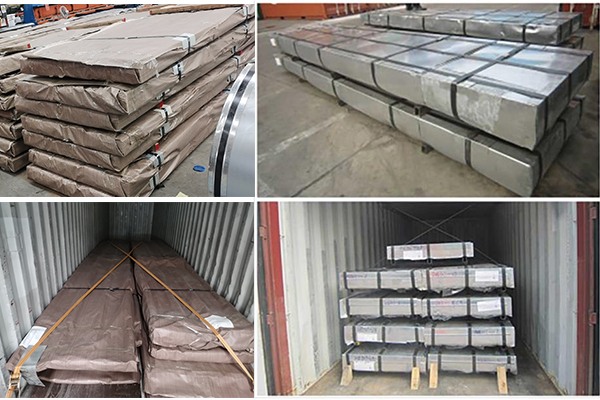

Color coated steel sheet packing&loading:

  corrugated steel sheet packing


Packing & Delivery:

 Packing:

Seaworthy packing standards:

1)Normal packing:

Packed with moisture-proof kraft paper.

2)Premium packing:

Packed with steel box.


Delivery:

Delivery time for regular colors,coating types and thickness: 7-10 days ;

Delivery time for special colors,coating types and thickness: 15-25 days ;

Delivery term: FOB/CIF/CFR/DDP is available;

We can find good forwarder for customer or accept appointed forwarder from customers.
