1. Our equipment:
We have two color coated production lines and we Produce PPGI And PPGL coils with high quality painting. We never modulate paint by ourselves and the brand of paint is Nippon paint,Kcc and Wuxi Wanbo.With professional and responsible attitude,we have confidence to offer you best quality color coated steel coils.The product can be used in construction,household appliances,and other emerging fields.
2. Product specification:
Product name | PPGI coils |
Base sheet | Galvanized( Zinc coating ) |
Thickness range | 0.20 - 1.00 mm |
Width range | 900 - 1250 mm |
Coil weight | 3 MT - 10 MT |
Mass of coating | 40 g/m² - 275 g/m² |
Painting standard | Primers: Epoxy, PU |
Top Coating: Polyester (PE),Silicon Modified Polyester (SMP),High-durability Polyester coating(HDP)Poly Vinyl Di Flouride (PVDF) | |
Back Coating: Epoxy, Polyester, PU | |
Top Coating | 15 μm - 30 μm |
Back Coating | 7-10 μm |
Colours | As Per RAL Chart/Customer requirements. |
Packing | Seaworthy Packaging |
3. Product process:
Raw material → Cleaning → Passivation → Drying → Coating → Quality checking → Unloading → Package
With rigorous production process,we could produce quality-assured color-coated steel coils.
4. Available model & standard:
Substrate type | Color steel model | Standards | Use & characteristics |
Hot dipped galvanized steel | TDC51D+Z | DC51D+Z | General use |
TDC52D+Z | DC52D+Z | Stamping use | |
TDC53D+Z | DC53D+Z | Deeply stamping use | |
TS280GD+Z | S280GD+Z | Structural use | |
TS350D+Z | S350D+Z | Structural use | |
TS550GD+Z | S550GD+Z | High strength structural use |

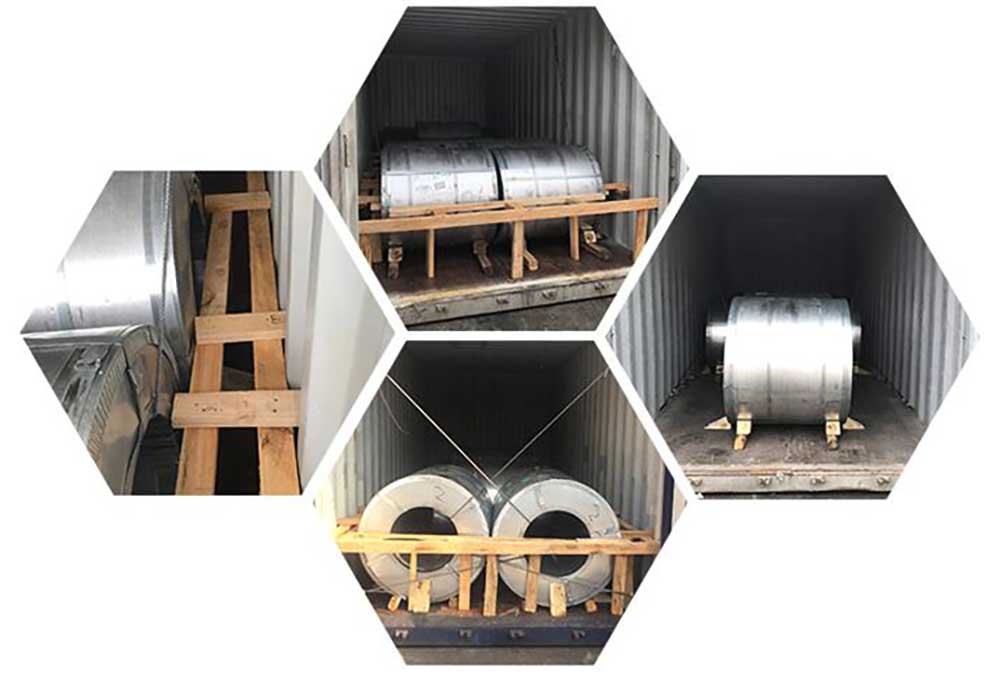

5. Packing & Loading:
All of our products are packed with waterproof paper, galvanized steel, edge protection, tape, and then labeled or marked on the roll. Our goods should be fixed with wooden pallets or iron or wire rope to ensure that the coils are well protected until the goods arrive. In the customer's location.
6. Storage note:
In any case, coils should not be stored or stored in a humid environment. Because the capillary will inhale water into the coil surface, moisture or water will not evaporate normally, which may lead to product deterioration characteristics, shorten the expected service life, and affect the appearance of the product. Special attention should also be paid to the storage of related products, such as color corrugated steel plates and sandwich panels.
7. Handling and forming:
To avoid damage to the product surface, care must be taken to handle the product during handling, transportation, molding, and installation. Improper use of molding lubricants can affect product characteristics and cause surface contamination. Do not use when not necessary.
