Hot-Dip Galvanizing: A Comprehensive Overview

What Is Hot-Dip Galvanizing?

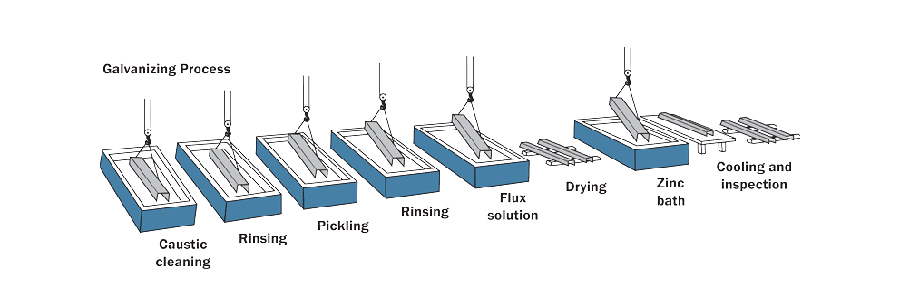

Hot-dip galvanizing (HDG) is a process where steel is immersed in molten zinc at around 443°C (830°F). A metallurgical reaction between iron and zinc creates tightly bonded zinc‑iron alloy layers, topped with a pure zinc outer layer. The process follows three key steps: surface preparation, galvanizing, and inspection. First, steel is cleaned with alkaline solutions to remove grease, pickled in dilute acid to eliminate rust and scale, and fluxed to prevent re‑oxidation. It is then fully dipped into a zinc bath containing at least 98% pure zinc. After withdrawal, excess zinc drains off to form a smooth, uniform coating. Finally, the coating is checked for thickness, uniformity, and compliance with standards such as EN ISO 1461 or ASTM A153.

Key Benefits

HDG offers unmatched corrosion protection. Zinc acts as a sacrificial anode, corroding before steel does,even if the coating is scratched, surrounding zinc protects exposed steel. It also forms a dense, impermeable barrier that blocks moisture and oxygen. The alloy layer is harder than the base steel, providing excellent wear resistance. Under most atmospheric conditions, HDG delivers 50 to 75 years of service with little to no maintenance. The immersion method ensures full coverage, including edges, corners, and internal surfaces of hollow sections. Additionally, zinc is fully recyclable, and its long service life reduces replacement needs, making it environmentally sustainable.

Common Applications

HDG steel is widely used across many sectors. In construction, it serves for structural frames, roofing, bridges, and road infrastructure. The automotive industry uses it for body panels and components to extend vehicle life. It is also essential in renewable energy projects such as solar mounting systems and wind turbine structures, as well as in utilities, data centers, agriculture, and general manufacturing.

Proven for over a century, hot‑dip galvanizing remains one of the most reliable and cost effective anti corrosion solutions. By forming a robust, long‑lasting coating through immersion in molten zinc, it delivers exceptional protection with minimal upkeep. From large bridges to everyday fencing, HDG helps build structures that perform well and endure for decades.

For more information needed or any inquiry,please feel free to contact Yumisteel team.
