Installing Sandwich Panels on Walls & Roofs

For sandwich panels lightweight design and interlocking system. A skilled crew can install 600 m² of sandwich panels in just 8 hours.They are perfect for quick, efficient construction projects.

What is the steps to install wall and roof sandwich panels ?

☆ Yumisteel delivers complete installation kits: sandwich panels, cold-formed subframes, flashing, fasteners, gaskets & seals. All components arrive site-ready for streamlined assembly.

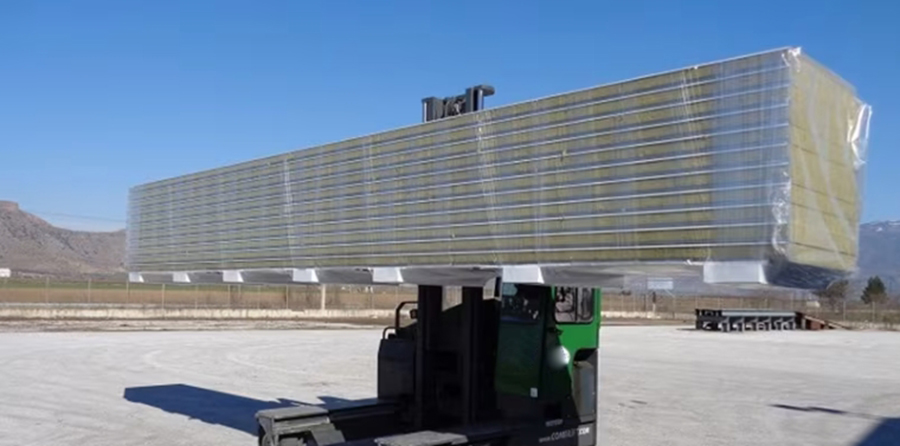

☆The materials delivered by the carrier are unloaded with construction handling equipment.

☆The subframes are assembled, and installed with beams, posts and purlins.

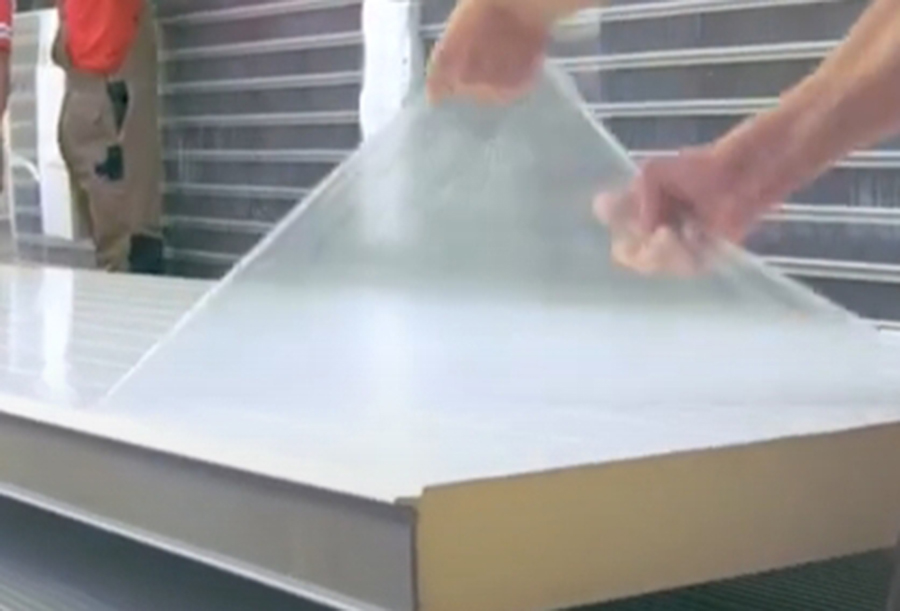

☆The protective film is removed from the sandwich panels.

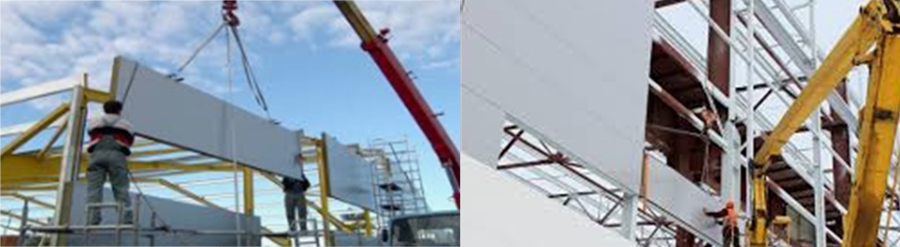

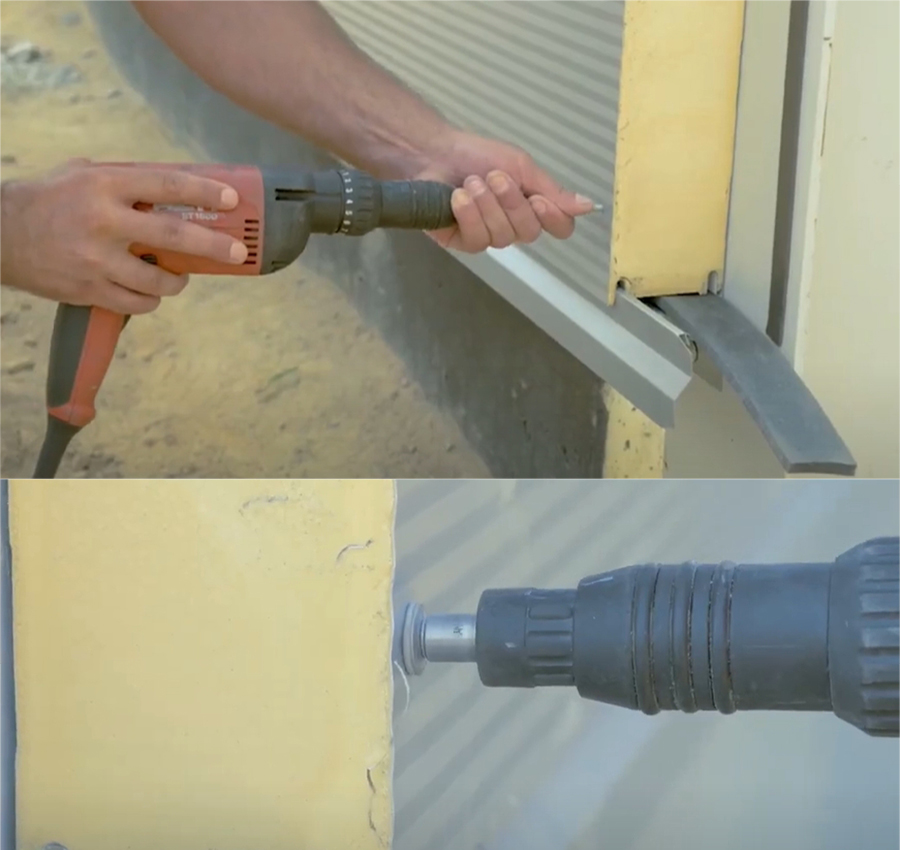

☆The sandwich panels are fastened to the subframe structural members using suitable fasteners.

☆The joints between the sandwich panels are sealed and the flashing is installed.

Expect ~1.1 screws per m² as a baseline. Final quantity, spacing, and pattern are determined by your engineer or supplier based on load requirements and panel type. Always consult project specs.

Sandwich panels suit all cladding needs, with core materials selected by project requirements:

EPS-core	Mineral wool	PIR-core
budget-friendly	fire-resistant	superior insulation

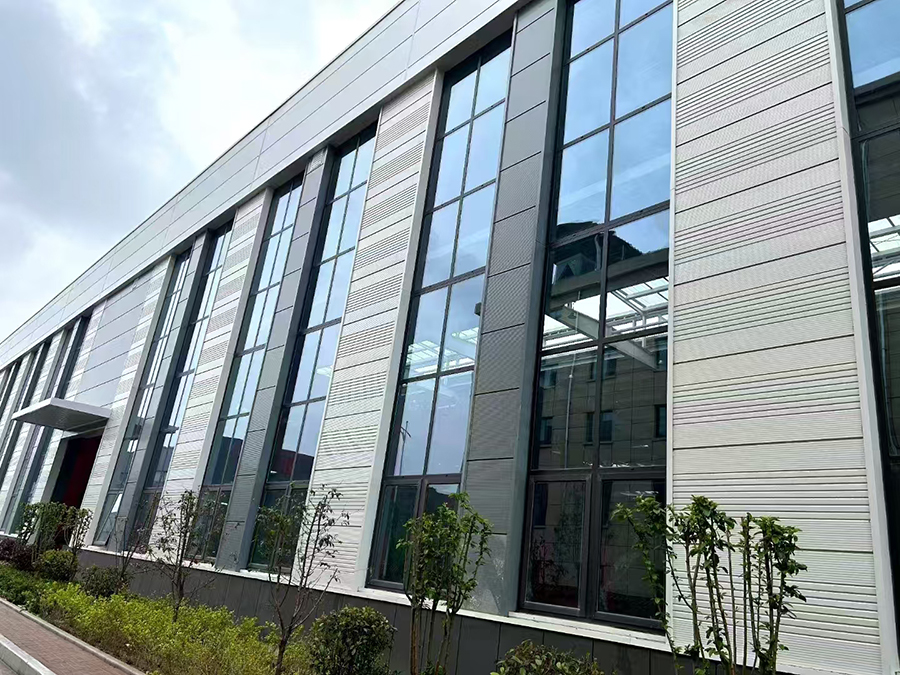

While dominant in industrial builds, they’re equally effective for residential stud partitions and creative architectural designs. Their adaptability and performance make them ideal for limitless structural applications.

Properly installed sandwich panels deliver durable, weatherproof, and energy-efficient walls and roofs. Follow engineering specs for fastener spacing, ensure tight seals, and prioritize quality materials. Ideal for fast-track industrial and architectural projects.
