Yumi steel
Product introduction
Lightweight Steel Bridge Construction H I Beam Steel Structure
Lightweight steel bridges utilize high-strength H/I beam structures to deliver superior load-bearing capacity with reduced weight, revolutionizing modern infrastructure projects.
The H/I beam profiles provide exceptional strength-to-weight ratios, allowing for cost-effective transportation and installation.These bridges are ideal for pedestrian crossings, rural roadways, temporary construction access, and emergency relief situations.
Product specification
ACCORDING TO STANDARD: JIS G3192 OR GB/T11263-2005 | |||
H beam Section size (mm) | Weight (kg/m) | ||
Height×Breadth | Web thickness | Flange thickness | |
100×100 | 6 | 8 | 16.9 |
125×125 | 6.5 | 9 | 23.6 |
150×150 | 7 | 10 | 31.1 |
175×175 | 7.5 | 11 | 40.4 |
200×200 | 8 | 12 | 49.9 |
250×250 | 9 | 14 | 71.8 |
300×300 | 10 | 15 | 93.0 |
300×300 | 15 | 15 | 105.0 |
350×350 | 12 | 19 | 134.9 |
400×400 | 13 | 21 | 171.7 |
148×100 | 6 | 9 | 20.7 |
194×150 | 6 | 9 | 29.9 |
244×175 | 7 | 11 | 43.6 |
294×200 | 8 | 12 | 55.8 |
340×250 | 9 | 14 | 78.1 |
390×300 | 10 | 16 | 104.6 |
440×300 | 11 | 18 | 120.8 |
482×300 | 11 | 15 | 110.8 |
488×300 | 11 | 18 | 124.9 |
582×300 | 12 | 17 | 132.8 |
588×300 | 12 | 20 | 147.0 |
100×50 | 5 | 7 | 9.3 |
125×60 | 6 | 8 | 13.1 |
150×75 | 5 | 7 | 14.0 |
175×90 | 5 | 8 | 18.0 |
198×99 | 4.5 | 7 | 17.8 |
200×100 | 5.5 | 8 | 20.9 |
248×124 | 5 | 8 | 25.1 |
250×125 | 6 | 9 | 29.0 |
298×149 | 5.5 | 8 | 32.0 |
300×150 | 6.5 | 9 | 36.7 |
346×174 | 6 | 9 | 41.2 |
350×175 | 7 | 11 | 49.4 |
396×199 | 7 | 11 | 56.1 |
400×200 | 8 | 13 | 65.4 |
446×199 | 8 | 12 | 65.1 |
450×200 | 9 | 14 | 74.9 |
496×199 | 9 | 14 | 77.9 |
500×200 | 10 | 16 | 88.1 |
596×199 | 10 | 15 | 92.4 |
600×200 | 11 | 17 | 103.4 |
700×300 | 13 | 24 | 181.8 |
800×300 | 14 | 26 | 206.8 |
900×300 | 16 | 28 | 240.1 |
Product advantages
☆High-performance materials
Manufactured from Q345B or ASTM A572 grade steel.
☆Optimized designs
Engineered span configurations from 10m to 50m.
☆Corrosion protection
Hot-dip galvanized or painted surface treatments.
☆Modular construction
Enables rapid assembly and future expansion.
Product application
Perfect for pedestrian walkways, rural road crossings, industrial site access, and emergency temporary bridges, our lightweight steel structures offer durable solutions with quick installation. They're equally suitable for military use, forest trails, and flood-prone area crossings.

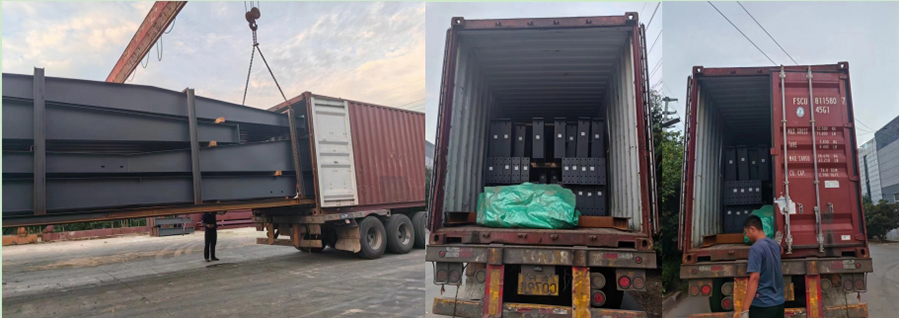

Packing & Delivery
☆ Packing
Seaworthy packing standards:
If there is other package requested,please feel free to discuss with Yumisteel sales team.
☆ Delivery
Delivery time for regular colors,coating types and thickness: 7-10 days ;
Delivery time for special colors,coating types and thickness: 15-25 days ;
Delivery term: FOB/CIF/CFR/DDP is available;
We can find good forwarder for customer or accept appointed forwarder from customers.
Service&Support
☆Service
Xiamen Yumi Imp. &Exp. Co., Ltd. Is one combination of industry and trade company, and very professional with steel structure products in China. We are proud of our product quality and customer service and competitive price.And our products are sold worldwide, such as America, South America, Europe, Southeast Asia, Africa etc.
1)Professional sales team,One-to-one service;
2)Combination of industry and trade company,to ensure the service and price;
3)Experienced engineer team to offer professional technology service;
4)Intimate after-sales service.
☆Support
Experienced technology suport, competitive price, professional service, we are here to help you go on with your project smoothly.
