YM-CTN

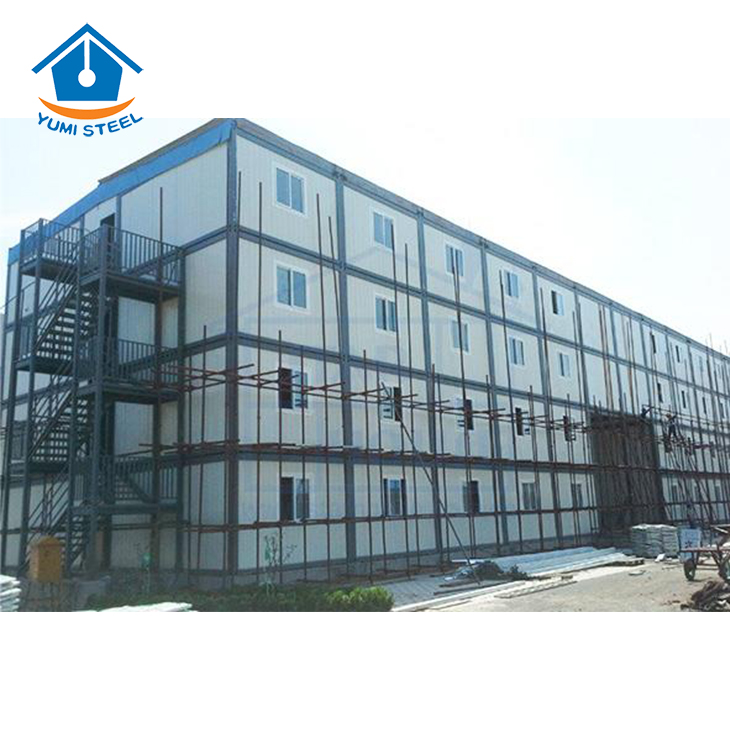

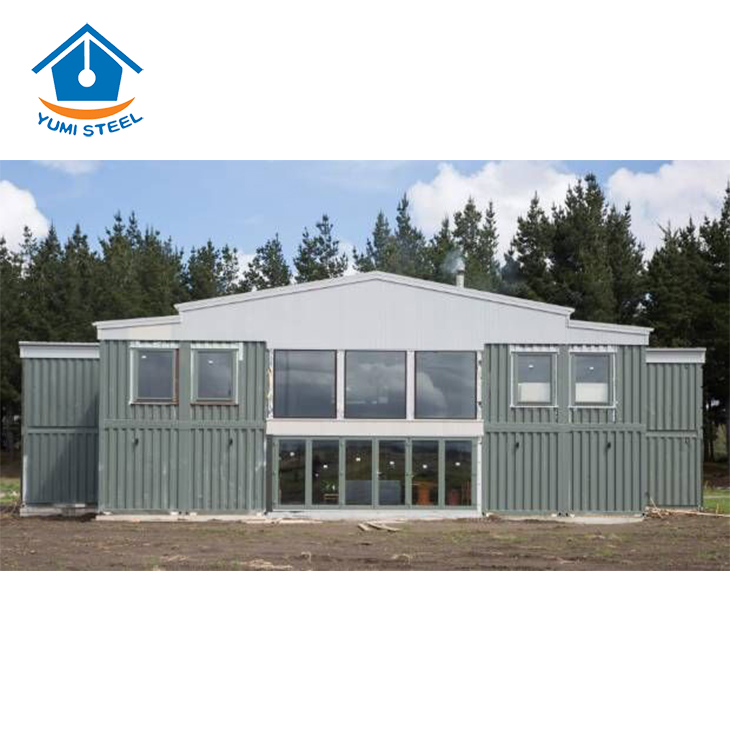

Container house applications
The prefabricated container building is kind of assemble container house, widly used in individuals home, hotels, accommodations, shops, bars, cafes, carpot, villas, restaurants, offices, apartments, and other fields.
Modular prefab container size
| Container house size chart | |||||||
| Size | External Dimensions | Internal Dimensions | Weight | ||||
| Length | Width | Height | Length | Width | Height | ||
| 8'X8' | 2435mm | 2435mm | 2896mm | 2235mm | 2235mm | 2625mm | 950kg |
| 10'X8' | 3025mm | 2435mm | 2896mm | 2825mm | 2235mm | 2625mm | 1150kg |
| 16'X8' | 4885mm | 2435mm | 2896mm | 4685mm | 2235mm | 2625mm | 1350kg |
| 20'X8' Standard | 6055mm | 2435mm | 2896mm | 5855mm | 2235mm | 2625mm | 1800kg |
| 24'X8' | 7200mm | 2435mm | 2896mm | 7000mm | 2235mm | 2625mm | 2300kg |
| 30'X8' | 9000mm | 2435mm | 2896mm | 8800mm | 2235mm | 2625mm | 2450kg |
| 20'X10' | 6055mm | 3000mm | 2896mm | 5855mm | 2800mm | 2625mm | 2380kg |
| Remark:Also available external height of 3300mm.Individual packing height:648mm. | |||||||
Assemble container materials
Here are materials for your reference.
Standard size:
External Size:5950X3000X2800mm Internal Size:5750X2800X2500mm
Material details:
NO. | Item | Material specification | Quantity |
1 | Wall panels | 50 mm thick Rockwool sandwich panels; | 39.52 M² |
2 | |||
3 | |||
4 | Main frames | Bottom beams:2.50mm thickness | 1 Set |
5 | Upper beams:2.50mm thickness | ||
6 | Prism:2.50mm thickness | ||
7 | Groove plates(To connect Upper beam and wall panels) | ||
8 | Corner angle steel(for each corner):8PCs | ||
9 | Galvanized square tube | Roof purlins:80*80*1.50mm | 1 Set |
10 | Roof purlins:40*80*1.50mm | ||
11 | Wall purlins:50*50*1.50mm | ||
12 | Wall purlins:40*80*1.50mm | ||
13 | Wall purlins:40*60*1.50mm | ||
14 | Aluminum U channel | U channel to install the wall panel | 17 m |
15 | Roof panels | 0.42mm corrugated steel sheets | 1 Set |
16 | Ceiling tile | 0.25mm corrugated ceiling sheets | |
17 | Glass wool insulation coil for roof | 20m Glass wool coils | |
18 | Anti-theft steel door | 2110*975mm galvanized steel door, | 1 Set |
19 | Anti-theft window | Plastic steel sliding window | 1 Set |
20 | Fireproof floor | Size:2.8m*1.147m | 5 PCs |
21 | Paint (painting process) | Special paint for ships, acid and alkali resistant, corrosion resistant, color retention | 1 Set |
22 | Fasteners | High-strength bolt, self-tapping, rivet,sealants,etc | 1 Set |
Metal steel frame container advantage
Durability: the structural support material of the container are square tube, galvanized steel frames, it enhance the house stability.
Various types: the container building can be customized as your own design, and can be decoration as your like, for the modern style, traditional style, different floors, plan size, room size.
Easy installation: before shipping, all materials will prepare & packed, when the goods arrive you can install it as the installation guide, and two people can finish one set install by 1 hour.
Packing & Loading
Service & Support:
Xiamen Yumi Imp. &Exp. Co., Ltd. Is one combination of industry and trade company, and very professional with steel structure products in China. Because of good quality and service, competitive price, our products are sold worldwide, such as America, South America, Europe, Southeast Asia, Africa etc.
Experienced technology suport, competitive price, professional service, we are here to help you go on with your project smoothly.
