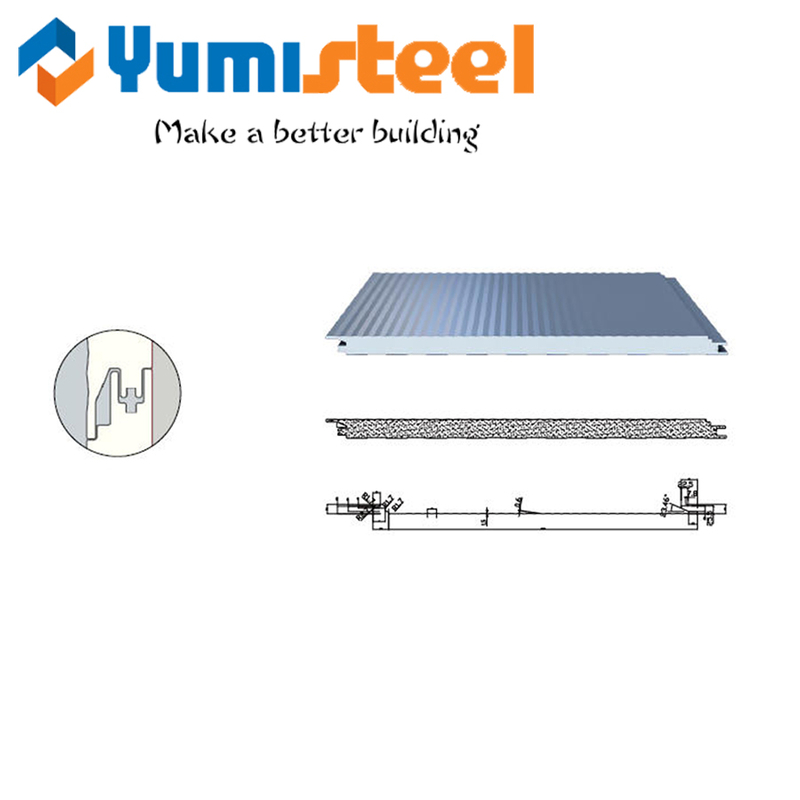

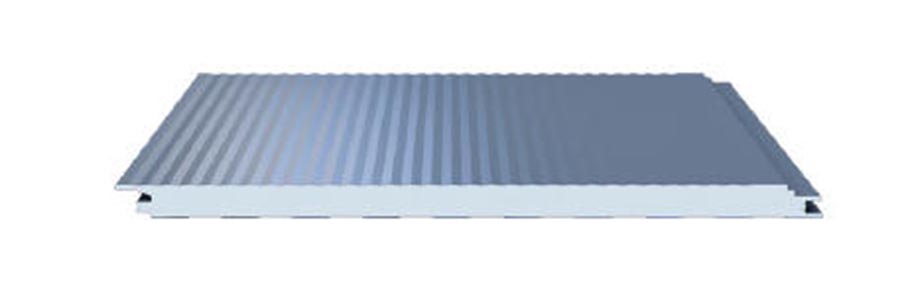

PU PIR Insulated Wall Sandwich Panels with Fire Resistance Panels

Product introduction

PU (polyurethane) wall sandwich panels are fire-resistant options that combine a PU foam core with metal facings to offer excellent thermal insulation and structural properties. While standard PU panels have limited fire resistance, panels with a PIR (polyisocyanurate) core offer improved fire performance by slowing flame spread and reducing smoke emission. These panels are used for both exterior and interior walls in various applications, including industrial buildings, clean rooms, and warehouses, due to their easy installation, durability, and versatility.

Product specification

Panel name	Polyurethane Sandwich Panel
Effective width	950/1150mm
Core thickness	50mm 75mm 100mm 150mm 200mm
Coating type	PE, SMP, HDP, PVDF
Steel sheet (GI/PPGI/PPGL)	0.40-0.75 mm
Aluminum metal sheets	0.60-1.20 mm
Surface sheets	Steel sheet (GI/PPGI/PPGL): 0.40-0.75 mm
	Aluminum metal sheets:0.60-1.20 mm
	Aluminum foils:0.065 mm
	PVC sheets
Core material	PIR/PUR
Core density	35-45 kg/m3
Thermal conductivity	≤0.023 w/m· k

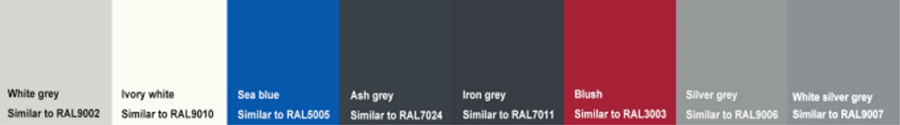

Regular colour

Product advantages

☆ Enhanced Fire Safety

Features a Class B fire rating to effectively limit fire damage.

☆ Superior Thermal Efficiency

Boasts ultra-low thermal conductivity (λ=0.019-0.023 W/m·K) and airtight joints for maximum energy savings.

☆ Effective Acoustic Control

Provides good sound insulation to minimize noise transmission.

☆ Reliable Weather Barrier

Hydrophobic core (water absorption ≤5%) and tight joints ensure superior protection against water and air infiltration.

☆ Robust Durability

High-strength construction with a density of ~42 kg/m³ guarantees long-term structural integrity.

☆ Sleek Aesthetic

Concealed fasteners and a durable coated finish create a clean, modern appearance with enduring color options.

Product application

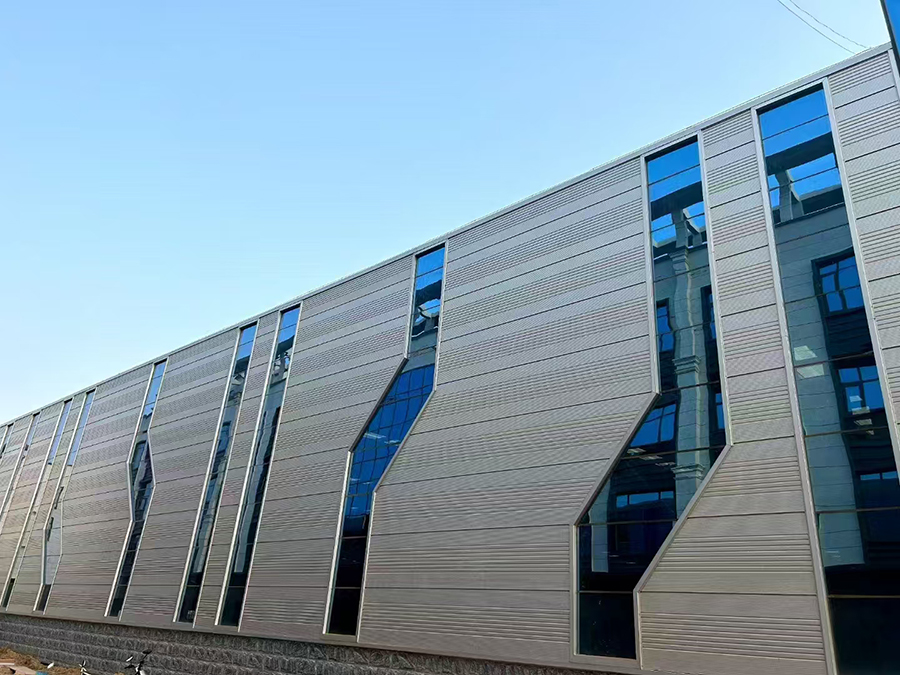

Our PU PIR fire-resistant insulated wall panels are ideal for industrial and commercial buildings. They provide excellent thermal insulation, effective sound reduction, and reliable fire protection. These durable panels ensure tight weather resistance and maintain a clean, modern appearance, making them perfect for factories, warehouses, and logistics centers.

Packing & Delivery

☆ Packing

Seaworthy packing standards

If there is other package requested,please feel free to discuss with Yumisteel sales team.

☆Delivery

Delivery time for regular colors,coating types and thickness: 10-15 days ;

Delivery time for special colors,coating types and thickness: 15-25 days ;

Delivery term: FOB/CIF/CFR/DDP is available;

We can find good forwarder for customer or accept appointed forwarder from customers。

Service&Support

☆Service

Xiamen Yumi New Material Tech. Co., Ltd. is one combination of industry and trade company, and very professional with steel structure products in China. We are proud of our product quality and customer service and competitive price.And our products are sold worldwide, such as America, South America, Europe, Southeast Asia, Africa etc.

1)Professional sales team,One-to-one service;

2)Combination of industry and trade company,to ensure the service and price;

3)Experienced engineer team to offer professional technology service;

4)Intimate after-sales service.

☆Support

Experienced technology suport, competitive price, professional service, we are here to help you go on with your project smoothly.
