Product introduction

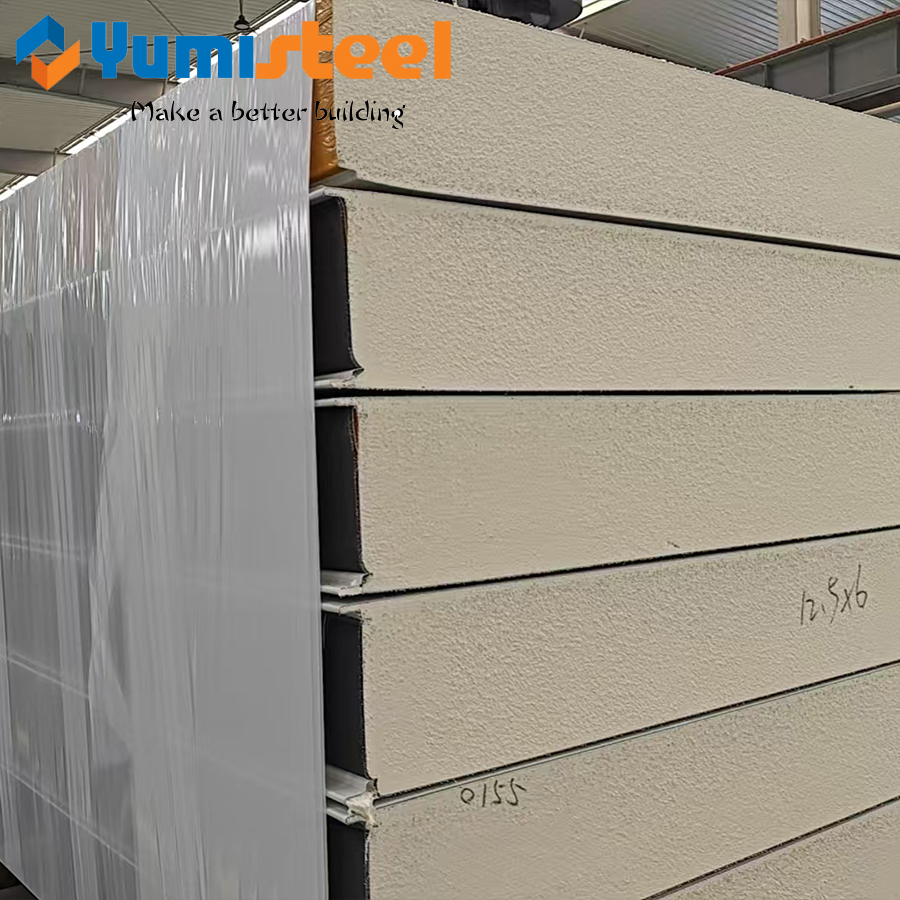

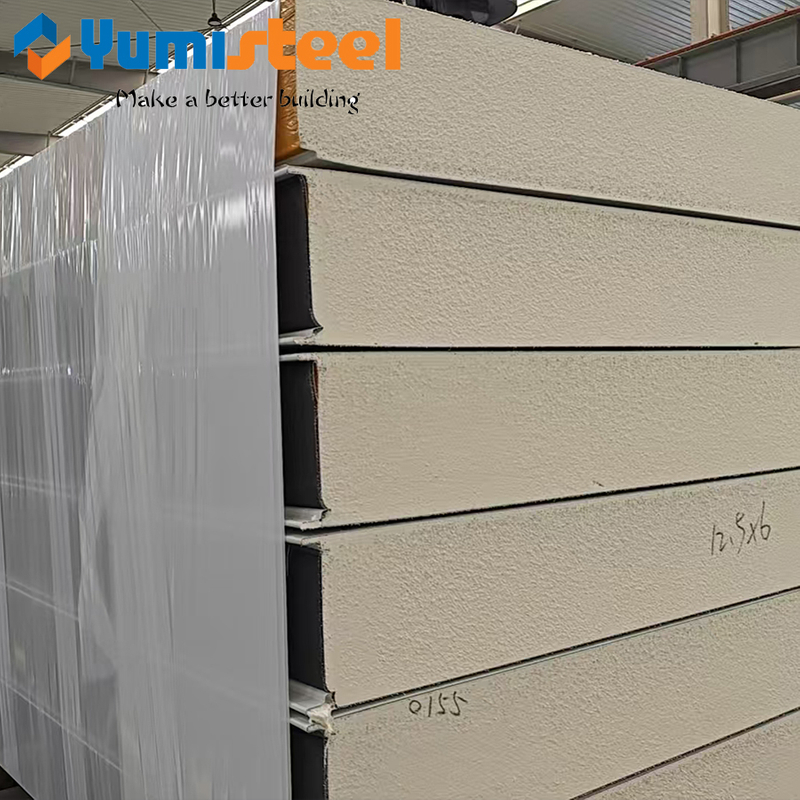

Our energy saving metal roof sandwich panels with insulating PU/PIR cores are designed to solve a common problem in industrial and commercial buildings: high energy loss through the roof, which drives up cooling and heating bills year round. Traditional roofing materials often lack continuous insulation, leading to thermal bridging and poor temperature control. By bonding a high density polyurethane (PU) or polyisocyanurate (PIR) core between two sturdy metal sheets, these panels provide exceptional thermal efficiency (as low as 0.022 W/m·K), eliminate thermal bridges, and cut HVAC energy consumption by 30–40%.
Product specification
Panel type : | Wall Roof Sandwich Panels | ||
Effective width | 950/1000mm | ||
Panel thickness | 50/ 75/ 100/ 150mm | ||
Coating type | PE, SMP, HDP, PVDF | ||
Steel sheet (GI/PPGI/PPGL) | 0.40-0.75 mm | ||
Aluminum metal sheets | 0.60-1.20 mm | ||
Surface sheets | Steel sheet (GI/PPGI/PPGL): 0.40-0.75 mm | ||
Aluminum metal sheets:0.60-1.20 mm | |||
Aluminum foils:0.065 mm | |||
PVC sheets | |||
Core material | PIR/PUR | Rockwool with PU edges | Glass wool with PU edges |
Core density | 35-45 kg/m3 | 110-150 kg/m3 | 48-64 kg/m3 |
Thermal conductivity | ≤0.023 w/m· k | 0.035-0.041 w/m·k | 0.035-0.041 w/m·k |
Rockwool sandwich panels VS PIR sandwich panels
Here is a detailed comparison table from a buyer's perspective to help you choose between Rockwool and PIR sandwich panels:
Comparison Factor | Rockwool Sandwich Panels | PIR Sandwich Panels |
Core Material | Dense rock wool fibers made from natural rock | Rigid polyisocyanurate foam |
Fire Performance | Non-combustible (Class A) . Excellent fire barrier; does not melt or release toxic fumes. | Combustible (Class B) . Burns and chars but offers better fire resistance than standard PU foam. |
Thermal Insulation | Good sound absorption and stable insulation, but requires greater thickness for extreme temperatures. | Superior thermal efficiency. Lower thermal conductivity means better energy savings with thinner panels. |
Moisture Resistance | Highly absorbent if damaged or poorly sealed; can lose insulating properties when wet. | Excellent moisture resistance. High closed-cell rate prevents water absorption. |
Weight & Handling | Heavy and dense. Harder to cut and install; generates dust during cutting. | Lightweight and rigid. Easy to cut, lift, and install; cleaner job site. |
Cost Efficiency | Generally more expensive due to material weight and complexity. | More cost-effective. Lower material cost and faster installation reduce total project expenses. |
