Polyurethane sandwich panel roof

Polyurethane sandwich panel roof

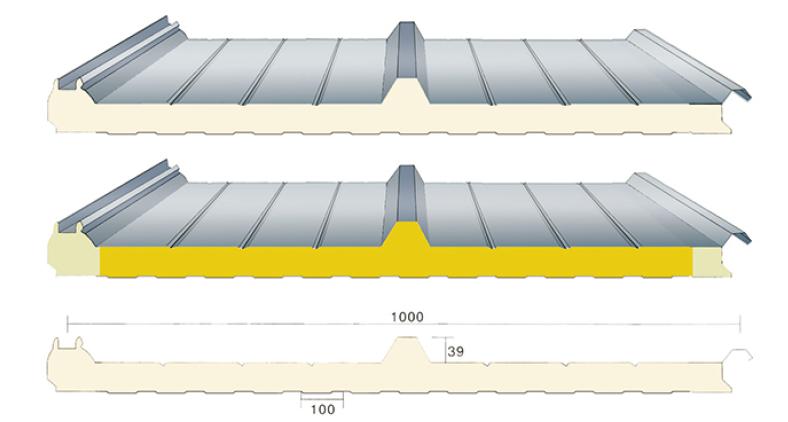

Hiden screws type sandwich panels roof:

(Options:Fireproof panel&Energy saving panel)

☆Energy saving&Insulation:Excellent heat insulation,if it's same thickness,PU heat insulation is EPS twice times;

☆Flame retardant:Our product passed Inspection of National fixed fire extinguishing system and quality monitoring center of fire-resistant components and fireproof level is reaching GB8624 B2;

☆Gasproof&Sound proof:Good soundproof,could reduce the sound of rain,hail etc.

☆Waterproof&Rust-proof:Large span,quick drainage,Good waterproof;Hiden screws,uneasy rust-proof,and last long lifetime;

☆Grace&Economic:Nice looking,rich color;Reduce material loss and save working time and project cost;

☆Fast installation:PU sandwich panels are highly controled by our factory,quality is stable under our factory homothermal environment.Fast installation,could be last for over 35years.

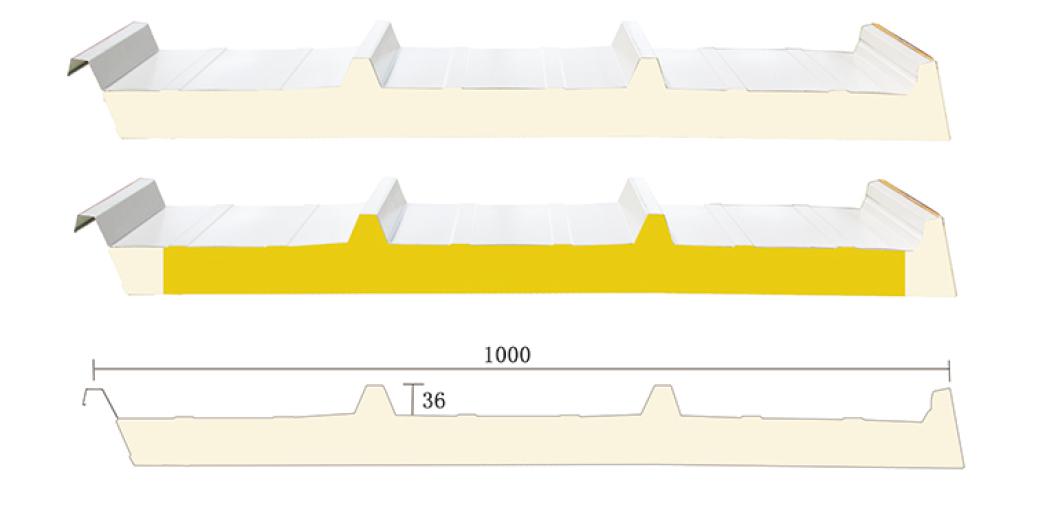

Four wave type sandwich panels roof:

☆Waterproof&water distribution:Unique waterproof and water distribution,which reduce ponding on roof panel;

☆Corrosion resistance:You could also choose aluminum foil to replace color steel sheet,and improve product high temperature resistance and corrosion resistance;

☆Hard panel:Four waves roof panel,increase the panel hardness;

☆Reasonable connection:There is one slant design on connection position,which is very simple and reasonable;

☆Grace&Economic:Nice looking,rich color;Reduce material loss and save working time and project cost;

☆Fast installation:PU sandwich panels are highly controled by our factory,quality is stable under our factory homothermal environment.Fast installation,could be last for over 35years.

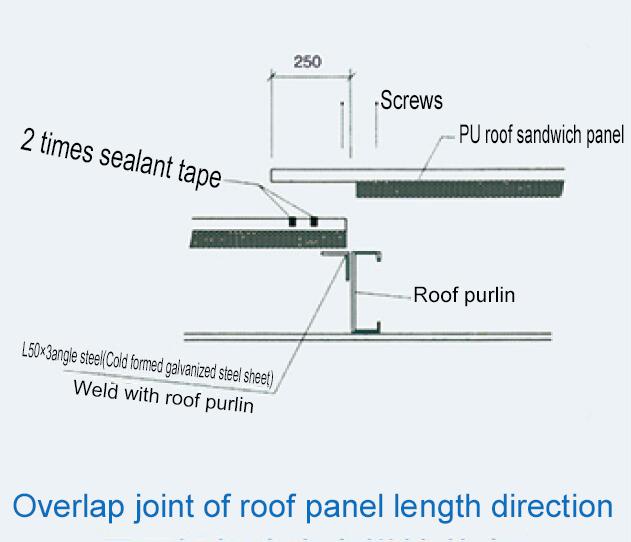

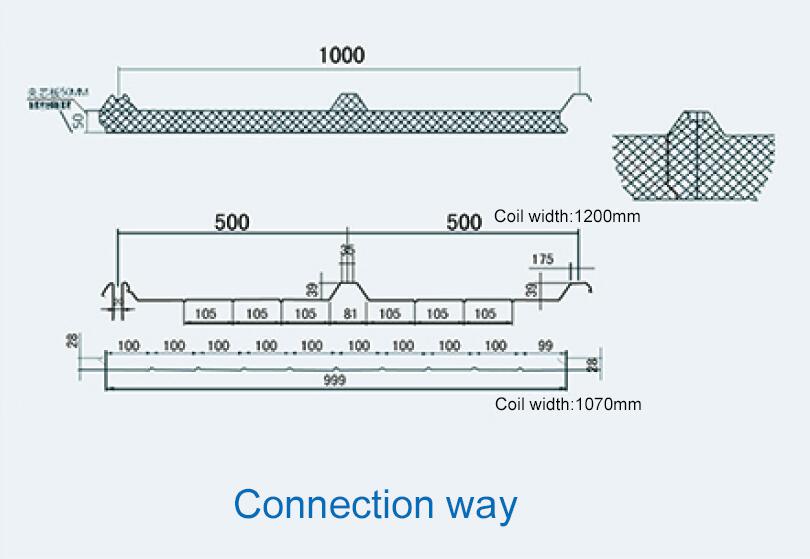

Some joint nodes drawings:

For more details of our PU roof sandwich panels system,please feel free to contact us by e-mail address: admin@yumisteel.com, thank you.

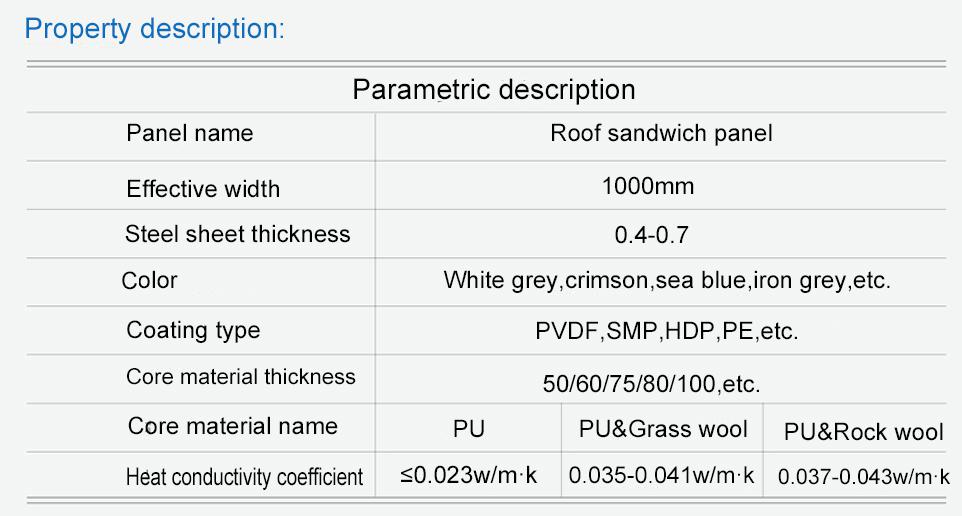

Property description:

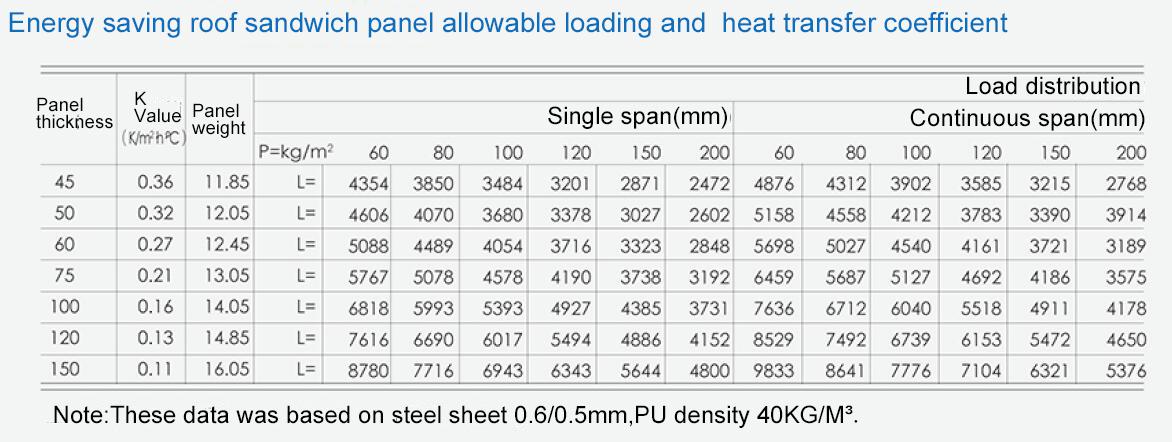

Technical data:
