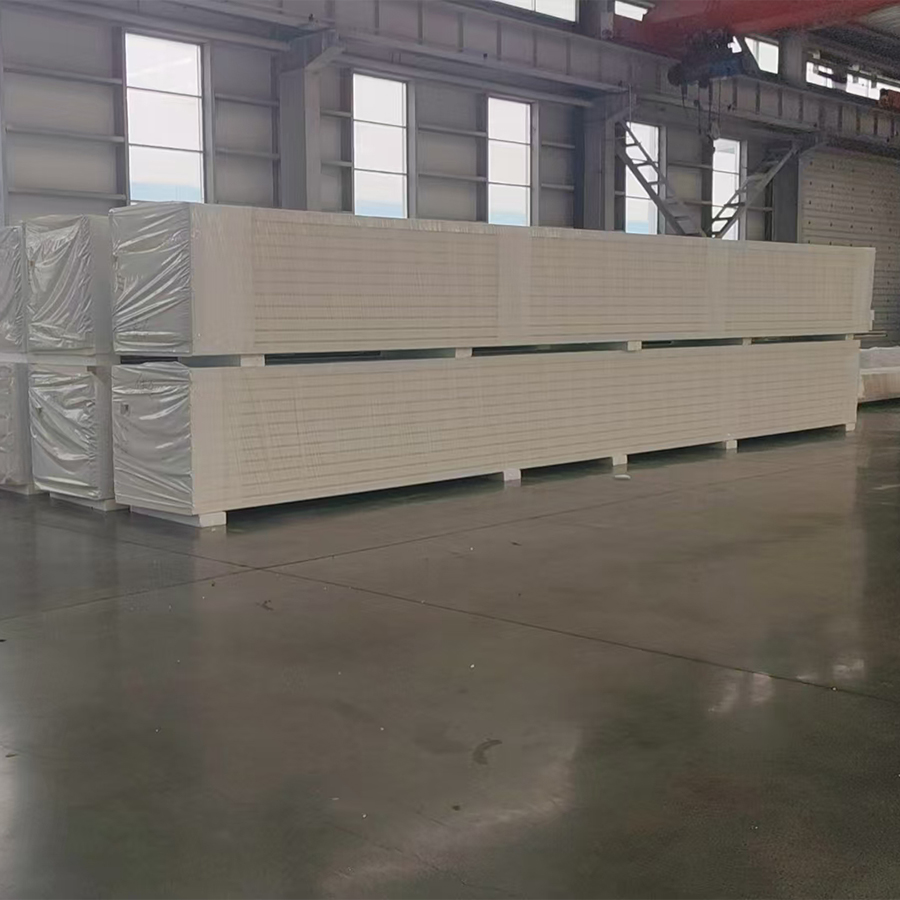

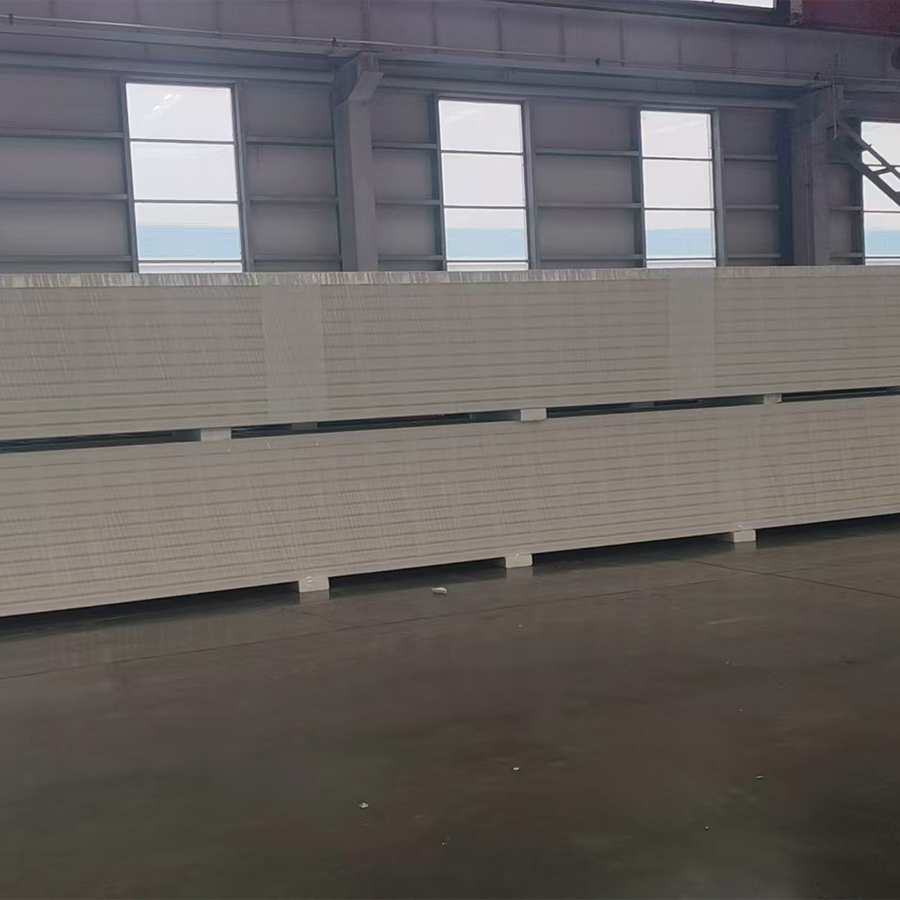

Prefabricated Wall Steel House Building Insulated Fireproof PU/PIR Sandwich Panels

Prefabricated PU and PIR sandwich panels offer excellent insulation and fire resistance, making them ideal for steel house wall construction.
Availability:
Quantity:
  • N/A

  • Yumisteel

Product introduction


Designed to solve the key challenges of prefabricated and steel house construction,including slow assembly, quality inconsistency, and fire safety concerns,our PU/PIR Sandwich Panels deliver exceptional performance. With factory-controlled manufacturing, superior fire resistance, and excellent thermal insulation, these panels enable rapid on-site installation without compromising safety or energy efficiency. Perfect for steel frame houses, prefabricated buildings, modular structures, and industrial facilities, they offer a reliable, efficient, and code-compliant building solution.

Product Specification

Type

PU/PIR Sandwich Panel

Thickness

40/50/60/75/80/100/120/150/200mm

Metal skin thickness

0.4~0.8mm

Panel Effective Width

1000mm for wall and roof

Density

40~45kg/m³

Skin material

PPGL,PPGI,Stainless steel,aluminum coil

Pre-painted PE/SMP/HDP/PVDF etc.

Fireproof Grade

B1

Thermal Conductivity

≤0.023/≤0.02

Temperature Range

40~43/40~50ºC

Length

Max 5.8m for 20GP container

Max 11.8m for 40GP/HQ container

Overlapping method

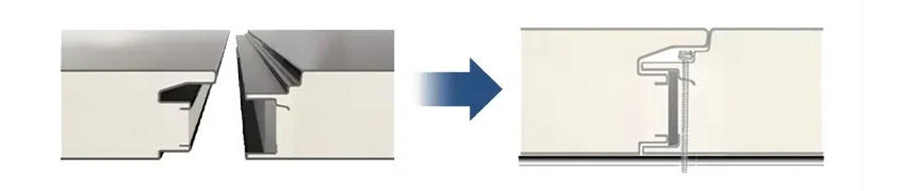

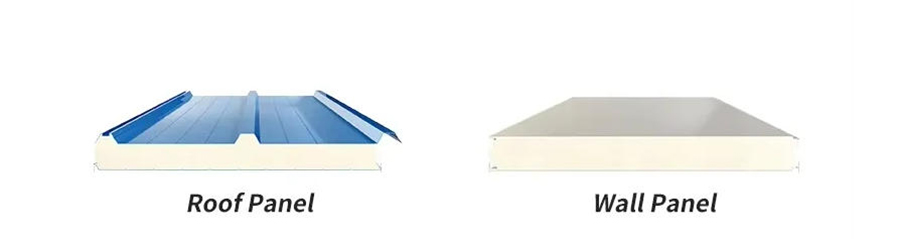

PU wall sandwich panel

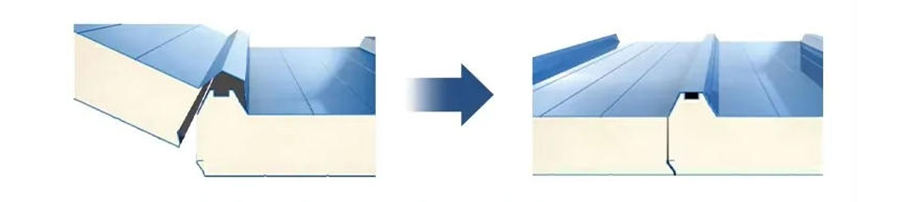

PU roof sandwich panel
