Roofing Sheet Cheap Galvanized Corrugated Steel Sheet

Product introduction

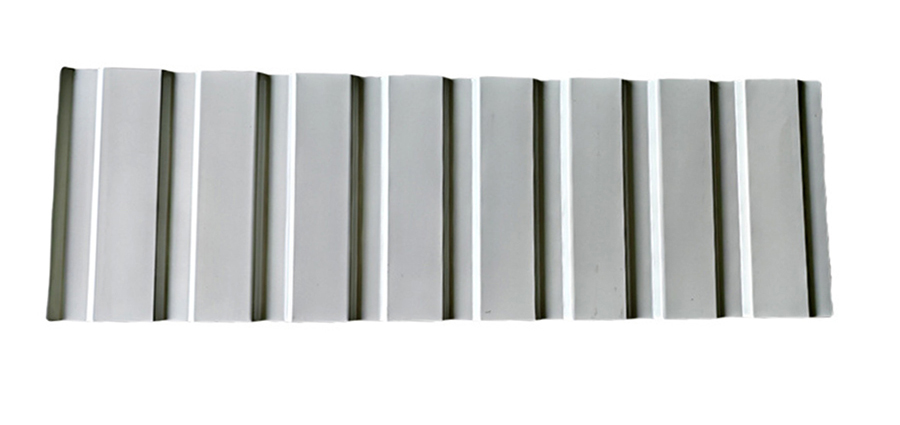

YX12-110-880 Corrugated Sheet

YX12-110-880 color-coated corrugated steel sheet is also known as 880 color steel plate, 880 color steel tile, 880 aluminized zinc color steel plate, V-110 color steel plate, 880 profiled steel sheet, or 880 aluminized zinc profiled plate.

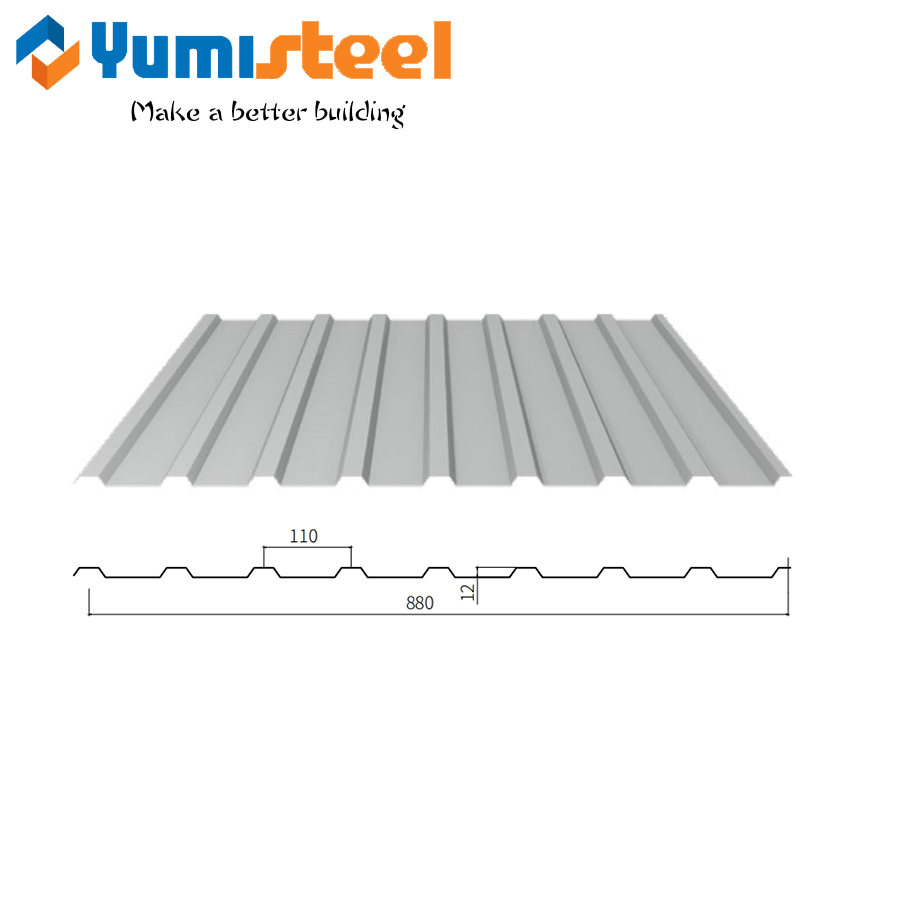

This YX12-110-880 profiled steel sheet is primarily used as roof base plates and interior wall panels in steel structure buildings. It features a wave height of 12mm, a pitch of 110mm, and an effective covering width of 880mm after installation, with a raw material width of 1000mm.

Evolved from the HV-109 profiled sheet, this model offers improved performance in certain aspects, providing simpler installation and tighter overlapping connections.

Product advantages

☆ Lightweight

10-14 kg/m², only 1/30 the weight of a brick wall.

☆Thermal Insulation

Core material thermal conductivity: λ ≤ 0.041 W/m·K.

☆High Strength

Suitable for load-bearing ceiling and enclosure structures, with excellent bending and compression resistance; often eliminates the need for beams and columns in ordinary buildings.

☆Vibrant Color

No surface decoration needed; the color-coated galvanized steel layer offers 10-15 years of corrosion protection.

☆ Flexible & Rapid Installation

Reduces construction time by over 40%.

☆ Oxygen Index (OI)

32.0 (Tested by Provincial Fire Product Quality Inspection Center).

Regular colour

Product specifications

Product applications

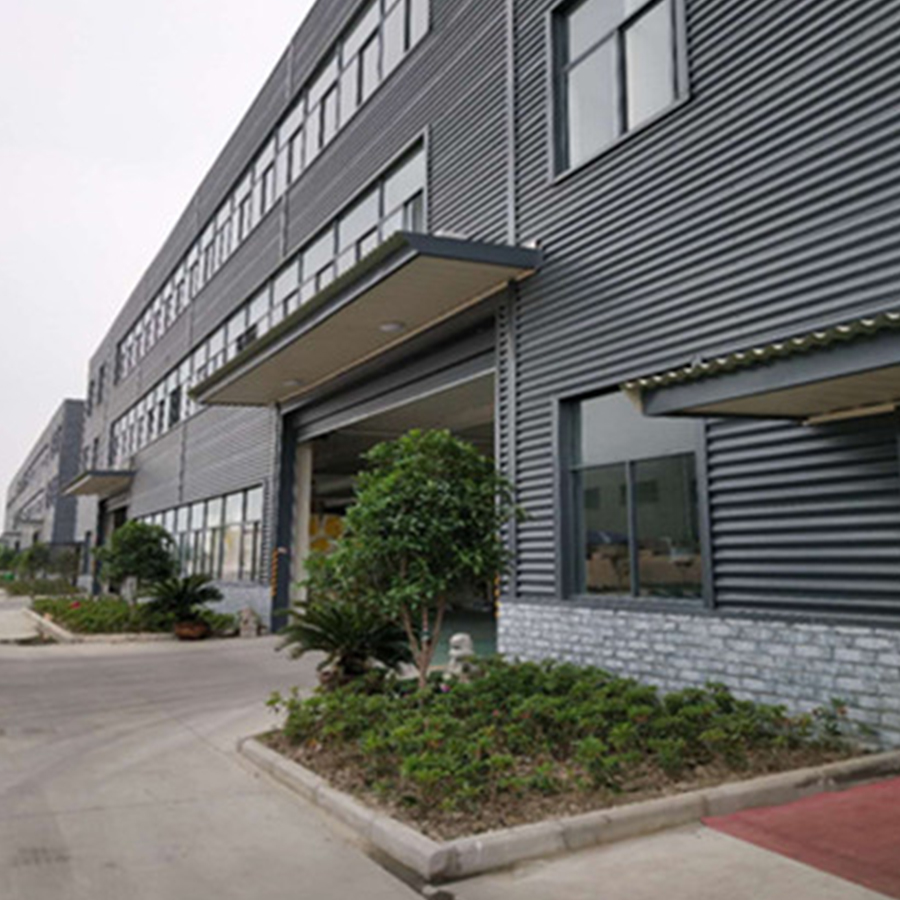

The YX12-110-880 color-coated corrugated steel sheet offers a unique appearance at an economical price, making it ideal for creating high-performance and attractive roofing or wall cladding systems. Its lightweight nature ensures easy handling, and it is suitable for both open-frame support conditions and solid substrate applications. With strong decorative appeal, it can be used for suspended ceilings, partition walls, signage, garage doors, and fascia boards. Available in a variety of colors, it enables quick and simple installation. When used for walls, it can be combined in multiple forms and flexibly paired with other panel profiles to meet diverse architectural facade requirements. As an economical and aesthetically pleasing steel wall enclosure, it is widely used in industrial, commercial, and residential buildings for both interior and exterior walls, as well as decorative surfaces, delivering a modern and stylish look.

Packing & Delivery

☆ Packing

Seaworthy packing standards

If there is other package requested,please feel free to discuss with Yumisteel sales team.

☆Delivery

Delivery time for regular colors,coating types and thickness: 10-15 days ;

Delivery time for special colors,coating types and thickness: 15-25 days ;

Delivery term: FOB/CIF/CFR/DDP is available;

We can find good forwarder for customer or accept appointed forwarder from customers。

Service&Support

☆Service

Xiamen Yumi New Material Tech. Co., Ltd. is one combination of industry and trade company, and very professional with steel structure products in China. We are proud of our product quality and customer service and competitive price.And our products are sold worldwide, such as America, South America, Europe, Southeast Asia, Africa etc.

1)Professional sales team,One-to-one service;

2)Combination of industry and trade company,to ensure the service and price;

3)Experienced engineer team to offer professional technology service;

4)Intimate after-sales service.

☆Support

Experienced technology suport, competitive price, professional service, we are here to help you go on with your project smoothly.
