Standing Seam Aluminum Metal Roofing Sheets

YX65-430 is one classical type of stand seam roofing sheets.Even under bad environmental situation,most of the Standing seam roofing system could stand the test for decades.
MOQ:500M².

Thickness::
Quantity:
  • YX65-300/400/430/500
  • Yumi steel
  • 7606125900

YX65-430 standing seam Aluminum metal roofing sheets



1. Standing seam metal roof system instruction:

01-standing-seam-roofing-system-supplier

Standing seam roofing system is based on standing seam locking design,which is mainly targeted for the large span self-supporting close installation system.When installation,there is no need to drill the holes,and metal panel could stay intact.In this way,standing seam roofing system has excellent performance in waterproof.

Standing seam roofing system could be produced at site.When the span is larger than 120m,it doesn’t need to be joint.Suitable tilt can be as low as 1.5.Since it has strong toughness,it could be corrugated to be sector and arc shape,which could solve various shaped roof structures with a spherical shape, a curved shape, etc.This kind of roofing system only need one time installation,and no need maintenance.

2. Standing seam metal roof system classical types:

Type 01:

02-Classical-Type-I-of-the-Standing-Seam

Type 02:

03-Classical-Type-II-of-the-Standing-Seam

Type 03:

04-Classical-Type-III-of-the-Standing-Seam

3. Aluminum roofing sheets application & features:

☆It’s suitable for stadium,high-speed train stations,airport,library,tourist attraction evacuation centers,etc;

Installation and construction  is safe,fast and accurate;

There is no perforation on the roof panel, so the overall structure could have excellent performance in waterproof and drainage;

This kind of roof system is with fixed deduction and sliding fastener combination,which could reduce displacement caused by thermal expansion and contraction and stop aluminum roofing sheets to be deforming or cracking;

This kind of roof system could satisfied for architect and users’ requirement of special geometrical exterior roofing,such as curved, spherical and three-dimensional curved arcs,etc;

It could be corrugated into different shapes,and colors could be customized,also it’s beautiful,environmentally friendly,corrosion resistant.

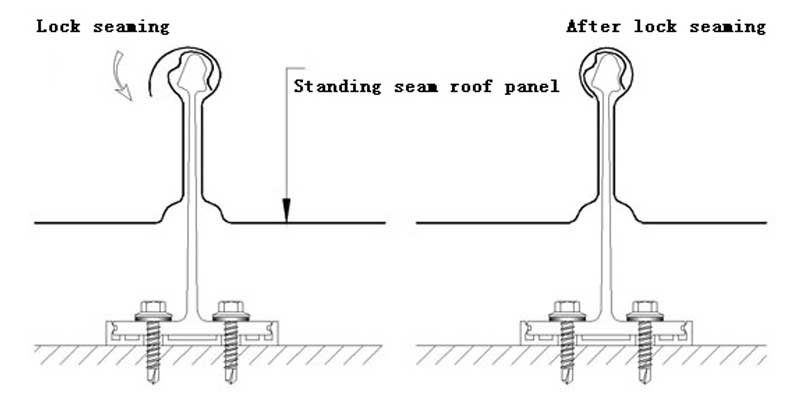

4. Occlusal diagram of aluminum roofing sheets:

05-Standing-seam-roof-system---Lock-schematic-diagram



5. Aluminum roofing sheets model list:

Model type

Material

Thickness(mm)


06-aluminum-roofing-panel-for-sale

Al-Mg-Mn alloy metal sheets

0.70 - 1.20

Titanium zinc metal sheets

0.60 - 0.80

08-corrugated-metal-roofing-supplier

Al-Mg-Mn alloy metal sheets

0.70 - 1.20

Titanium zinc metal sheets

0.60 - 0.80

 07-corrugated-metal-roofing-supplier

Al-Mg-Mn alloy metal sheets

0.70 - 1.20

Titanium zinc metal sheets

0.60 - 0.80

09-metal-roofing-manufacturer

Al-Mg-Mn alloy metal sheets

0.70 - 1.20

Titanium zinc metal sheets

0.60 - 0.80


 10-Standing-seam-aluminum-sheets

Al-Mg-Mn alloy metal sheets

0.70 - 1.20

Titanium zinc metal sheets

0.60 - 0.80

6. Aluminum clips choices:

According to different structures and thickness,the aluminum clips for the standing seam roofing systems will be different sizes.Combining with the use of the insulating mat of the clips,it can prevent the roof condensation phenomenon.At the same time,it can avoid the electro-chemical reaction,which is caused by direct contact of different metal materials.


Considering physical properties:

Clip Type

H (mm)

W1 (mm)

W2 (mm)

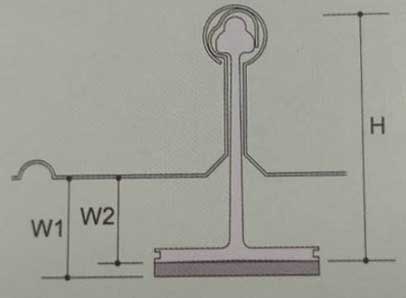

Schematic diagram

T50

100

45

50


11-Standing-seam-roof-system---Lock-schematic-diagram

T70

120

70

75

T100

140

95

100

T150

185

145

150

T170

200

170

170

T200

225

195

200

Note:The height of clips only used for rockwool or grass wool density≤80kg/m³.


Direct contact performance table of different metal materials:

Metal

Al

Pb

Cu

Zn

Stainless
steel

Zinc
steel

Al

Pb

Cu

Zn

Stainless steel

Zinc steel

Note:“△”is meaning could be direct contact;“▲”is meaning insulation required.



7. Aluminum clips spacing advice:

According to different regional climatic conditions,loading conditions,and different building heights,then we can determine different bearing spacing.It is recommended that the bearing control be within the following range of use.

Panel type

Thickness
(mm)

Snow loading (KN/m²)

Wind loading (0.55 KN/m²)

Building height

0.75

1.00

1.25

Central area

Border area

Central area

Border area

Central area

Border area

YX65-300

0.8

2.50

2.40

2.20

2.20

2.50

2.00

1.40

1.80

1.25

0.9

3.15

2.90

2.60

2.80

2.00

2.50

1.50

2.20

1.25

1.0

3.70

3.40

3.15

3.15

2.50

3.05

1.70

2.20

1.25

1.2

3.80

3.60

3.35

3.30

2.75

3.05

1.70

2.20

1.25

YX65-400
YX65-430
YX65-500

0.8

2.50

2.30

2.00

2.00

1.55

1.80

1.20

1.60

1.00

0.9

2.95

2.75

2.50

2.60

1.70

2.30

1.30

1.70

1.00

1.0

3.45

3.20

3.00

3.00

2.15

2.50

1.40

1.85

1.00

1.2

3.70

3.40

3.10

3.15

2.25

2.50

1.40

1.85

1.00

Note:

1,The actual force should be calculated,according to the local natural conditions of the building,then recheck and confirm;

2,The data above is only available for Al-Mg-Mn alloy metal sheets.


8. Inquiry notes:

It’s better to have one drawing,so we could have our engineers to check your drawing and offer our advice.
