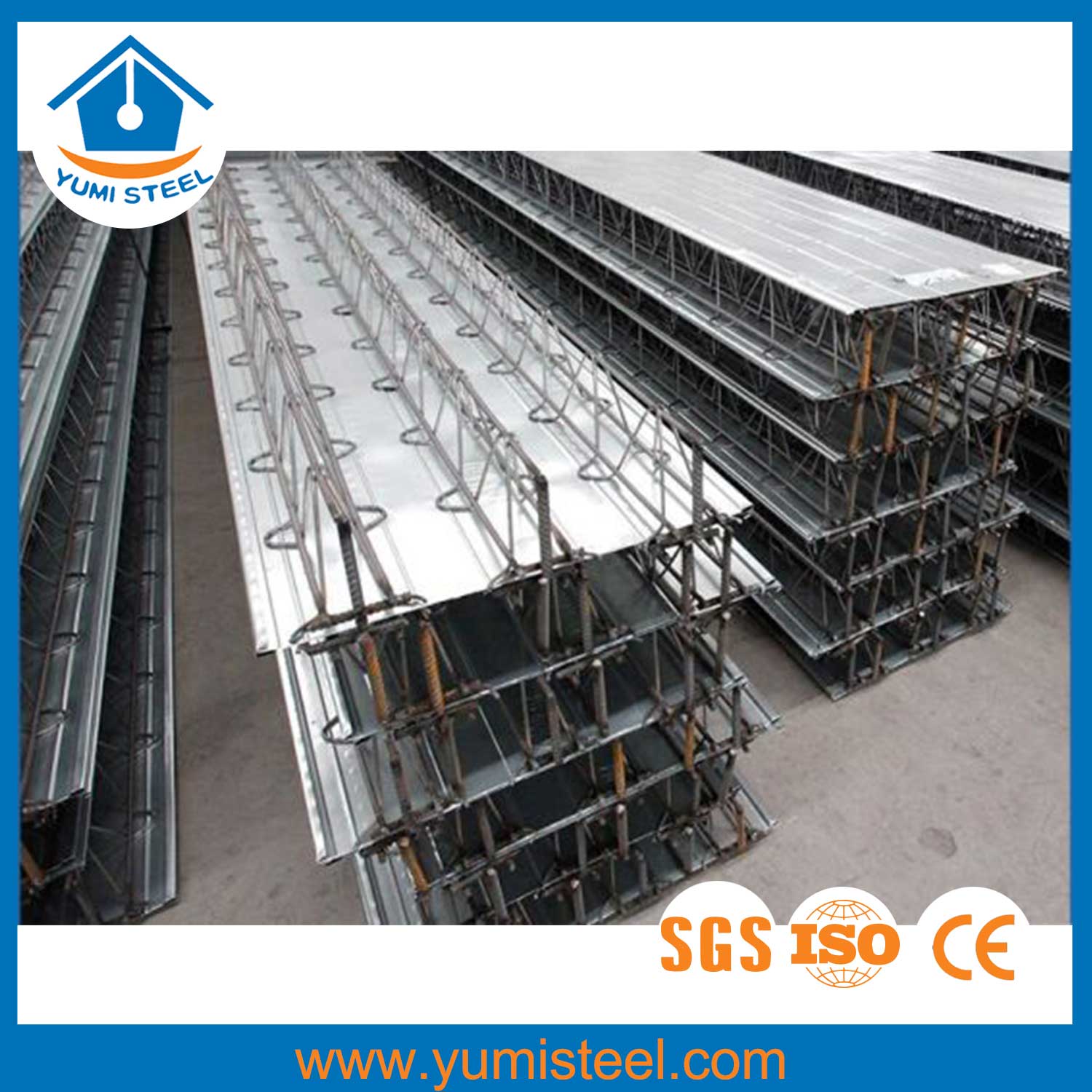

Truss decking sheets introduction:
The truss decking sheets also call the reinforced truss floor slab, steel truss deck, composite slab, it is shaped in the background processing field and can be prefabricated. It adopts rust-proof and anti-rust technology such as sheet metal welding, silanization, pure manganese phosphating, water washing and drying, galvanizing, etc., and the anti-rust film is wound and sealed. On-site construction needs to place the truss floor slabs in the correct position, weld the steel bars, weld the studs, and then place the steel bars on the site for lashing. After the customer accepts the concrete, the concrete is poured.
Truss decking sheets applications:
Truss decking sheets advantage:
Realized machanized production,
It greatly improves labor productivity and effectively reduces product cost
It is beneficial to the uniform spacing of steel reinforcement and the uniform thickness of concrete protective layer to improve the construction quality of floor slab,
Reduce the amount of steel bar binding on site, speed up the construction progress, increase the safety assurance of construction, and realize civilized construction,
It is convenient to disassemble and assemble, and can be reused many times to save steel,
Truss decking sheets specifications:
| Steel Bar Truss Slab Deck | |||||||
| Model NO. | Height(mm) | Dia of Top Bar,Cross Bar and Botton Bar(mm) | Steel Sheet Thickness (mm) | Effective Width (mm) | Floor Thickness (mm) | Max. Span | |
| Simple Span (m) | Continuous Span(m) | ||||||
| TD1-70 | 70 | 8,4,6 | 0.5 | 566 | 100 | 1.9 | 1.8 |
| TD1-80 | 80 | 110 | 2.0 | 2.0 | |||
| TD1-90 | 90 | 120 | 2.1 | 2.0 | |||
| TD1-100 | 100 | 130 | 2.1 | 2.0 | |||
| TD1-110 | 110 | 8,4.5,6 | 140 | 2.2 | 2.2 | ||
| TD1-120 | 120 | 150 | 2.2 | 2.2 | |||
| TD2-70 | 70 | 8,4,8 | 0.5 | 566 | 100 | 1.9 | 2.6 |
| TD2-80 | 80 | 8,4.5,8 | 110 | 2.0 | 2.6 | ||
| TD2-90 | 90 | 120 | 2.1 | 2.8 | |||
| TD2-100 | 100 | 130 | 2.1 | 2.8 | |||
| TD2-110 | 110 | 140 | 2.2 | 3.0 | |||
| TD2-120 | 120 | 8,5,8 | 150 | 2.2 | 3.0 | ||
| TD2-130 | 130 | 160 | 2.3 | 3.0 | |||
| TD2-140 | 140 | 170 | 2.3 | 3.2 | |||
| TD2-150 | 150 | 180 | 2.3 | 3.2 | |||
| TD2-160 | 160 | 8,5.5,8 | 190 | 2.3 | 3.2 | ||
| TD2-170 | 170 | 200 | 2.4 | 3.2 | |||
| TD3-70 | 70 | 10,4.5,8 | 0.5 | 566 | 100 | 2.6 | 3.2 |
| TD3-80 | 80 | 110 | 2.8 | 3.2 | |||
| TD3-90 | 90 | 120 | 3.0 | 3.4 | |||
| TD3-100 | 100 | 130 | 3.2 | 3.4 | |||
| TD3-110 | 110 | 10,5,8 | 140 | 3.4 | 3.6 | ||
| TD3-120 | 120 | 150 | 3.4 | 3.6 | |||
| TD3-130 | 130 | 160 | 3.6 | 4.0 | |||
| TD3-140 | 140 | 10,5.5,8 | 170 | 3.7 | 4.0 | ||
| TD3-150 | 150 | 180 | 3.8 | 4.0 | |||
| TD3-160 | 160 | 190 | 3.8 | 4.0 | |||
| TD3-170 | 170 | 10,6,8 | 200 | 3.9 | 4.2 | ||
| TD4-70 | 70 | 10,4.5,10 | 0.5 | 566 | 100 | 2.7 | 3.2 |
| TD4-80 | 80 | 110 | 2.9 | 3.4 | |||
| TD4-90 | 90 | 120 | 3.1 | 3.6 | |||
| TD4-100 | 100 | 10,5,10 | 130 | 3.4 | 3.8 | ||
| TD4-110 | 110 | 140 | 3.5 | 3.8 | |||
| TD4-120 | 120 | 150 | 3.6 | 4.0 | |||
| TD4-130 | 130 | 160 | 3.7 | 4.0 | |||
| TD4-140 | 140 | 10,5.5,10 | 170 | 3.8 | 4.0 | ||
| TD4-150 | 150 | 180 | 3.8 | 4.2 | |||
| TD4-160 | 160 | 190 | 3.9 | 4.2 | |||
| TD4-170 | 170 | 10,6,10 | 200 | 3.9 | 4.2 | ||
| TD4-180 | 180 | 10,6,10 | 210 | 4.0 | 4.4 | ||
| TD4-190 | 190 | 220 | 4.0 | 4.4 | |||
| TD4-200 | 200 | 10,6.5,10 | 230 | 4.0 | 4.4 | ||
| TD4-210 | 210 | 240 | 4.1 | 4.4 | |||
| TD4-220 | 220 | 250 | 4.1 | 4.4 | |||
| TD4-230 | 230 | 10,7,10 | 260 | 4.1 | 4.6 | ||
| TD4-240 | 240 | 270 | 4.1 | 4.6 | |||
| TD4-250 | 250 | 10,7.5,10 | 280 | 4.2 | 4.6 | ||
| TD4-260 | 260 | 290 | 4.2 | 4.6 | |||
| TD4-270 | 270 | 300 | 4.2 | 4.6 | |||
| TD5-70 | 70 | 12,4.5,8 | 0.5 | 566 | 100 | 2.7 | 3.0 |
| TD5-80 | 80 | 110 | 2.9 | 3.4 | |||
| TD5-90 | 90 | 120 | 3.2 | 3.4 | |||
| TD5-100 | 100 | 130 | 3.4 | 3.4 | |||
| TD5-110 | 110 | 12,5,8 | 140 | 3.6 | 3.6 | ||
| TD5-120 | 120 | 150 | 3.6 | 3.6 | |||
| TD5-130 | 130 | 160 | 3.8 | 3.6 | |||
| TD5-140 | 140 | 12,5.5,8 | 170 | 3.8 | 3.8 | ||
| TD5-150 | 150 | 180 | 4.0 | 3.8 | |||
| TD5-160 | 160 | 12,6,8 | 190 | 4.0 | 4.0 | ||
| TD5-170 | 170 | 200 | 4.2 | 4.2 | |||
| TD6-70 | 70 | 12,4.5,10 | 0.5 | 566 | 100 | 2.9 | 3.8 |
| TD6-80 | 80 | 110 | 3.1 | 4.0 | |||
| TD6-90 | 90 | 12,5,10 | 120 | 3.4 | 4.2 | ||
| TD6-100 | 100 | 130 | 3.6 | 4.4 | |||
| TD6-110 | 110 | 140 | 3.7 | 4.6 | |||
| TD6-120 | 120 | 12,5.5,10 | 150 | 3.8 | 4.8 | ||
| TD6-130 | 130 | 160 | 4.0 | 4.8 | |||
| TD6-140 | 140 | 170 | 4.1 | 5.0 | |||
| TD6-150 | 150 | 12,6,10 | 180 | 4.2 | 5.0 | ||
| TD6-160 | 160 | 190 | 4.3 | 5.2 | |||
| TD6-170 | 170 | 200 | 4.4 | 5.2 | |||
| TD6-180 | 180 | 12,6.5,10 | 0.5 | 566 | 210 | 4.5 | 5.2 |
| TD6-190 | 190 | 220 | 4.6 | 5.4 | |||
| TD6-200 | 200 | 230 | 4.6 | 5.4 | |||
| TD6-210 | 210 | 12,7,10 | 240 | 4.8 | 5.4 | ||
| TD6-220 | 220 | 250 | 4.8 | 5.4 | |||
| TD6-230 | 230 | 260 | 4.9 | 5.4 | |||
| TD6-240 | 240 | 12,7.5,10 | 270 | 5.0 | 5.6 | ||
| TD6-250 | 250 | 280 | 5.0 | 5.6 | |||
| TD6-260 | 260 | 12,8,10 | 290 | 5.0 | 5.6 | ||
| TD6-270 | 270 | 300 | 5.2 | 5.6 | |||
| TD7-70 | 70 | 12,4.5,12 | 0.5 | 566 | 100 | 3.0 | 3.8 |
| TD7-80 | 80 | 110 | 3.2 | 4.0 | |||
| TD7-90 | 90 | 12,5,12 | 120 | 3.5 | 4.2 | ||
| TD7-100 | 100 | 130 | 3.7 | 4.4 | |||
| TD7-110 | 110 | 140 | 3.8 | 4.6 | |||
| TD7-120 | 120 | 12,5.5,12 | 150 | 4.0 | 4.8 | ||
| TD7-130 | 130 | 160 | 4.1 | 4.8 | |||
| TD7-140 | 140 | 170 | 4.2 | 5.0 | |||
| TD7-150 | 150 | 12,6,12 | 180 | 4.4 | 5.0 | ||
| TD7-160 | 160 | 190 | 4.4 | 5.2 | |||
| TD7-170 | 170 | 200 | 4.6 | 5.2 | |||
| TD7-180 | 180 | 12,6.5,12 | 210 | 4.6 | 5.2 | ||
| TD7-190 | 190 | 220 | 4.8 | 5.4 | |||
| TD7-200 | 200 | 230 | 4.8 | 5.4 | |||
| TD7-210 | 210 | 12,7,12 | 240 | 4.9 | 5.4 | ||
| TD7-220 | 220 | 250 | 5.0 | 5.4 | |||
| TD7-230 | 230 | 260 | 5.1 | 5.6 | |||
| TD7-240 | 240 | 12,7.5,12 | 270 | 5.2 | 5.6 | ||
| TD7-250 | 250 | 280 | 5.2 | ||||
