The Complete Installation Guide for Insulated Metal Buildings

Installing insulated metal buildings is a systematic process that requires careful planning, precise execution, and strict adherence to manufacturer guidelines. When properly installed, insulated metal panels (IMPs) deliver superior thermal performance, structural integrity, and long-term durability. This complete guide walks you through every stage of the installation process, helping ensure your building performs optimally for decades to come.

Site Preparation and Foundation Construction

The installation process begins with thorough site preparation. Clear and level the building site, ensuring it is properly graded and free of any debris, vegetation, or obstructions. Proper drainage should be established to prevent water accumulation around the foundation, which could compromise the building's long-term performance. Once the site is ready, construct a suitable foundation based on the size, design, and load requirements of your building. Options typically include concrete slabs or pier footings, and the choice should be made in consultation with a structural engineer or building professional to ensure it meets local codes and project specifications. A solid foundation is essential for the structural stability of the entire building system.

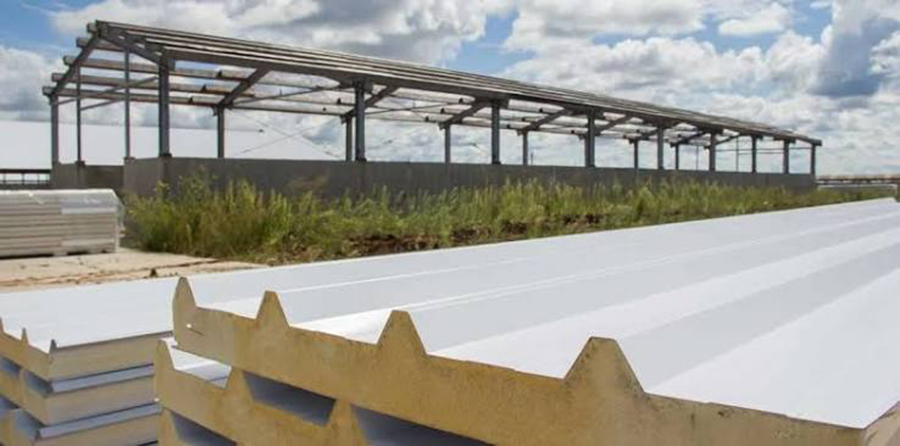

Frame Assembly

With the foundation in place, the next step is erecting the structural steel framing that will support the insulated metal panels. Follow the manufacturer's engineering plans and assembly instructions carefully, as precise alignment at this stage directly affects the fit and performance of the panels later. This process typically involves assembling columns, rafters, and purlins to create the complete framework. Ensure all connections are properly tightened and that the frame is plumb, square, and level before proceeding. Any deviations in the framing can lead to gaps, misalignments, or stress points that compromise both the appearance and performance of the insulated panels.

Panel Installation

Once the structural frame is complete, begin installing the insulated metal panels according to the manufacturer's specifications. Panels are typically attached to the structural framing using screws or specialized fasteners. Start from a corner or edge of the building and work systematically across to ensure consistent alignment and proper engagement of the panel interlocking joints. Pay close attention to achieving a secure and tight fit for each panel, as gaps or loose connections can lead to thermal bridging, air leakage, and moisture intrusion. Proper handling during installation is also critical, as damaged panel edges or surfaces can compromise both appearance and long-term durability.

Roofing, Flashing, and Openings

After wall panels are installed, proceed with the roof panel installation, applying any necessary flashing to ensure comprehensive waterproofing and weatherproofing. Joint sealing is particularly important at roof intersections, ridges, eaves, and valleys, as these areas are most vulnerable to water infiltration. Install doors, windows, and other wall openings following the manufacturer's instructions, ensuring that all trim and flashing around these penetrations are properly integrated with the panel system. Finally, install insulation and vapor barrier materials between the interior and exterior metal panels as specified by the manufacturer's guidelines. This step is essential for achieving the thermal performance and condensation control that insulated metal buildings are designed to deliver.

To ensure optimal performance, high-quality insulated metal panels must be paired with professional installation. Yumisteel's insulated metal panels are backed by a robust portfolio of international certifications.

Yumisteel has also produced a detailed installation video demonstrating the proper procedures for installing insulated metal buildings.

For more information needed or any inquiry,please feel free to contact Yumisteel team.
