The Real Reasons Steel Structure Roofs Leak

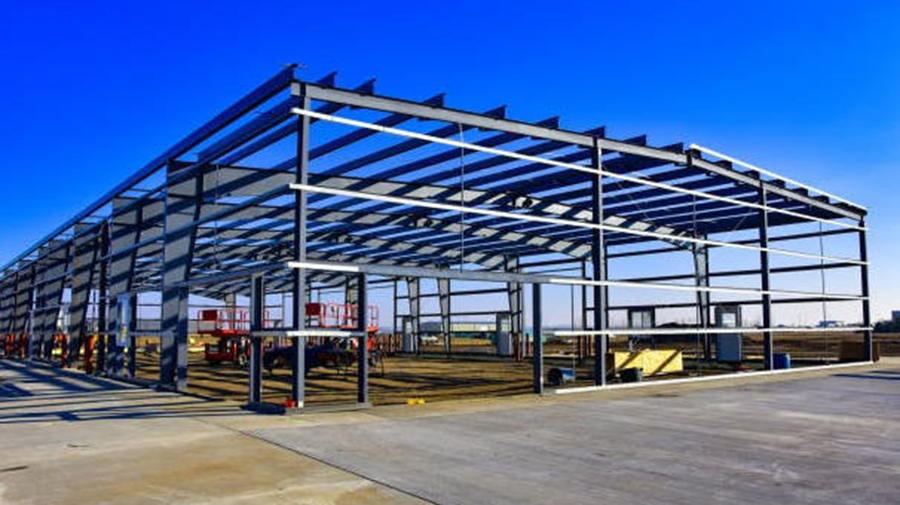

I. Types of Steel Structure Roofs

As the uppermost load-bearing and enclosure structure of a building, the roof plays a critical role in both protection and architectural appearance. It is one of the most vulnerable parts of a light steel structure enclosure system when it comes to water leakage. The main functions of the roof are to resist wind, rain, and snow, to block solar radiation, and to bear its own weight as well as external loads from wind, snow, and occupants.

☆Light steel structure roofs can be categorized by material into various types, including color-coated steel sheets, color steel sandwich panels, multi-color asphalt shingles, various lightweight roof panels, GRC panels, metal arched corrugated roofs, and composite profiled steel sheets.

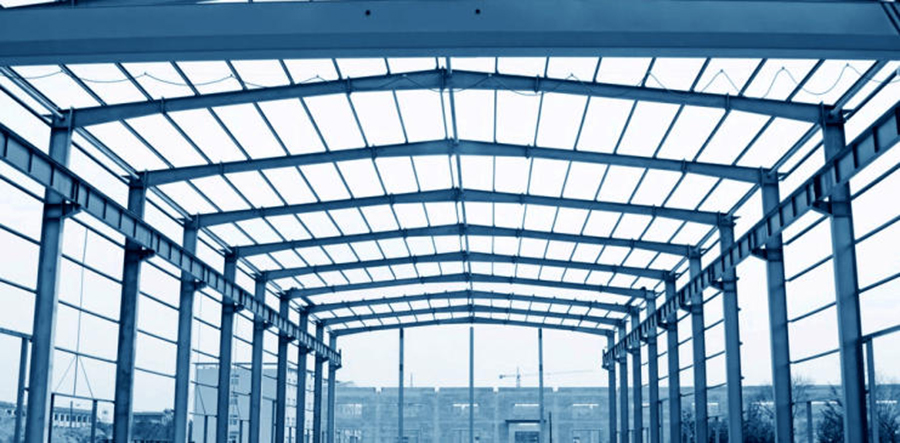

☆The primary materials used for light steel structure roofs and walls are color-coated profiled sheets or sandwich panels. The connections for color-coated profiled sheets include 360° seamed panels, concealed clip panels, and through-fix panels. The purlins are typically thin-walled C-section or Z-section steel purlins, with a roof slope generally designed between 1/10 and 1/15.

II. Connections of Roof Panels

Roof panels in steel structure buildings have two types of connections: longitudinal (end-to-end) and lateral (side-to-side). Longitudinal connections are primarily lapped, with the upper panel overlapping the lower panel. Waterproof sealant and fixing battens are applied at the lap joint. Lateral connections currently come in three main types: lap connection, concealed clip connection, and seamed concealed clip connection.

III. Causes of Leaks in Various Areas and Solutions

Leaks in the roof enclosure system can be summarized by location as follows:

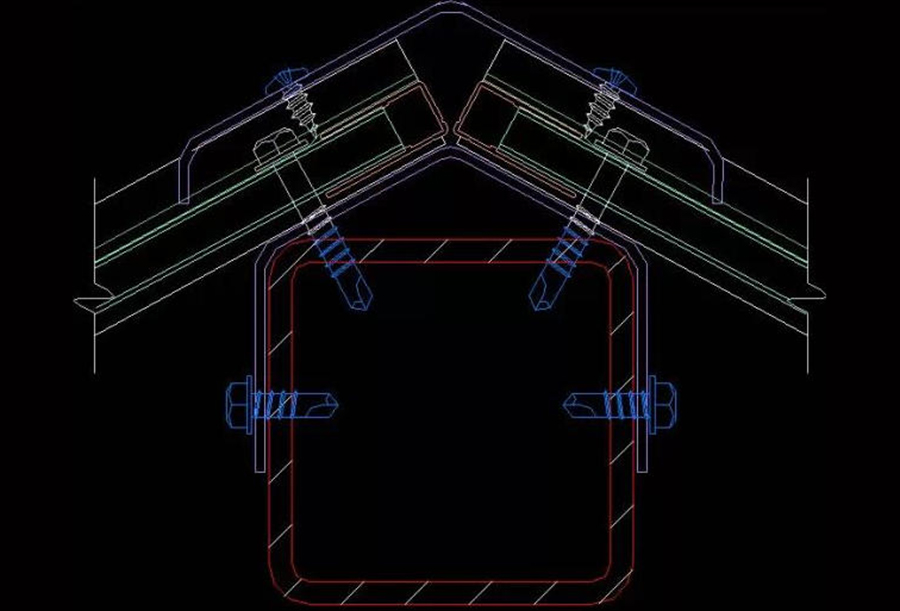

Roof Ridge Area

☆Causes of leaks: The corrugation peak at the ridge is too high, preventing the ridge cap from providing adequate waterproofing. No sealing mastic or silicone is applied at longitudinal laps, creating gaps. Rivets used at longitudinal laps of the ridge cap are insufficiently strong to withstand thermal expansion and contraction, causing them to break. No end seals are installed between the ridge cap and roof panels, or the end seals are improperly placed and fall off.

☆Solutions: Widen the ridge cap and increase the slope. Apply sealing mastic or silicone at lap joints. Replace rivets. End seals must match the panel profile and be installed with sealing mastic or silicone both above and below.

Roof Monitor (Ventilator) Area

☆Causes of leaks: No foam end seals are placed beneath the trim at the junction of the monitor and roof, and no mastic or silicone is applied at longitudinal laps. The exterior roof panel is not turned up at the monitor junction. Openings in the monitor's structural supports are not waterproofed. The monitor itself may have manufacturing or installation defects that cause leaks.

☆Solutions: Install foam end seals before installing trim. Apply mastic or end seals at longitudinal laps and secure with rivets. Turn the roof panel up before installing the monitor. Require the monitor installer to waterproof all openings after the structure is complete. Inspect the monitor's installation quality and waterproofing.

Skylight Area

☆Causes of leaks: The skylight profile does not match the roof panel profile, and the corrugation peaks on both sides of the skylight are higher than the roof panel. After installation, excessive sealing creates an air pressure difference between the inside and outside of the skylight, allowing capillary water to enter through gaps on both sides. The longitudinal lap length of the skylight is insufficient, and the mastic has aged and lost its adhesion. Mastic comes off longitudinally. The rigid connection between the skylight and the color steel panel leaves gaps unsealed.

☆Solutions: Drive waterproof screws at the top of the corrugation peaks. The trim at the skylight must be securely sealed to the skylight. Widen the mastic on both longitudinal sides and apply it over the corrugation peaks to prevent capillary water infiltration.

Roof Openings (Pipes, Vents, etc.)

☆Causes of leaks: Openings are not waterproofed according to design details. No waterproof mastic or silicone is applied under steel end seals. The reserved area around the opening is too small, preventing smooth rainwater drainage and causing ponding. The flashing around the opening is not waterproofed at lap joints. No structural members are added around the inside of the opening, creating low spots where water collects. Waterproofing work creates damming, leading to ponding.

☆Solutions: Follow design drawings and strictly adhere to construction procedures. Apply mastic and silicone. Ensure sufficient space around openings for drainage. After making openings in walls or roofs, immediately perform waterproofing treatment. For retrofitted openings, add purlins or angle steel structures to minimize enclosure deformation. Waterproofing installations must be tight and flat to ensure smooth water flow.

Eave Area

☆Causes of leaks: The eave is a primary source of leakage problems. No foam end seals are installed when installing exterior roof panels, and the roof panels are not turned down. The exterior wall panels are too short, and no waterproof trim is added at the eave.

☆Solutions: Install foam end seals simultaneously with the exterior roof panels, and turn the roof panel down 30 degrees. Add trim at the eave as required by design.

Gutter Area

☆Causes of leaks: Gaps exist at welded joints of the internal gutter, causing water seepage. The gutters and downspouts are undersized for the roof slope length. No end plates are installed at the gutter ends. The exterior roof panel does not extend far enough into the gutter, allowing water to flow back into the building.

☆Solutions: Increase the gutter depth appropriately so that water in the gutter does not exceed the lap joint.

Brick Wall to Light Steel Roof Connection

☆Causes of leaks: This area is prone to leakage. Water leaks at the junction between roof panels and cement walls are primarily caused by different stress movements, which lead to cracking of the silicone sealant at the bonding surface.

☆Solutions: Prevent temperature deformation by using two layers of trim connection. When connecting to brick walls, the trim should have a certain angle and be completely sealed. Pre-apply sealant between trims.

IV. Other Causes of Leaks in Enclosure Systems

Design Issues

☆The roof drainage system does not include overflow provisions as required by code. When rain intensity exceeds the system's discharge capacity, water will overflow lap joints or even onto the roof, causing problems.

☆Insufficient downspouts cause water to travel long distances along the gutter, leading to ponding. No L-shaped trim is added to the top of exterior wall panels, creating a hidden leak path at the inside of the gutter.

☆Color steel flashing details are poorly designed and ineffective.

☆Code-specified deflection limits are violated. Purlins and roof beams deflect beyond L/180. Purlins are undersized or spaced too far apart, causing excessive deformation under wind loads.

☆Insufficient consideration of structural deformation, temperature changes, drying shrinkage, and vibration leads to inadequate waterproofing for substrate movement.

☆The roof slope for portal frame light steel buildings should be between 1/8 and 1/20, with steeper slopes in high-rainfall areas. In southern China, the slope should not be less than 5%. In many actual designs, the roof slope is too shallow, preventing timely drainage to the gutters.

Improper Material Selection

☆Plastic downspouts lack strength and are easily damaged from installation to operation.

☆Steel sheet used for gutters is too thin, making welds prone to failure.

☆Skylight and roof panel profiles are not matched to the roof slope. Low corrugation peaks and insufficient side laps impede drainage.

☆Enclosure panels are too thin. After a period of use, exterior panels corrode or deform due to temperature changes, widening gaps between panels.

☆Poor galvanized coating quality on base sheets and thin paint layers shorten service life and lead to early corrosion.

☆Poor-quality rubber gaskets on self-drilling screws crack easily; glass sealants age quickly.

☆Obvious deformation of clip panels, with inconsistent heights and spacing between adjacent panels. Clip panel rivets should be waterproof rivets.

Construction Detailing

☆End seals are important for stopping leaks caused by gaps and should not be overlooked. For example, ensure end seals are properly installed between color steel panels and ridge caps, apply silicone sealant under end seals between skylights and ridge caps, and install steel end seals at the ends of corrugation peaks at roof openings.

☆Lap gaps can widen with temperature changes. Sufficient lap length must be reserved.

☆Water should be drained rather than blocked. During installation, applying sealant on the inside of panels is beneficial — the more, the better.

☆The adverse effects of thermal expansion and contraction on steel roof enclosure systems must be taken seriously, with reasonable construction measures adopted.

During Use

☆Adding loads random on roof purlins deforms the roof panels.

☆Debris accumulates on gutter strainers, blocking water flow.

☆Waterproofing sealants and gaskets age without proper maintenance.

Many factors contribute to water leakage in steel structure enclosure systems. To fundamentally solve the problem, careful design is required. Reasonable solutions should determine proper treatment of the following: the termination point of the waterproof layer, movement joints and control joints, water outlets, entry points, eaves, and penetrations such as parapet roots, equipment bases, pipe penetrations, and chimney bases. Construction should follow a dedicated waterproofing plan for the enclosure system, with all trades coordinating properly. Only through complete design, proper installation, sound detailing, correct usage, and ongoing service can we ensure that steel structure enclosure systems remain truly watertight. In short, regardless of the installation method, following proper procedures and specifications can significantly reduce or prevent leakage problems.
