Understanding the Difference Between Sandwich Panels and Color Steel Sheet

Sandwich panels and color steel sheets are two of the most widely used enclosure materials in modern steel structure buildings. Although both use color steel sheets as the surface layer, they differ fundamentally in their structural form: color steel sheets are single-layer metal sheets, while sandwich panels are composite panels composed of "two metal surface layers + a core material in between." It is this core layer that leads to drastically different technical approaches in terms of mechanical properties, thermal insulation, and applicable scenarios.

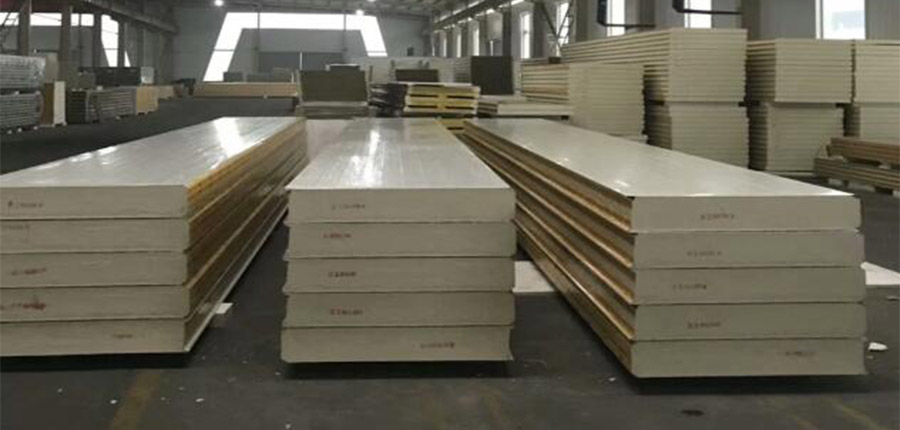

A sandwich panel is a composite board with two sides covered by color-coated metal sheets and different types of core materials (such as rock wool, polyurethane, EPS, etc.) sandwiched in the middle. Its performance adjusts depending on the core material, making it a building material that integrates load-bearing, enclosure, and functionality.

☆Excellent thermal insulation

This is the biggest functional advantage of sandwich panels. Thanks to the core material (such as polyurethane, rock wool, etc.), it can effectively block heat transfer, making it particularly suitable for buildings with strict temperature control requirements (such as cold storage and workshops).

☆High hardness and leak-proof design

Sandwich panels have good hardness and structural stability. Its unique composite structure and robust fixing method effectively avoid the joint leakage problems of traditional roofs, improving the overall waterproofing performance of the roof.

☆Long Service Life

Due to its reasonable fixing method and the weather resistance of the material itself, sandwich panels have a long service life under normal use conditions, reducing the cost of later maintenance and replacement.

☆Wide Application Range

Sandwich panels are not only suitable for roof construction of steel structure buildings, but can also be widely used in wall panel construction, making it a multi-functional material that combines structural and decorative properties.

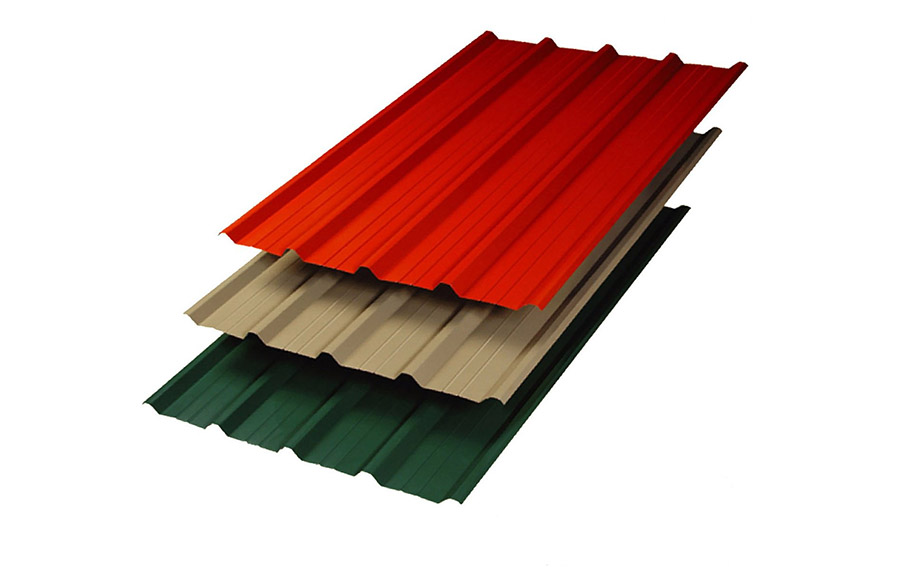

Color steel sheet is a single-layer color-coated steel sheet, mainly used in the cladding systems of steel structure buildings. It is typically used in building scenarios where high-temperature resistance requirements are not high. With its efficient construction characteristics and cost advantages, it has become the preferred material for most general-purpose factories and temporary buildings.

☆High Installation Efficiency and Low Cost

Color steel sheet is mainly used in steel structure buildings. Its construction process is simple and quick, significantly shortening the construction period. At the same time, the cost of the material itself and the production process is relatively low, offering good economic benefits and making it very suitable for projects with limited budgets.

☆Low Transportation Loss

Color steel sheets allow for better control over land and air transportation during production and logistics. Reasonable packaging and shipping methods effectively reduce material damage before installation, thus solving the problem of roof panel breakage during transportation and construction.

☆Flexible and Adjustable Size

Color steel sheets can flexibly adjust the height of the corrugations (crests) and the length of the sheets according to the actual span and roof slope requirements of the steel structure building. This customization capability allows it to better adapt to steel structure workshops with different designs.

☆High Functional Integration

Color steel sheets integrate the functions of sheet forming and hoisting. This means that after factory forming, it can be directly hoisted and spliced on-site, reducing intermediate processing steps and further improving construction convenience.

In conclusion, sandwich panels and color-coated steel sheets each have their advantages. The former excels in insulation and strength, while the latter wins in efficiency and cost. For large steel structure buildings, there is no absolute "best," only the most suitable "choice." Whether it's a workshop seeking a constant temperature environment or a warehouse prioritizing construction schedules, clearly defining the building's own needs is the best answer to this choice.
