What Is K-tpye Prefabricated Mobile House?

K-type Prefabricated Mobile House

The K-type prefabricated house is a brand-new concept of environmentally friendly and economical prefabricated house launched by our company. According to the needs of customers, the space can be combined based on standard modules. A light steel structure is adopted to form its skeleton system, and sandwich wall panels and tiles are used to form the enclosure and roof systems.

The K-type prefabricated house has a tight seal, good heat insulation and thermal preservation performance. It is waterproof, fireproof, moisture-proof, and can withstand an earthquake intensity of 7 degrees and wind resistance of level 8. The house types usually include the forms of enclosed corridors and overhanging corridors.

What is the application of the K-type prefabricated house?

The components of the K-type prefabricated house are transported in disassembled parts, and it is convenient and quick to install. It is widely used in temporary offices and dormitories on construction sites; temporary construction houses for large-scale field explorations and field operations in industries such as railways, transportation, water conservancy, petroleum, and natural gas; temporary commercial or other houses in urban municipalities; houses for earthquake relief and in the military field; and additional storeys on rooftops, etc.

The representation method of the K-type prefabricated house

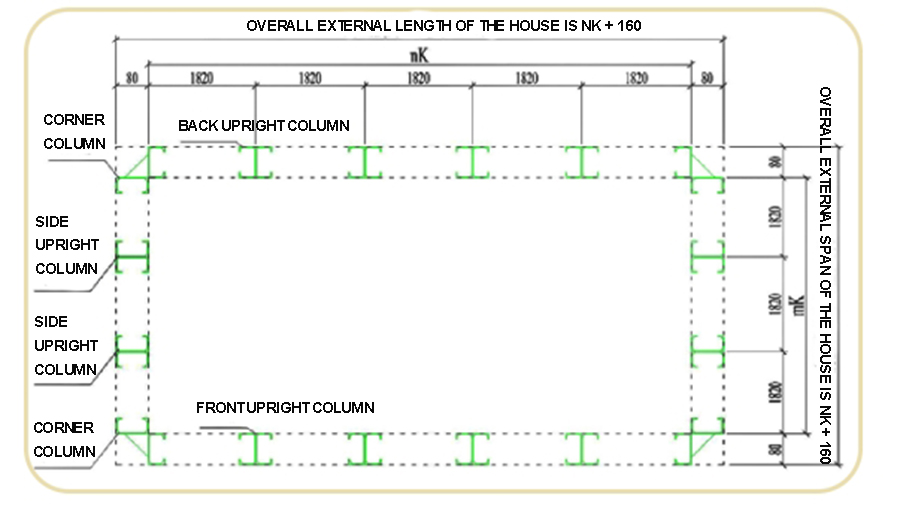

Standardized components are generally used, and both the length and width are in the modulus of K (1K = 1820mm). The transverse dimension of the house is mk + 160, and the longitudinal dimension is nk + 160.

Standard term: mK × nK × hP = width × length × height. P = 950mm. The width m can be selected from (3, 4, 5, and now large-span house types can be customized according to the needs of the Party A); the length n can be selected freely. The height h can be selected from (3, 6, 9).

Calculation rules for the area of sloping roof prefabricated houses

1	Main area = length of the outer side of the exterior wall * width * number of floors
2	Area of outdoor stairs and walkways = horizontal projection area of natural floor x canopy area
3	Half of the horizontal projection area of canopy
Total area = 1+ 2 + 3

Two stairs on a standard floor, one on each wall, each 4.5m long. When adding or removing stairs, increase or decrease according to this number

Unless otherwise specified, the calculation method for engineering quantities shall be settled according to the above calculation specifications

FAQ:

☆What are the materials of the frame and wall panels of the K-style movable house?

The frame is usually made of steel, and the wall panels are 50mm EPS sandwich panels. The fire protection rating is Class A.

☆What is the maximum span size of the K-style movable house?

It can usually reach 4k (7.44m). The specific span can be customized according to the customer's requirements, and corresponding structural optimization can be carried out. The price is much lower than that of the same type of storage workshop.

☆What is the service life of the K-style movable house?

As a temporary construction structure, the general service life is 5 to 8 years.

☆How many floors can the K-style movable house have?

Under normal circumstances, it can have two floors. If the customer has special requirements, we can design it according to the customer's requirements.
