Can't tell the difference between a roof purlin and a wall purlin? You're not alone. Many newcomers in the industry think they're interchangeable just because both are called purlins. The truth is, their design logic, load analysis, and detailing requirements couldn't be more different. Today, I'll make it clear with a simple table.
☆ Core difference: one resists 'gravity', the other resists 'wind'
Comparison | Roof Purlins | Wall Purlins |
Dominant load | Vertical loads (snow, self-weight, construction loads) | Horizontal wind loads (pressure / suction) |
Load behavior | Mainly load-bearing; lower flange can buckle under wind uplift | Resists bending and shear; controls horizontal forces |
Typical scenarios | Snow load, wind uplift | Wind pressure & suction |
☆ Section selection: one needs heavier sections, the other can be lighter
Comparison | Roof Purlins | Wall Purlins |

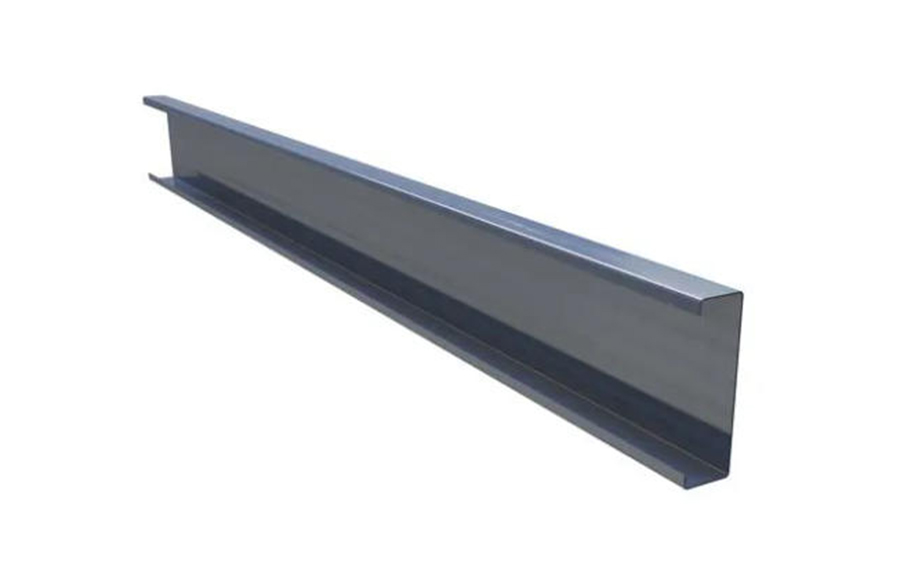

Common sections | C, Z (light & economic; Z allows lapping for continuous beams), high-frequency welded H-section (for large spans) | Mostly C-section (easy to connect wall panels); H-section for large spans / high wind pressure |
Selection logic | The larger the span or snow load, the taller the section and thicker the web | Wind pressure zones determine spacing and section; generally smaller than roof purlins |

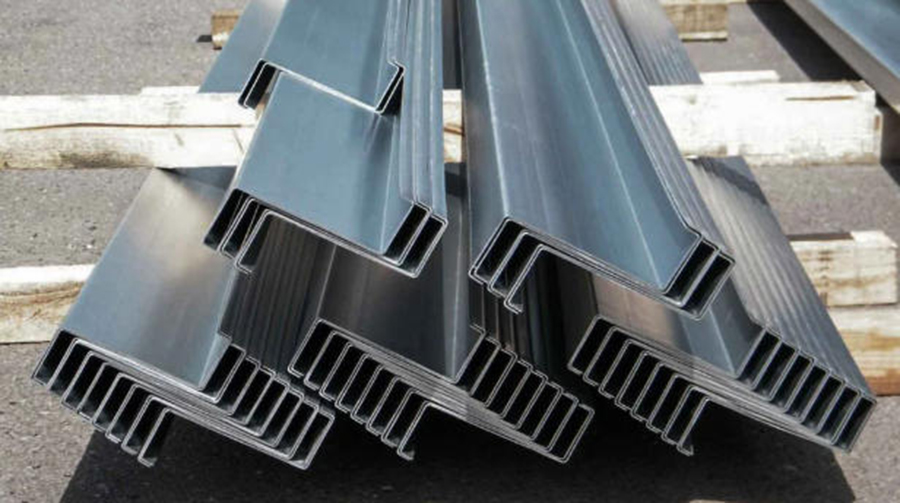

Key tip: Z-section is more economical than C-section for roof purlins because Z-purlins can be lapped at supports (lap length ≥10% of span with proper bolting) to form a continuous beam. Under ideal lapping conditions, the moment can be reduced by 30–40% compared to simple-span purlins. In real projects, considering joint slip, a reduction of 10–20% is typically used for conservative design.
☆ Key details: roof needs 'double ties', walls need 'columns'
Comparison | Roof Purlins | Wall Purlins |
Critical detailing | Double row of sag rods (top & bottom flanges), plus knee braces (connect beam lower flange to purlin) | Single row of sag rods + wall column cooperation + opening reinforcement |
Why | Under wind uplift, the lower flange is in compression; without lower sag rods, it’s like lifting a bent person – prone to buckling | Large wall areas subject to wind need wall columns to share loads; openings are weak spots requiring denser members |
☆Different design check priorities
Comparison | Roof Purlins | Wall Purlins |
Key checks | Overall stability under wind uplift (lower flange) + vertical deflection | Strength & stability under horizontal wind loads + horizontal deflection |
Deflection limits | Vertical: L/150 (no ceiling), L/200 (with ceiling) | Horizontal: generally L/150 (can be tightened to L/200 for special requirements) |
☆Installation sequence: roof first, then walls

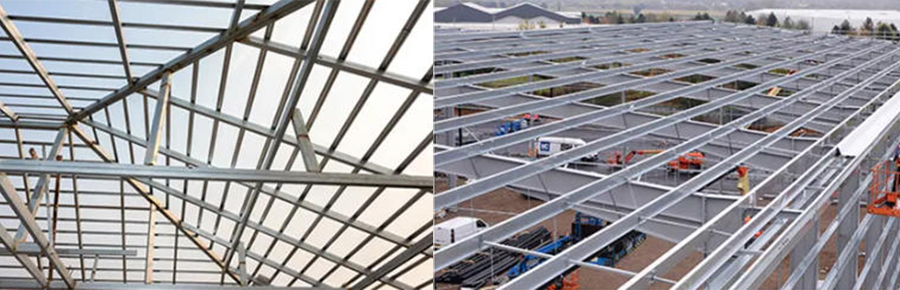

Correct order: install roof purlins first to form a stable space frame, then install wall purlins. Wall purlins rely on the roof purlin system to create an integral wind-resistant system.
☆One-table summary
Comparison | Roof Purlins | Wall Purlins |
Primary load | Vertical (snow, self-weight) | Horizontal (wind pressure) |
Common sections | Z, C, H | Mostly C |
Critical details | Double sag rods, knee braces | Single sag rods, wall columns, opening reinforcement |
Design focus | Uplift stability, vertical deflection | Strength, horizontal deflection |
Deflection control | Vertical: L/150 (no ceiling), L/200 (ceiling) | Horizontal: L/150 |
Corrosion protection | Both require hot-dip galvanizing ≥65μm in humid/corrosive environments | Both require hot-dip galvanizing ≥65μm in humid/corrosive environments |
Installation order | First | Later |
Roof purlins and wall purlins look similar, but their load paths, section choices, and detailing requirements are totally different. Understand them well ,then you won’t mess up design or installation.
