Yumisteel
Product introduction

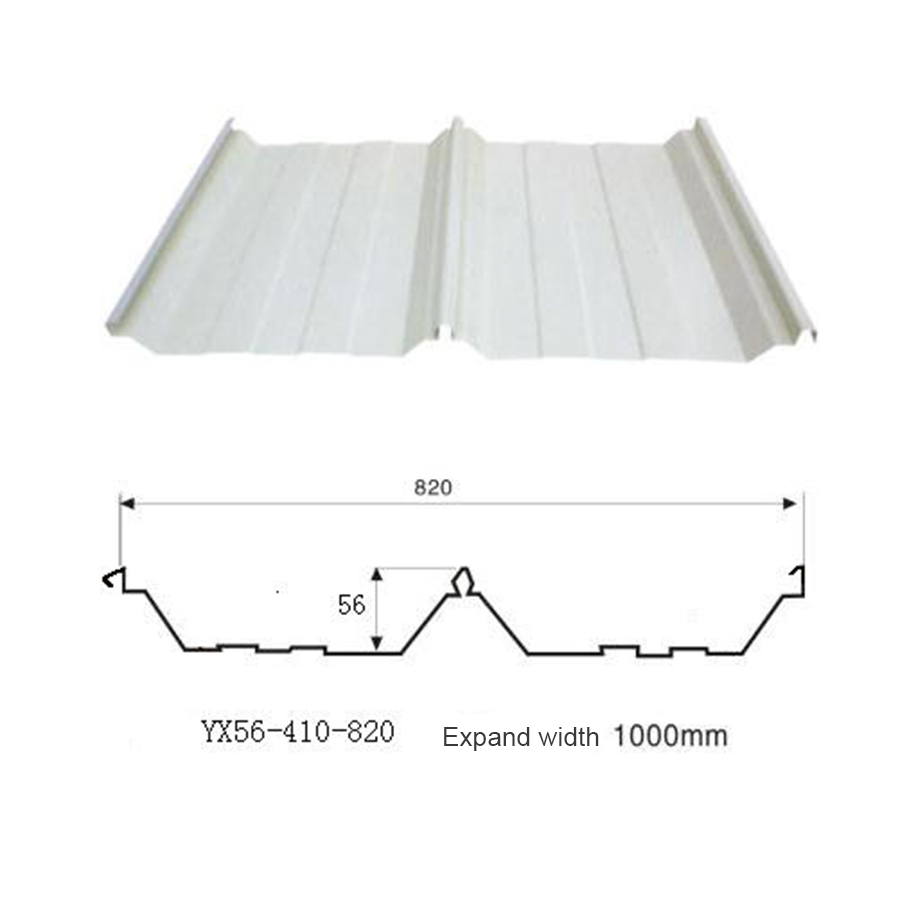

YX56-410-820 is a type of corrugated steel sheeting used for roofing cladding, characterized by its 56mm rib height and 410mm rib distance, resulting in an effective modular width of 820mm. It is typically made from high-quality galvanized or color-coated steel.
The YX56-410-820 corrugated color coated roofing sheet offers exceptional durability and weather resistance for long-term protection. Its high-strength design provides excellent load-bearing capacity, while the pre-painted finish ensures superior color retention, corrosion resistance, and minimal maintenance, delivering a reliable and cost-effective roofing solution.
This roofing sheet is widely used for industrial buildings, commercial warehouses, and large-span structural roofs. It is also an ideal material for agricultural facilities, logistics centers, and sports complexes, providing reliable coverage and modern aesthetics for diverse architectural and construction projects.
Product specifications
TYPE | EFFECT WIDTH(mm) | FEEDING WIDTH(mm) | THICKNESS (mm) | SECTION INERTIA(cm4/m) | SECTION RESISTANC (cm4/m) | APPLICATION |
YX56-410-820 | 410 | 1000 | 0.5 | 31.05 | 10.24 | Roof panels |
0.6 | 37.27 | 12.28 | ||||
0.8 | 49.65 | 16.39 | ||||
1.0 | 62.11 | 20.48 |
Material & Finishes
Material options | Thickness range | Available color | Material grade |
AL-MG-MN alloymetal sheets | 0.7-1.2mm | Mill finished or asper RAL color | 3003/3004 H24 |
PPGI /PPGL steelsheets | 0.30-0.75mm | As per RAL color | S320/350/440/500/550GD;Z80G-Z275G;AZ60-200G. |
Galvanized steelsheets | 0.30-0.80mm | Galvanizednatural color | S320/350/440/500/550GD;Z80G-Z275G. |
Alu-zinc steelsheets | 0.30-0.80mm | Galvalume natural color | S320/350/440/500/550GD;Z80G-Z275G. |
Regular colour
FAQ
1. Q: Are you a manufacturer?
A:Yes, we are manufacturers. We have our own factory and our own company. I believe we will be the most suitable supplier for you.
2. Q: Can we visit your factory?
A: Sure, we welcome you to visit our factory , check our production lines and know more about our strength and quality.
3. Q: Do you have quality control system?
A: Yes, we have ISO, BV, MTC, certifications and our own quality control laboratory.Third party testing services are also available
4. Q: Can you arrange the shipment for us?
A: Yes, we have designated sea freight and railway freight forwarders with decades of experiences and we get the best price with earlist vessel and professional service.
5. Q: Can I get some samples?
A: We are glad to provide free samples to you, but we do not offer the freight.
Service&Support
☆Service
Xiamen Yumi New Material Tech. Co., Ltd. is one combination of industry and trade company, and very professional with steel structure products in China. We are proud of our product quality and customer service and competitive price.And our products are sold worldwide, such as America, South America, Europe, Southeast Asia, Africa etc.
1)Professional sales team,One-to-one service;
2)Combination of industry and trade company,to ensure the service and price;
3)Experienced engineer team to offer professional technology service;
4)Intimate after-sales service.
☆Support
Experienced technology suport, competitive price, professional service, we are here to help you go on with your project smoothly.
