Z Purlins in Modern Construction

Structural and Economic Advantages of Z Purlins

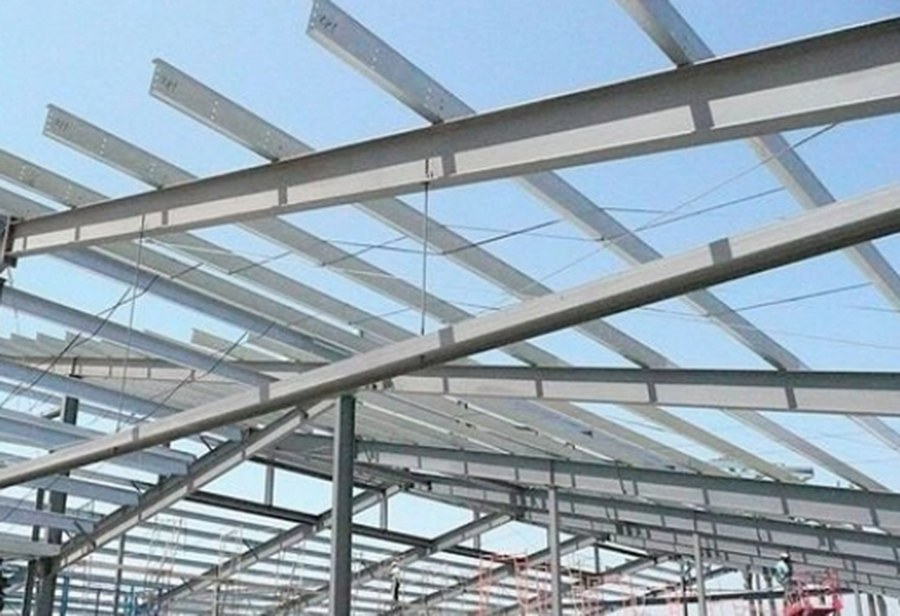

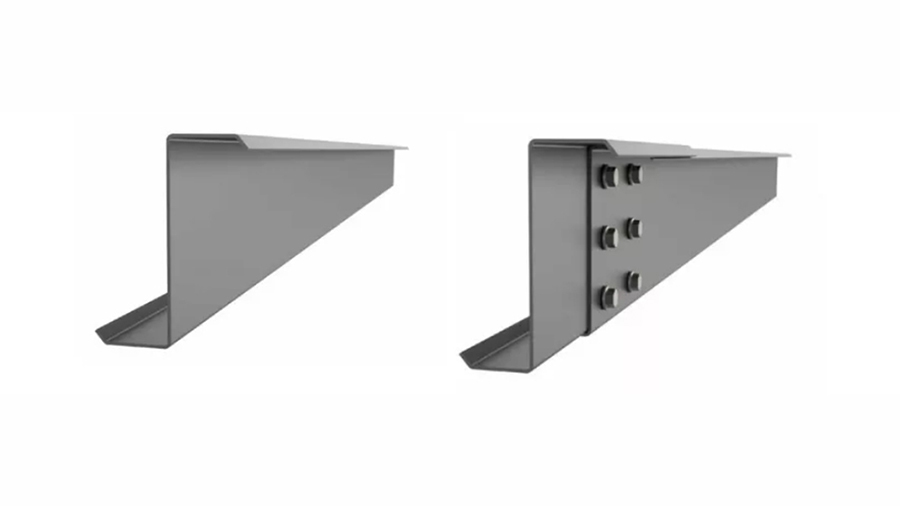

Z purlins are cold-formed steel profiles widely used in modern steel buildings due to their lightweight yet robust design. Their Z-shaped cross-section offers superior load-bearing efficiency compared to traditional hot-rolled purlins, reducing material costs while maintaining structural integrity. The parallel flanges ensure optimal contact with roof cladding (e.g., trapezoidal sheets or sandwich panels), enhancing stability and load distribution. Their sloped alignment with the roof minimizes torsion, a critical factor in open-section steel elements. Originally designed with uniform web widths to align the center of gravity with the shear center, modern Z purlins now feature asymmetrical webs (wider top flanges) for easier lapping and joint formation. This innovation simplifies on-site assembly while maintaining computational advantages for diagonal bending.

Design Innovations and Material Efficiency

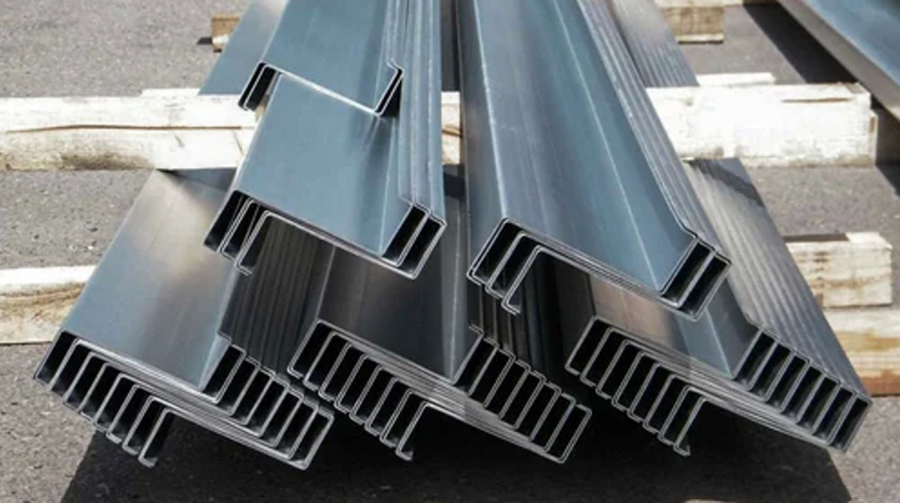

Z purlins are fabricated from high-strength steel (350–460 MPa yield strength) to maximize load capacity with minimal weight, making deflection rarely a limiting factor. Advanced manufacturing techniques incorporate stiffeners (bends or folds) along the profile to counteract local buckling, ensuring durability under heavy loads. Their interlocking design allows nested stacking, optimizing transport and storage space. The angled edges facilitate quick installation, reducing labor costs—a key reason for their preference in industrial sheds, warehouses, and modular buildings. By balancing structural performance with cost-effective production, Z purlins remain the go-to solution for efficient, long-span roofing systems.

Dimensions and Design Flexibility of Z Purlins

Z purlins, essential for steel structures like industrial halls and warehouses, feature standardized yet adaptable dimensions. Typically formed from 1.0–4.0 mm thick steel sheets, their heights range from 100–450 mm. The asymmetrical design includes a wider top flange (45–100 mm) and narrower bottom flange (40–95 mm), optimizing strength and installation efficiency. These lightweight yet robust profiles are engineered to accommodate specific spans, cladding weights, and environmental loads (snow/wind), balancing structural performance with material economy. Manufacturers offer varied dimensions to suit project requirements, ensuring versatility across applications.

In all,Z purlins revolutionize modern construction with their lightweight strength, cost efficiency, and easy installation, making them ideal for industrial, commercial, and modular buildings.
