100mm Thick Customized EPS Foam Sandwich Panel for Building

EPS sandwich panel with good thermal & heated insulation, sound insulation, and it is easy to install. We have two types of EPS wall panels for choices.This steel panels are widely used as external or partition wall. MOQ:500M2/color & size
Quantity:
  • 100mm
  • YUMI

Panels with EPS Material:

The history of sandwich panels began with EPS (polystyrene).EPS sandwich panel with good thermal & heated insulation, sound insulation, and it is easy to install.Sandwich panels with an EPS core are, a budget solution that can be used successfully whenever there are no stringent requirements for fire resistance or thermal insulation.

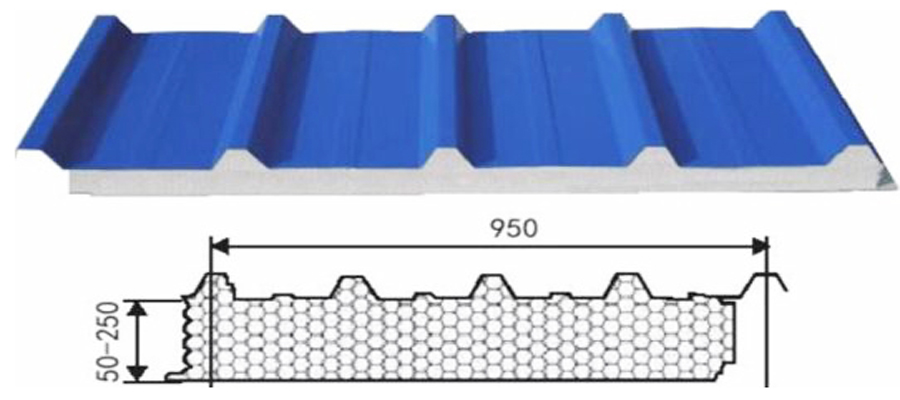

EPS Panel Specification:

EPS PANEL

Panel effective width: 950 mm
Steel sheet thickness: 0.30 ~ 0.70 mm
Panel thickness: 50/75/100/150/200/250 mm
EPS density: 8 ~ 20 KG/M³
Color: As per RAL or customized
Coating: PE, SMP, HDP, PVDF.
Steel type: PPGL, PPGI steel / Aluminum sheet / Stainless steel sheets
Length limitation: Max 5.9m for 20FT;
Max 11.9m for 40FT.
Installation accessories: Aluminum U channels,self screws, flashings, etc.

Panel features:

☆Heat& thermal insulation,

☆Light weight with high strength,

☆Available colors: white, sea blue, grey, red, orange, yellow,green, purple, black, etc. or can be customized,

☆Long life,

☆Waterproof,

☆Sound insulation,

☆Favorable price,

☆Easy to install.

Application:

EPS sandwich panelEPS panel project

Panel Packing & Storage:

☆Packing:

  • Seaworthy packing standards.

  • PVC on both sides to protect the roof panel surfaces.
  • Packed with kraft paperto protect the panel ends.
  • Put EPS foam on the each space to keep the panels from squeezing each other.

☆Storage:
  • Store the panel in covered area.
  • There must be sleepers,or other materials suitable as a bottom for the panels stack.
  • Max 2 meters high you can stack the panels.
  • Roof panels are better to place above on wall panles.

If you have specail requirement,please fee free to discuss with us.This is to make us improved and pretect the goods well.
